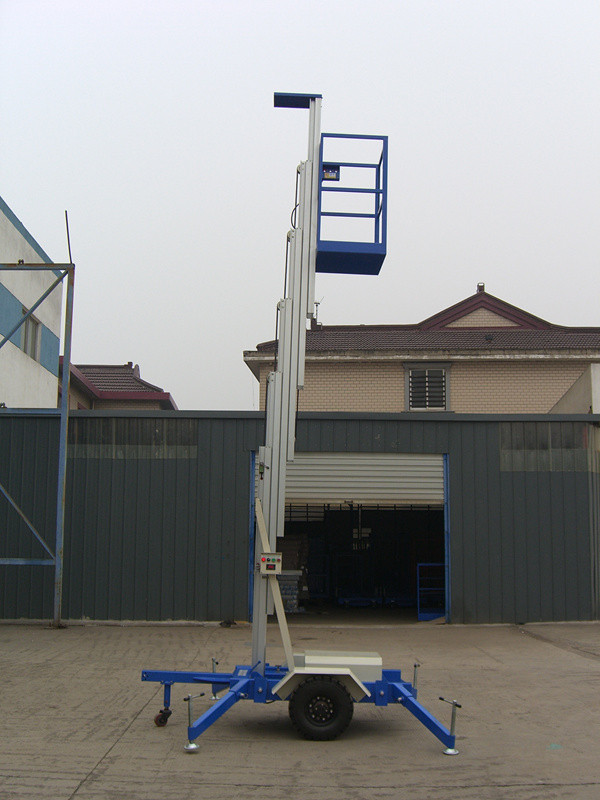

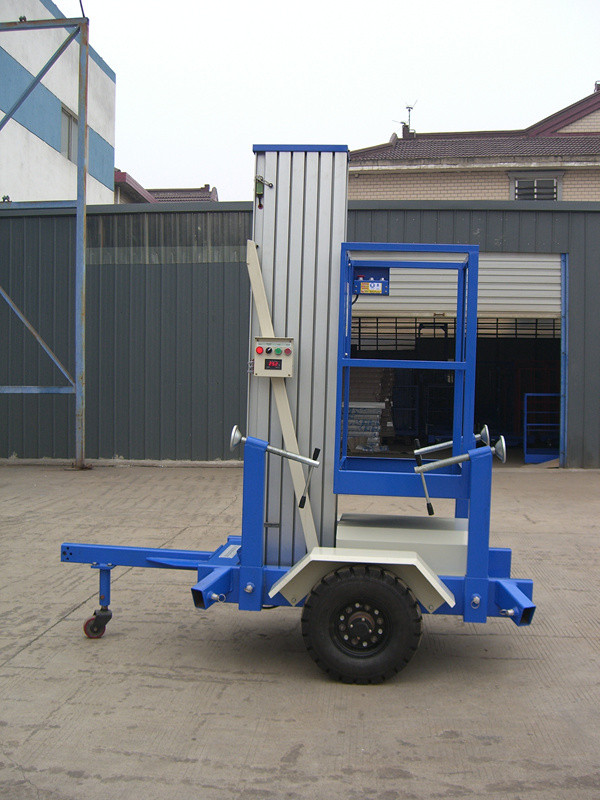

6 Meters Platform Height 130kg Loading Capacity Towing Single Mast Aerial Work Plaform For Long Distance Transportation

    • 6 Meters Platform Height 130kg Loading Capacity Towing Single Mast Aerial Work Plaform For Long Distance Transportation
    • 6 Meters Platform Height 130kg Loading Capacity Towing Single Mast Aerial Work Plaform For Long Distance Transportation
    • 6 Meters Platform Height 130kg Loading Capacity Towing Single Mast Aerial Work Plaform For Long Distance Transportation
    • 6 Meters Platform Height 130kg Loading Capacity Towing Single Mast Aerial Work Plaform For Long Distance Transportation
  • 6 Meters Platform Height 130kg Loading Capacity Towing Single Mast Aerial Work Plaform For Long Distance Transportation

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: GTWY6-100 (ME600-1)

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Wrapped in pallet or in wooden case
    Delivery Time: 30day after down payment
    Payment Terms: T/T L/C
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Lift Capacity: 130kg Platform Height: 6m
    Working Height: 8m Platform Size: 0.60x0.55m
    Outrigger Footprint: 1.70x1.67m Lifting Power: 0.75kw
    Lifting Time: 55s Overall Size: 1.34x0.85x2.00m
    Weight: 370kg



    6 Meters Platform Height 130kg Loading Capacity Towing Single Mast Aerial Work Plaform For Long Distance Transportation​





    Quick Detail:



    Name Towing Aerial Work Platform Brand Name Xunte
    Loading Capacity 130Kg Platform Height 6m
    Platform Size 0.60*0.55m Color Orange or Optional
    Motor Power 0.75Kw Power Supply AC/DC





    Description:



    Towing Aerial Work Platform is designed for long distance transportation, it is attached to a vehicle. The speed limitation for the towing vehicle can not faster than 30Km/h.





    Applications:



    It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 4m to 9m and lifting capacity varies from 100kg to 125kg.The power sources could be 220V, 380V or chargeable battery.





    Main Features:



    1. Most rigid aluminum alloy profile

    2. Auxiliary platform lowering

    3. Multi-guide pulley on mast

    4. Durable base system

    5. Chassis with level gauge

    6. DC working power on the platform

    7. Easily rolls through a narrow space

    8. Emergency stop button

    9. Over load protection

    10. Built-in pressure release valve

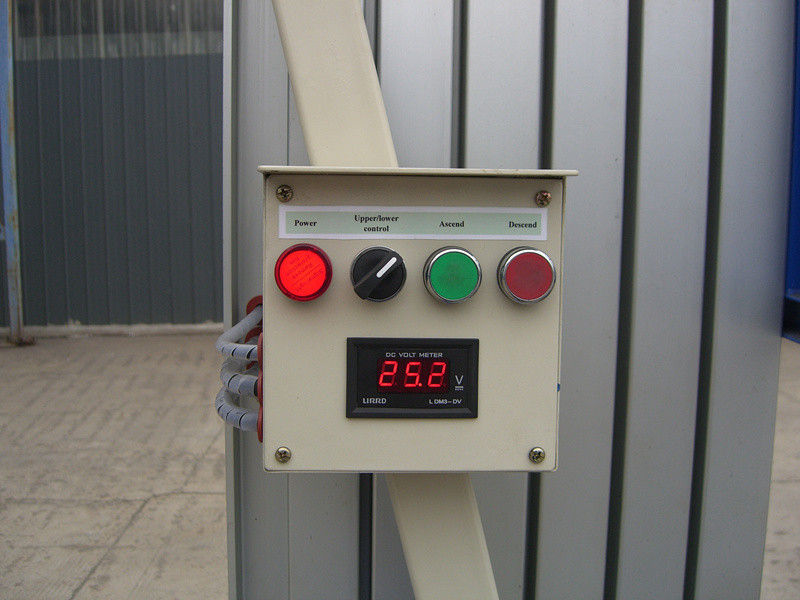

    11. Dual activated up/down switch

    12. Locking Key Switch





    Specification:



    MODEL GTWY6-100 (ME600-1)
    PRODUCTIVITY US Metric
    Lift capacity 287lbs 130kg
    Working height 26ft 2.96in 8m
    Platform height 19ft 8.22in 6m
    Platform length 1ft 11.62in 0.60m
    Platform width 1ft 9.65in 0.55m
    Ground Clearance 1.97in 0.05m
    Lifting Power 0.75kw
    Lifting Speed 0.09-0.1m/s
    Descending Speed 0.08m/s
    Anti Wind Capacity Max. force 5
    Overall length 4ft 4.76in 1.34m
    Overall width 2ft 9.46in 0.85m
    Overall height 6ft 6.74in 2.00m
    Outrigger footprint:
    A Length 5ft 6.93in 1.70m
    B Width 5ft 5.75in 1.67m
    C Corner access 3.94in 0.10m
    D Wall access front 9.06in 0.23m
    E Wall access side 1ft 7.68in 0.50m
    Weight 816lbs 370kg

    6 Meters Platform Height 130kg Loading Capacity Towing Single Mast Aerial Work Plaform For Long Distance Transportation





    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Flame proof electric cabinet



    Competitive Advantage:



    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience





    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1. Strict quality control system on the whole process of production
    2. Imported key arts to ensure the high quality of our products
    3. Advanced equipment and tools for examination and quality control
    4. 100% strict examining products before shipment
    5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: Find the list below which we are offering with the machine when shipment for free:

    Item Model Quantity
    O-shape rubber ring 40×3.1 4
    O-shape rubber ring 11×1.9 2
    O-shape rubber ring 40×30×6 1
    Spanner   1
    screwdriver 4# 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
