|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wrapped in pallet or in wooden case|
|Delivery Time:||30day after down payment|
|Payment Terms:||T/T L/C|
|Supply Ability:||200 sets per month|
|Lift Capacity:||200kg||Platform Height:||12 M|
|Working Height:||14 M||Material:||Aluminum|
|Platform Size:||1.52* 0.62 M||Outrigger Footprint:||2.1* 2 M|
|Standard Power:||AC||Optional Power:||DC; AC+DC|
|Cetificate:||CE; ISO||Mast:||Double Mast|

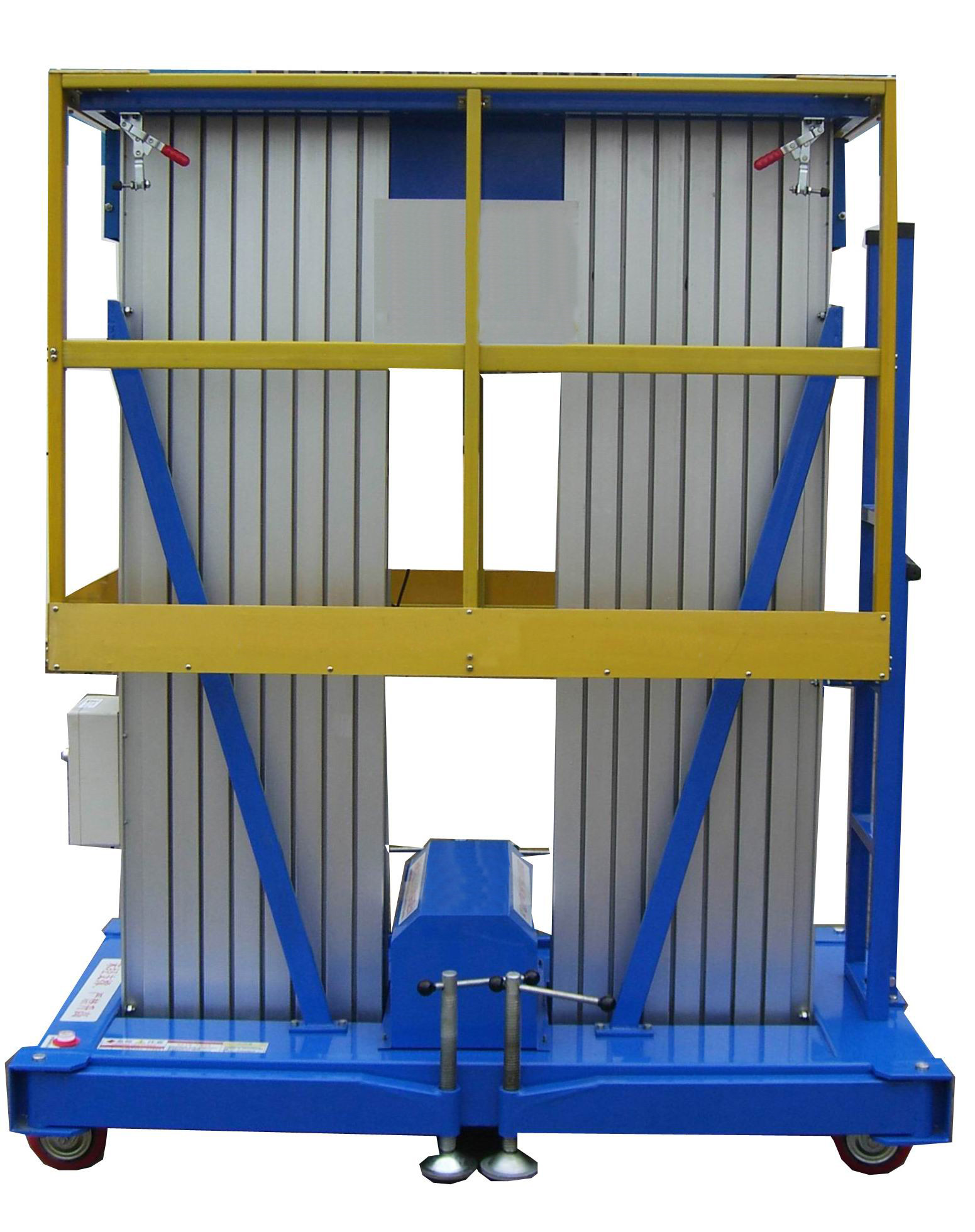

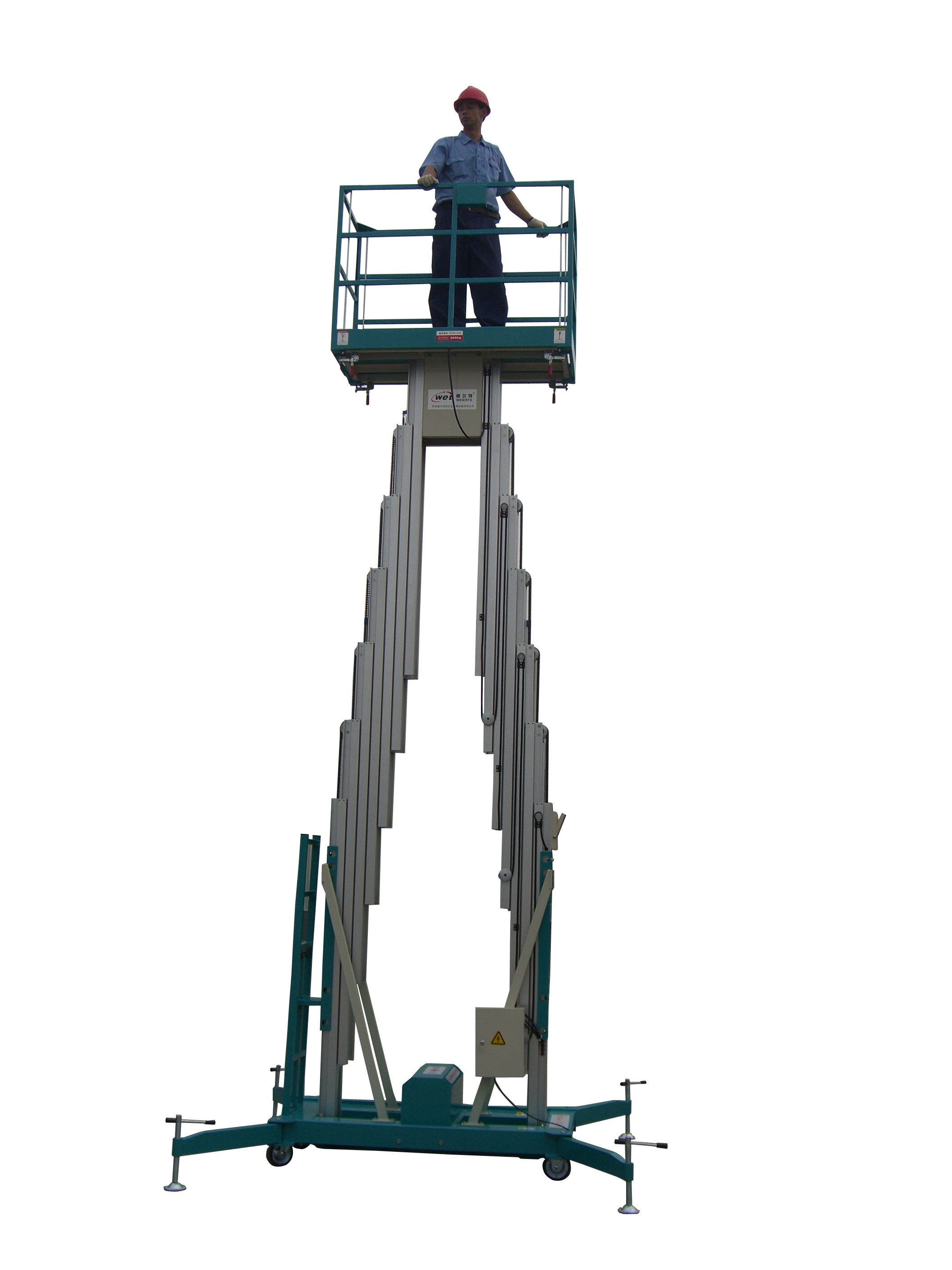

Lifting Heihght 12m Mobile Aluminum Aerial Work Platform with Extension Platform
|Name||Mobile Aerial Work Platform||Brand Name||Bestmax|
|Loading Capacity||200Kg||Platform Height||12m|
|Platform Size||1.58*0.62m||Color||Orange or Optional|
|Motor Power||1.10Kw||Power Supply||AC/DC|
|Extension Platform Length||0.8m||Extension Platform Loading Capacity||100Kg|
Mobile aluminum aerial work platform with Extension Platform can enlarge the working space in the heights. This design can help people reach father points.
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 6m to 12m and lifting capacity varies from 200kg to 250kg.The power sources could be 220V, 380V or chargeable battery.

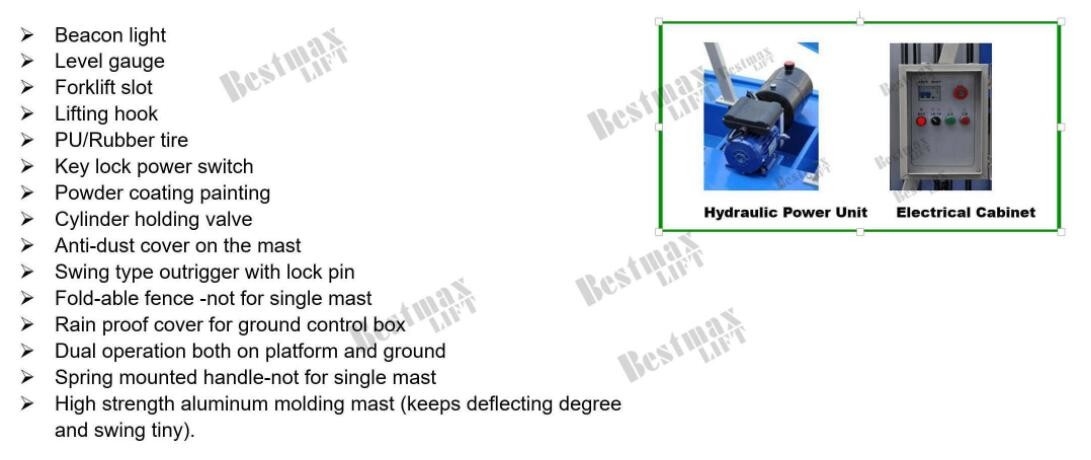

1. Most rigid aluminum alloy profile
2. Auxiliary platform lowering
3. Multi-guide pulley on mast
4. Durable base system
5. Chassis with level gauge
6. DC working power on the platform
7. Easily rolls through a narrow space
8. Emergency stop button
9. Over load protection
10. Built-in pressure release valve
11. Dual activated up/down switch
12. Locking Key Switch
|MODEL||GTWY12-200 with extension|
|Working height||44ft 11.36in||13.7m|
|Platform floor height||39ft 4.44in||12m|
|Platform length||4ft 10.27in||1.48m|
|Platform width||2ft 0.41in||0.62m|
|Anti Wind Capacity||Max. force 5|
|Overall length||5ft 6.14in||1.68m|
|Overall width||3ft 1.40in||0.95m|
|Overall height||6ft 6.74in||2.00m|
|A Length||7ft 6.55in||2.30m|
|B Width||6ft 10.28in||2.09m|
|C Corner access||3.94in||0.10m|
|D Wall access front||1ft 0.59in||0.32m|
|E Wall access side||2ft 1.59in||0.65m|
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 10 Years Experience
Communication with Customers
A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
B: The main difference is from the structure and the material
The scissor lift is in scissor structure with steel material
The aerial work platform is in mast structure with aluminum material
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
A: What is the delivery time for your goods?
B: it is 30days after order confirmation
A: What spare parts that you can offer?
B: Find the list below which we are offering with the machine when shipment for free:
|O-shape rubber ring||40×3.1||4|
|O-shape rubber ring||11×1.9||2|
|O-shape rubber ring||40×30×6||1|
A: How long is your quality guarantee period?
B: We have one year warranty.
