Home ProductsMobile Dock Ramp

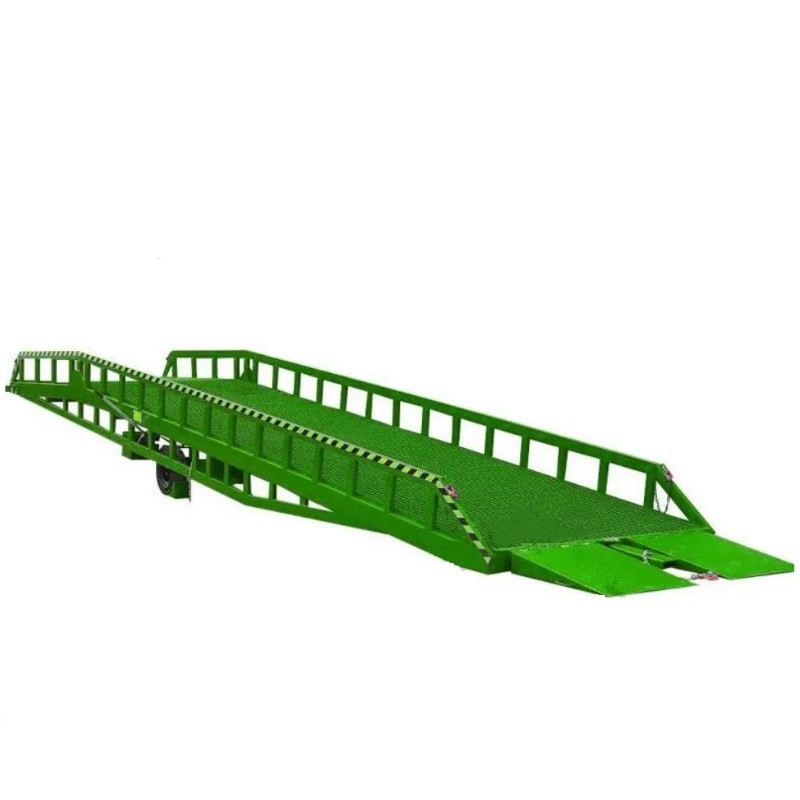

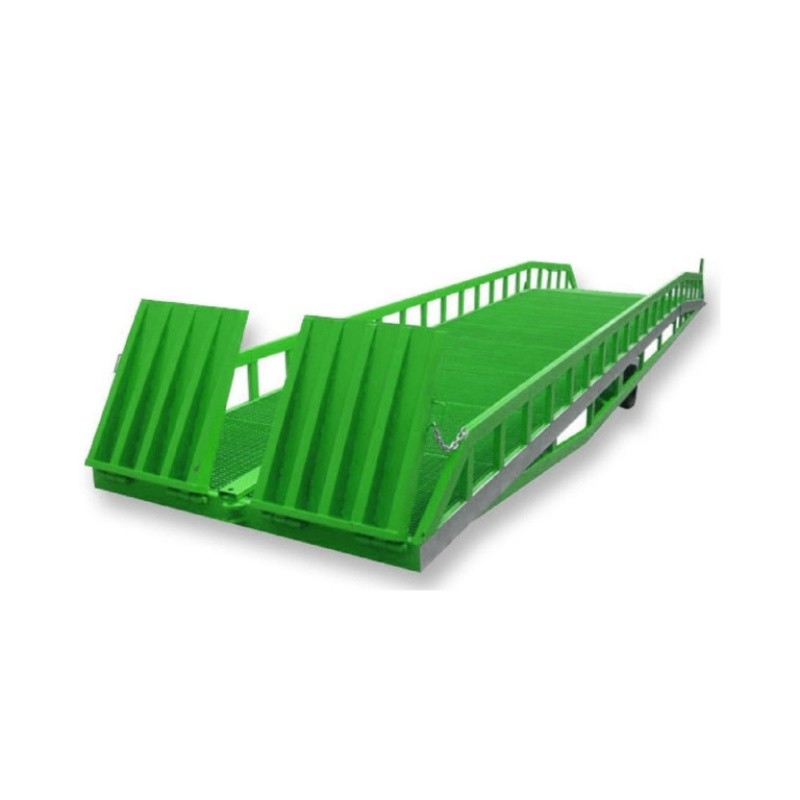

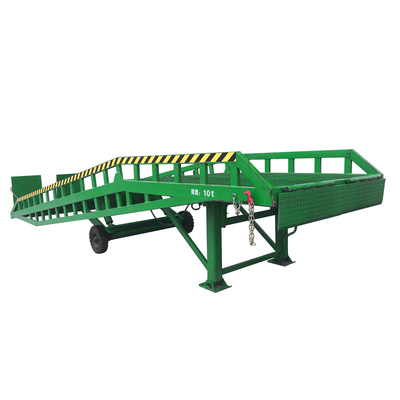

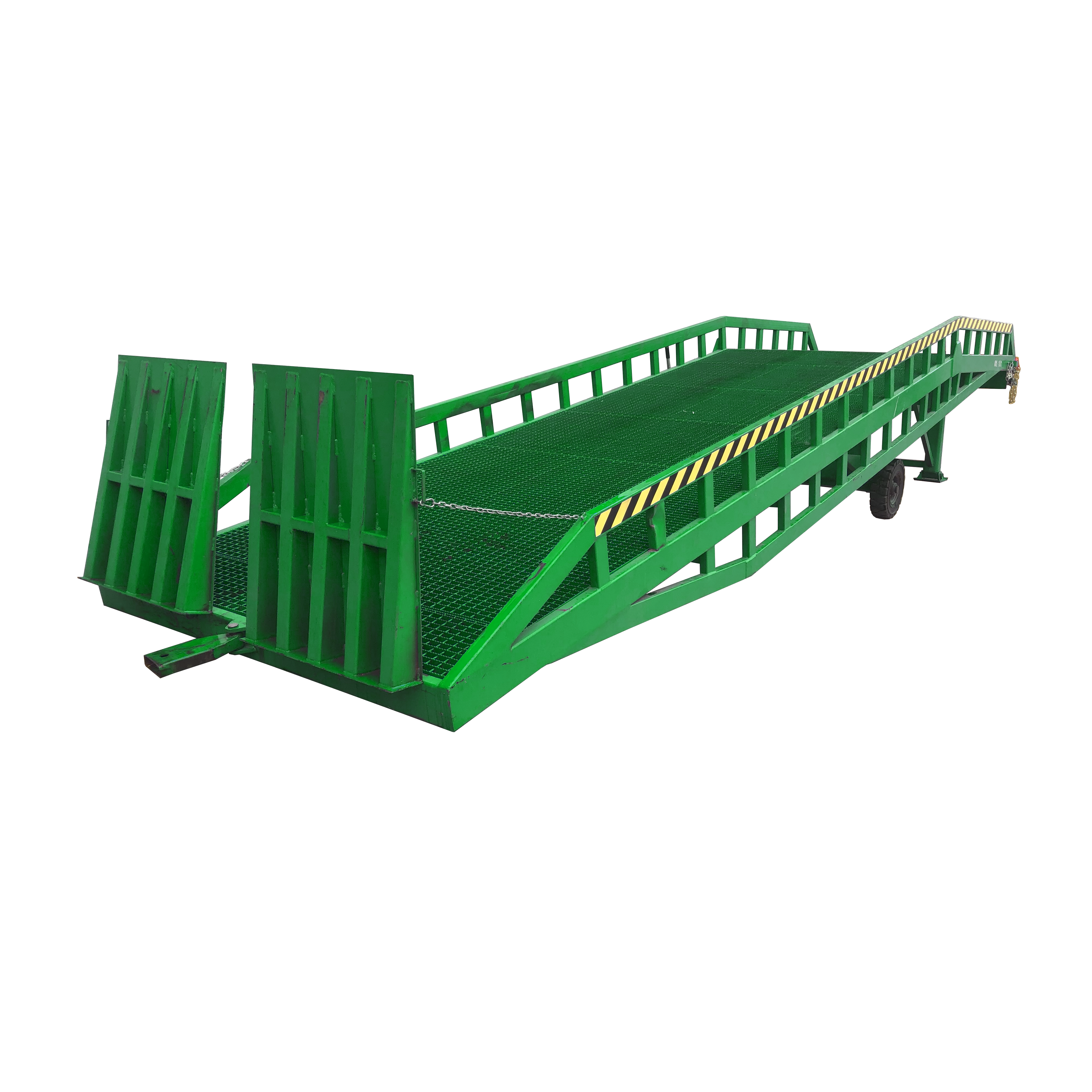

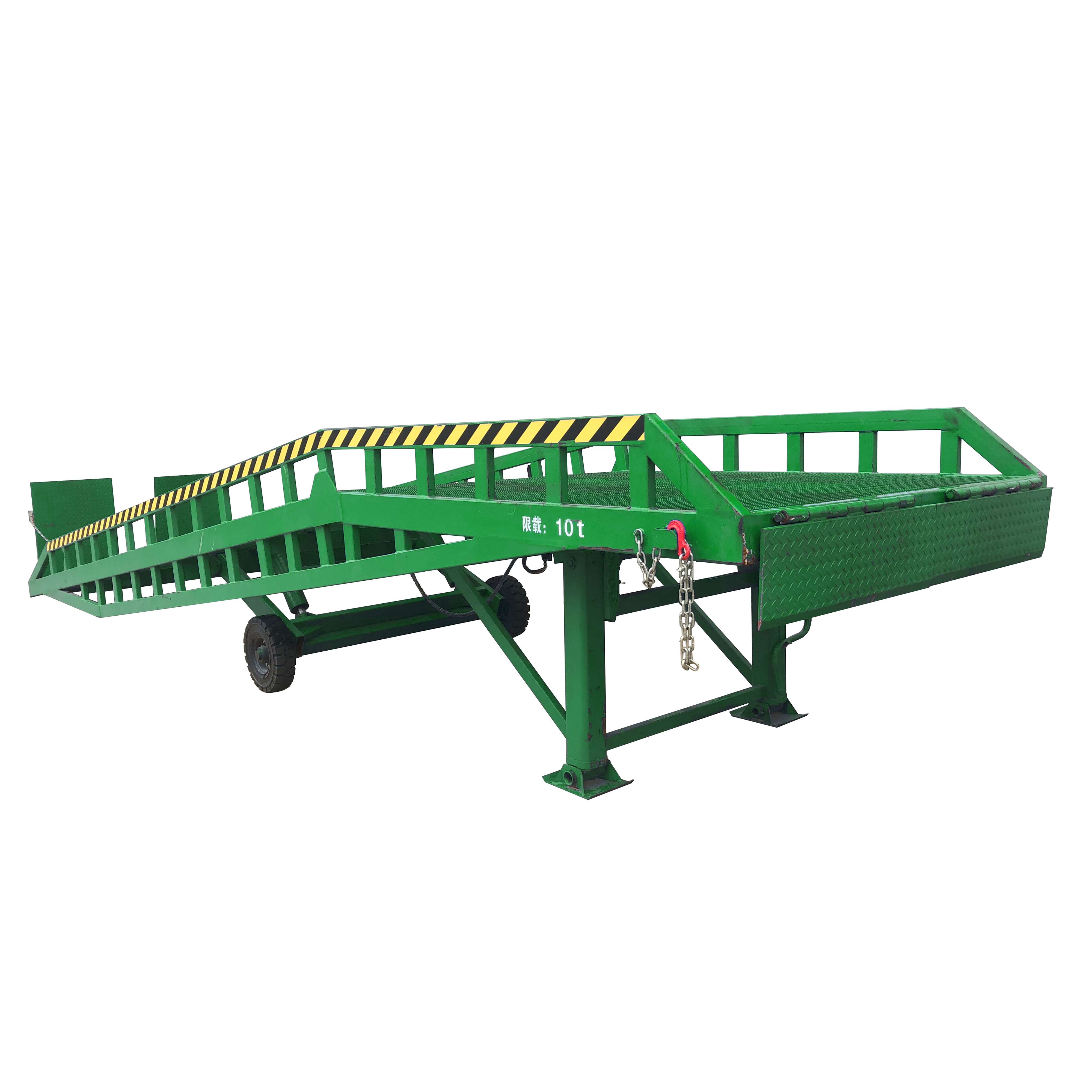

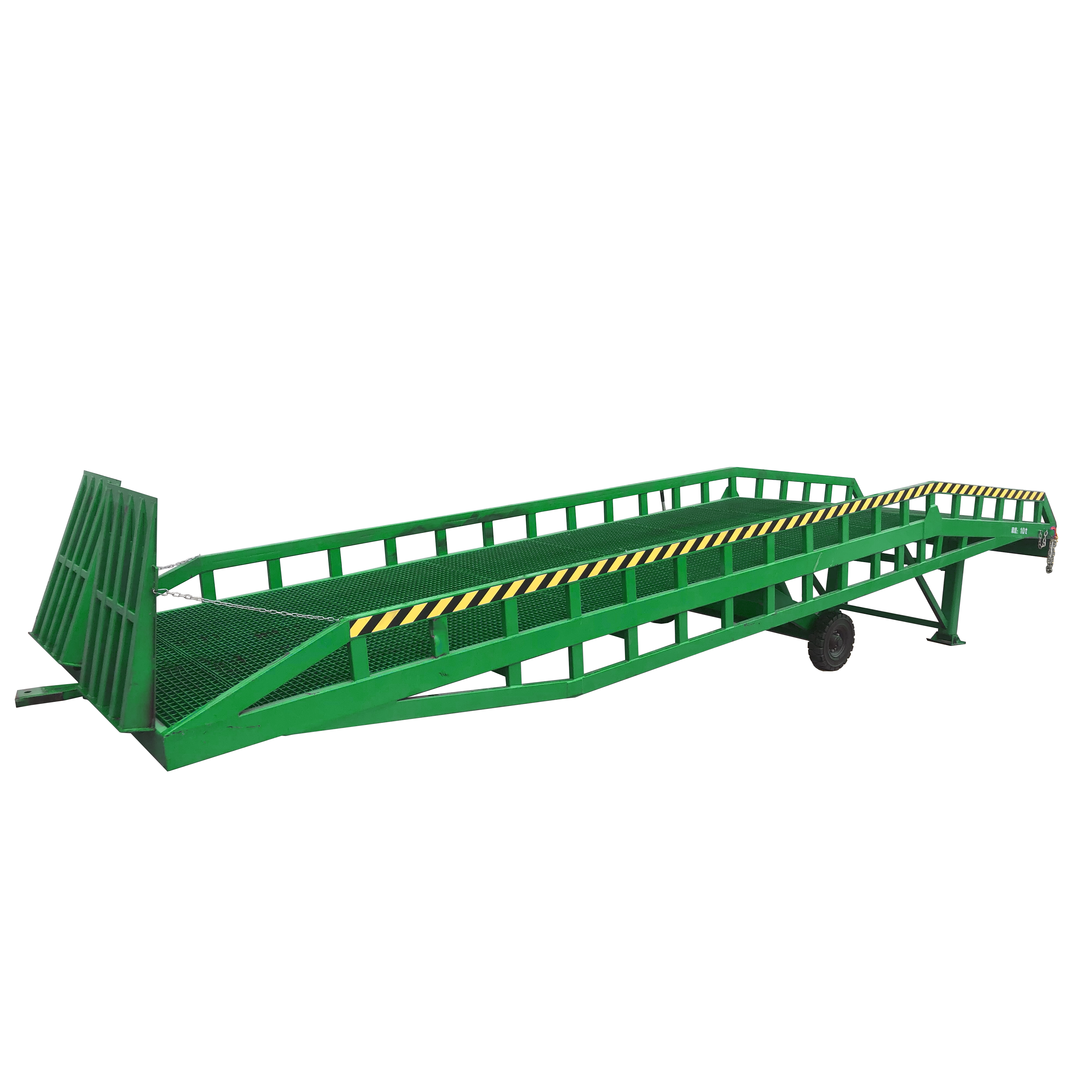

Adjustable Heavy duty Container mobile yard ramp for Loading Cargos

Adjustable Heavy duty Container mobile yard ramp for Loading Cargos

    • Adjustable Heavy duty Container mobile yard ramp for Loading Cargos
    • Adjustable Heavy duty Container mobile yard ramp for Loading Cargos
    • Adjustable Heavy duty Container mobile yard ramp for Loading Cargos
    • Adjustable Heavy duty Container mobile yard ramp for Loading Cargos
    • Adjustable Heavy duty Container mobile yard ramp for Loading Cargos
  • Adjustable Heavy duty Container mobile yard ramp for Loading Cargos

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: DCQY6-0.8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Naked
    Delivery Time: 30Days
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 600kg Max. Working Height: 1.8m
    Overall Length: 10.5m Overall Width: 2.1m
    Slope Length: 7m Platform Length: 2.2m



    Adjustable Heavy duty Container mobile yard ramp for Loading Cargos





    Quick Detail:



    Name Mobile Dock Ramp Brand Name Xunte
    Loading Capacity 600Kg Color Blue or optional
    Adjustable Working Height 1000mm-1800mm Pump Manual/Electrical/Both
    Platform Length 2200mm Power Supply Manual/AC
    Bridge Width 2100mm





    Description:



    Mobile Dock Ramp is an auxiliary machine for loading and unloading cargos with forklift coordination use. The forklift can drive from the ground to the truck compartment to work directly through the Mobile Dock Ramp. There is no need to connect to power supply, for it uses manual hydraulic power. Only one man needed to manipulate the machine to load and unload goods safely and fast. With it, you can save abundant labor-using, increase the efficiency of loading and unloading, and speed up the flow of goods, then get more economic benefits.





    Main Features:

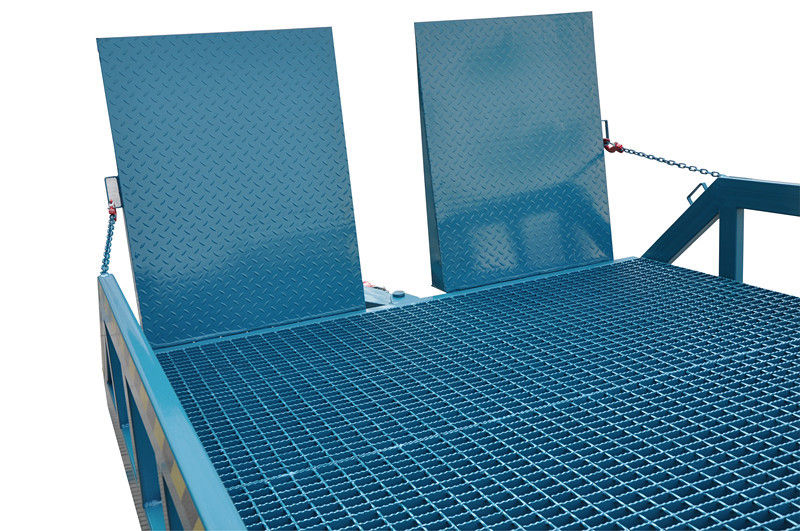

    1.Reinforced gusseted lip

    2.Heavy duty (6-8 box beams) deck construction

    3.Non skid tread plate deck and lip

    4.Full width one-piece lip hinges pin and tube

    5.Heavy duty high pressure cylinders

    6.First class hydraulic power unit, good seal capability and long life

    7.Power is available in 1ph. 115/220/230V 3ph. 208/230/380/46V 50/60HZ

    8. Forklift pick-up slot

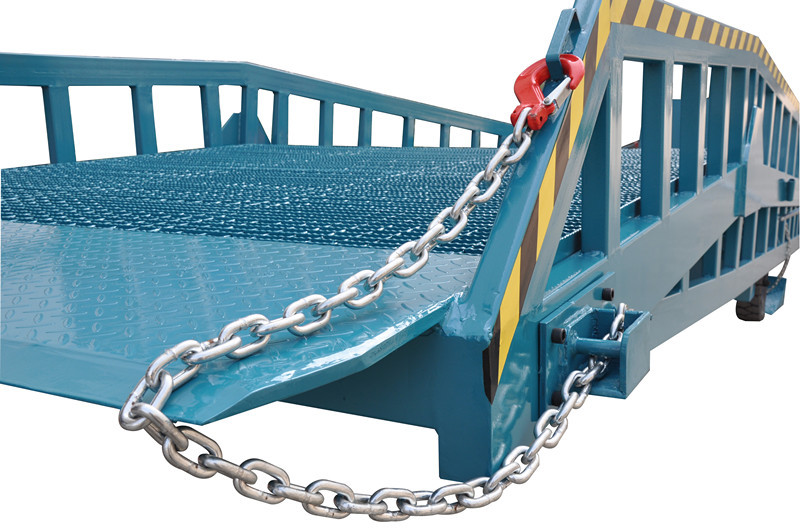

    9.The safety locking chains to attach yard ramp to the rear of vehicles

    10. Brake pads to prevent yard ramp from moving when load or unload goods.





    Safety Precaution:

    • Have two hooks which can tighten the machine with vehicle during loading and unloading.
    • Have two brake pads



    Specifications/ Major Parameters:



    Model: DCQY6-0.8

    • Loading Capacity 600Kg
    • Overall Length 10500mm
    • Overall Width 2100mm
    • Clear Width 2000mm
    • Labial Plate Length 300mm
    • Labial Plate Width 2000mm
    • Flap Length 1000mm
    • Adjustable Working Height 1000-1800mm
    • Platform Length 2200mm
    • Slope Length 7000mm

    Without Outriggers





    Configurations:

    • Hydraulic System: Xunte brand Hydraulic Cylinder Φ80*2, Trellebogr sealing
    • Platform Surface : WB325/1 steel grating
    • Main Body Profile: 160*60*4.5.mm rectangular tube
    • Fence: 100*40*4mm rectangular tube and 80*40*4mm rectangular tube
    • Connecting Board: 16mm plate and 3mm checkered plate
    • Tire: Φ500-8 solid tire



    Optional Configuration:

    • Screw-type Outrigger for container truck
    • Hydraulic Power Pack Italy brand: Hydrapp/ Swiss brand: Bucher
    • Pump: Italian Manual Pump, Electrical Pump



    Competitive Advantage:/ Why to choose Xunte Mobile Dock Ramp?



    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience





    Applications:



    1. Site: Work Shop, Dock, Logistic Park etc.

    2. Dock Ramp Working Purpose: Loading Cargos etc.
