10 Tons Loading Capacity Mobile Dock Ramp , Container Loading Ramp

10 Tons Loading Capacity Mobile Dock Ramp , Container Loading Ramp

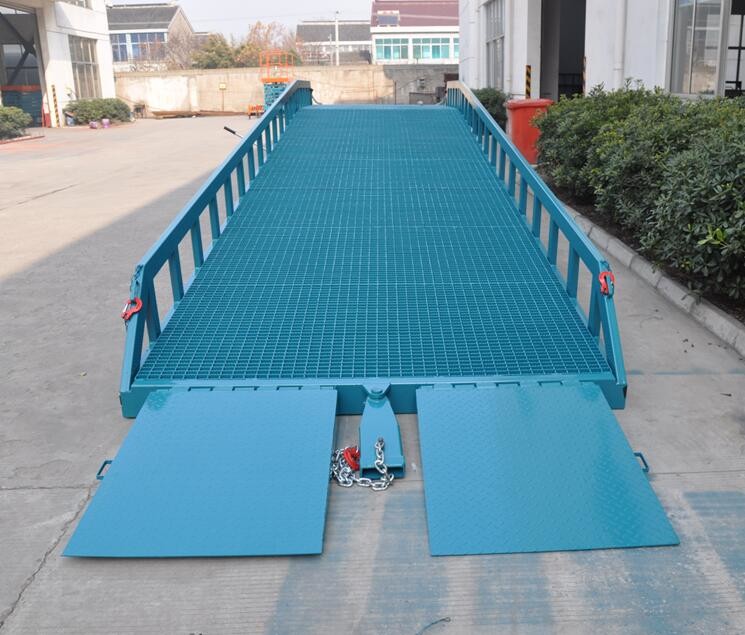

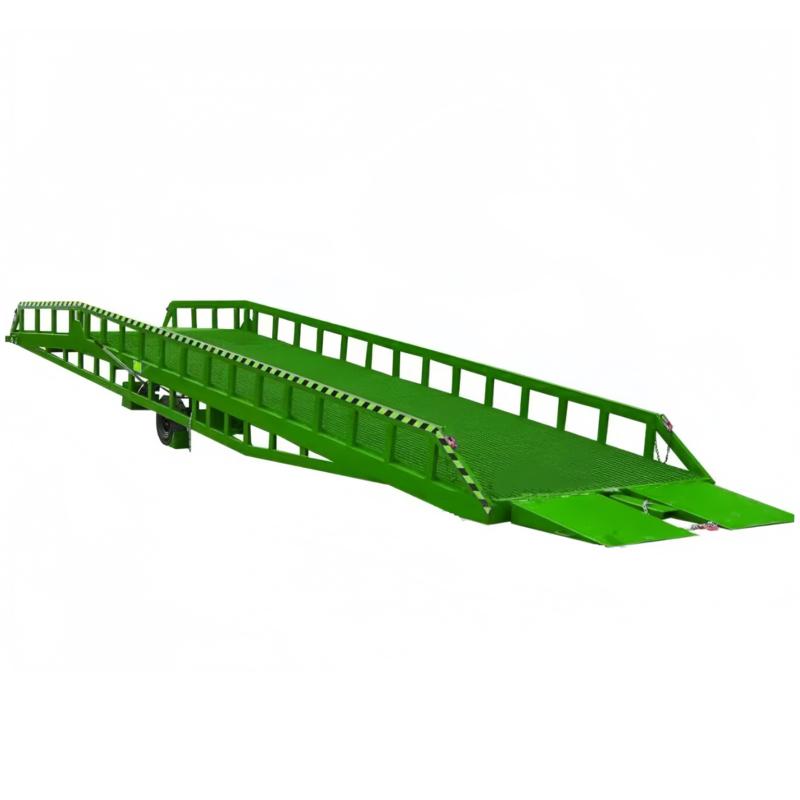

    • 10 Tons Loading Capacity Mobile Dock Ramp , Container Loading Ramp

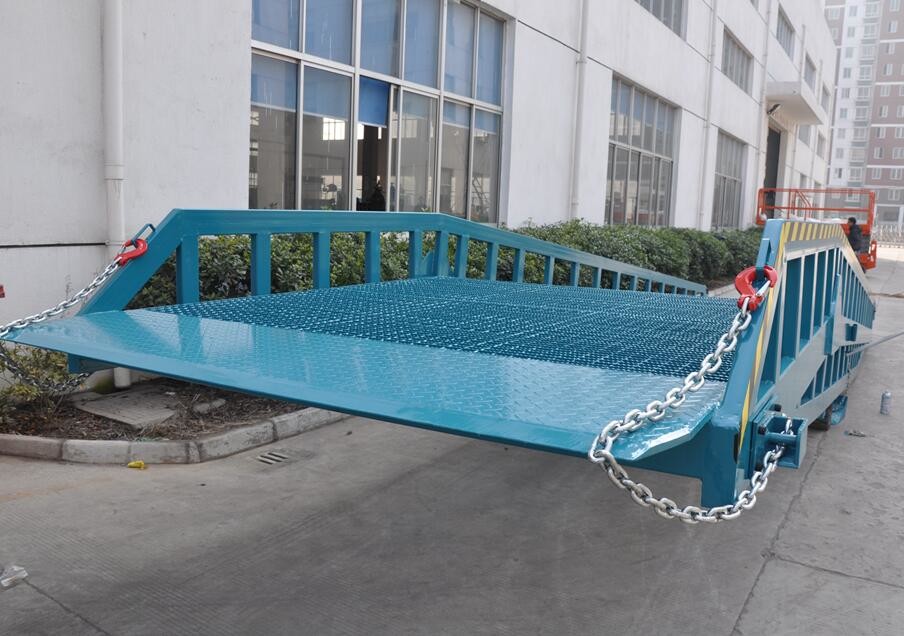

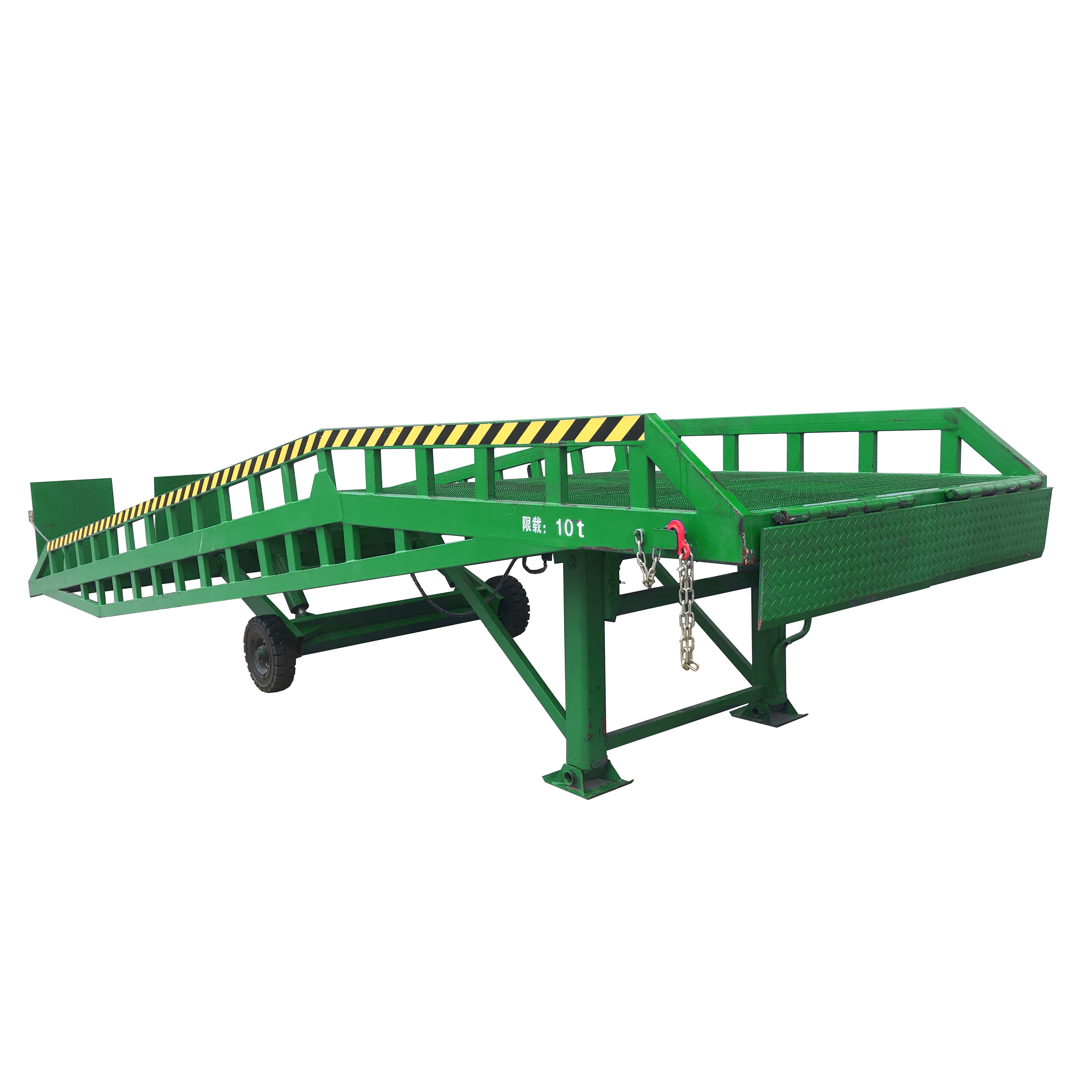

    • 10 Tons Loading Capacity Mobile Dock Ramp , Container Loading Ramp

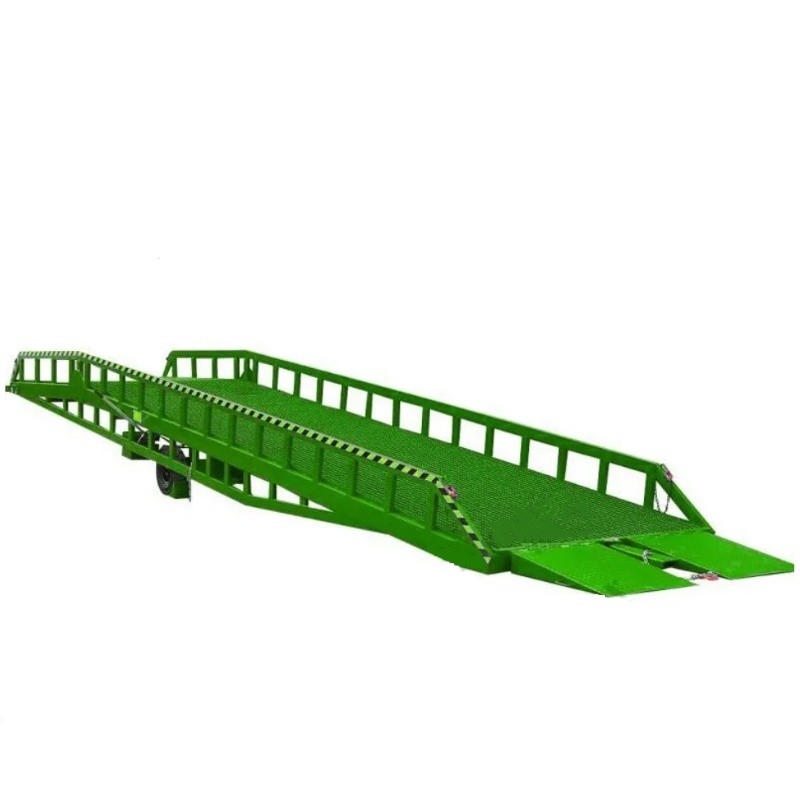

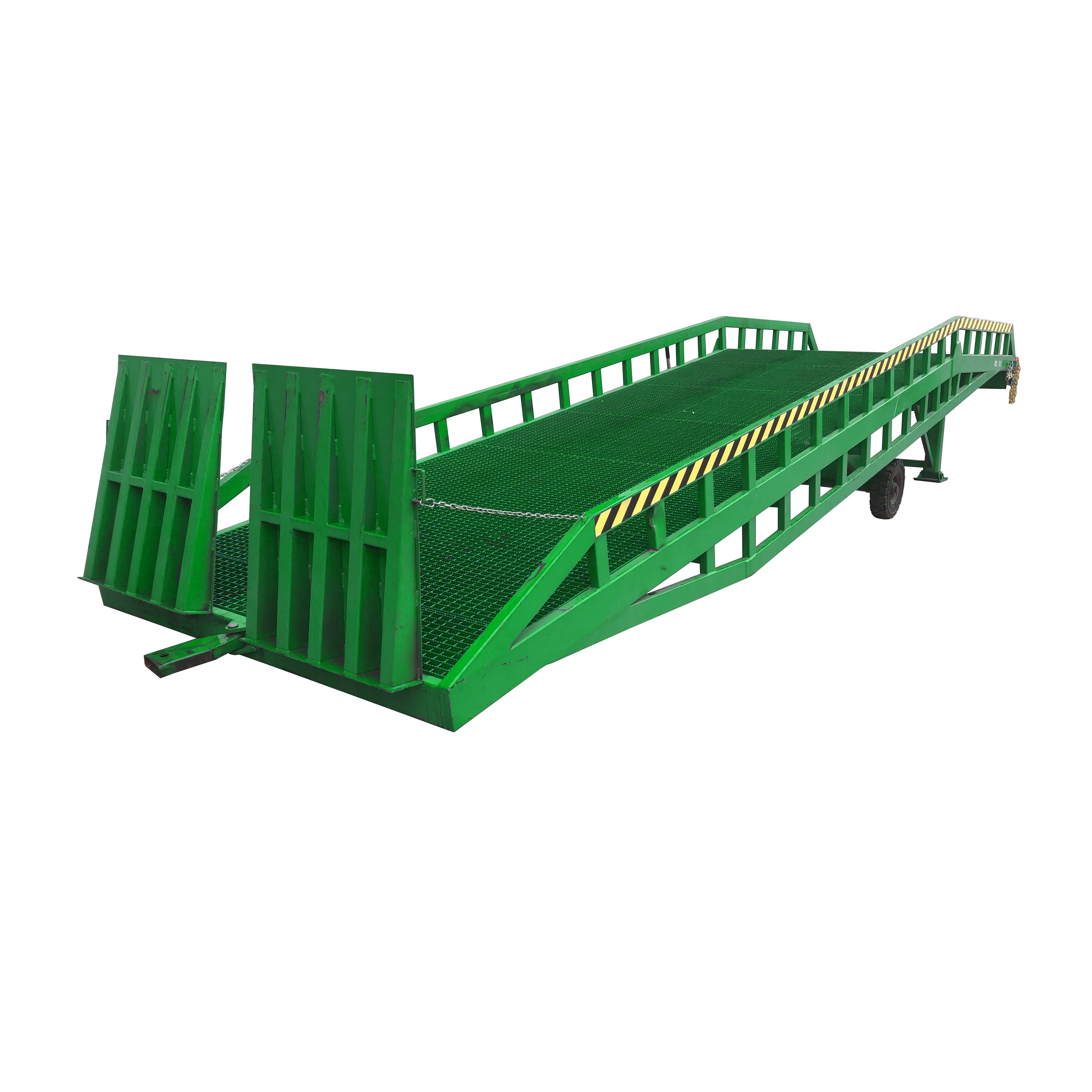

    • 10 Tons Loading Capacity Mobile Dock Ramp , Container Loading Ramp

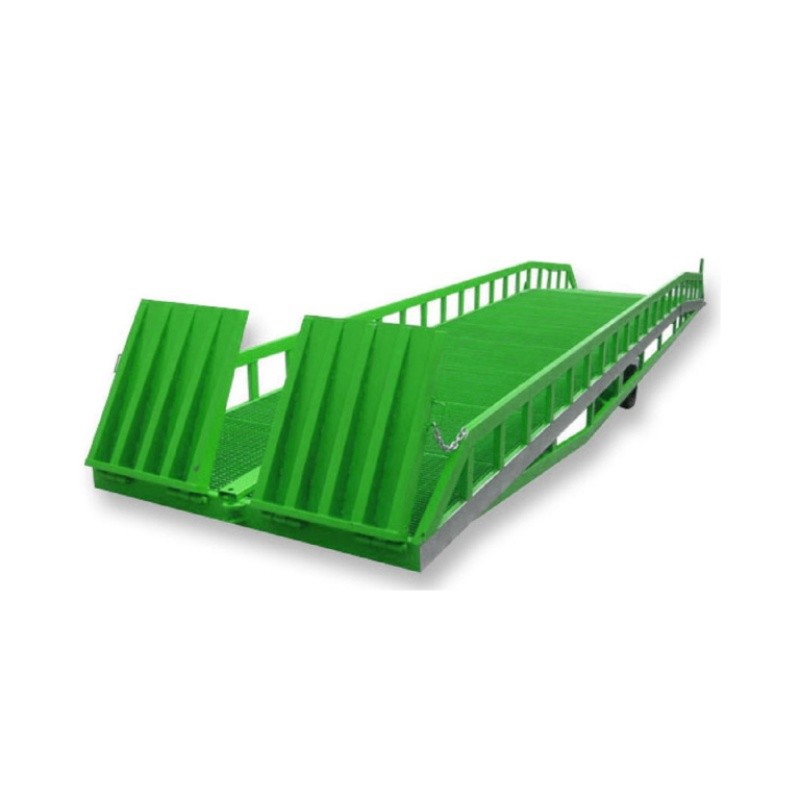

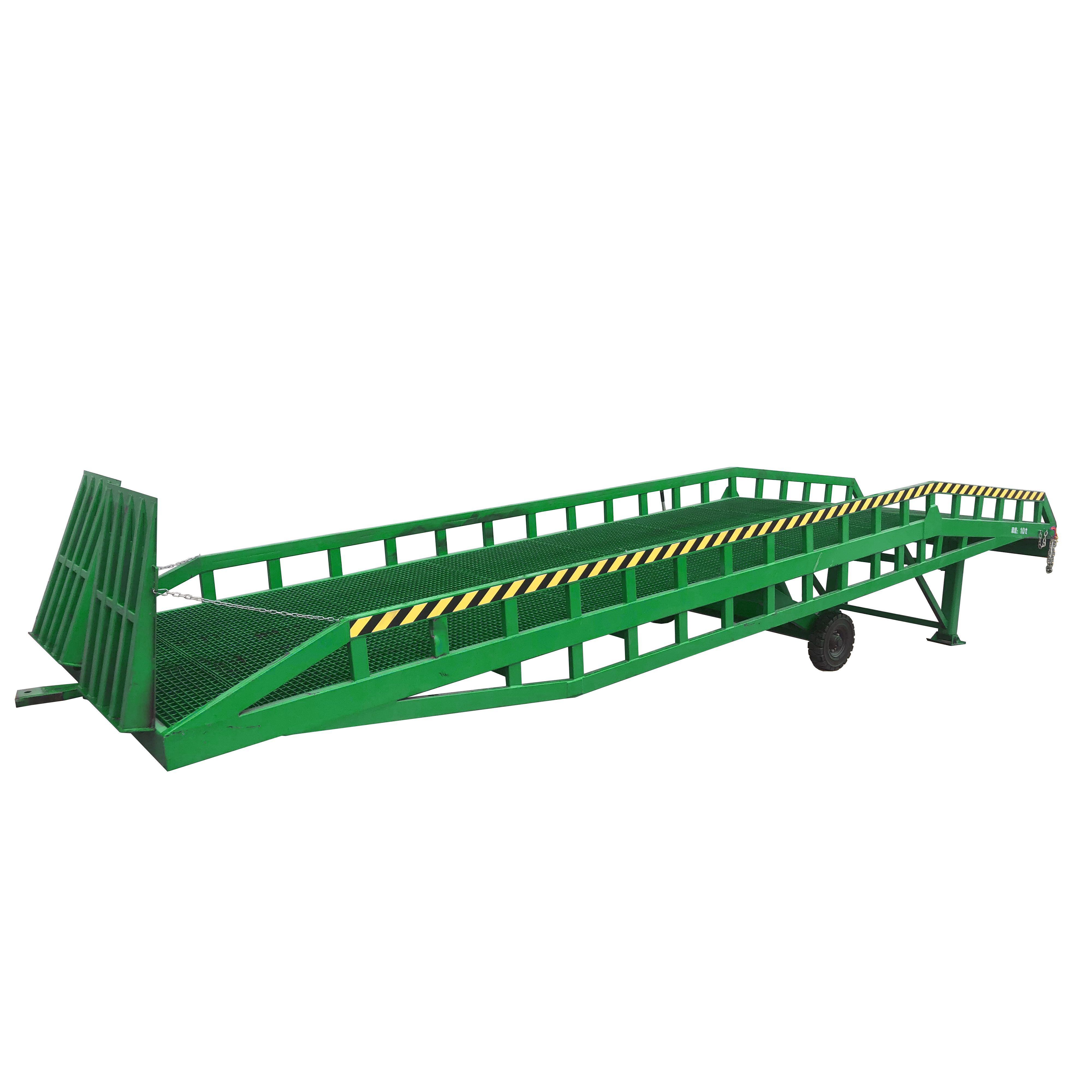

  • 10 Tons Loading Capacity Mobile Dock Ramp , Container Loading Ramp

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE
    Model Number: DCQY 10-0.8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Naked
    Delivery Time: 30 Days
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 10000kg Overall Length: 11.20m
    Overall Width: 2.10m Platform Length: 2.40m
    Working Height: 1.00-1.80m Weight: 2910Kg


    10 Tons Loading Capacity Mobile Dock Ramp Container Loading Ramp

    Quick Detail:

    Name Mobile Dock Ramp Brand Name Bestmax
    Loading Capacity 10000Kg Color Blue or optional
    Adjustable Working Height 1000mm-1800mm Pump Manual/Electrical/Both
    Platform Length 2400mm Power Supply Manual/AC


    If you require more heavier loading capacity, we can also make it as per your customized request.

    Description:
    Mobile Dock Ramp is an auxiliary machine for loading and unloading cargo with forklift coordination use. The forklift can drive from the ground to the truck compartment to work directly through the Mobile Dock Ramp. There is no need to connect to power supply, for it uses manual hydraulic power. Only one man needed to manipulate the machine to load and unload goods safely and fast. And there is safety locking chain in the dock ramp to connect the machine to the truck and prevent moving when loading and unloading cargoes. With it, you can save abundant labor-using, increase the efficiency of loading and unloading, and speed up the flow of goods, then get more economic benefits.

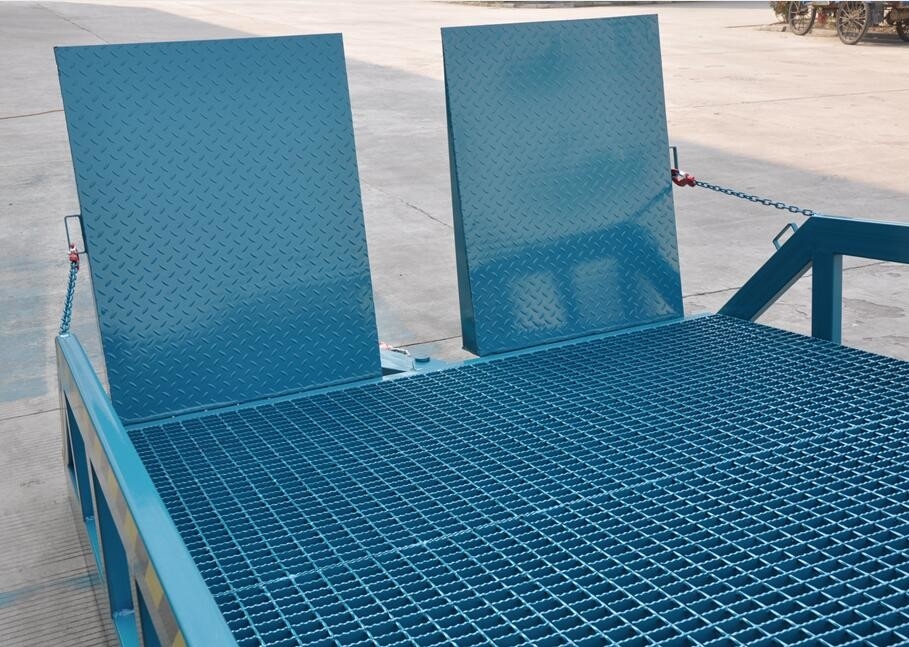

    10 Tons Loading Capacity Mobile Dock Ramp , Container Loading Ramp

    Main Configuration:

    • Hydraulic System: China brand Hydraulic Cylinder Φ80*2, NOK sealing
    • Platform Surface: WB325/1 steel grating
    • Main Body Profile: 160*60*4.5.mm rectangular tube
    • Fence: 100*40*4mm rectangular tube and 80*40*4mm rectangular tube
    • Connecting Board: 16mm plate and 3mm checkered plate
    • Tire: Φ500-8 solid tire
    • Anti-skid tread plate platform
    • Manual Hydraulic Power
    • Forklift traction device
    • Brake pads
    • Safety locking chains to attach yard ramp to the rear of vehicles


    Optional Configuration:

    • Screw-type Outrigger for container truck
    • Hydraulic Power Pack Italy brand: Hydrapp/ Swiss brand: Bucher
    • Pump: Italian Manual Pump, Electrical Pump


    Clients & Exhibition:
    10 Tons Loading Capacity Mobile Dock Ramp , Container Loading Ramp

    Other Related Products:

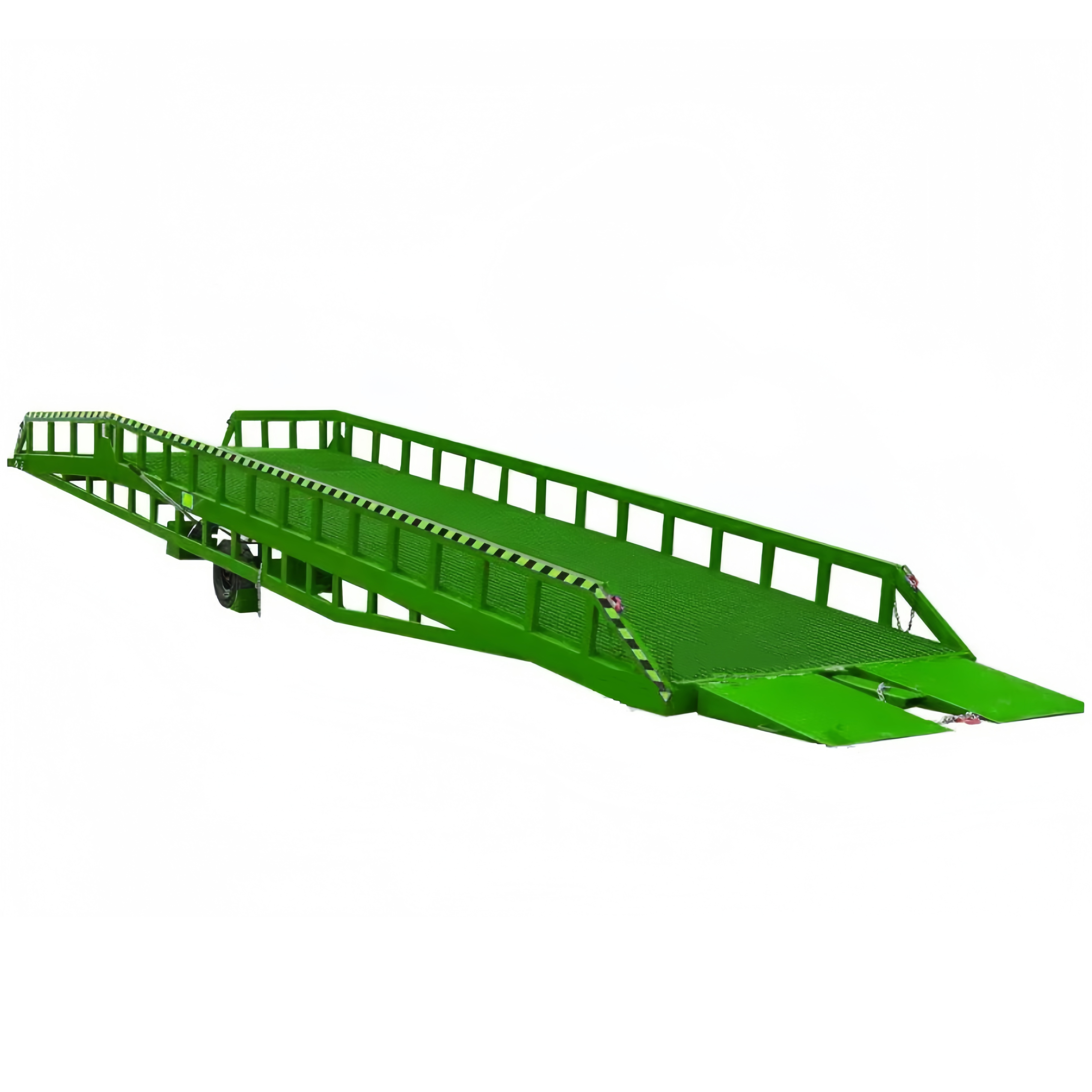

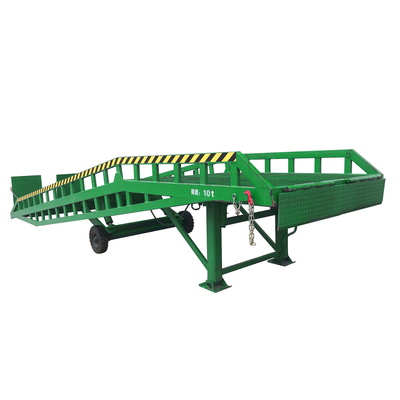

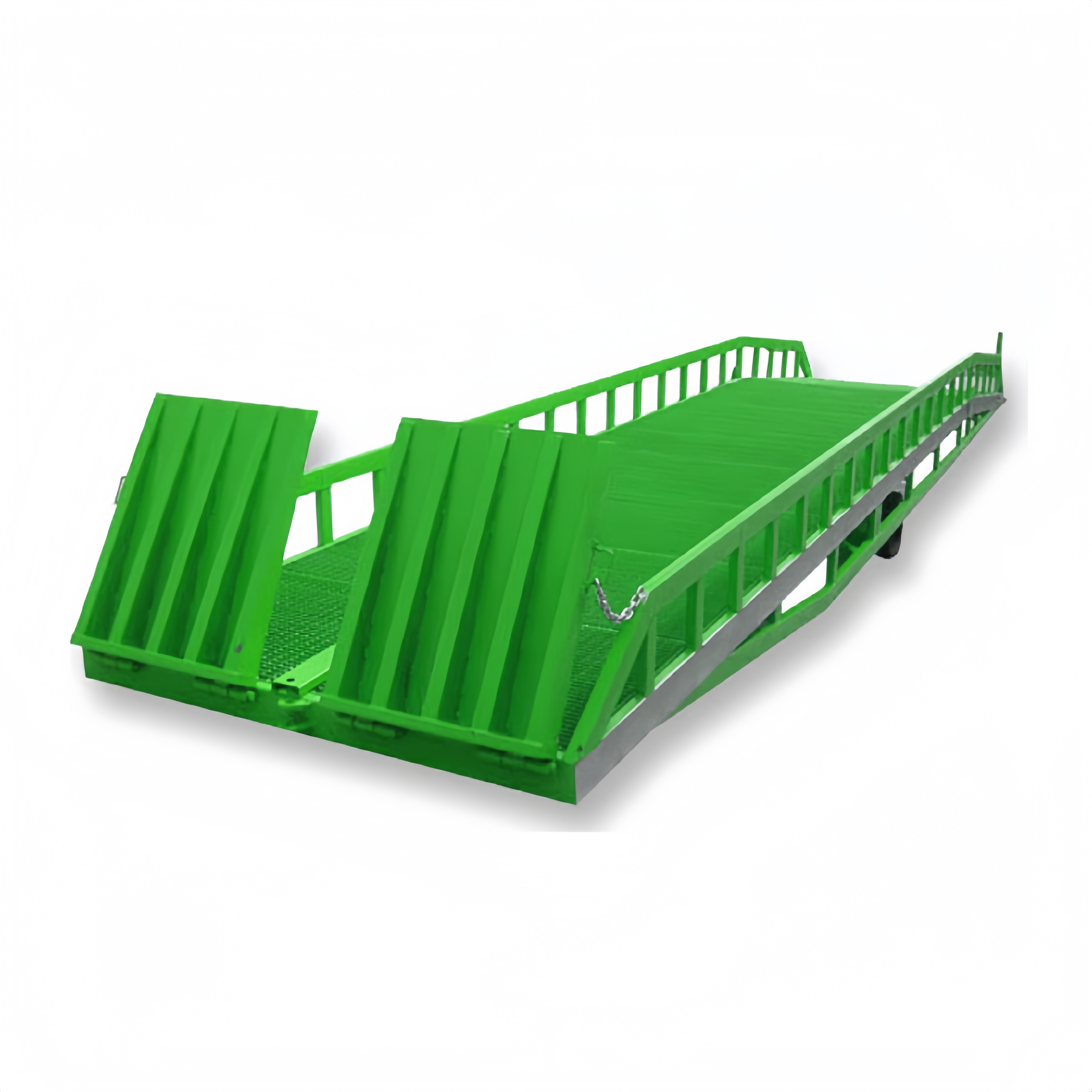

    10 Tons Loading Capacity Mobile Dock Ramp , Container Loading Ramp

    Company Profile:
    Bestmax Heavy Industry Company Limited, Is a Suzhou-based world-wide supplier of lifting equipment.
    With over 20 years of experience in the lifting industry, we have the knowledge to assist you in aquiring your next lifting equipment.

    We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.
    Based on our own manufacturing experience and refer to European advances design theory and manufacturing technology.
    We are also the CE certified manufacture and joined IPAF member.

    Communication with Customers:
    A: How is that for quality control in your factory?
    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
    1. Strict quality control system on the whole process of production
    2. Imported key arts to ensure the high quality of our products
    3. Advanced equipment and tools for examination and quality control
    4. 100% strict examining products before shipment
    5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
    A: What is the delivery time for your goods?
    B: It is 30 days after order confirmation.
    A: How long is your quality guarantee period?
    B: We have one year warranty.
