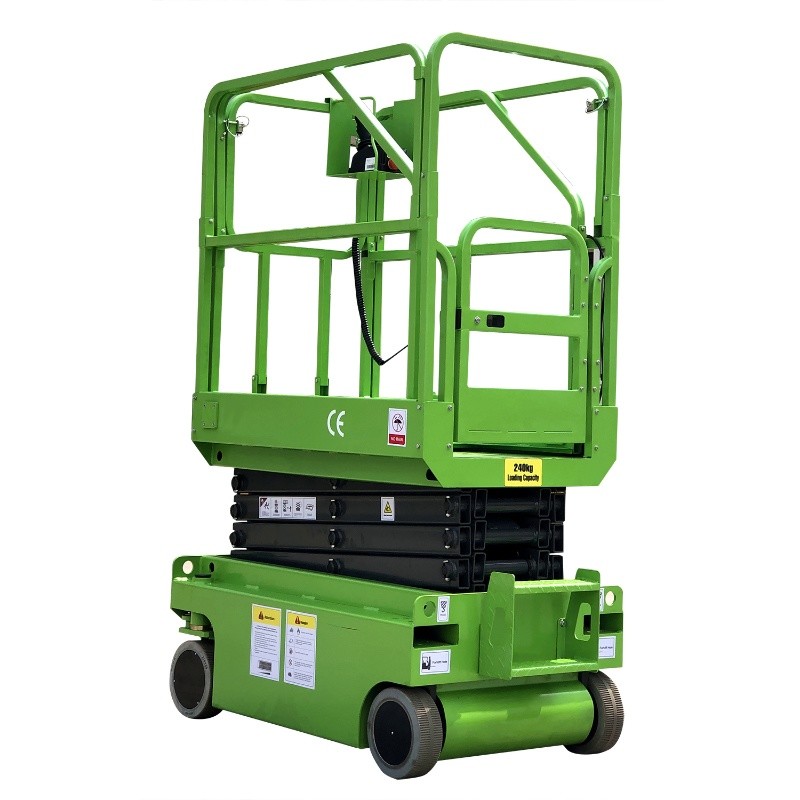

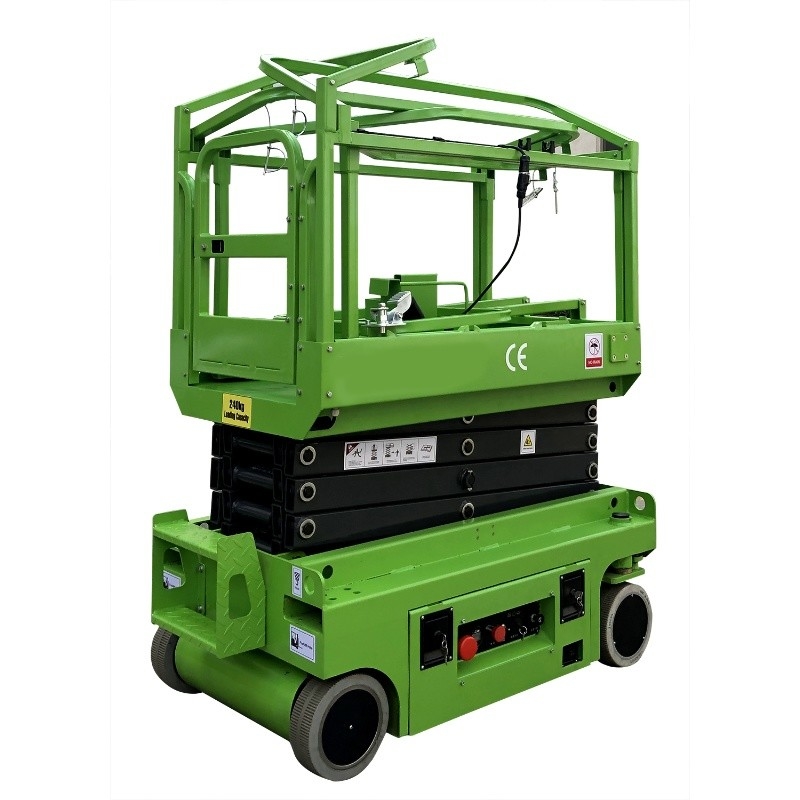

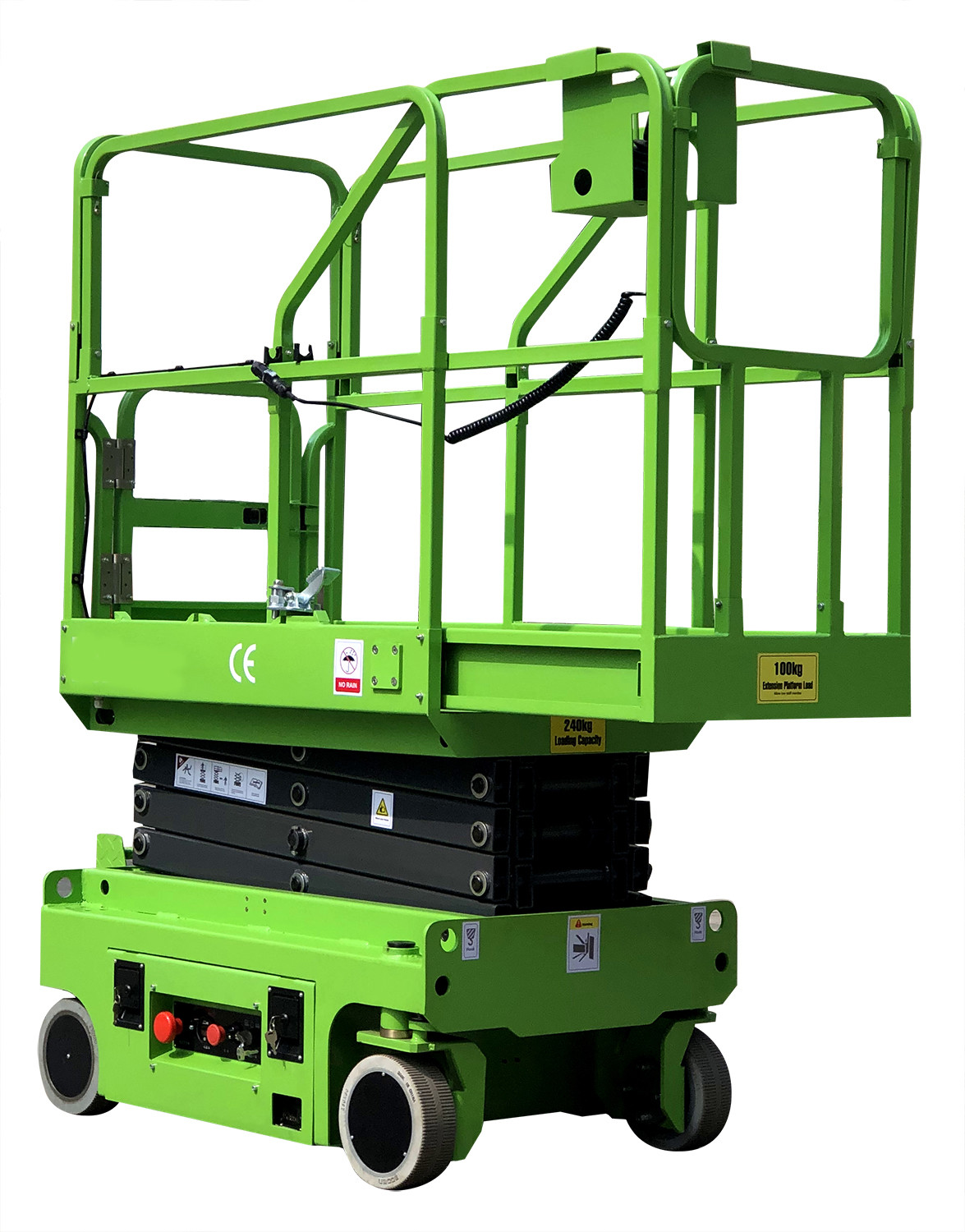

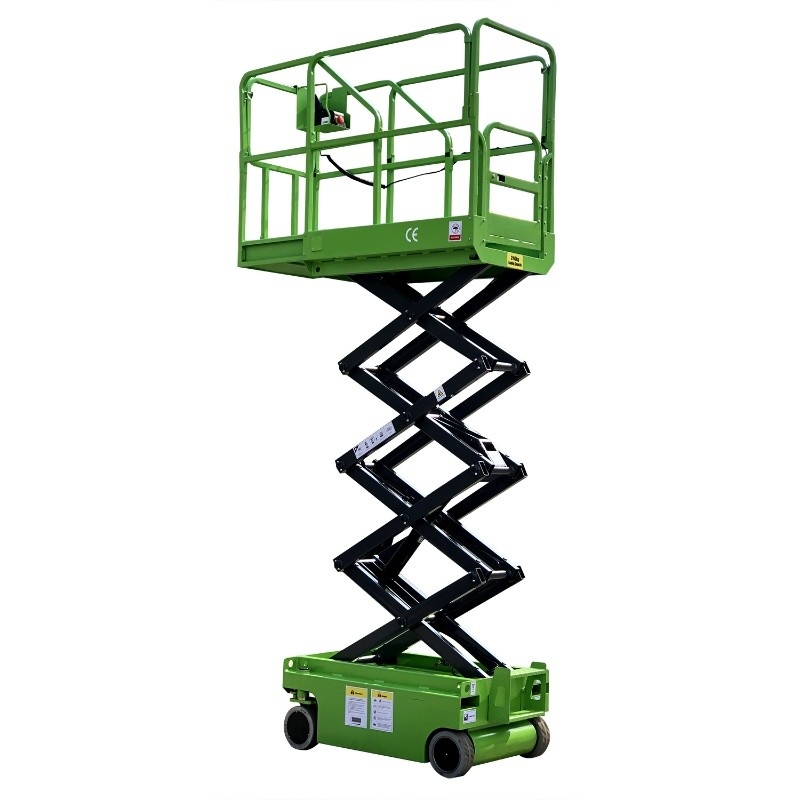

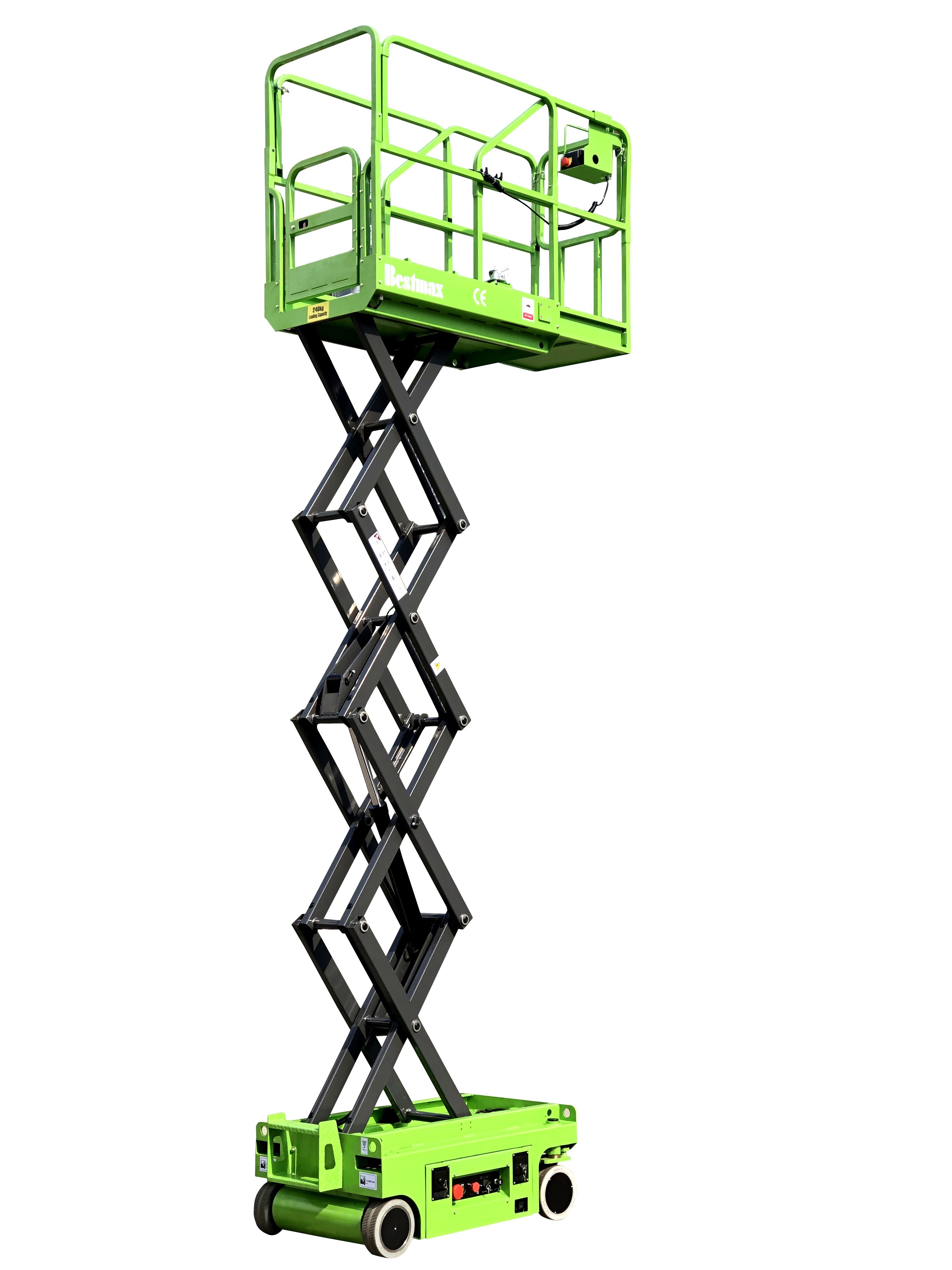

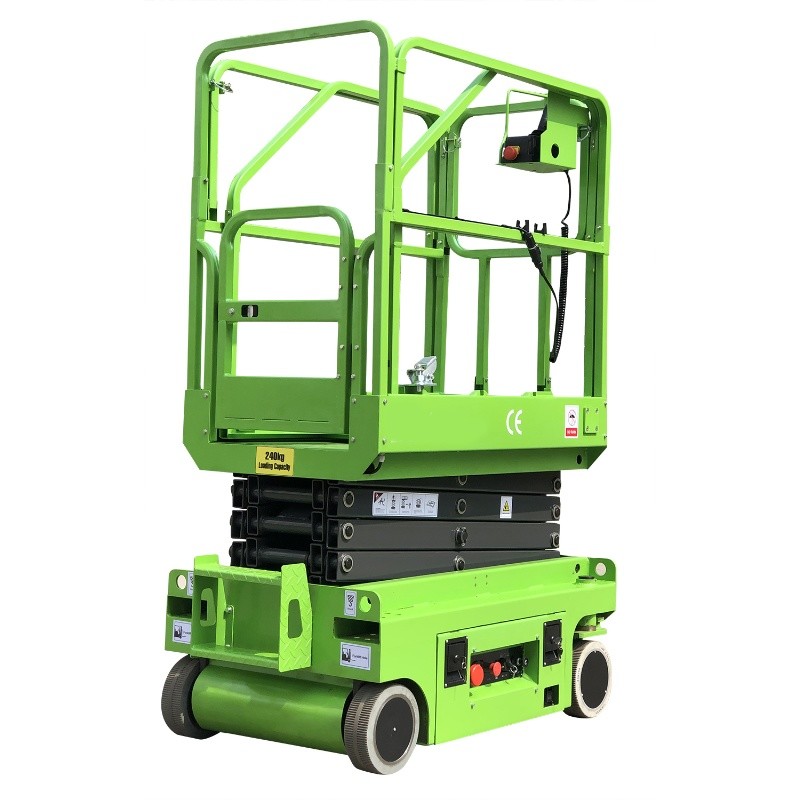

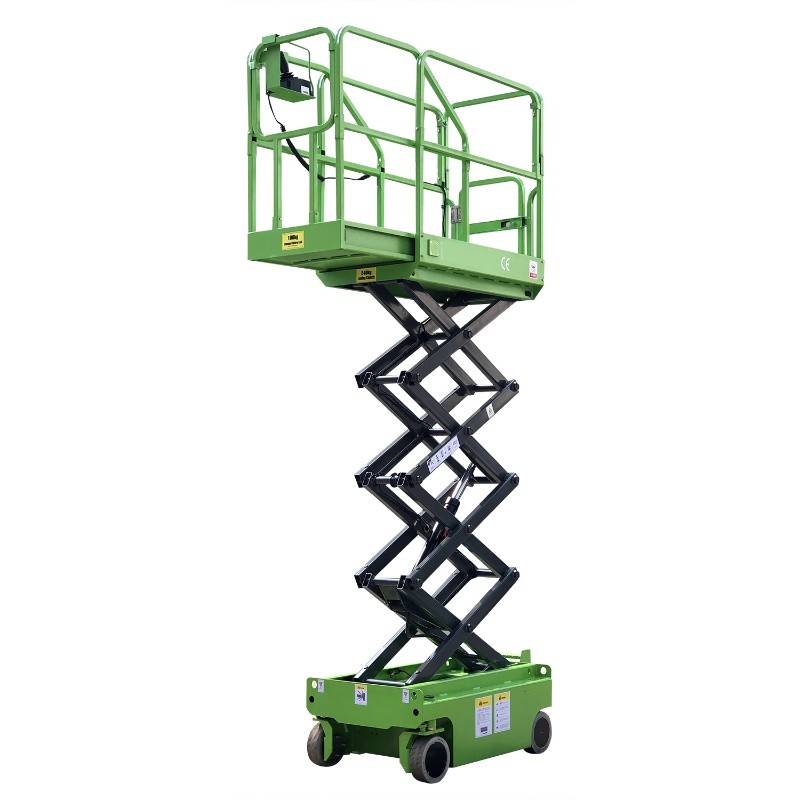

Mini Model Self Propelled Scissor Type Lifter With Small Wheels , Small Scissors Lift

Mini Model Self Propelled Scissor Type Lifter With Small Wheels , Small Scissors Lift

    • Mini Model Self Propelled Scissor Type Lifter With Small Wheels , Small Scissors Lift
    • Mini Model Self Propelled Scissor Type Lifter With Small Wheels , Small Scissors Lift
  • Mini Model Self Propelled Scissor Type Lifter With Small Wheels , Small Scissors Lift

    Product Details:

    Place of Origin: China
    Brand Name: BestmaxLift
    Certification: CE
    Model Number: MX390R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: PVC Film Wrapped in Pallets or Wooden Case
    Delivery Time: 30 days after order confirmed
    Payment Terms: L/C, T/T
    Supply Ability: 100 sets/ month
    Contact Now
    Detailed Product Description
    Loading Capacity: 240kg Platform Height: 3.9m
    Working Height: 5.9m Platform Size: 1.15*0.60m
    Motor Power: 0.8kw Weight: 630kg



    3.9m Platform Height 240kg Load Mini Model Self Propelled Scissor Lift with Small Wheels



    Mini Self Propelled Scissor Lift is widely used in warehouse, supermarket and more (the place with narrow space) becuase of its small size. The simple structure make it much easier to operate and maintenance.

    It moves and lifts all by battery power. Operator on platform can control lifting, moving, turning and all movement.



    Parameter:

    Loading Capacity 240kg
    Platform Height 3900mm
    Platform Size 1150mm*600mm
    Ground Clearance​ 50mm
    Motor Power 0.8kw
    Raise / Lower Time 28s / 20s
    Total Weight 630kg
    Overall Size 1300*760*1860mm



    Mini Model Self Propelled Scissor Type Lifter With Small Wheels , Small Scissors Lift

    Description:

    This mini scissor lift is easy to use. The control panels are available on the platforms and ground.


    The user can control the machine walking and lifting operation directly on the platform, and realize the single person working continuously at high altitude.



    Because it is miniature, the height is limited, suit low position aerial work. They are used to provide contractors with temporary access to high-altitude areas that are inaccessible to various workplaces, such as maintenance, construction projects or fire crews emergency access.



    The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.



    Machine Features:
    1. Battery Operated with Hydraulic Drive Motor
    2. Extension Platform to reach the site quickly
    3. Fork Lift Slots for easy transportation
    4. Automatic display of fault code for easy maintenance
    5. Low Noise, Non-Pollution and Strong Adapbility for various using sites

    Safety Features:
    1. Auxiliary Lowering Devices
    2. Anti-burst System
    3. Emergency Stop Button
    4. Tilting Protection System
    5. Charging Protection System
    6. Automatic Pothole Protection
    7. Automatic Braking System
    8. Buzzer and Horn


    Standard Configurations:
    Self-lock Gate On Platform
    Non Marking Tyre
    Automatic Brake System
    Emergency Lowering System
    Emergency Stop Button
    Horn
    All motion alarm
    Forklift Pockets
    Charger Protection
    Safety Brackets
    Hour meter
    Folding Guardrails
    Powder coating painting
    Flashing Beacon
    On-board Diagnostic System
    Folding Guardrails

    Optional Configuration:
    Platform Extension
    AC power to the platform
    Working Light on the platform
    Cylinder Holding valve
    Tilting Sensor with Alarm

    Mini Model Self Propelled Scissor Type Lifter With Small Wheels , Small Scissors Lift
    Applications:
    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



    Company Introduction
    As a subsidary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

    We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.
    We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America,Europe and Africa



    Factory Equipment

    Mini Model Self Propelled Scissor Type Lifter With Small Wheels , Small Scissors Lift


    Client &Exhibition

    Mini Model Self Propelled Scissor Type Lifter With Small Wheels , Small Scissors Lift


    Why choose Our Self-propelled Scissor Lift?
    · High Quality
    · Reasonable Price
    · Good after Service
    · 1 Year Warranty
    · More Than 10 Years Experience


    Communication with Customers

    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:

    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
