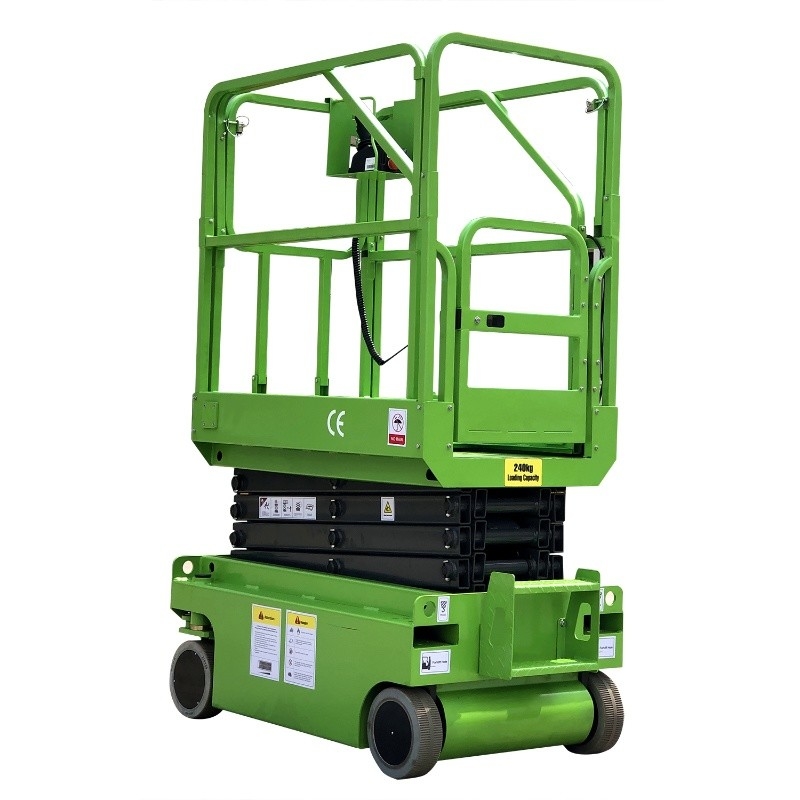

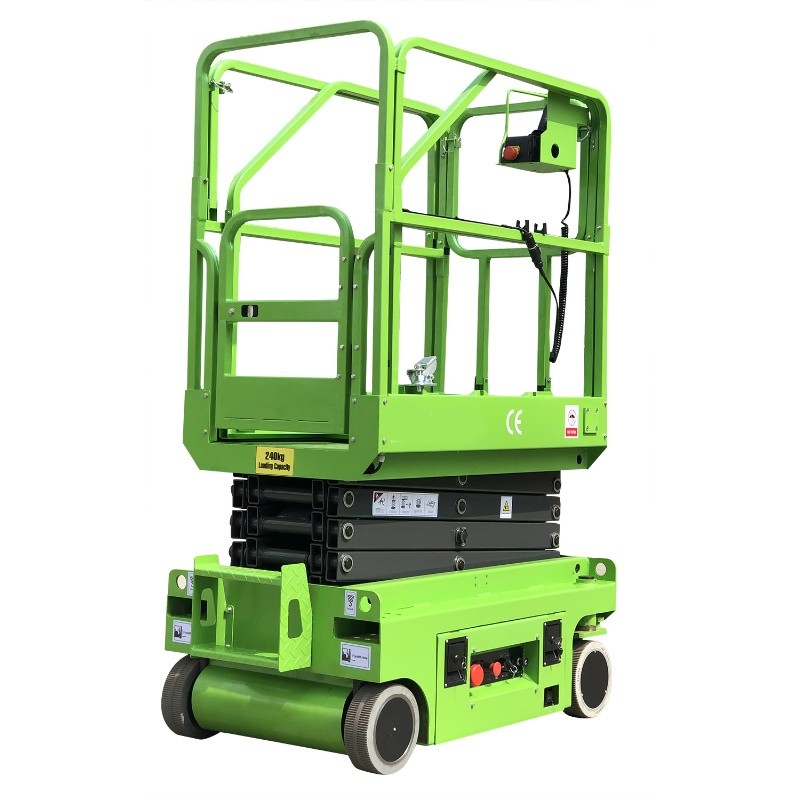

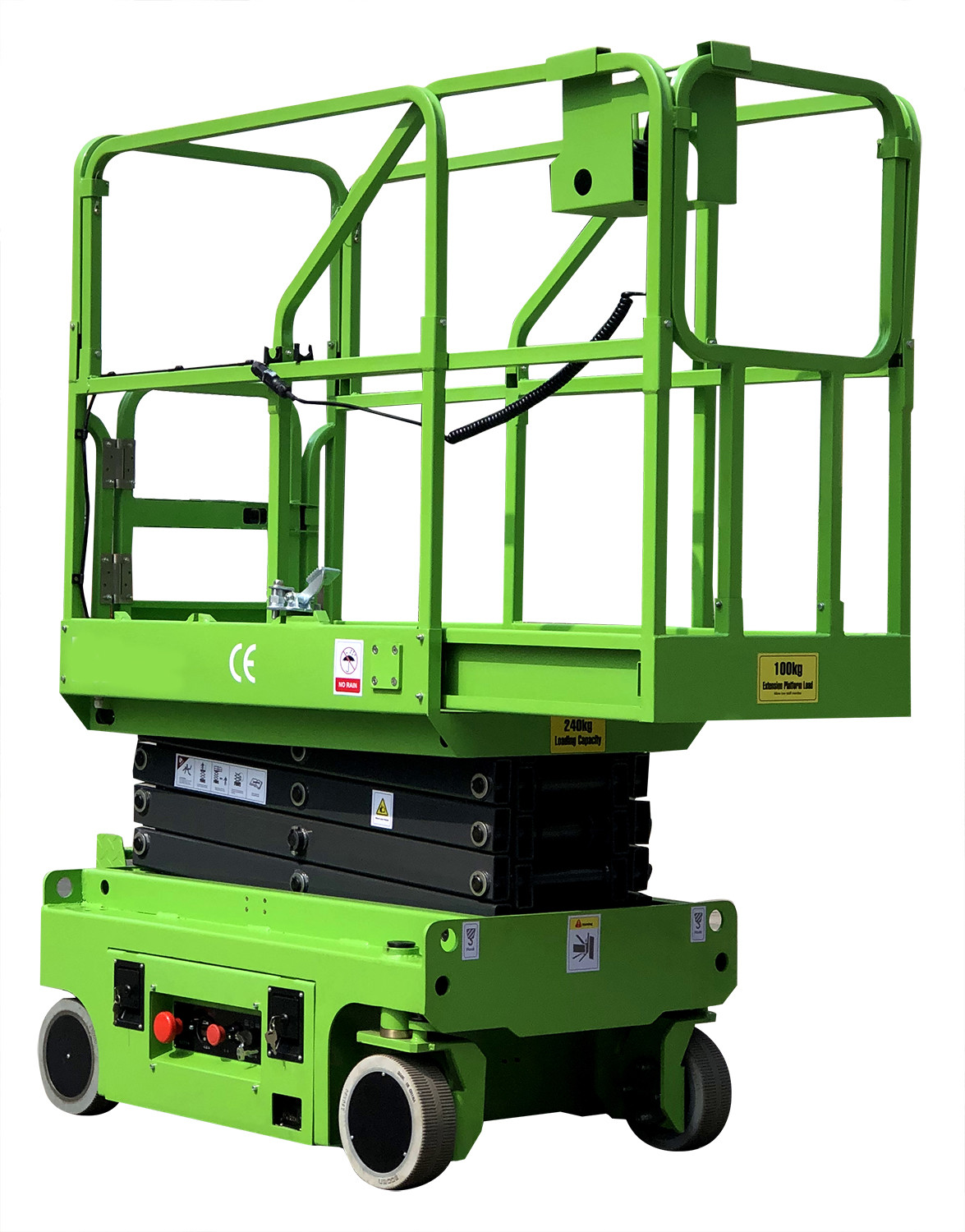

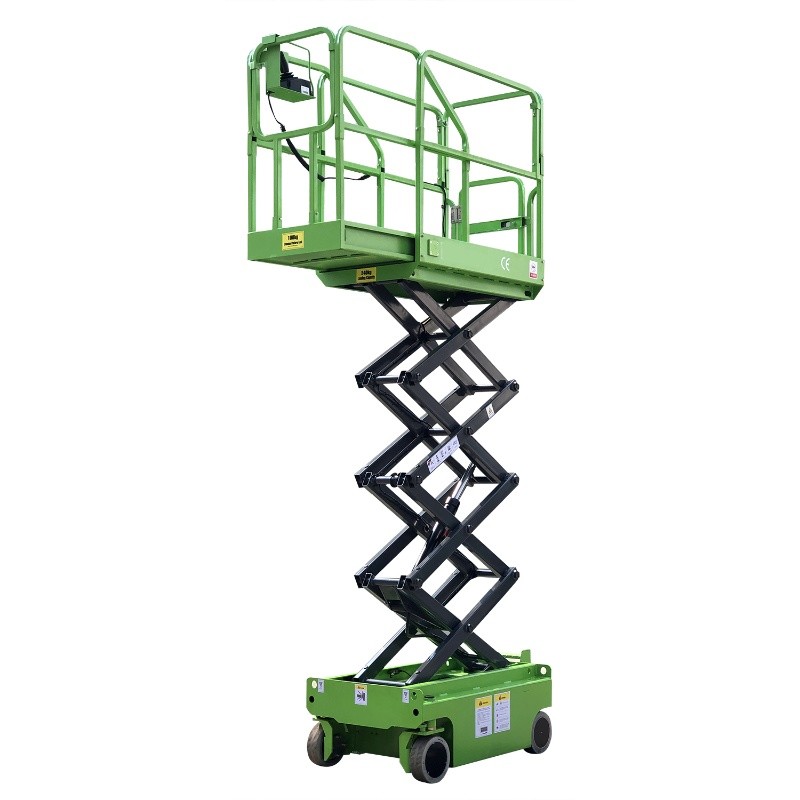

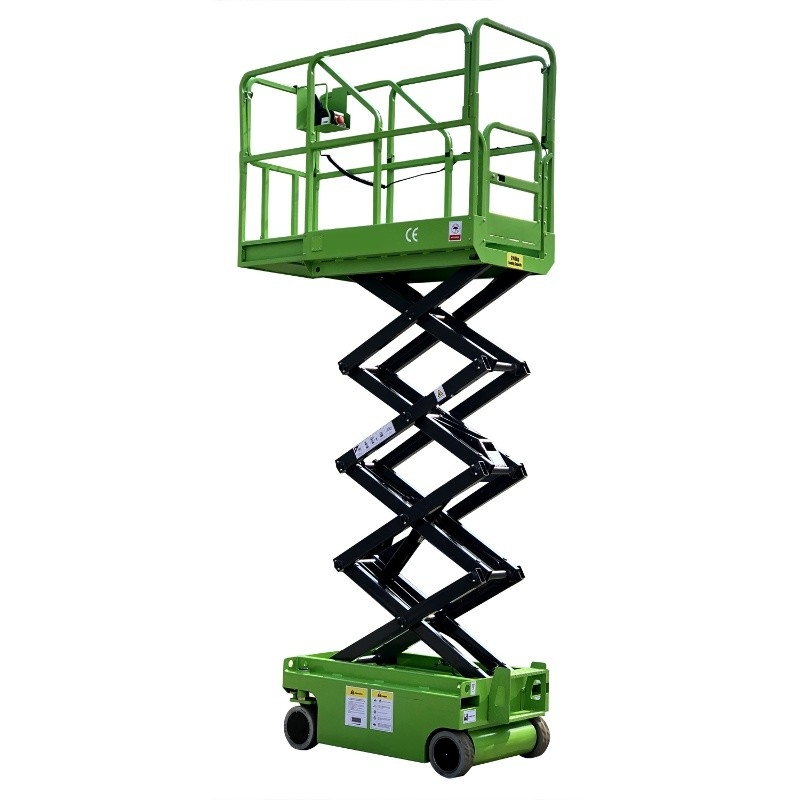

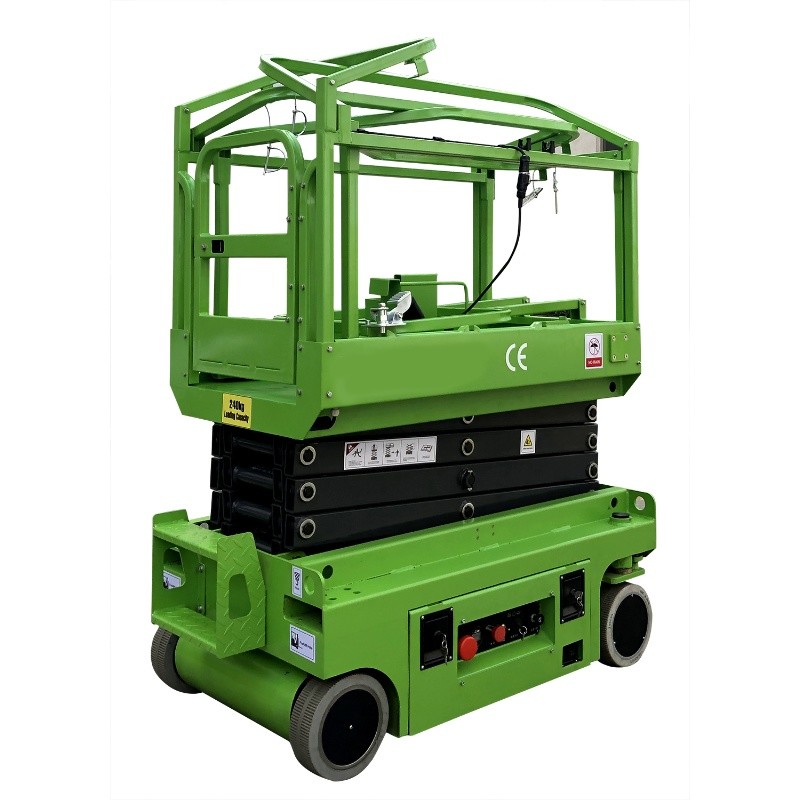

Long Time Mx390s Electric Mini Scissor Lift With Hydraulic Turning Wheels

Long Time Mx390s Electric Mini Scissor Lift With Hydraulic Turning Wheels

    • Long Time Mx390s Electric Mini Scissor Lift With Hydraulic Turning Wheels
    • Long Time Mx390s Electric Mini Scissor Lift With Hydraulic Turning Wheels
  • Long Time Mx390s Electric Mini Scissor Lift With Hydraulic Turning Wheels

    Product Details:

    Place of Origin: China
    Brand Name: BestmaxLift
    Certification: CE
    Model Number: MX390S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: PVC Film Wrapped in Pallets or Wooden Case
    Delivery Time: 30 days after order confirmed
    Payment Terms: L/C, T/T
    Supply Ability: 100 sets/ month
    Contact Now
    Detailed Product Description
    Loading Capacity: 240kg Platform Height: 3.9m
    Working Height: 5.9m Platform Size: 1.15*0.60m
    Motor Power: 0.8kw Weight: 830kg

    MX390S 3.9m Platform Height 240kg Load Mini Electric Scissor Lift with Hydraulic Turning Wheels



    Mini Self Propelled Scissor Lift is widely used in warehouse, supermarket and more (the place with narrow space) becuase of its small size. The simple structure make it much easier to operate and maintenance.

    It moves and lifts all by battery power. Operator on platform can control lifting, moving, turning and all movement.



    Parameter:

    Model MX300R/MX300S MX390R/MX390S
    Load 240 kg 240 kg
    Platform Height 3 m 3.9 m
    Working Height 5 m 5.9 m
    Platform Size 1.15* 0.6 m (No Extension)
    1.15* 0.7 m (With Extension)
    1.15* 0.6 m (No Extension)
    1.15* 0.7 m (With Extension)
    Optional Configuration:
    Extension Platform
    Extension Length: 0.55 m
    Extension Load: 100 kg
    Extension Length: 0.55 m
    Extension Load: 100 kg
    Lift/Drive Motor 24v 0.8kw/ 24v 0.3 kw 24v 0.8kw/ 24v 0.3 kw
    2 Wheel Type: Swivel Wheel Type and Hydraulic Turning Wheel Type( more easily turning)



    Description:

    This mini scissor lift is easy to use. The control panels are available on the platforms and ground.


    The user can control the machine walking and lifting operation directly on the platform, and realize the single person working continuously at high altitude.



    Because it is miniature, the height is limited, suit low position aerial work. They are used to provide contractors with temporary access to high-altitude areas that are inaccessible to various workplaces, such as maintenance, construction projects or fire crews emergency access.



    The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.


    Long Time Mx390s Electric Mini Scissor Lift With Hydraulic Turning Wheels

    Long Time Mx390s Electric Mini Scissor Lift With Hydraulic Turning Wheels
    Safety Precaution

    • Auxiliary Lowering Devices
    • Anti-burst System
    • Emergency Stop Button
    • Tilting Protection System
    • Charging Protection System
    • Automatic Braking System
    • Buzzer and Horn

    Company Introduction
    As a subsidary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

    We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.
    We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America,Europe and Africa

    Long Time Mx390s Electric Mini Scissor Lift With Hydraulic Turning Wheels

    Long Time Mx390s Electric Mini Scissor Lift With Hydraulic Turning Wheels


    Our Service
    1. We can design the customized the machines based on your requirement.
    2. After knowing your detailed need, the right models will be recommened to you with good price.
    3. Shipment can be arranged from our port to your destination port.
    4. Opetion video can be sent to you if needed.
    5. Parts of machines can be sent to you by express within 7 days if needed.
