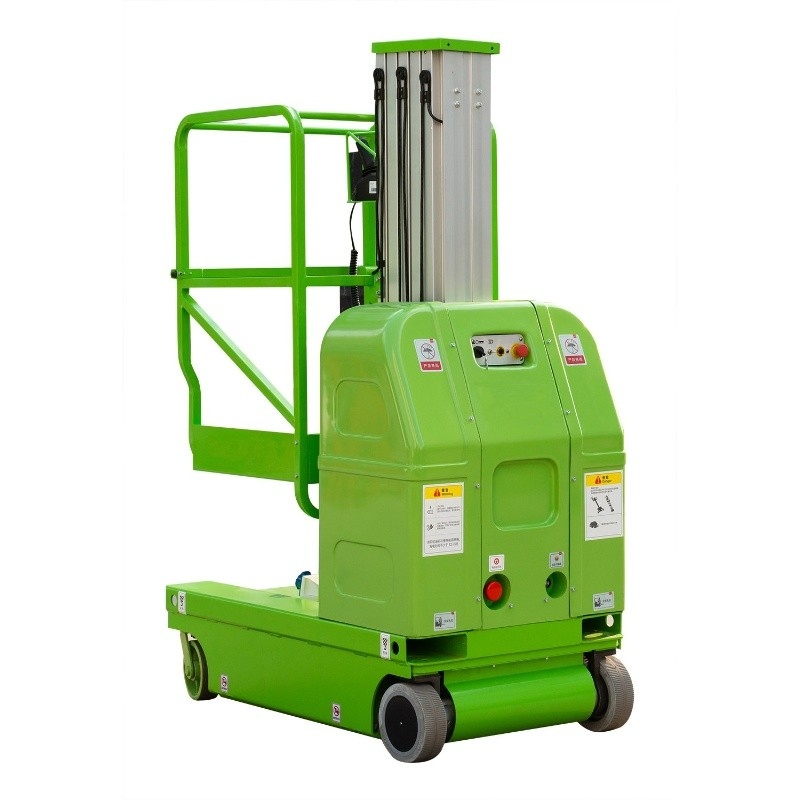

8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform

8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform

    • 8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform
    • 8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform
    • 8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform
  • 8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform

    Product Details:

    Place of Origin: Original from China
    Brand Name: Bestmax Lift
    Certification: CE ISO9001:2008 IPAF member
    Model Number: MG600-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 days after receipt of deposit
    Supply Ability: 100 set/ month
    Contact Now
    Detailed Product Description
    Model: MG600-1 Lift Capacity: 125kg
    Platform Height Max: 6m Platform Size: 0.78*0.70m
    Power Source: 2*12V/115Ah Charger: 24V/12A
    Weight: 850kg Color: Customizable

    8m Working Height Vertical Lifting Platform Self-propelled Vertical Lift Single Mast

    Description:
    Self-Propelled Economical Vertical Lift is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground.

    It can be used for wall-mounted work and exploration work, and is widely used in hotels, hospitals, stations, airports, warehouses and other occasions.
    Safe and reliable operation performance, the base pothole protection device gives you a hundred times peace of mind.


    Specification:
    Swivel Turning Type

    Model MG600-1 MG750-1 MG750-2 MG900-2
    Lift Capacity 125Kg 125Kg 200Kg 150Kg
    Platform Height Max 6m 7.5m 7.5m 9m
    Stowed Length 1.36m 1.36m 1.5m 1.5m
    Stowed Width 0.79m 0.79m 1.0m 1.0m
    Stowed Height 1.98m 1.98m 1.99m 1.99m
    Platform Size 0.78*0.70m 0.78*0.70m 1.00m*0.70m 1.00m*0.70m
    Ground Clearance 0.05m 0.05m 0.05m 0.05m
    Wheelbase 1.15m 1.15m 1.28m 1.28m
    Gradeability 25% 25% 25% 25%
    Maximum Working Slope 1.5° 1.5° 1.5° 1.5°
    Driving Wheel 0.23*0.08m 0.23*0.08m 0.25*0.08m 0.25*0.08m
    Front Tire 8in 8in 8in 8in
    Driving Motor 0.4Kw 0.4Kw 0.5Kw 0.5Kw
    Lifting Motor 2Kw 2Kw 2Kw 2Kw
    Power Source 2*12V/120Ah 2*12V/120Ah 2*12V/120Ah 2*12V/120Ah
    Charger 24V/12A 24V/12A 24V/12A 24V/12A
    Weight 850Kg 880Kg 1100Kg 1250Kg


    Standard Configuration for Self-Propelled Economical Vertical Lift
    1. Proportional controls
    2. DC power supply
    3. Drivable at full height
    4. Beacon
    5. Non marking tyre
    6. 2WD
    7. Automatic braking system
    8. Anti burst valve on cylinder
    9. Emergency stop button
    10. Auxiliary lowering
    11. On board Diagnostic system
    12. Tilt sensor with alarm
    13. Forklift pockets
    14. Charger protection
    15. All motion alarm
    16. Horn
    17. Double wheel brake
    18. Hydraulic braking release
    19. Anti-dust cover on the mast
    20. Powder coating painting

    Optional Configuration for Self-Propelled Economical Vertical Lift
    1. AC power to platform
    2. Overload sensor with alarm
    3. Platform working light
    4. Air tube to the platform
    5. Platform extension
    6. Self -lock gate on platform(Hinge type top open door)
    7. Hour meter
    8. Machine Body cover
    9. Wireless tracking


    8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform
