10m Platform Height 230kg Load Scissor Lift Self Propelled With Extension Platform

10m Platform Height 230kg Load Scissor Lift Self Propelled With Extension Platform

  • 10m Platform Height 230kg Load Scissor Lift Self Propelled With Extension Platform
  • 10m Platform Height 230kg Load Scissor Lift Self Propelled With Extension Platform
  • 10m Platform Height 230kg Load Scissor Lift Self Propelled With Extension Platform
  • 10m Platform Height 230kg Load Scissor Lift Self Propelled With Extension Platform
  • 10m Platform Height 230kg Load Scissor Lift Self Propelled With Extension Platform
  • 10m Platform Height 230kg Load Scissor Lift Self Propelled With Extension Platform
10m Platform Height 230kg Load Scissor Lift Self Propelled With Extension Platform
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE; ISO
Model Number: MX1000S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 10500-12500/ unit
Packaging Details: Wrapped with Film
Delivery Time: Within 15 day after confirmed
Payment Terms: T/T, L/C
Supply Ability: 200 units per month
Contact Now
Detailed Product Description
Max Platform Height: 10 M Max Working Height: 12 M
Load Capacity: 320 Kg Platform Size: 2.27* 1.12 M
Platform Extension Length: 0.9 M Platform Extension Load: 113 Kg
Color: Any Color Certificate: ISO; CE
High Light:

self propelled work platform

,

self propelled lift

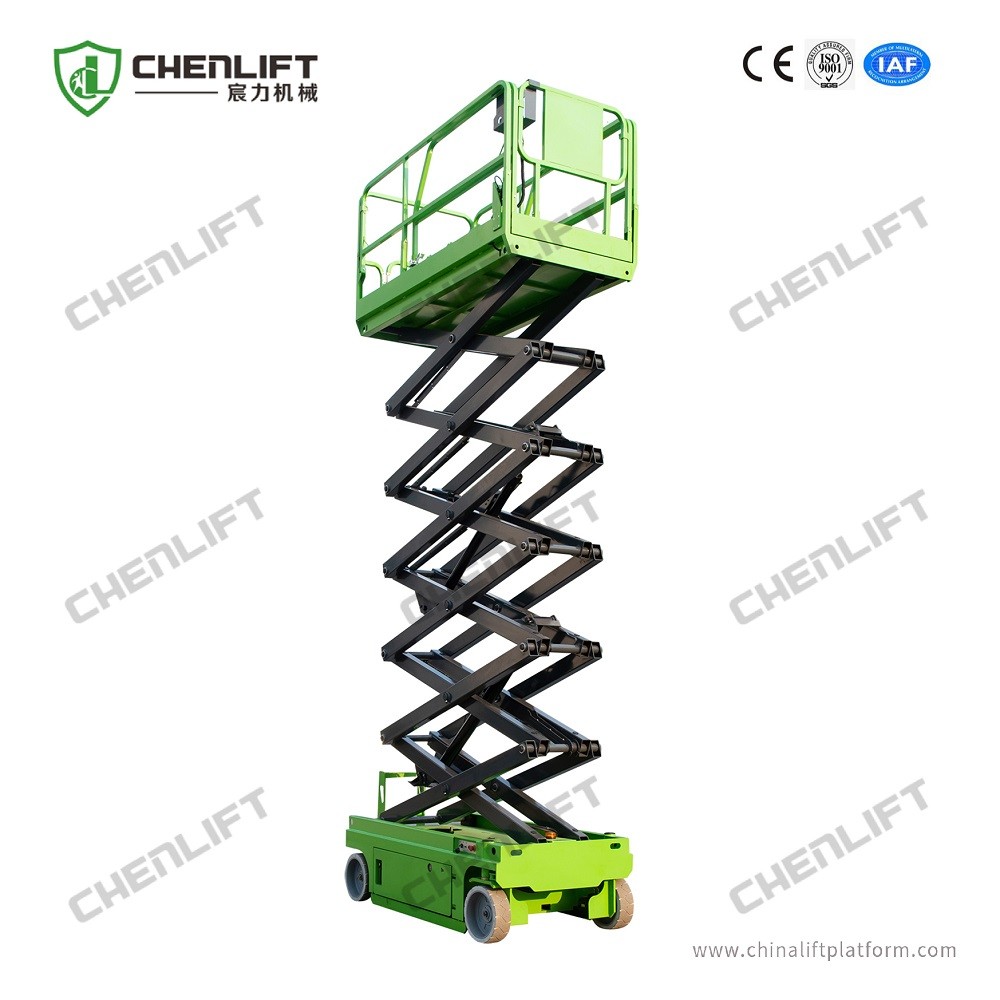

10m Platform Height 230kg Load Self Propelled Scissor Lift with Extension Platform


1. Self propelled scissor lift ,with automatic walking function, can be in different work condition, do not need external power supply, do not need artificial traction.

2. Mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk ,easily moved, spacious working platforms, high working efficiency.

3. Scissor lift can be move while extended and controlled from platform by the operator.

4. Most models are equipped with zero inside turning radius capability, can be easily and flexibly operated in crowed working conditions such as construction site,elevator, and narrow corridor. Lift-down,turning, forward and backward movements can be easily operated by one person.

Specification
Model MX580S MX600SN MX800SN MX800S MX1000S MX1200S
Load 230 kg 230 kg 230 kg 450 kg 320 kg 230 kg
Extension Load 113 kg 113 kg 113 kg 113 kg 113 kg 113 kg
Platform Height 5.8 m 6 m 8 m 8 m 10 m 11.8 m
Working Height 7.8 m 8 m 10 m 10 m 12 m 13.8 m
Platform Size 1.67*0.74m 2.27*0.81m 2.27*0.81m 2.27*1.12m 2.27*1.12m 2.27*1.12m
Platform Extension Length 0.9 m 0.9 m 0.9 m 0.9 m 0.9 m 0.9 m
Lift/Drive Motor 24v/3.3 kw 24v/3.3 kw 24v/3.3 kw 24v/3.3 kw 24v/3.3 kw 24v/4.5 kw




Safety Precaution

  • Auxiliary Lowering Devices
  • Anti-burst System
  • Emergency Stop Button
  • Tilting Protection System
  • Charging Protection System
  • Automatic Pothole Protection
  • Automatic Braking System
  • Buzzer and Horn

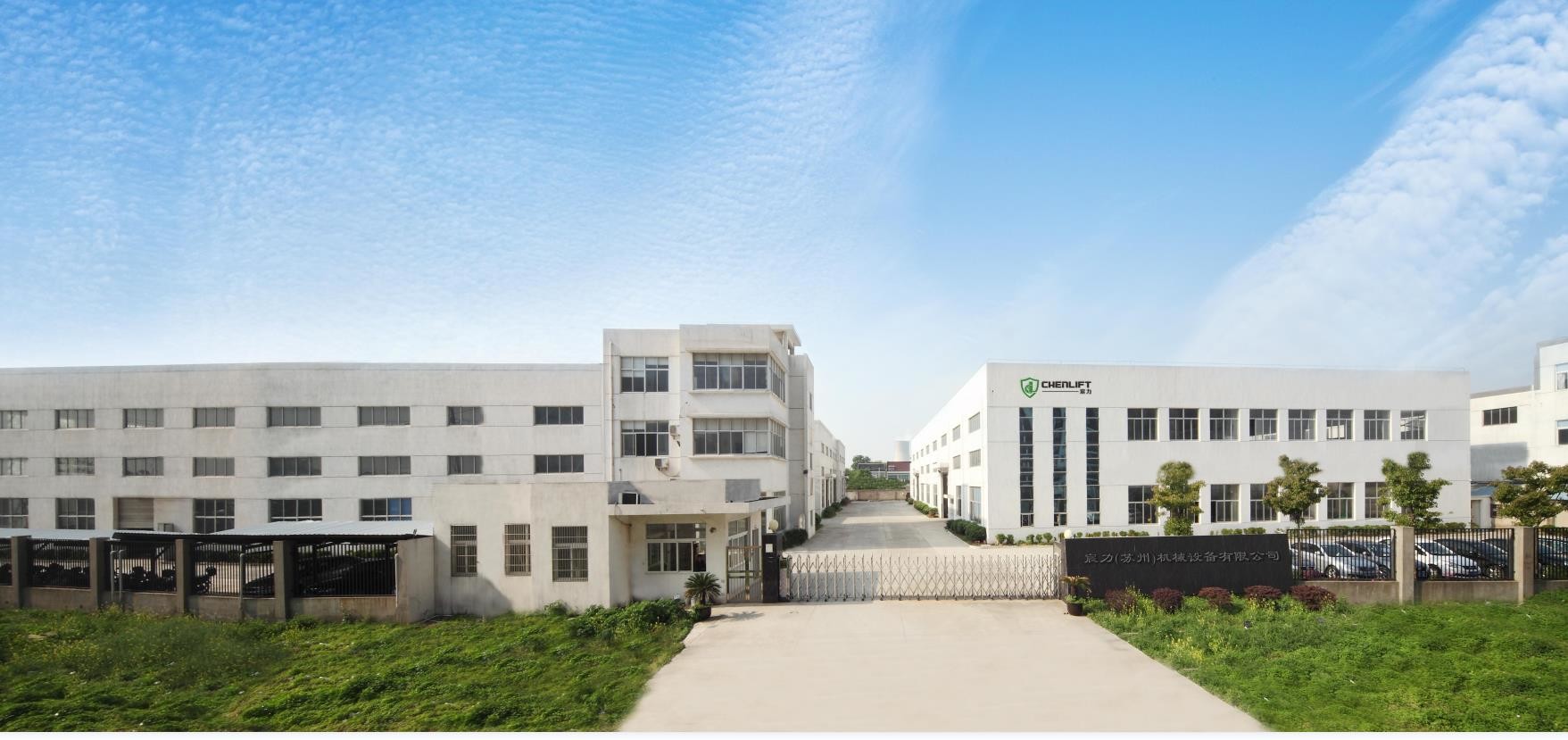

Our Company



10m Platform Height 230kg Load Scissor Lift Self Propelled With Extension Platform 0

Factory Equipments

10m Platform Height 230kg Load Scissor Lift Self Propelled With Extension Platform 1



Our Certificates

10m Platform Height 230kg Load Scissor Lift Self Propelled With Extension Platform 2



Our Clients

10m Platform Height 230kg Load Scissor Lift Self Propelled With Extension Platform 3



Other Related Products





Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
