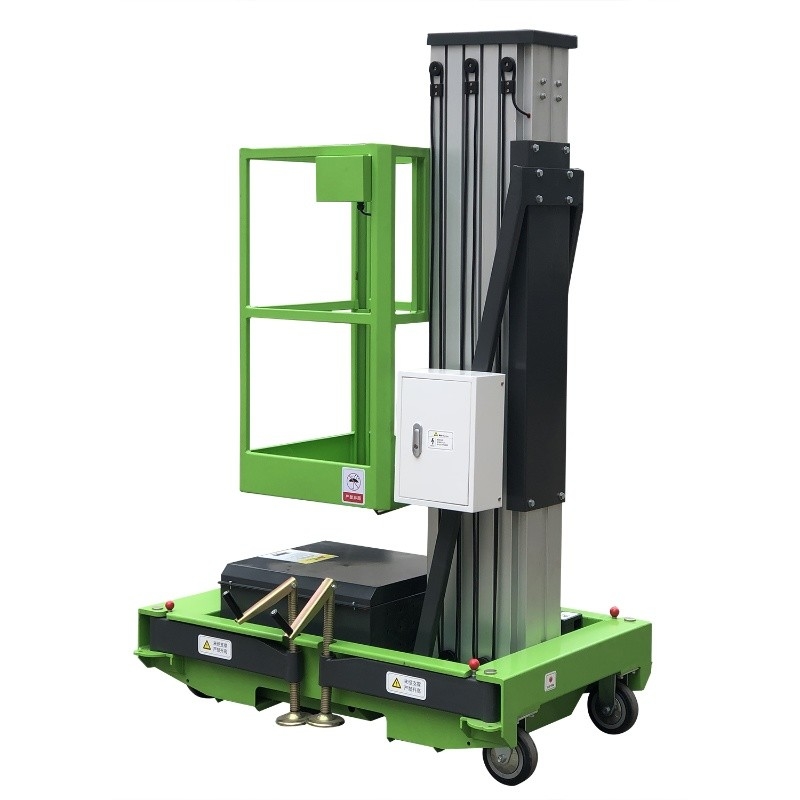

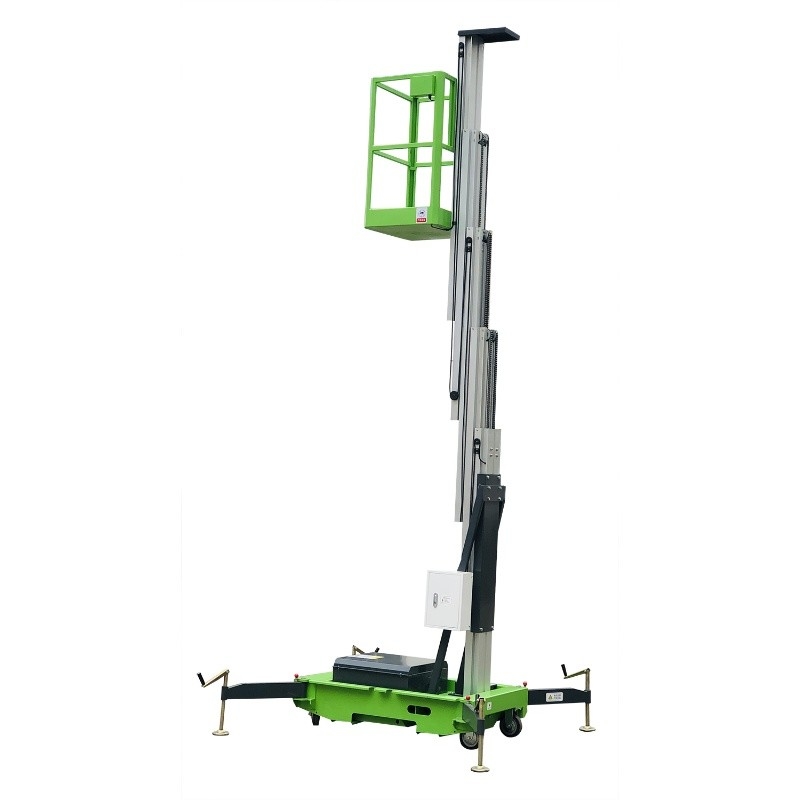

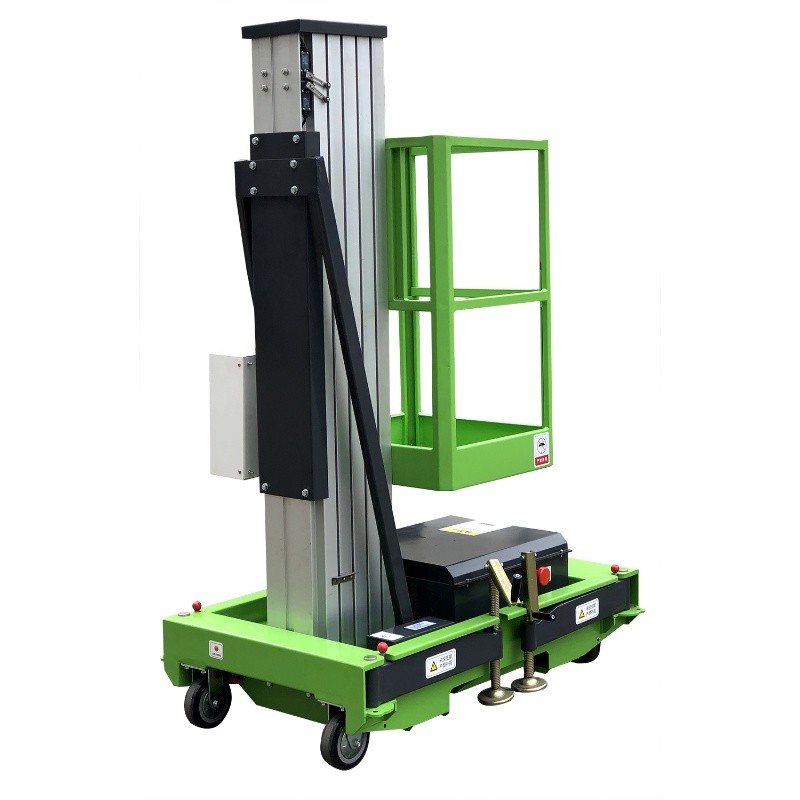

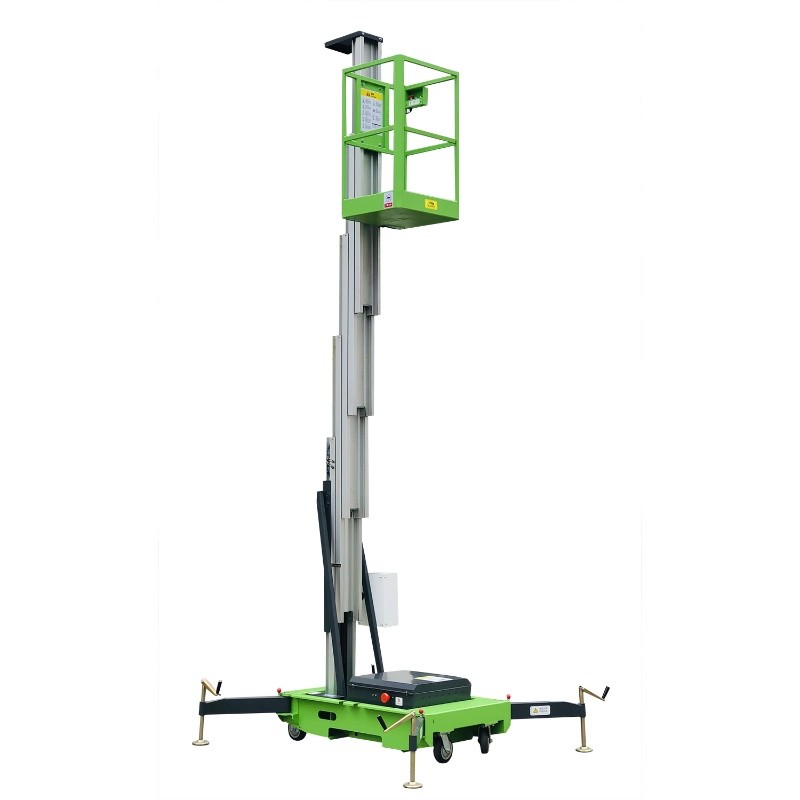

6M Single Mast Aluminum Aerial Access Platform Hydraulic Vertical Lift Table 125Kg

6M Single Mast Aluminum Aerial Access Platform Hydraulic Vertical Lift Table 125Kg

    • 6M Single Mast Aluminum Aerial Access Platform Hydraulic Vertical Lift Table 125Kg
    • 6M Single Mast Aluminum Aerial Access Platform Hydraulic Vertical Lift Table 125Kg
    • 6M Single Mast Aluminum Aerial Access Platform Hydraulic Vertical Lift Table 125Kg
    • 6M Single Mast Aluminum Aerial Access Platform Hydraulic Vertical Lift Table 125Kg
    • 6M Single Mast Aluminum Aerial Access Platform Hydraulic Vertical Lift Table 125Kg
  • 6M Single Mast Aluminum Aerial Access Platform Hydraulic Vertical Lift Table 125Kg

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: GTWY6-100 (ME600-1)

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Wrapped in pallet or in wooden case
    Delivery Time: 30 days after down payment
    Payment Terms: T/T, L/C
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Loading Capacity: 125Kg Platform Height: 6m
    Working Height: 8m Platform Size: 0.60*0.55m
    Lifting Power: 0.75Kw Overall Size: 1.35*0.80*2.00m
    Power Voltage: AC220V Weight: 260Kg





    6m Single Mast Aluminum Aerial Work Platform Hydraulic Vertical Lift Table 125Kg



    Quick Detail:

    Name Mobile Aerial Work Platform Brand Name Xunte
    Loading Capacity 125Kg Platform Height 6m
    Platform Size 0.60*0.55m Color Red or Optional
    Motor Power 0.75Kw Power Supply AC 220V



    Description:

    Single Mast Aluminum Aerial Work Platforms has small size, the storage space it requires is small. Because of its light weight, Operator can push it around easily. We have locking keys on the ground control box to ensure no one will operate the machine while people are working in the heights.



    Applications:

    It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 4m to 8m and lifting capacity varies from 100kg to 130kg.The power sources could be 220V, 380V or chargeable battery.



    Main Features:

    1. Most rigid aluminum alloy profile

    2. Auxiliary platform lowering

    3. Multi-guide pulley on mast

    4. Durable base system

    5. Chassis with level gauge

    6. DC working power on the platform

    7. Easily rolls through a narrow space

    8. Emergency stop button

    9. Over load protection

    10. Built-in pressure release valve

    11. Dual activated up/down switch

    12. Locking Key Switch



    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Flame proof electric cabinet



    Competitive Advantage:

    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience



    6M Single Mast Aluminum Aerial Access Platform Hydraulic Vertical Lift Table 125Kg



    6M Single Mast Aluminum Aerial Access Platform Hydraulic Vertical Lift Table 125Kg



    Communication with Customers:

    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1. Strict quality control system on the whole process of production
    2. Imported key arts to ensure the high quality of our products
    3. Advanced equipment and tools for examination and quality control
    4. 100% strict examining products before shipment
    5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30 days after order confirmation



    A: What spare parts that you can offer?

    B: Find the list below which we are offering with the machine when shipment for free:



    Item Model Quantity
    O-shape rubber ring 40×3.1 4
    O-shape rubber ring 11×1.9 2
    O-shape rubber ring 40×30×6 1
    Spanner   1
    screwdriver 4# 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
