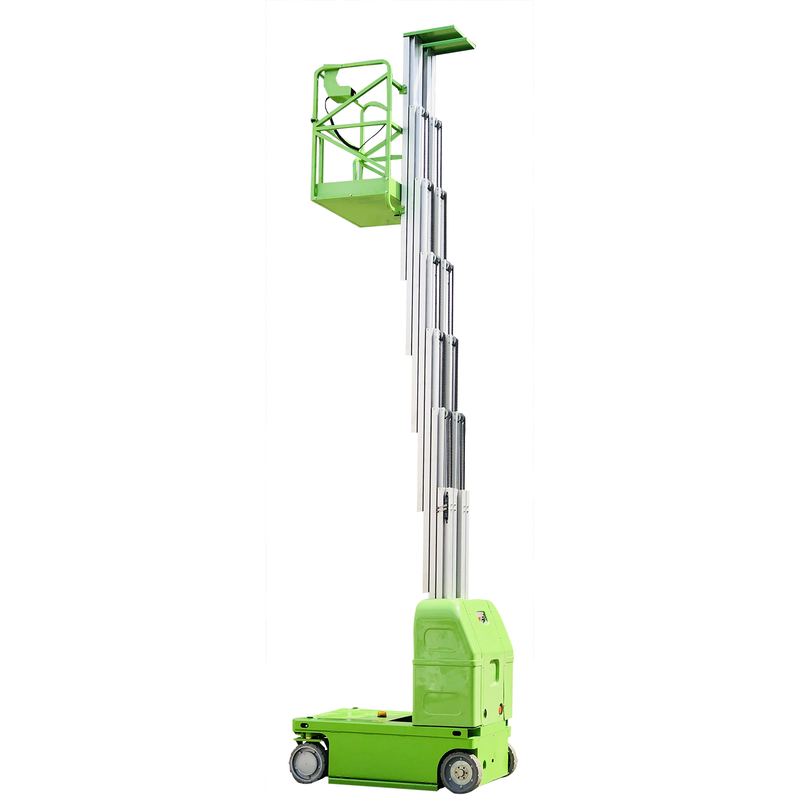

Green 9m Vertical Self Propelled Lift Double Mast With Hydraulic Turning Wheel

Green 9m Vertical Self Propelled Lift Double Mast With Hydraulic Turning Wheel

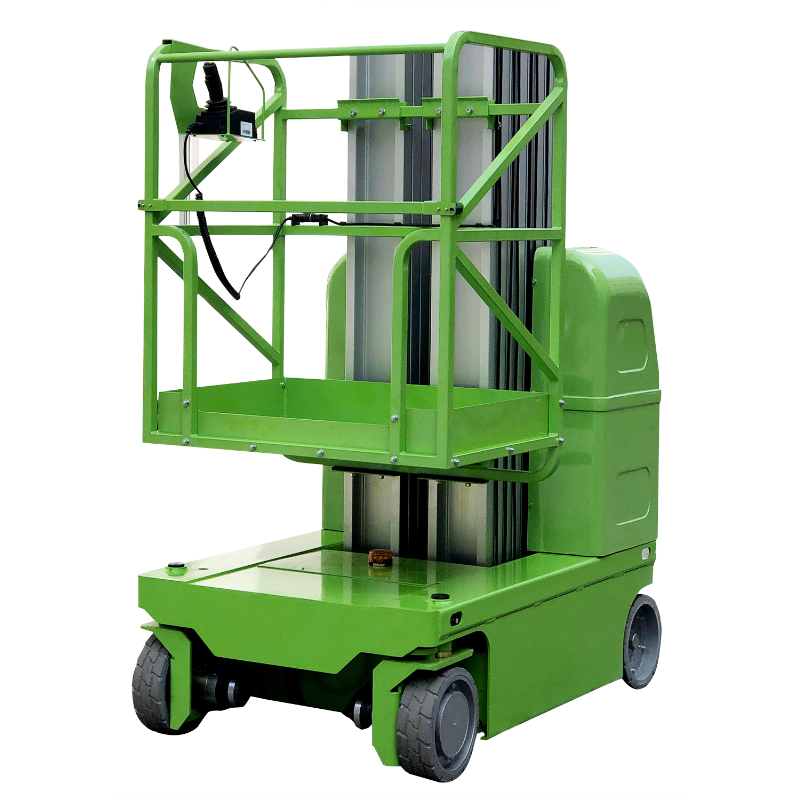

    • Green 9m Vertical Self Propelled Lift Double Mast With Hydraulic Turning Wheel

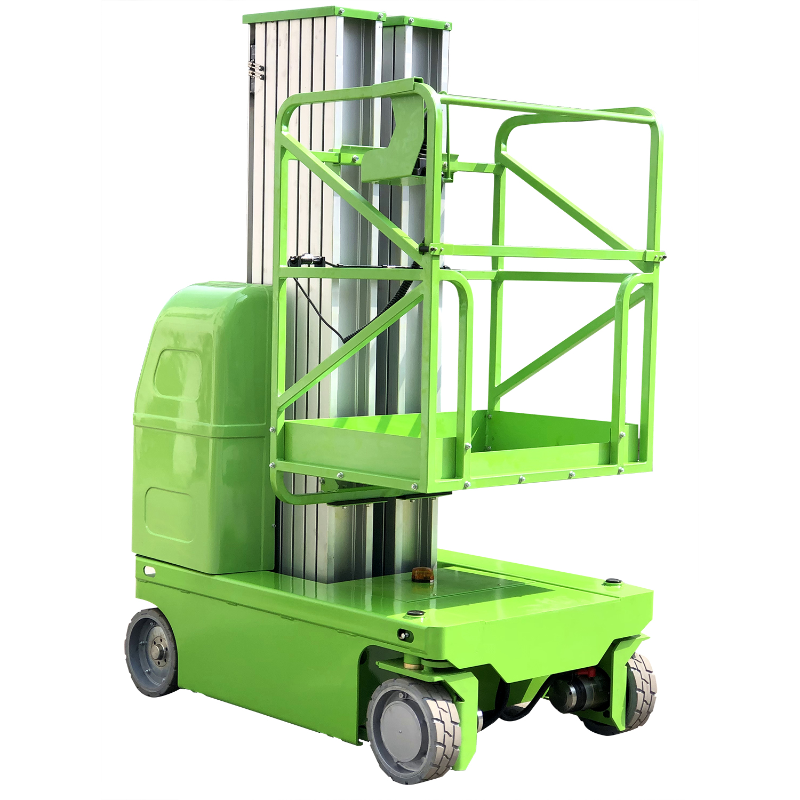

    • Green 9m Vertical Self Propelled Lift Double Mast With Hydraulic Turning Wheel

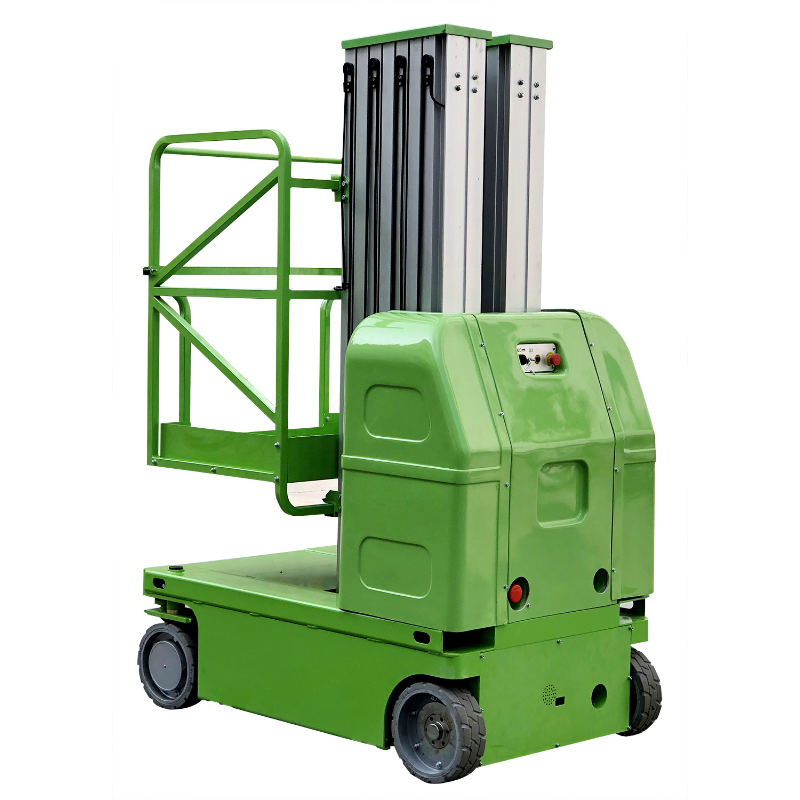

    • Green 9m Vertical Self Propelled Lift Double Mast With Hydraulic Turning Wheel

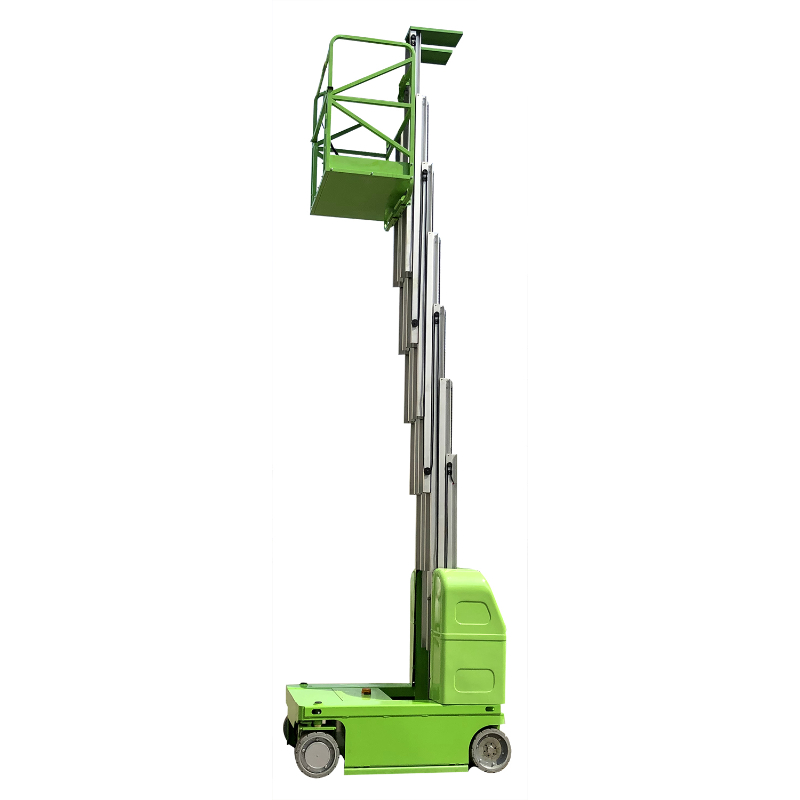

    • Green 9m Vertical Self Propelled Lift Double Mast With Hydraulic Turning Wheel

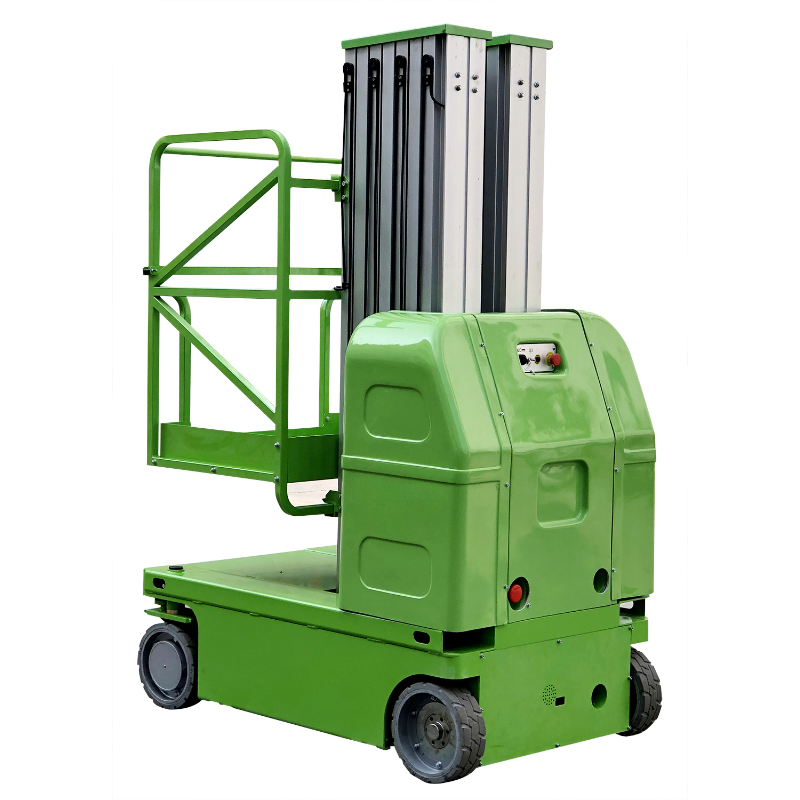

    • Green 9m Vertical Self Propelled Lift Double Mast With Hydraulic Turning Wheel

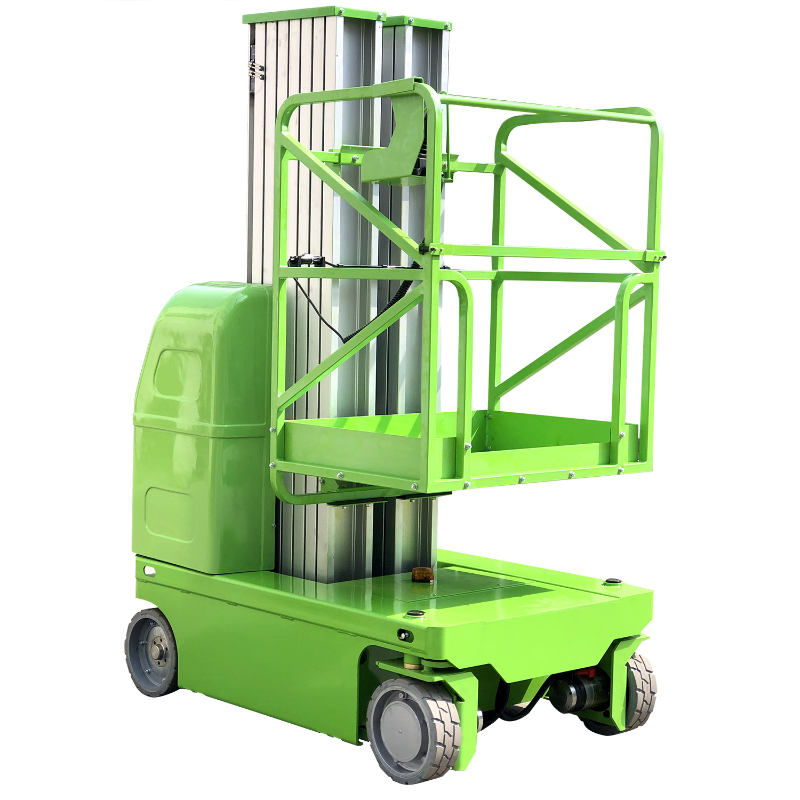

    • Green 9m Vertical Self Propelled Lift Double Mast With Hydraulic Turning Wheel

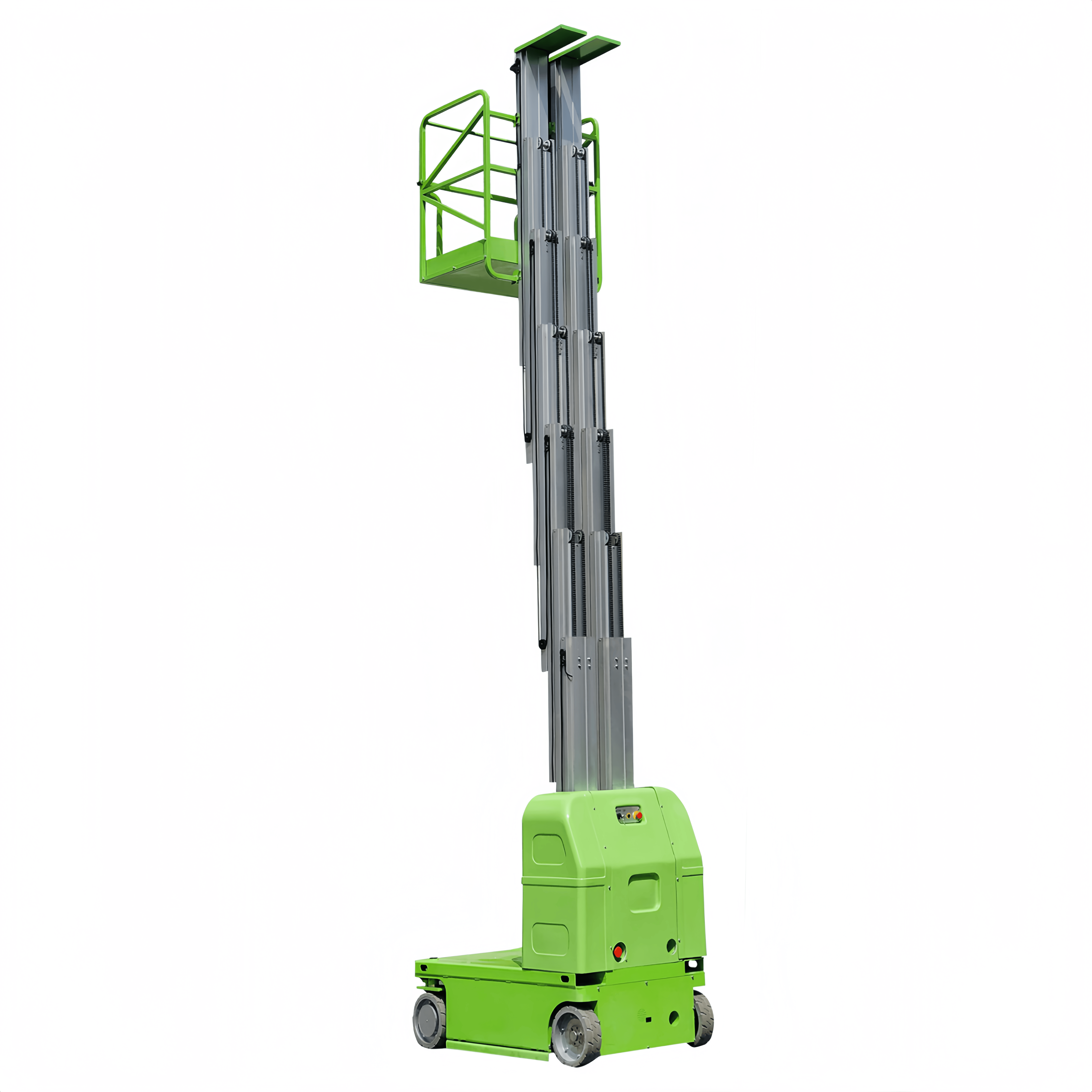

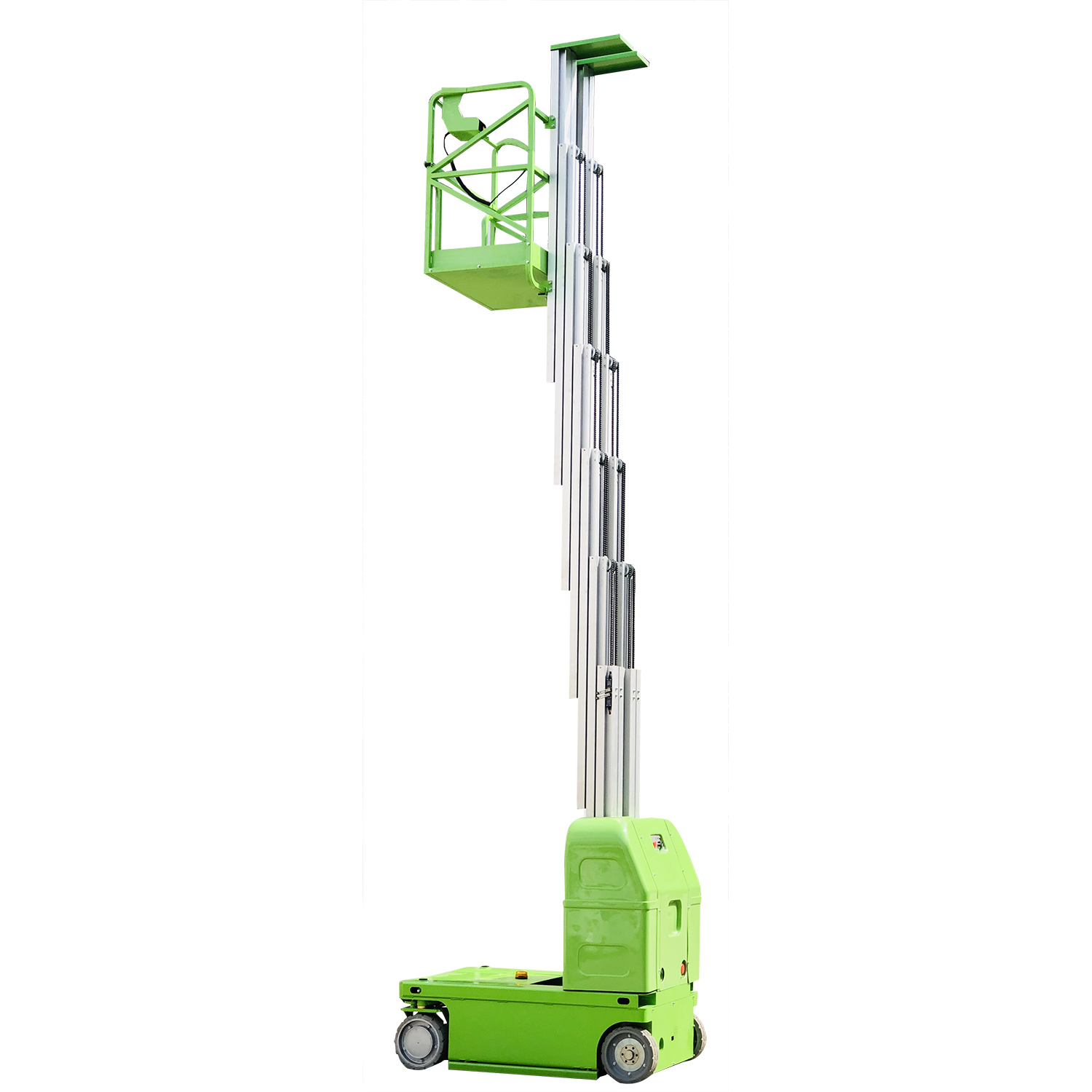

  • Green 9m Vertical Self Propelled Lift Double Mast With Hydraulic Turning Wheel

    Product Details:

    Place of Origin: Original from China
    Brand Name: Bestmax
    Certification: CE ISO9001:2008 IPAF member
    Model Number: MG900-2S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 days after receipt of deposit
    Supply Ability: 100 set/ month
    Contact Now
    Detailed Product Description
    Model: MG900-2S Lift Capacity: 150kg
    Platform Height Max: 9m Platform Size: 1.00*0.70m
    Power Source: 2*12V/100Ah Overall Size: 1.55*1.00*2.30m
    Weight: 1500Kg Working Height: 11m





    Self Propelled Aerial Work Platform 9m Vertical Lift Double Mast With Hydraulic Turning Wheel



    Machine Parameter

    Model MG900-2S
    Lift capacity 150kg
    Platform height max 9m
    Stowed length 1.55m
    Stowed width 1.05m
    Stowed height 2.30m
    Platform size 1.00*0.70m
    Ground clearance 0.05m
    Wheelbase 1.28m
    Grade ability 25%
    Maximum working slope
    Driving wheel φ0.25*0.08m
    Front tire 8in
    Driving motor 2*24V/0.5kw
    Lifting motor 24V/0.8kw
    Power source 2ˣ12V/100Ah
    Charger 24V/15A
    Weight 1500kg



    Safety Features:
    1. Emergency stop button
    2. Auxiliary Lowering Device
    3. Pothole Protection
    4. Tilting level sensor with alarm
    5. Flashing beacon
    6. Automatic braking system-back wheel
    7. Charing protecting system
    8. Safety distance protection during loweing-anti collision hand
    9. Anti-burst valve
    10. Cylinder holding valve
    11. Skirting Board
    12. Drive speed interlock limits speed while elevated



    Main Configurations:
    -Auxiliary Lowering Device
    -Charging Cable
    -Main Power Switch
    -Chassis Control Panel
    -Platform Entry Mid Rail
    -Non-slip mat
    -Skirting Board
    -Beacon Light
    -Anti-skid abrasive paste
    -Standard transportation forklift holes and crane holes
    -Non-marking Tires
    -Hydraulic Driving Wheel
    -Auto Brake System
    -Hydraulic Turning Wheel
    -Buzzer
    -Fuse
    -Plate chain
    -Tilting Sensor
    -Labels template
    -Emergency stop button
    -DC power supply
    -Drivable at full height
    -On board Diagnostic system
    -Charger protection
    -All motion alarm
    -Hydraulic braking release
    -Anti-dust cover on the mast
    -Powder coating painting

    Optional Configuration:
    1. AC Power to Platform
    2. Platform Working Light
    3. Extension Platform



    Applications:
    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.

    Why choose Our Vertical Lift?
    · High Quality
    · Reasonable Price
    · Good after Service
    · 1 Year Warranty
    · More Than 10 Years Experience



    Factory Equipment:
    Green 9m Vertical Self Propelled Lift Double Mast With Hydraulic Turning Wheel


    Client & Exhibition:

    Green 9m Vertical Self Propelled Lift Double Mast With Hydraulic Turning Wheel


    Communication with Customers:
    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
    B: The main difference is from the structure and the material.
    The scissor lift is in scissor structure with steel material.
    The aerial work platform is in mast structure with aluminum material.

    A: How is that for quality control in your factory?
    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
    1. Strict quality control system on the whole process of production
    2. Imported key arts to ensure the high quality of our products
    3. Advanced equipment and tools for examination and quality control
    4. 100% strict examining products before shipment
    5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

    A: What is the delivery time for your goods?
    B: It is 30 days after order confirmation.

    A: How long is your quality guarantee period?
    B: We have one year warranty.
