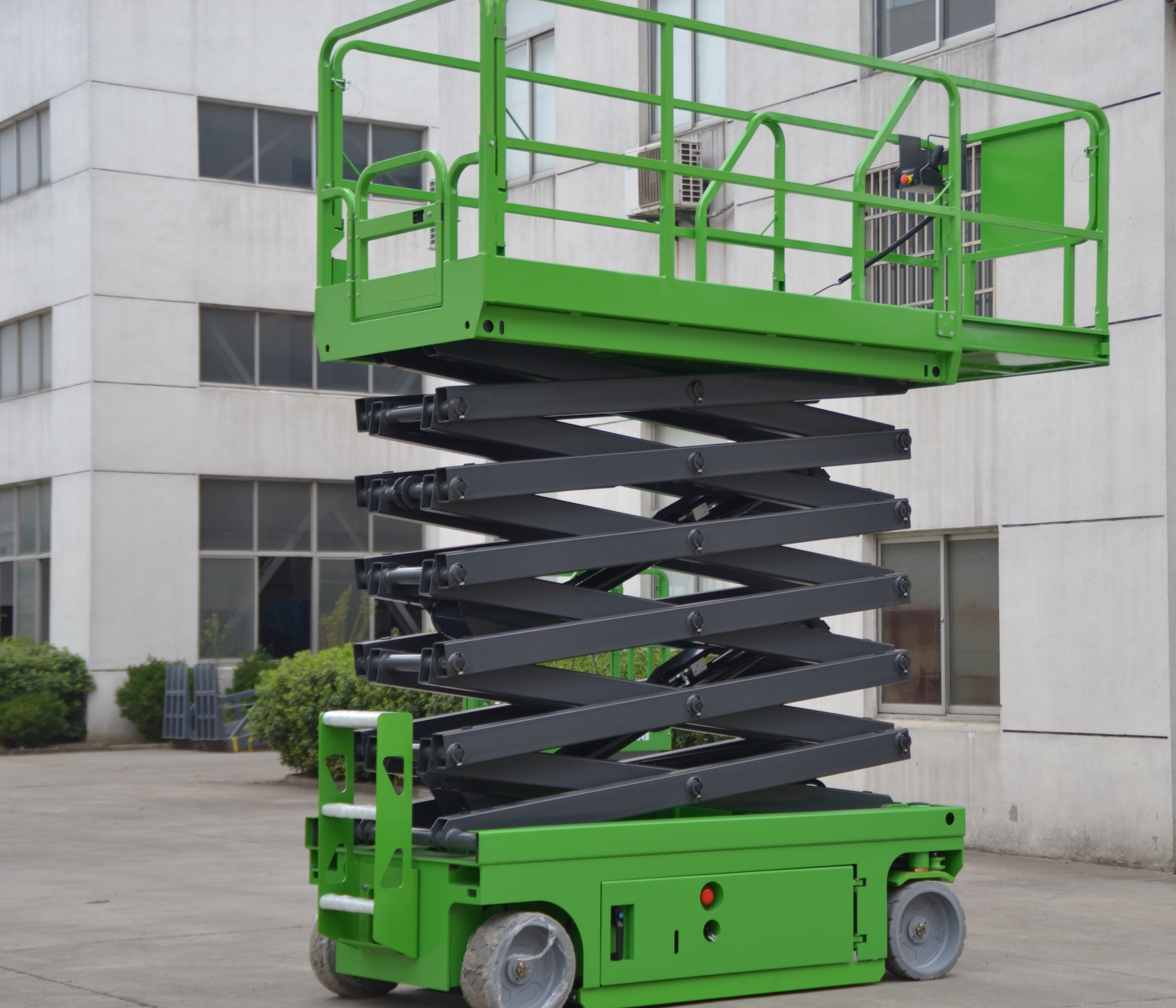

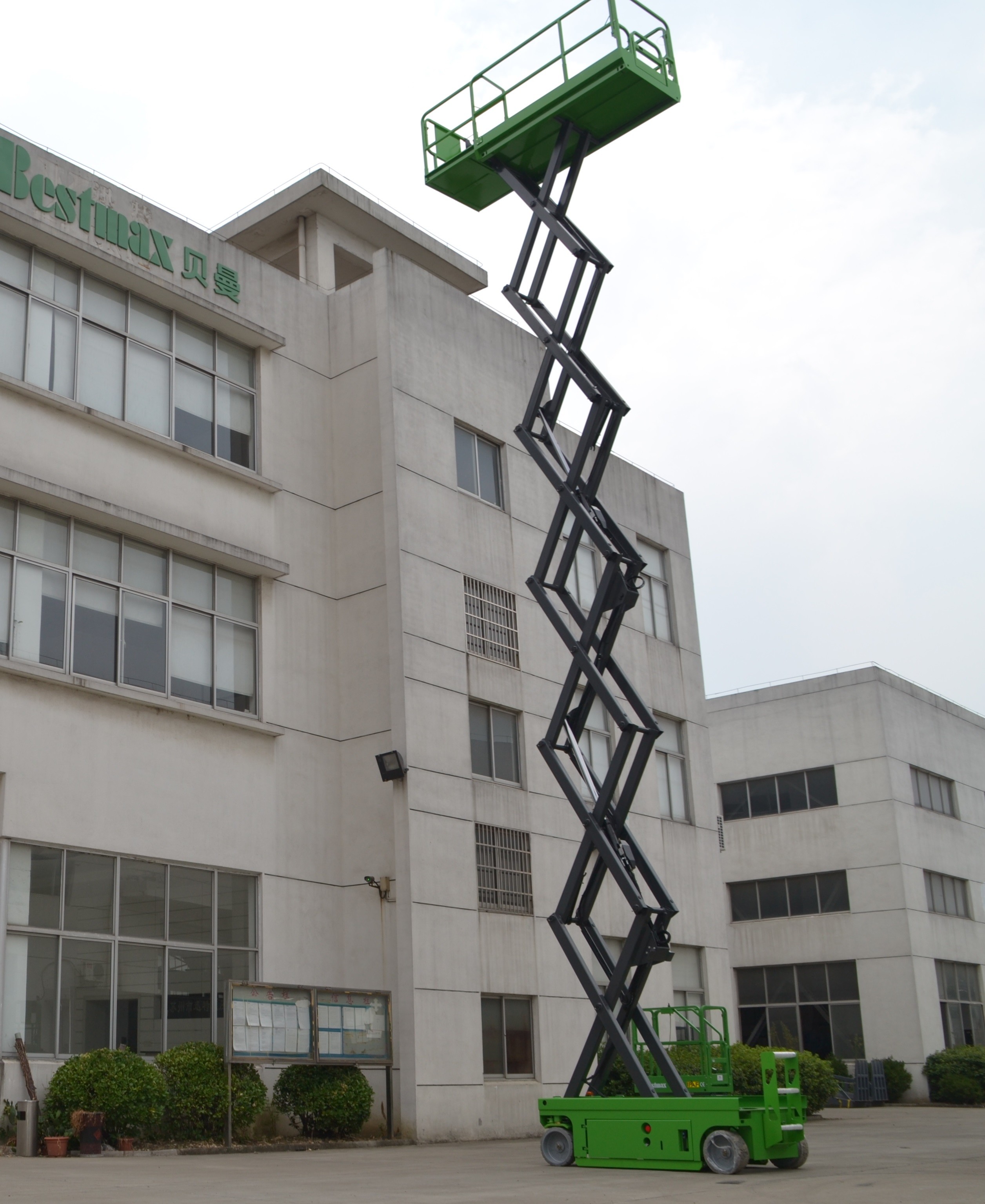

Electrical Self Propelled Scissor Lift 12m Elevated Work Platform For Warehouse

Electrical Self Propelled Scissor Lift 12m Elevated Work Platform For Warehouse

    • Electrical Self Propelled Scissor Lift 12m Elevated Work Platform For Warehouse
    • Electrical Self Propelled Scissor Lift 12m Elevated Work Platform For Warehouse
    • Electrical Self Propelled Scissor Lift 12m Elevated Work Platform For Warehouse
  • Electrical Self Propelled Scissor Lift 12m Elevated Work Platform For Warehouse

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE
    Model Number: MX1200S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: PVC Film Wrapped in Pallets or in Wooden Case
    Delivery Time: 30 days after order confirmed
    Payment Terms: T/T or L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Name: Self Propelled Scissor Lift Platform Height: 12m
    Platform Size: 2.27*1.12m Working Height: 14m
    Loading Capacity: 230Kg Material: High-duty Scissor Structure



    Electrical Self Propelled Scissor Lift 12m Elevated Work Platform For Warehouse

    Description:
    Self-propelled Scissor Lift does not need to be manually towed or connected to external power supply. It's applied in all kinds of aerial working place, and a useful vertical lifting/lowering assistant device.
    Operator could control lifting and lowering on platform, driving and turning could also be done on platform at lowest height.
    Self-propelled Scissor Lift with safety load, steady lifting up and down, constant driving speed, easy operation and convenient maintenance.
    It's widely used in machinery, chemistry industry, water engineering projects, hotel, restaurants, train station, airport, shipping yard, electronics and electric power industry etc.

    Parameters:

    Model MX1200S
    Load capacity 230kg
    Extension load capacity 113kg
    Max Worker number 2
    Working height 14m
    Platform floor height 12m
    Platform size 2.27*1.12m
    Lifting / drive motor 24V/4.5kw
    Travelling speed(stowed) 3.0km/h
    Travelling speed(raised) 1.0km/h
    Lifting/ lowering speed 70/45sec
    Batteries 4*6V/260Ah
    Charger 24V/ 30A
    Gradeability 25%
    Max working slop 1.5°/3°
    Weight 2830kg


    Standard Configuration:
    Proportional control Auto-brake system
    Auto-lock door on platform Extension Platform
    Drivable when lifted Traceless tire
    4 x 2 Driving Auxiliary lowering device
    Emergency stop button Horn
    Fault diagnosis system Tilting protection system
    Action buzzer Time Recorder
    Supporting bar Fork Lift Slot
    Charging protection system Strobe light
    Detachable fence Automatic pothole protection

    Optional Configuration:

    • Overload protection sensor with alarm
    • DC Power connection to the platform
    • Working light on the platform
    • Airway tube to the platform


    Applications:
    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



     Electrical Self Propelled Scissor Lift 12m Elevated Work Platform For Warehouse


    Communication with Customers:

    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
    B: The main difference is from the structure and the material
    The scissor lift is in scissor structure with steel material
    The aerial work platform is in mast structure with aluminum material

    A: How is that for quality control in your factory?
    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
    1.Strict quality control system on the whole process of production
    2.Imported key arts to ensure the high quality of our products
    3.Advanced equipment and tools for examination and quality control
    4.100% strict examining products before shipment
    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

    A: What is the delivery time for your goods?
    B: it is 30days after order confirmation


    A: How long is your quality guarantee period?
    B: We have one year warranty.
