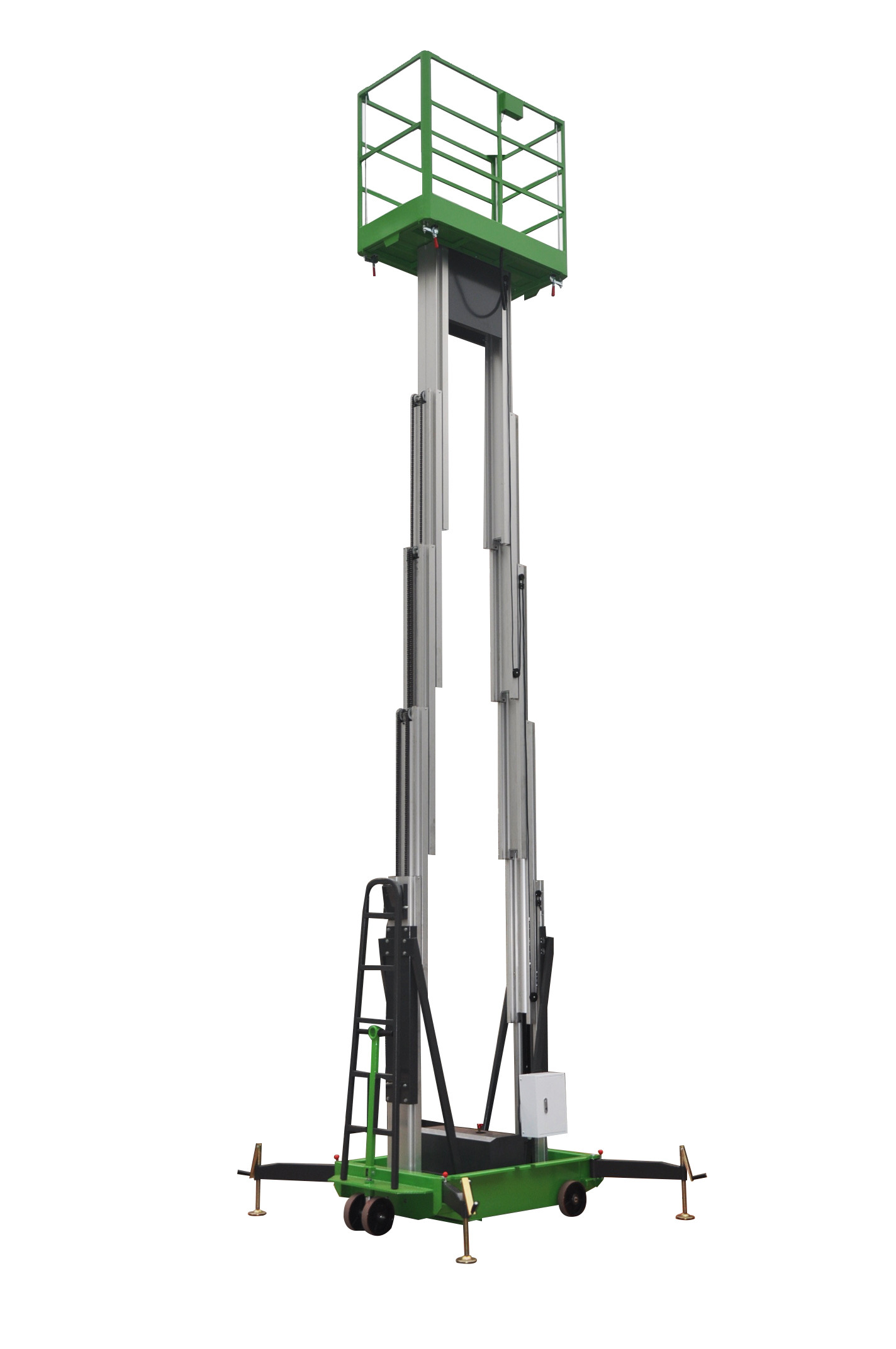

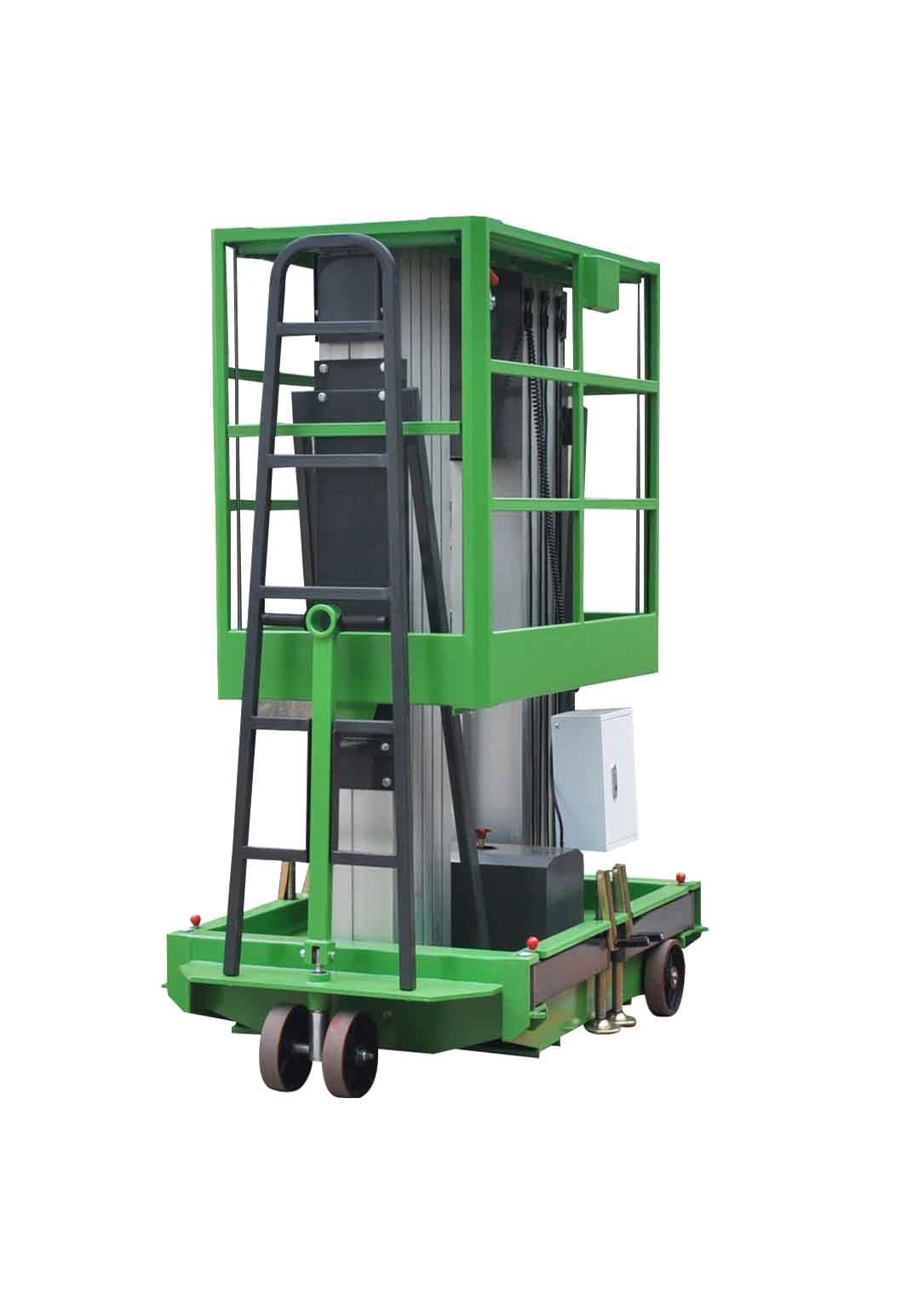

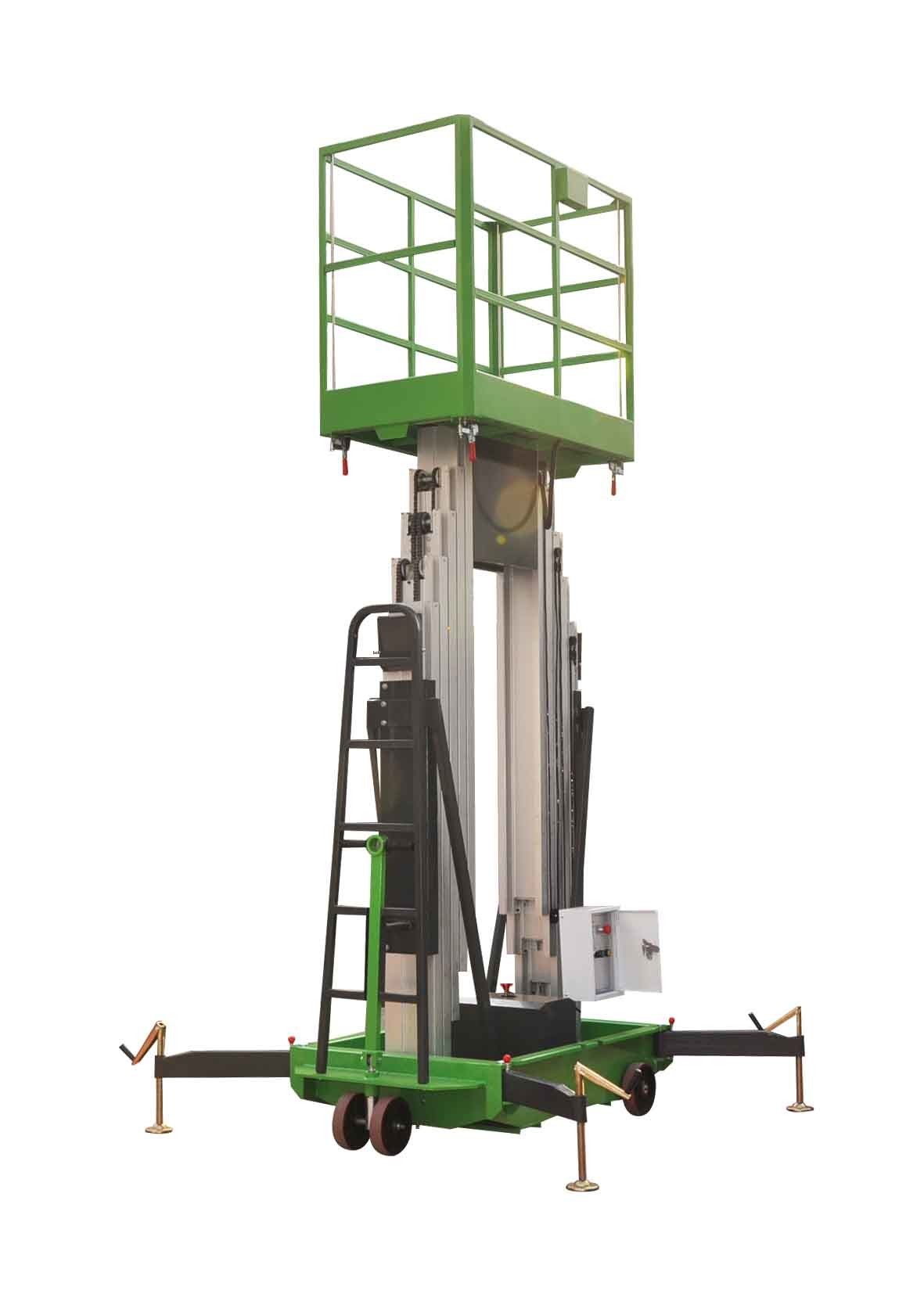

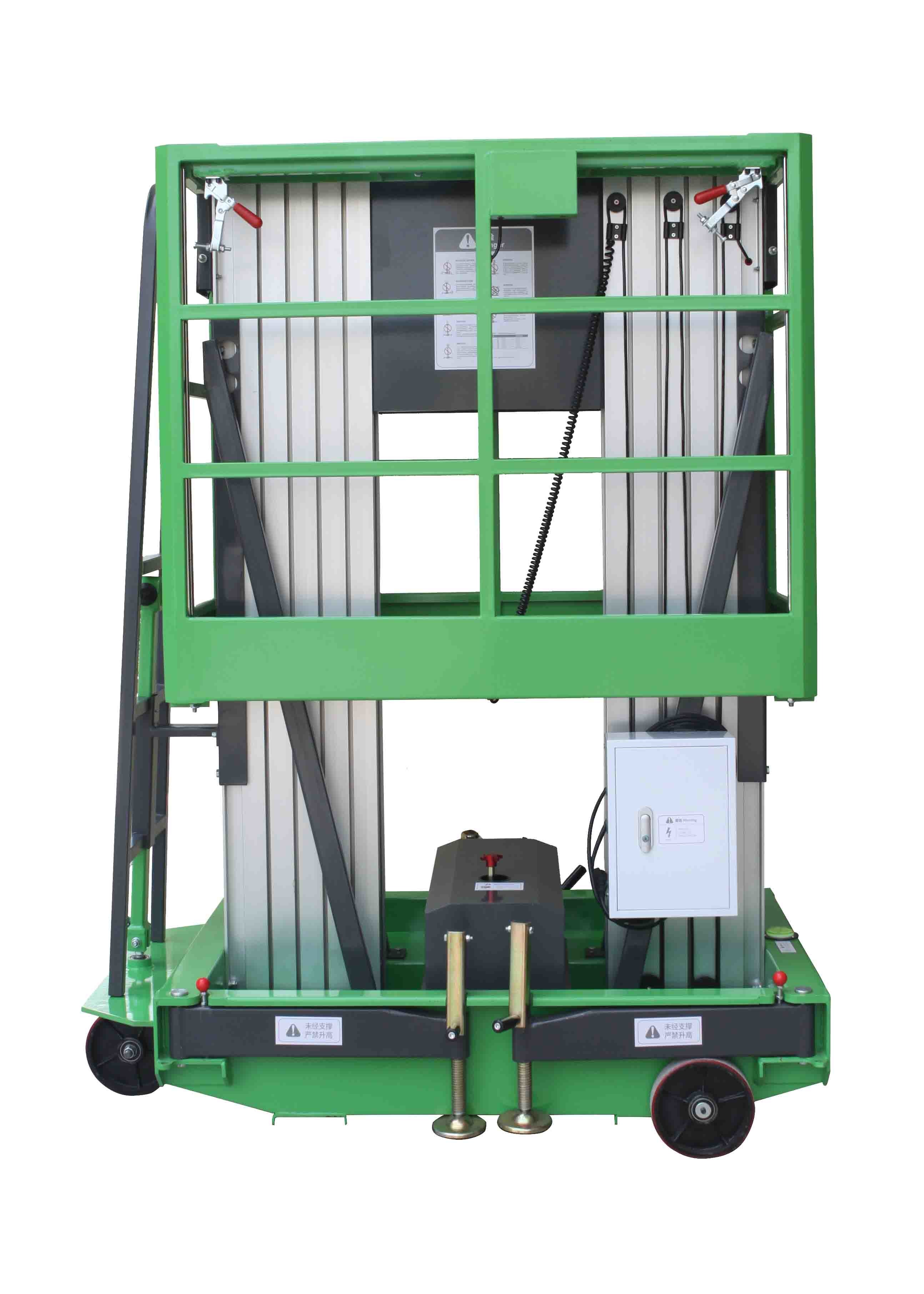

Compact Design 200Kg Loading Vertical Lift Aerial Equipment With 6M Lifting Height

Compact Design 200Kg Loading Vertical Lift Aerial Equipment With 6M Lifting Height

  • Compact Design 200Kg Loading Vertical Lift Aerial Equipment With 6M Lifting Height
  • Compact Design 200Kg Loading Vertical Lift Aerial Equipment With 6M Lifting Height
  • Compact Design 200Kg Loading Vertical Lift Aerial Equipment With 6M Lifting Height
  • Compact Design 200Kg Loading Vertical Lift Aerial Equipment With 6M Lifting Height
Compact Design 200Kg Loading Vertical Lift Aerial Equipment With 6M Lifting Height
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: GTWY6-200 (ME600-2)
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or Wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: L/C, T/T
Supply Ability: 1000 units/ month
Contact Now
Detailed Product Description
Loading Capacity: 200kg Platform Height: 6m
Working Height: 8m Platform Size: 1.30*0.62m
Motor Power: 1.1kw Lifting Time: 55s
Overall Size: 1.54*1.00*2.00m Outrigger Footprint: 1.82*1.77m
Weight: 630kg Color: Customizable
High Light:

mobile aerial work platform

,

hydraulic aerial work platform

Compact Design 200Kg Loading Vertical Lift Aerial Equipment With 6M Lifting Height



Descriptions



8m Double Mast Aerial Work Platform is more reliable and it can load 200Kg.
It has many advantages, such as light weight , universal wheels , two control panel---ground contrl and platform control .





Applications:



It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 8m to 10m and lifting capacity is 200kg.



Specifications:



MODEL GTWY6-200 (ME600-2)
PRODUCTIVITY US Metric
Lift capacity 441lbs 200kg
Working height 25ft 3.15in 8m
Platform floor height 19ft 8.22in 6m
Platform length 4ft 3.18in 1.30m
Platform width 2ft 0.41in 0.62m
Ground Clearance 1.97in 0.05m
Lifting Power 1.1kw
Lifting Speed 0.09-0.1m/s
Motorized Power 0.75Kw
Descending Speed 0.08m/s
Anti Wind Capacity Max. force 5
Overall length 5ft 0.63in 1.54m
Overall width 3ft 3.37in 1.00m
Overall height 6ft 6.74in 2.00m
Outrigger footprint:
A Length 5ft 11.65in 1.82m
B Width 5ft 9.69in 1.77m
C Corner access 3.94in 0.10m
D Wall access front 10.24in 0.26m
E Wall access side 2ft 0.41in 0.62m
Weight 1389lbs 630kg



Optional Configuration:



  • Power Supply: Standard:AC version - 220V/110V, 50/60HZ
  •                         Optional:DC version - 2x12V / 100AH battery
  •                         Optional:AC & DC versions
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet



Competitive Advantage:

  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1. Strict quality control system on the whole process of production

2. Imported key arts to ensure the high quality of our products

3. Advanced equipment and tools for examination and quality control

4. 100% strict examining products before shipment

5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: Find the list below which we are offering with the machine when shipment for free:

Item Model Quantity
O-shape rubber ring 40×3.1 4
O-shape rubber ring 11×1.9 2
O-shape rubber ring 40×30×6 1
Spanner   1
screwdriver 4# 1



A: How long is your quality guarantee period?

B: We have one year warranty.
