Self - Propelled Aluminum Aerial Work Platform With Lift Capacity Of 125kg

Self - Propelled Aluminum Aerial Work Platform With Lift Capacity Of 125kg

    • Self - Propelled Aluminum Aerial Work Platform With Lift Capacity Of 125kg
    • Self - Propelled Aluminum Aerial Work Platform With Lift Capacity Of 125kg
    • Self - Propelled Aluminum Aerial Work Platform With Lift Capacity Of 125kg
    • Self - Propelled Aluminum Aerial Work Platform With Lift Capacity Of 125kg
  • Self - Propelled Aluminum Aerial Work Platform With Lift Capacity Of 125kg

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE ISO9001:2008 IPAF member
    Model Number: MG600-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 days after receipt of deposit
    Supply Ability: 1000 units/ month
    Contact Now
    Detailed Product Description
    Model: MG600-1 Lift Capacity: 125kg
    Platform Height Max: 6m Working Height: 8 M
    Platform Size: 0.78*0.70m Power Source: 2*12V/115Ah
    Charger: 24V/12A Weight: 850kg
    Color: Customizable Extension Platform: Optional Configuration



    Self - Propelled Aluminum Aerial Work Platform With Lift Capacity Of 125kg



    Specification
    Swivel Turning Type

    Model MG600-1 MG750-1 MG750-2 MG900-2
    Lift Capacity 125Kg 125Kg 200Kg 150Kg
    Platform Height Max 6m 7.5m 7.5m 9m
    Stowed Length 1.36m 1.36m 1.5m 1.5m
    Stowed Width 0.79m 0.79m 1.0m 1.0m
    Stowed Height 1.98m 1.98m 1.99m 1.99m
    Platform Size 0.78*0.70m 0.78*0.70m 1.00m*0.70m 1.00m*0.70m
    Ground Clearance 0.05m 0.05m 0.05m 0.05m
    Wheelbase 1.15m 1.15m 1.28m 1.28m
    Gradeability 25% 25% 25% 25%
    Maximum Working Slope 1.5° 1.5° 1.5° 1.5°
    Driving Wheel 0.23*0.08m 0.23*0.08m 0.25*0.08m 0.25*0.08m
    Front Tire 8in 8in 8in 8in
    Driving Motor 0.4Kw 0.4Kw 0.5Kw 0.5Kw
    Lifting Motor 2Kw 2Kw 2Kw 2Kw
    Power Source 2*12V/120Ah 2*12V/120Ah 2*12V/120Ah 2*12V/120Ah
    Charger 24V/12A 24V/12A 24V/12A 24V/12A
    Weight 850Kg 880Kg 1100Kg 1250Kg


    Hydraulic Turning Type

    Model MG600-1S MG750-1S MG750-2S MG900-2S
    Lift Capacity 125Kg 125Kg 200Kg 150Kg
    Platform Height Max 6m 7.5m 7.5m 9m
    Stowed Length 1.44m 1.44m 1.55m 1.55m
    Stowed Width 0.82m 0.82m 1.0m 1.0m
    Stowed Height 2.09m 2.09m 2.09m 2.09m
    Platform Size 0.78*0.70m 0.78*0.70m 1.00m*0.70m 1.00m*0.70m
    Ground Clearance 0.05m 0.05m 0.05m 0.05m
    Wheelbase 1.15m 1.15m 1.28m 1.28m
    Gradeability 25% 25% 25% 25%
    Maximum Working Slope 1.5° 1.5° 1.5° 1.5°
    Driving Wheel 0.23*0.08m 0.23*0.08m 0.305*0.1m 0.305*0.1m
    Front Tire 8in 8in 8in 8in
    Driving Motor 0.8Kw 0.8Kw 0.8Kw 0.8Kw
    Lifting Motor 2Kw 2Kw 2Kw 2Kw
    Power Source 2*12V/105Ah 2*12V/105Ah 2*12V/105Ah 2*12V/105Ah
    Charger 24V/15A 24V/15A 24V/15A 24V/15A
    Weight 1100Kg 1200Kg 1350Kg 1500Kg

    Details

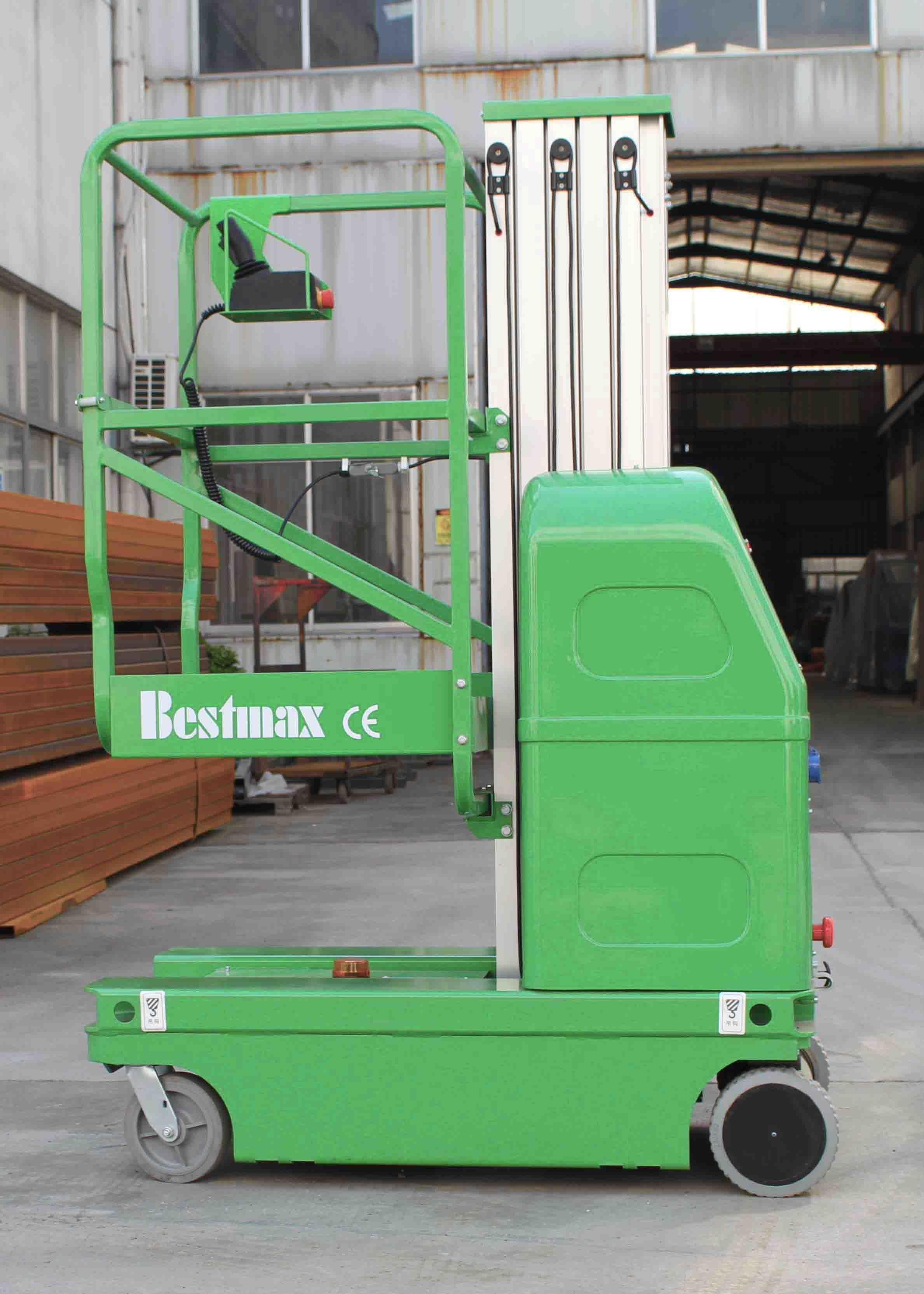

    Swivel Turning Type

    Self - Propelled Aluminum Aerial Work Platform With Lift Capacity Of 125kg

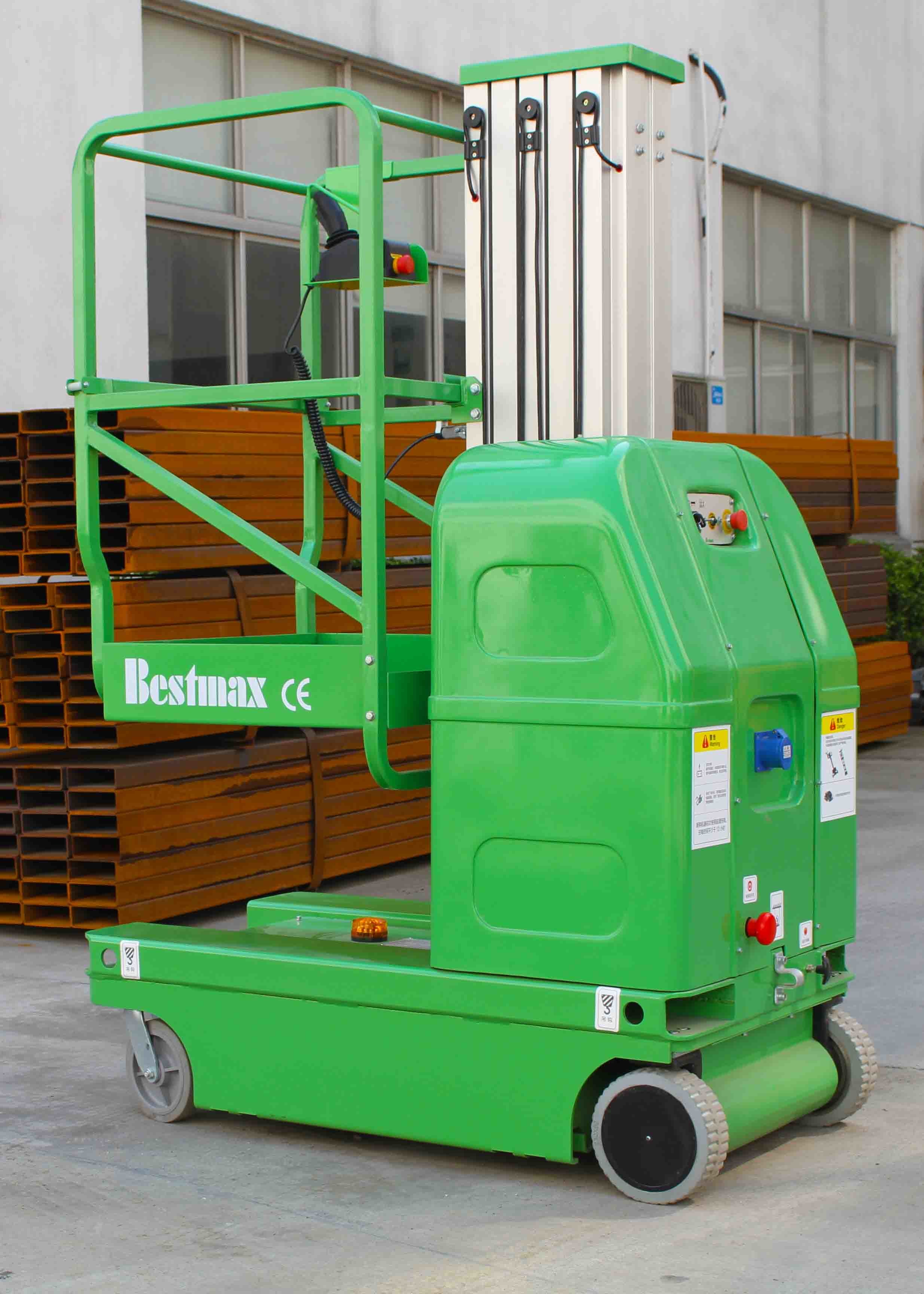

    Hydraulic Turning Type

    Self - Propelled Aluminum Aerial Work Platform With Lift Capacity Of 125kg

    Standard Configurations



    Proportional Control

    Power Supply

    Traceless Tyre

    4*2 Driving

    Automatic Brake System

    Auxiliary Lowering System

    Emergency Stop System

    Anti-burst System

    Tilting Protection System

    Buzzer

    Horn

    Fork Lift Slots

    Charging Protection System





    Optional Configurations



    AC Power to Platform

    Platform Working Light

    Extension Platform





    Why choose Bestmax Self-Propelled Aluminum Aerial Work Platform?


    · High Quality product
    · Reasonable Price
    · Easy payment mode
    · Timely delivery
    · Good after Service
    · Client-centric approach
    · One year warranty





    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    • Strict quality control system on the whole process of production
    • Imported key arts to ensure the high quality of our products
    • Advanced equipment and tools for examination and quality control
    • 100% strict examining products before shipment
    • All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation
