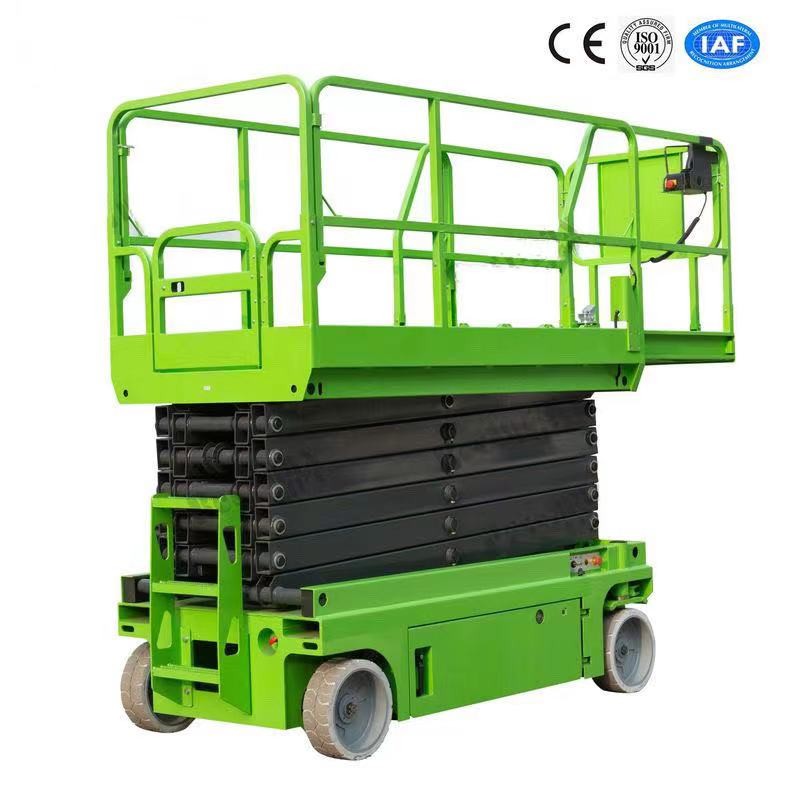

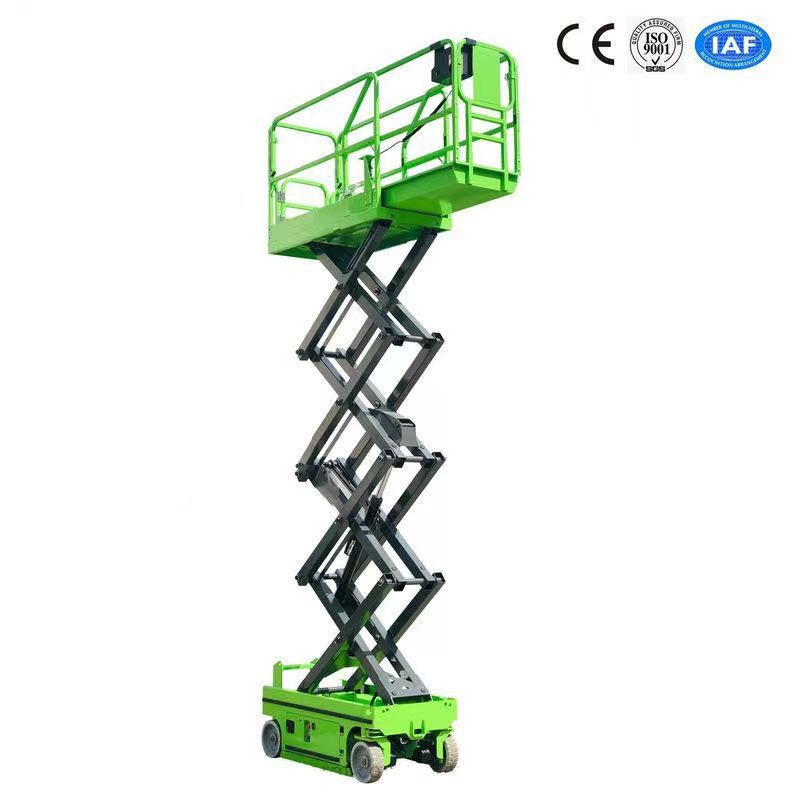

Factory Sale 10m Self-propelled Scissor Lift Loading Capacity 230kg with Extension Platform

Factory Sale 10m Self-propelled Scissor Lift Loading Capacity 230kg with Extension Platform

  • Factory Sale 10m Self-propelled Scissor Lift Loading Capacity 230kg with Extension Platform
  • Factory Sale 10m Self-propelled Scissor Lift Loading Capacity 230kg with Extension Platform
  • Factory Sale 10m Self-propelled Scissor Lift Loading Capacity 230kg with Extension Platform
  • Factory Sale 10m Self-propelled Scissor Lift Loading Capacity 230kg with Extension Platform
Factory Sale 10m Self-propelled Scissor Lift Loading Capacity 230kg with Extension Platform
Product Details:
Place of Origin: Original of China
Brand Name: Bestmax
Certification: CE ISO9001:2008 IPAF member
Model Number: MX800SN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets/ wooden case
Delivery Time: 30 day after receipt of deposit
Payment Terms: T/T, L/C
Supply Ability: 100 sets/ month
Contact Now
Detailed Product Description
Model: MX800SN Material: Q345 Steel
Platform Size: 2.27*0.81m Measurement: 2.43*0.81*1.87m
Battery: 4*6V/ 225Ah Total Weight: 2100kg
Color: Green, Customized Color Is Available Loading Capacity: 230kg
Working Height Max: 10m Platform Height Max: 8m
High Light:

self propelled work platform

,

self propelled lift

Electric Self Propelled Scissor Lift Aerial Working Platform 10m



Description:



The Self Propelled Scissor lift is powerful, intelligent and flexible for material handling, construction, mending and fixing.  With electrical drive, it have more comfortable and steady driving feeling, low maintenance costs, easier handling. It needs no human power to pull or push it around and it can be operated by one single to control on the platform. In any status whether lifted or stowed, it can be drived. with extensible platform, working light, airway tube, AC wiring  to make it more competent to help finish various aerial work tasks in different  situations. Its classic traditional design is popular with users.



Parameters



Model

MX800RN

Load capacity

230kg

Extension load capacity

113kg

Max Worker number

2

Working height

10m

Platform floor height

8m

Measurement

2.43 m x 0.81m x1.87m

Extension platform size

2.27*0.81m

Ground clearance(stowed)

0.1m

Ground clearance(raised)

0.019m

Wheel base 1.87m

Turning Radius(inside)

0m

Turning Radius(outside)

2.1m

Drive motor 24V/1.5kw
Lifting motor 24V/3.3kw
Travelling speed(stowed) 4.0km/h
Travelling speed(raised) 0.8km/h
Lifting/ lowering speed 42/30sec
Batteries 4*6V/225Ah
Charger 24V/ 25Ah
Gradeability 25%
Max working slop 1.5°/3°
Tyre 15*5
Weight 2024KG



Flexible Operation

Platform control by joystick, advancing, backwards, right turning and left turning, auto-braking. Fully proportional control, either lifting or moving, easy operating. Zero inside turning radius for travelling in narrow space, and also facilitate changing positions.



Key-type lock sliding

Key-type lock sliding door to protect misuse by not equipment keeper, particularly suitable for protect the electrical components when the rent out



Platform Swing Gate

Platform Swing Gate make enter and out space more large, no restrictions to the guardrails.

Fold-able guardrail make the machine can be easily through standard doors when move during working area.



Platform work light (optional)

The professional platform work lights allows construction of the user easier lighting and operating



Airway tube to platform

User can be optional airway tube to platform to make sure pneumatic tools and equipment can be used in the platform



AC wiring to platform

AC wiring and socket to platform to meet the customers demand to make sure the electic tools can be used in the platform.



Traceless tire

Configured with traceless tire to protect the ground surface and suitable for indoor application. The wheels and tires are very very tough and rigid able to travel through uneven terrain and rough surface



Motion alarm and Horn

The machine is equipped with motion alarm and horn when mowing to remind around person to take necessary precaution.



Easy Maintenance

It gives full consideration to the convenience of the user in their daily work. Central management with side opening drawer for hydraulic pump, batteries and charger. It has fault diagnosis system help the user can find the failure point one time. And also reduce the losses caused by forgotten maintenance.



Safety Precaution:

  • Overload protection sensor with alarm (optional)
  • Auxiliary lowering device
  • Auto-brake system
  • Tilting protection system
  • Automatic pothole protection
  • Emergency stop button
  • Charging protection system
  • Auto-lock door on platform



Factory Sale 10m Self-propelled Scissor Lift Loading Capacity 230kg with Extension Platform 0

Factory Sale 10m Self-propelled Scissor Lift Loading Capacity 230kg with Extension Platform 1



Factory Sale 10m Self-propelled Scissor Lift Loading Capacity 230kg with Extension Platform 2



Why choose Xunte Self Propelled Scissor Lift?
· High Quality product
· Reasonable Price
· Easy payment mode
· Timely delivery
· Good after Service
· Client-centric approach
· one year warranty



Thank you for your reading and welcome your inquiry. We will respond you as soon as possible.
