200Kg And 9m Dual Mast Aerial Work Platform Type Truck-Mounted And Aluminum

200Kg And 9m Dual Mast Aerial Work Platform Type Truck-Mounted And Aluminum

  • 200Kg And 9m Dual Mast Aerial Work Platform Type Truck-Mounted And Aluminum
  • 200Kg And 9m Dual Mast Aerial Work Platform Type Truck-Mounted And Aluminum
200Kg And 9m Dual Mast Aerial Work Platform Type Truck-Mounted And Aluminum
Product Details:
Place of Origin: China
Brand Name: Xunte
Certification: CE
Model Number: GTWY9-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30day after down payment
Payment Terms: T/T
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
High Light:

mobile aerial work platform

,

hydraulic aerial work platform

200Kg And 9m Dual Mast Aerial Work Platform Type Truck-Mounted And Aluminum





Quick Detail:



Name Mobile Aerial Work Platform Brand Name Xunte
Loading Capacity 200Kg Platform Height 9m
Platform Size 1.38*0.62m Color Orange or Optional
Motor Power 1.10Kw Power Supply AC/DC






Descriptions

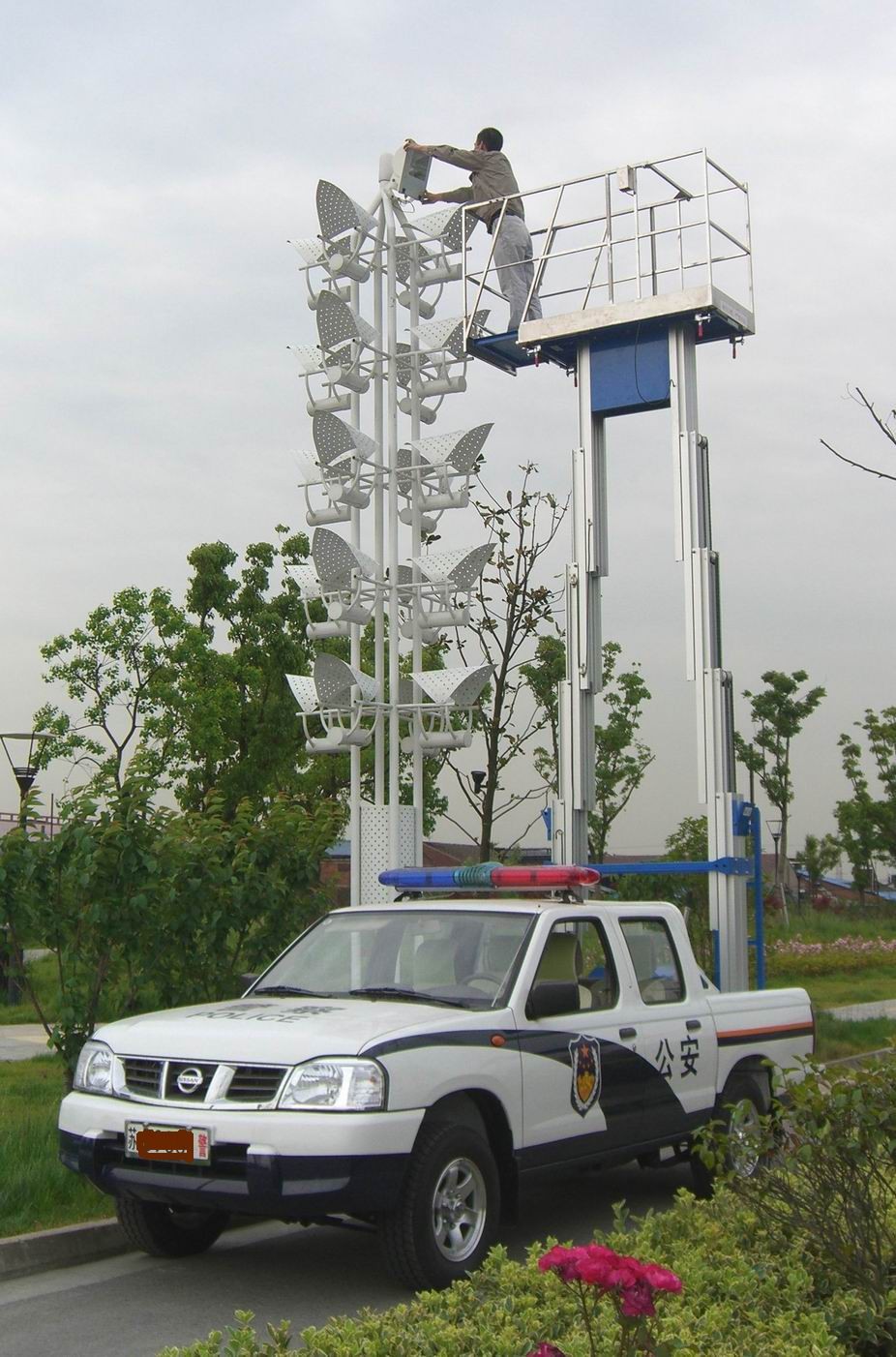

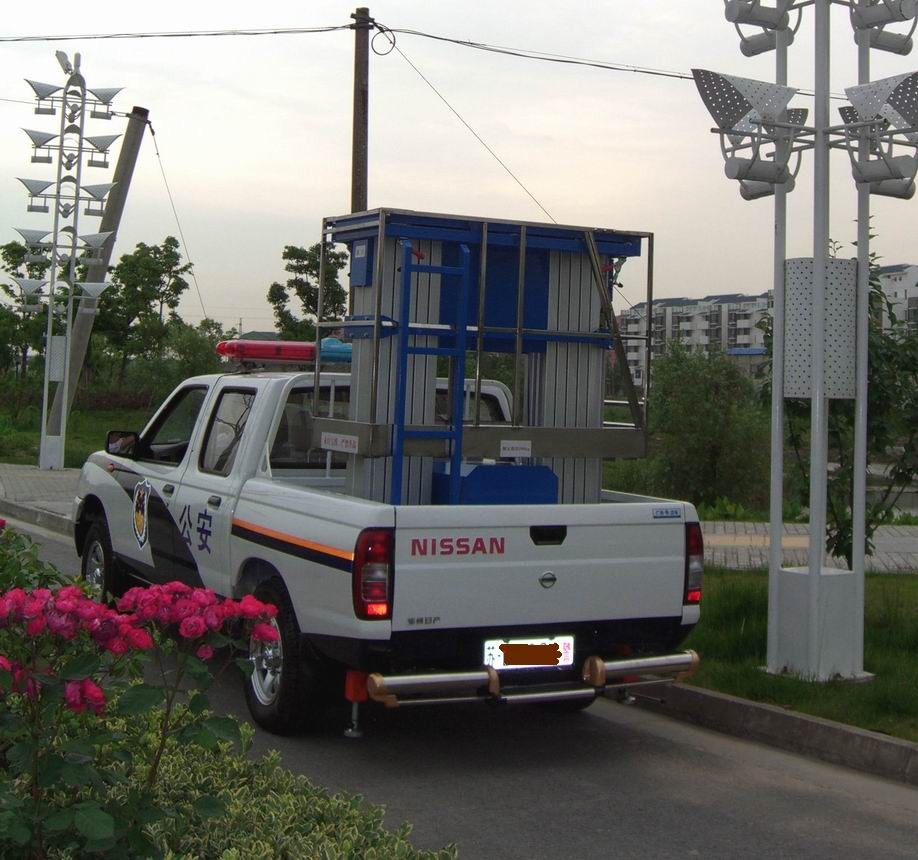

Truck-Mounted Aerial Work Platform is to fixed the aerial work platform on a pickup or truck for the long time and distance transportation . This design is very convenient for moving the machine here andd there .

And in the case of unsafety, only single mast and double mast can bemade into this type.





Applications:



It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 6m to 12m and lifting capacity varies from 200kg to 250kg.The power sources could be 220V, 380V or chargeable battery.





Main Features:



1. Most rigid aluminum alloy profile

2. Auxiliary platform lowering

3. Multi-guide pulley on mast

4. Durable base system

5. Chassis with level gauge

6. DC working power on the platform

7. Easily rolls through a narrow space

8. Emergency stop button

9. Over load protection

10 .Built-in pressure release valve

11. Dual activated up/down switch

12. Locking Key Switch

13. Optional extended platform

14. Entry ladder



Specifications:

MODEL GTWY9-200
PRODUCTIVITY US Metric
Lift capacity 441lbs 200kg
Working height 35ft 1.25in 10.7m
Platform floor height 29ft 6.33 9m
Platform length 4ft 6.32in 1.38m
Platform width 2ft 0.41in 0.62m
Ground Clearance 2.36in 0.06m
Lifting Power 1.1kw
Lifting Speed 0.09-0.1m/s
Motorized Power 0.75Kw
Descending Speed 0.08m/s
Anti Wind Capacity Max. force 5
Overall length 5ft 2.20in 1.58m
Overall width 3ft 1.40in 0.95m
Overall height 6ft 6.74in 2.00m
Outrigger footprint:
A Length 7ft 0.65in 2.15m
B Width 6ft 6.74in 2.00m
C Corner access 3.94in 0.10m
D Wall access front 11.42in 0.29m
E Wall access side 2ft 0.02in 0.61m
Weight 1208lbs 548kg

200Kg And 9m Dual Mast Aerial Work Platform Type Truck-Mounted And Aluminum 0

Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet



Competitive Advantage:



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
