Place of Origin: | Original of China |
Brand Name: | CHEN LIFT |
Certification: | CE ISO9001:2008 IPAF member |
Model Number: | XE100R |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | PVC Film Wrapped in Pallets or in wooden Case |
Delivery Time: | 30 days after order confirmed |
Payment Terms: | T/T or L/C |
Supply Ability: | 100 sets/month |
Material: | Manganese Steel | Color: | Blue Or Customized |
---|---|---|---|
Size Or Payload: | Customized Acceptable | Maximum Height: | 10m |
Minimum Height: | 1.5m | Platform Size: | 2.25*1.15m |
Net Weight: | 1360kg | Loading Capacity: | 300kg |
Measurement: | 2.65*1.35*1.5m | ||
Highlight: | scissor lift mobile,mobile aerial work platform |

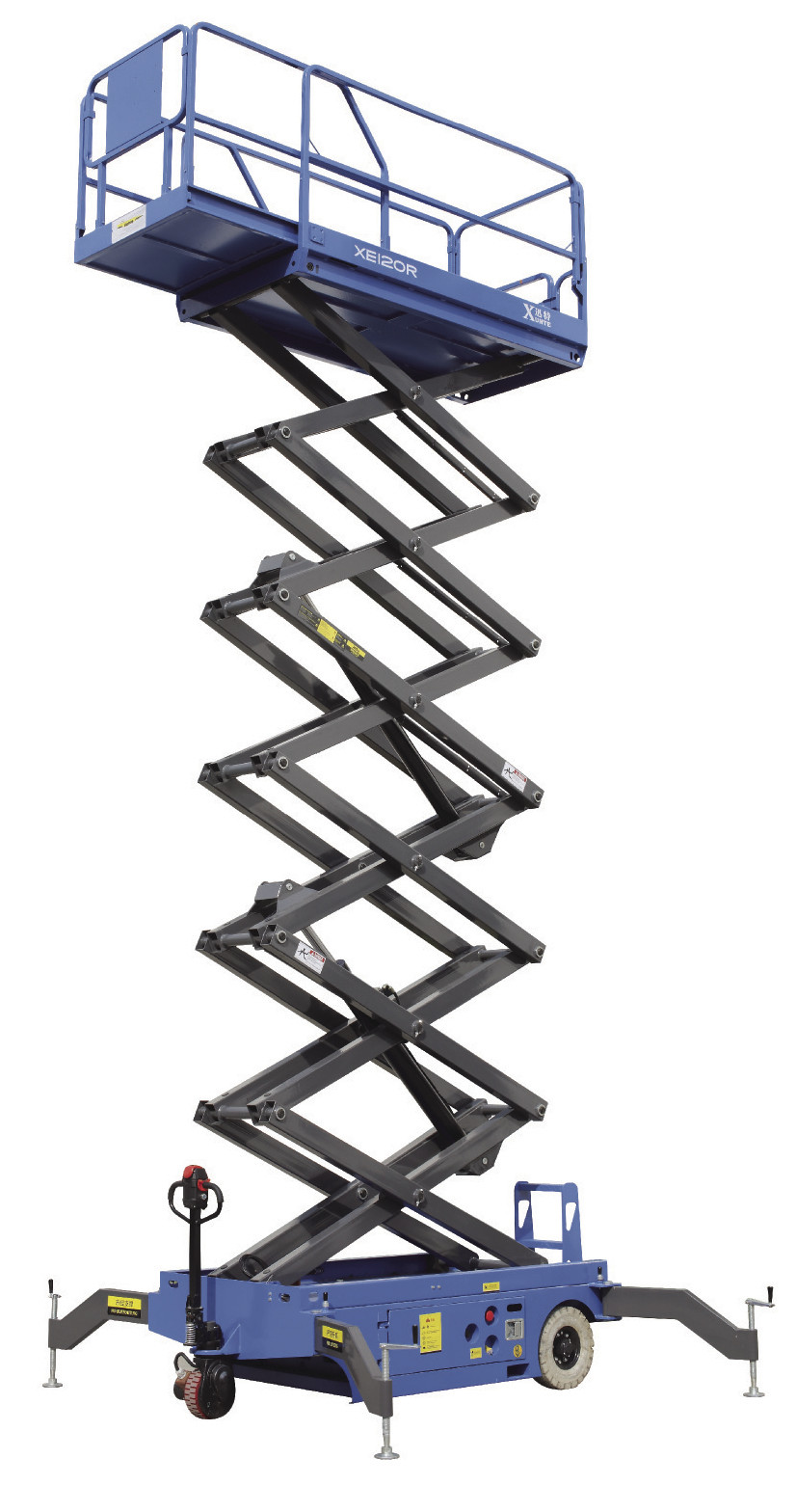

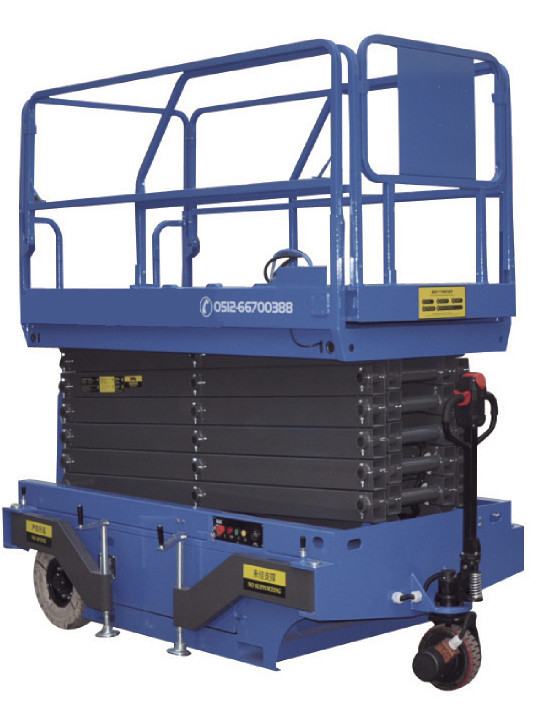

Smart electrically motorized hydraulic scissor lift aerial work platfrom XE100R
Description:
This lift is ideal for maneuvering in tight spaces, excellent for indoor and outdoor construction, maintenance and installation applications. It provides excellent capacity and large platform workspace. Compared other brand motorized hydraulic scissor lift, it have more characteristics of stability, safe, concise and smart.
Parameters
Loading Capacity | 300kg | ||||
Maximum Height | 10000mm | ||||
Minimum Height | 1500mm | ||||
Platform Size | 2250*1150mm | ||||
Lifting Power | 2.2Kw | ||||
Pulling Power | 0.75Kw | ||||
Power Voltage | 24V | ||||
Pulling Speed | 6 km/h | ||||
Lifting Time | 88s | ||||
Gradeablity | 5 | ||||
Wind Loading | <5 | ||||
Cylinder | Ф100*2 | ||||
Gear Pump | 6ml/r | ||||
Net Weight | 1360kg | ||||
Outrigger Length | 550mm | ||||
Measurement | 2650*1350*1500mm |
Main Features:
1.Pointing control of lifting up and down.
2. Driven by electricity, you can control forward and backward on ground, only the machine is totally closed otherwise the pulling device can not work
3. Use slider design which can minimize the orbit a lot, now the orbit of our machine in its highes position is 5cm and this is much smaller than the standard 20cm.
4. The surface of the machine has been derusted by the blasting machine, two botton-two surface way to paint the maichine.
5. Detachable fence on the platform
6.Manganese steel lifting arm in high strength with rectangle shape
7.Anti skid floor in platform
8. The control panels are available on the platforms and ground.
9. Fine grinding cylinder in good sealing performance
10.Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.
Safety Precaution:
Configuration
Electric system | Schneider contactor,SANLICO button,CHNT electrical | ||||
Hydraulic System | Hycman power pack ,Trellebogr sealing | ||||
Scissor Arm Support | Hi-strength Maganese steel rectangle tube Q345 B | ||||
Platform Surface | antiskid checkered plate | ||||
Driving Tyre | Ø500-8 Inflated tires | ||||
High-pressure Oil Pipe | double wire hydraulic intensifier rubber hose | ||||
Low Battery Protector | B12401B+CDD-24V | ||||
Battery | DC24V,150AH*2 with charger |
Optional configuration:
Main Details:
Thank you very much for your reading and welcome your inquiry. We will respond you as fast as we can
