320kg/500kg Portable Forklift Lightweight Lifting Solution

Basic Information
Place of Origin: China
Brand Name: CHENLIFT
Model Number: MF
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30day after down payment
Payment Terms: T/T L/C
Supply Ability: 200 sets per month
Detail Information
Name: Portable Forklift Keyword: Forklift,Portable Forklift,Lightweight Lifting
Lifting Motor: DC 0.8KW Battery: 48V/12AH
Highlight:

1.5 ton portable forklift

,

innovative portable forklift

,

1.5 ton electric portable forklift


Product Description

Product Description:


A portable forklift is a compact, lightweight lifting solution designed for easy transport and flexible use in various environments.

This innovative forklift helps businesses cut costs while improving safety and convenience. With no hydraulics, there's no oil maintenance or leakage issues, and the long-lasting lithium battery keeps you going longer between charges.



Why the MF Series Portable Forklift Is a Game-Changer:



✔ 300kg Load Capacity – Compact yet robust for daily material handling
✔ No Hydraulic Oil – Powered by an electric actuator, eliminating oil leak risks
✔ Lithium Battery Powered – Up to 200 cycles per single charge
✔ Ultra-Compact Design – Saves space and simplifies operation

✔ Flexible Classification – Defined as a Portable Forklift, not MEWP

✔Multiple Load Options Available – 500kg, 1000kg and 1500kg versions also offered

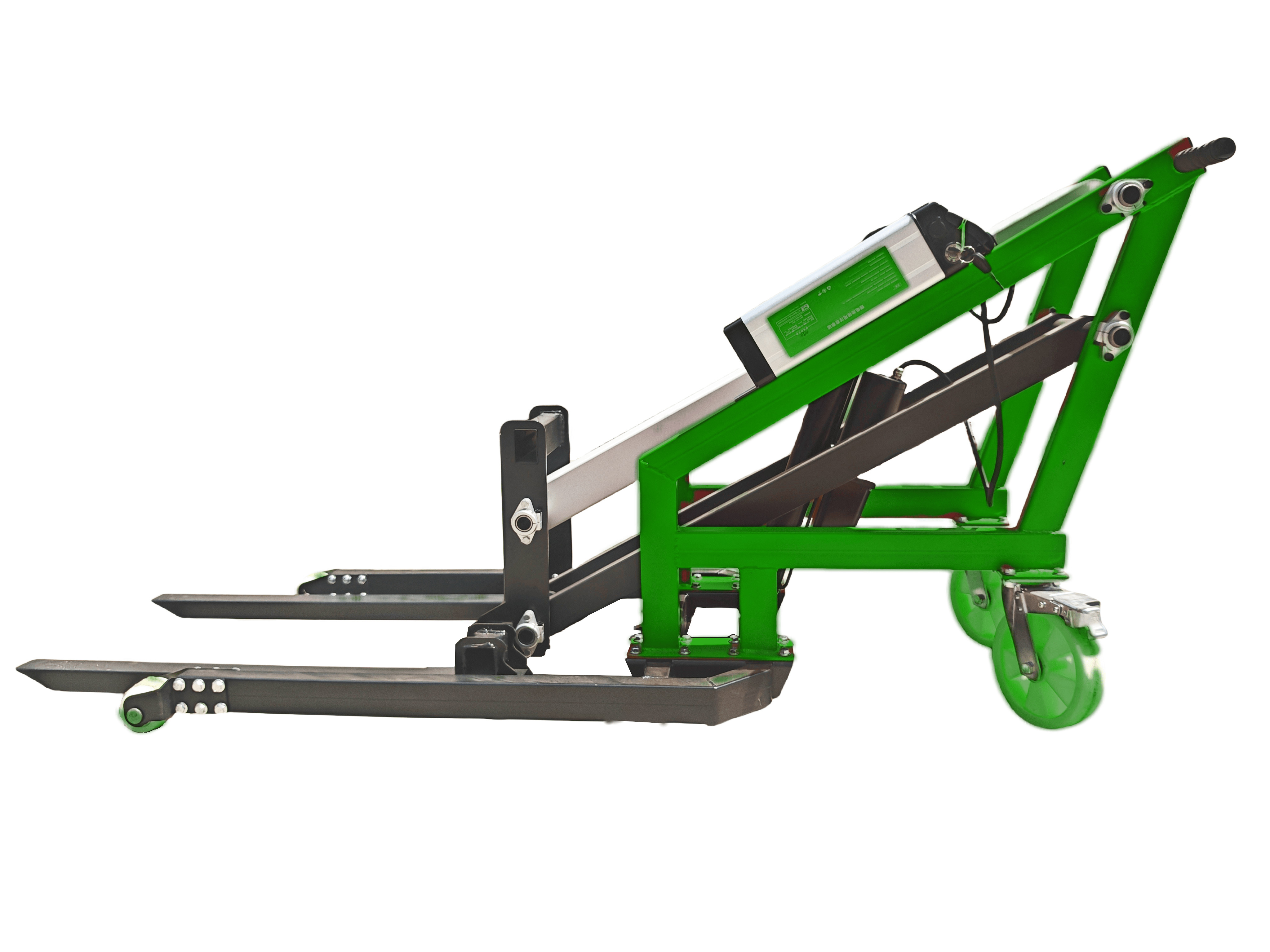

320kg/500kg Portable Forklift Lightweight Lifting Solution 0

Features:



*Smaller Turning Radius,Suitable for the Narrow Place

*Lighter Weight and Easier Operation

*With Maintenance-Free Integrated Hydraulic Cylinder

*Large Capacity Lithium Battery + Easily Replace Design

*Suitable for the Single Side Pallet

*More Reliable With the Stainless Steel Arm Structure



Specification:

Model

MF320

MF500

Load Capacity

320KG

500KG

Load Center

400mm

400mm

Lifting Height

1450mm

1450mm

Lowered Height

≤80mm

≤80mm

Overall Length

2050mm

2050mm

Overall Width

768mm

768mm

Fork Length

800mm

800mm

Wheelbase

1150mm

1450mm

Fork(Outside Width)

680mm

680mm

Fork(Inside Width)

305mm

305mm

Min Turning Radius

1270mm

1500mm

Lifting Speed(Unload/Full Load)

140/135mm/s

140/135mm/s

Down Speed(Unload/Full Load)

150/155mm/s

150/155mm/s

Max Gradeability(Unload/Full Load)

6/3%

6/3%

Lifting Motor

DC 0.8KW

DC 0.8KW

Battery

48V/12AH

48V/12AH

Weight

115KG

123KG
