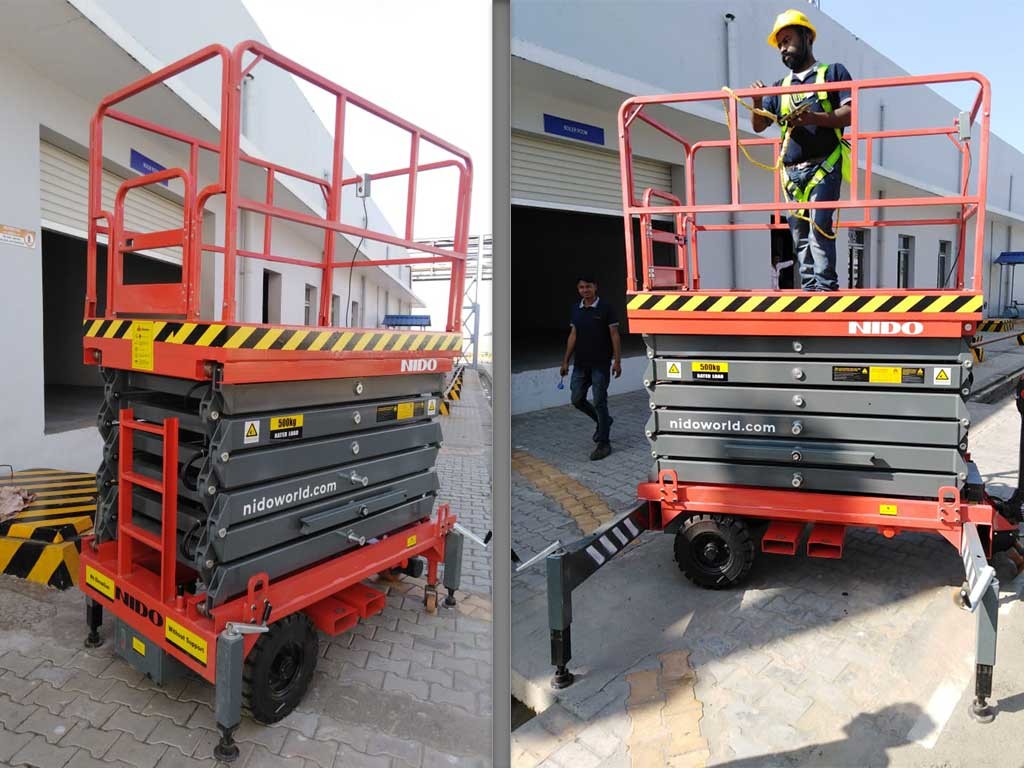

Self Propelled 14m Mobile Scissor Lift Movable Battery Electric Hydraulic Aerial Working

Self Propelled 14m Mobile Scissor Lift Movable Battery Electric Hydraulic Aerial Working

  • Self Propelled 14m Mobile Scissor Lift Movable Battery Electric Hydraulic Aerial Working
Self Propelled 14m Mobile Scissor Lift Movable Battery Electric Hydraulic Aerial Working
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: SJZ0.45-11
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Product: Motorized Scissor Lift Color: Can Be Customized
MOQ: Any Quantity Spare Parts: 2 Seal Ring, 2 Oil Seal 1 Travel Switches
Lift Drive / Actuation: Hydraulic Lift Speed: 4-6m/min
High Light:

Hydraulic Aerial Working

,

14m Mobile Scissor Lift

,

Electric Battery Mobile Scissor Lift

Vertical hydraulic elevating platform , Hospital telescopic electric scissor lift



Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the people above platform.
3) The limit switch system helps the lift table to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the hydraulic scissor lifts are passed 1.2 times loading test before leaving factory.


Application:
The mobile hydraulic scissor lift is widely used for aerial work, decoration, street lamp maintenance and building cleaning etc.Operation is easy. There are 2 sets control system installed on the hydraulic scissor lift, 1 control box below, and 1 control panel on safe rail that can be operated on work platform.



Quick Detail:

Name Mobile Scissor Lift Brand Name CHEN LIFT
Loading Capacity 450Kg Platform Height 11m
Platform Size 2100mm*1150mm Color Blue Color or Optional
Lifting Power 3Kw Power Supply AC&DC / DC
Motorized Power 0.75 Kw





Description:



There are three power supply options for the mobile scissor lift: AC,DC&AC,DC to suit different working circumstance. Commonly, the power supply of our machine is AC. For the voltage we can made 220V and 380V, 1  Phase and 3 Phases.





Main Features:



1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4. The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.





Safety Precaution:



1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform





Major Parameters

  • Model:                          SJZ0.45-11
  • Loading Capacity         450kg
  • Maximum Height         11000mm
  • Minimum Height           1700mm
  • Platform Size               2100*1150mm
  • Lifting Power                3kw
  • Motorized Power:         0.75Kw
  • Power Voltage              DC24V
  • Lifting Time                  90s
  • Cylinder                       Ф80 (3PCS)
  • Gear Pump                  6ml/r
  • Total Weight                1380kg
  • Measurement              2500*1350*1700MM



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack ,NOK sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø600-9 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
  • Battery: (DC12V,150AH)*4 with charger



Optional Configuration:

  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet



Applications:



1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





Why to choose CHEN LIFT Mobile Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
