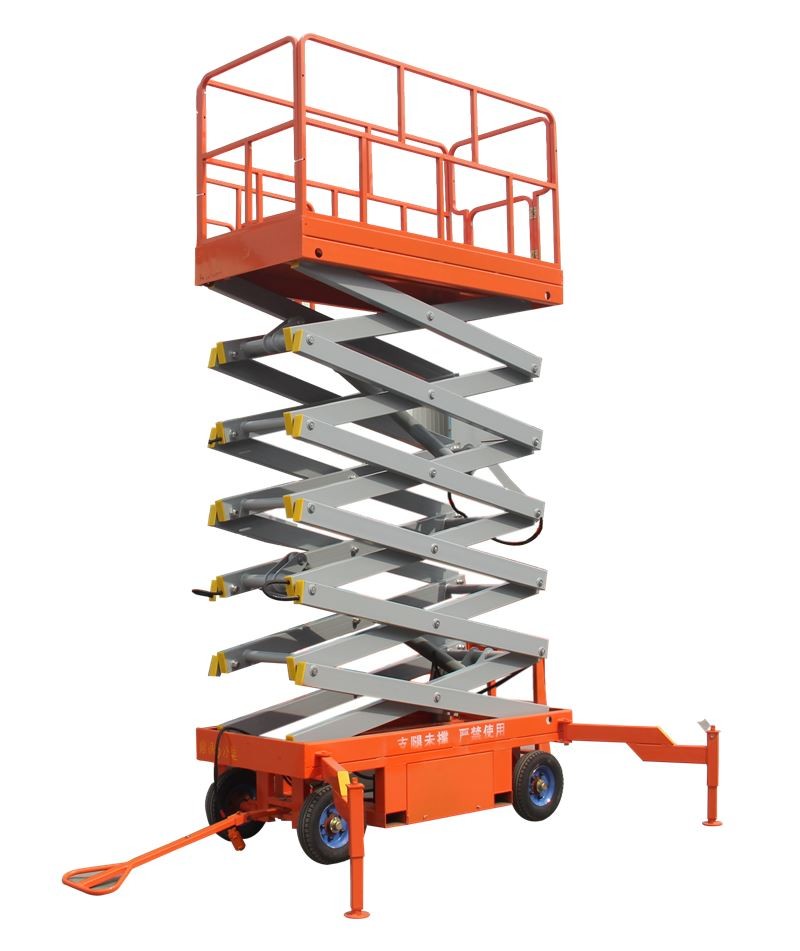

0.75 Kw 2T Electric Mobile Scissor Lift 300Kg Manlift Platform Rough Terrain

0.75 Kw 2T Electric Mobile Scissor Lift 300Kg Manlift Platform Rough Terrain

  • 0.75 Kw 2T Electric Mobile Scissor Lift 300Kg Manlift Platform Rough Terrain
0.75 Kw 2T Electric Mobile Scissor Lift 300Kg Manlift Platform Rough Terrain
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: SJZ0.5-9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in Wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 500kg Platform Height: 9m
Platform Size: 1800mm*1000mm Main Material: High Duty Steel
Motorized Power: 0.75 Kw Lifting Time: 80s
Weight: 1260kg Feature: Easy Operation Safety Convenience
High Light:

Mobile Scissor Lift Platform Rough Terrain

,

2T Electric Mobile Scissor Lift

,

0.75 Kw Mobile Scissor Lift

18m 300Kg 1T 2T Capacity Electric Mobile Scissor Lift Manlift Mobile Platform Rough Terrain



Quick Detail:

Load Capacity (kg)
Table Size
(mm)
Maximum Platform Height
(mm)
Height (mm)
Motor Power
(kw)
Overall Dimension
Oil Cylinder
Sheer Weight (kg)
Wheel
300
1780×840
6000
1080
1.5
1900x1000x1080
Φ80*2
850
200 polyurethane
500
1780×840
6000
1080
300
2000×1000
7500
1650
1.5
2100x1250x1650
Φ80*2
1270
500-8 rubber aerated
500
2000×1000
7500
1650
300
2000×1000
9000
1800
2.2
2100x1250x1800
Φ80*3
1500
500-8 rubber aerated
500
2000×1000
9000
1800
300
2100×1200
11000
1810
2.2
2200x1450x1810
Φ80*3
1700
500-8rubber aerated
500
2100×1200
11000
1810
300
2400×1350
12000
1950
3
2500x1600x1950
Φ100*3
2480
500-8 rubber aerated
500
2400×1350
12000
1950
300
2600×1350
14000
2100
4
2700x1600x2100
Φ100*3
2800
600-9 rubber aerated
500
2600×1350
14000
2100
500
3100×1400
16000
2100
4
3200x1650x2100
Φ100*4
3500
600-9 rubber aerated
1000
1780x840
6000
1500
2.2
1900x1250x1500
Φ100*2
1300
500-8 rubber aerated
1000
2100x1000
7500
1650
4
2200x1250x1570mm
Φ100*2
1650
500-8 rubber inflatable wheel
1000
2100×1200
9000
1770
4
2200x1450x1770
φ100*2
1900
500-8 rubber aerated
1000
2300×1350
11000
1990
4
2400x1600x1990
Φ80*6
2860
600-9 rubber aerated
1000
2400×1350
12000
1910
4
2500x1600x1910
Φ80*6
2900
600-9 rubber aerated
1000
2700×1500
14000
2200
4
2800x1750x2200
Φ100*6
3500
600-9 rubber aerated
1000
2600×1500
16000
2420
4
2700x1750x2420
Φ100*2,Φ80*4
4000
600-9 rubber aerated
300
3100×1500
18000
2430
4
3200x1750x2430
Φ100*5
4500
600-9 rubber aerated

Description:



Mobile Scissor lifts are also called as mobile elevated work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters. They are designed to lift limited weights and capable of being fully operated by a single person. They are narrow enough to be used in industrial settings and can be driven through narrow aisles with ease.



The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.





Main Features:



1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4. The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.





Safety Precaution:



1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform





Major Parameters

  • Model:                          SJZ0.5-9
  • Loading Capacity         500kg
  • Maximum Height         9000mm
  • Minimum Height           16800mm
  • Platform Size               1800*1000mm
  • Lifting Power                2.2kw
  • Motorized Power:         0.75Kw
  • Power Voltage              DC24V
  • Lifting Time                  80s
  • Cylinder                       Ф100 (2PCS)
  • Gear Pump                  6ml/r
  • Total Weight                1260kg
  • Measurement              2200*1200*1680MM



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack , sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø600-9 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
  • Battery: (DC12V,150AH)*4 with charger



Optional Configuration:

  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet



Applications:



1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





Why to choose CHEN LIFT Mobile Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
