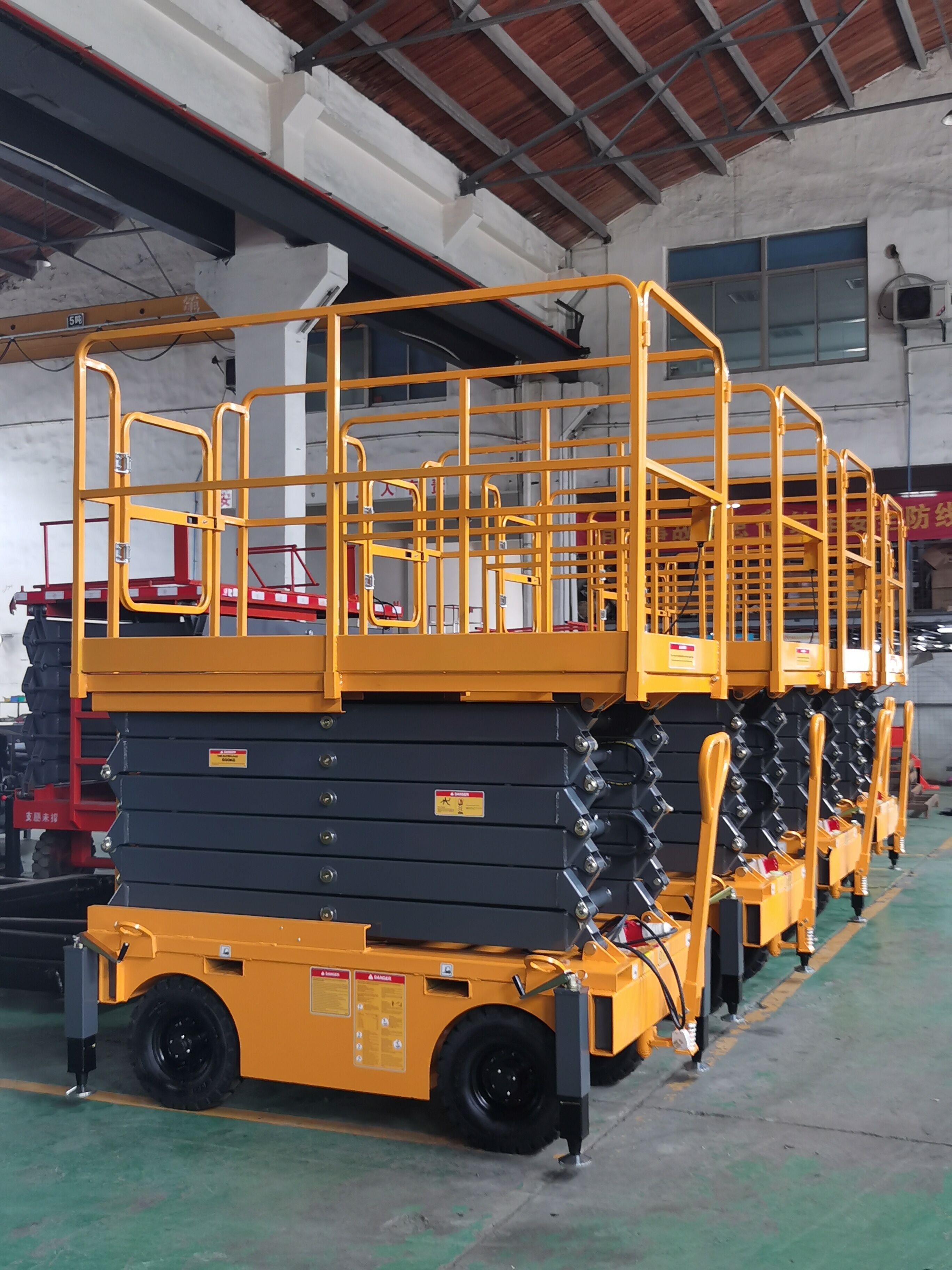

CE Approved 4m~14m AC Powered Hydraulic Aerial Platform Mobile Scissor Lift

CE Approved 4m~14m AC Powered Hydraulic Aerial Platform Mobile Scissor Lift

  • CE Approved 4m~14m AC Powered Hydraulic Aerial Platform Mobile Scissor Lift
CE Approved 4m~14m AC Powered Hydraulic Aerial Platform Mobile Scissor Lift
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: SJY0.5-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallet
Delivery Time: 30 days
Supply Ability: 100 set per month
Contact Now
Detailed Product Description
Color: Red, Yellow, Blue, Etc Material: High Strength Magnese Steel
Name: Mobile Scissor Lift Application: Aerial Work
Platform Height: 8m Control: Double Controller
Lift Mechanism: Scissor Lift
High Light:

Battery Powered Mobile Scissor Lift

,

Hydraulic 14m Mobile Scissor Lift

,

Mobile Scissor Lift Aerial Platform

CE Approved 4m~14m AC Powered Hydraulic Aerial Platform Mobile Scissor Lift



Description:

Our mobile scissor lift can be chosen height from 4m to 18m,It can move in a variety of ways:hand push, pull-type, self-style and vehicle-mounted style.The removable type guardrail, can reduce the storage space, convenient in and out of the places where highly restricted.It is assembled with emergency stop button,the platform will slowly down when press the button in an emergency occasion.This kind of scissor lift can reduce your investment cost, improve work efficiency and ensure the safety of your work.



Quick Detail:





Name Mobile Scissor Lift Brand Name CHEN LIFT
Loading Capacity 300Kg Platform Height 8m
Platform Size 2.25*1.15m Color Blue; Yellow; Others
Lifting Power 2.2Kw Power Supply DC/AC+DC
Driving Power 0.75Kw



Our Advantages
1. Available to choose the height from 4m to 18m.All kind of height can be chosen.
2. Electrical box fixed on the platform base, and equipped with a stop button, in case of accidents.
3. It can be move in a variety of ways, hand push, pull-type, self-style and vehicle-mounted style.
4. Removable type guardrail, convenient disassembly, can reduce the storage space, convenient in and out of the places where highly restricted.
5. The scissor made of strong manganese steel rectangular tube with high strength, stability and reliability advantages.
6. The widely working platform can bear heavy load. Multiple workers can operate the platform, because it has widely high attitude working ranges.
7. Configuring toolbox: basic tolls can be placed to meet the need of quick maintenance.
8. Telescopic support and adjustment of the support feet to ensure stable and reliable use.
9. Polyurethane paint with good corrosion resistant. Different colors can be freely choose by customers.



Optional Features:



Extension Platfrom

Extension Capacity: 150Kg

Extension Length: 800mm





Safety Precaution:



1. The operation voltage on the platform is 24V

2. Emergency stop button on the paltform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Explosion-proof device for oil tube

6. Low battery protector

7. Charging Protection system



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack , sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø500-8 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet



Why to choose CHEN LIFT Scissor Lift?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
