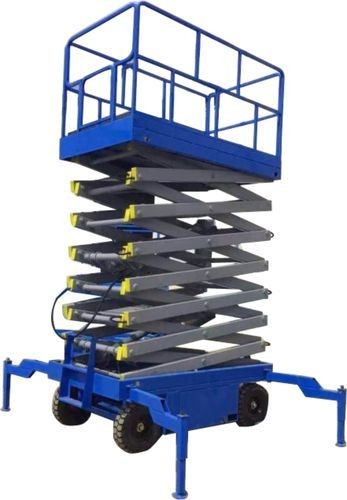

500kg Hydraulic Mobile Scissor Lift 3Kw Big Load Capacity High Altitude Platform

500kg Hydraulic Mobile Scissor Lift 3Kw Big Load Capacity High Altitude Platform

  • 500kg Hydraulic Mobile Scissor Lift 3Kw Big Load Capacity High Altitude Platform
500kg Hydraulic Mobile Scissor Lift 3Kw Big Load Capacity High Altitude Platform
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: SJZ0.45-10 with Extension
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 450kg Extension Loading: 100kg
Extension Length: 1000mm(Suggested Length:800mm) Platform Height: 10m
Working Height: 12m Platform Size: 2100mm*1150mm
Lifting Power: 3Kw Motorized Power: 0.75 Kw
Power Source: DC AC Diesel Control Type: Upper And Bottom Control
High Light:

Mobile Scissor Lift High Altitude Platform


500kg Hydraulic Mobile Scissor Lift


3Kw Mobile Scissor Lift Platform

500kg Hydraulic Big Load Capacity High Altitude Platform Indoor Or Outdoor Use Mobile Scissor Lift



Mobile scissor lifting platform is a special equipment for aerial work with wide applications. Its scissor type mechanical structure makes the lifting platform has a higher stability. Wide space platform and higher load capacity makes work range more larger and suitable for many people to work at the same time. It makes aerial working more efficient and safer. Mainly used for station, dock, bridge, hall, workshop indoor and outdoor machinery installation, equipment repair, building maintenance.



1. Mobile scissor lift is easily operated by control panels both on the platform and at the bottom. 24V safe operating voltage.

2. Besides AC power, power options available on the lift include diesel engine, battery, and any combination of these.(optional)

3. Detachable guardrail: Convenient for storage and entering gate.

4. The lift has trailing bar to control direction of movement by manual or trailed by truck.

5. Electric walking assistant device: With help can move the lift easily by one person.(optional)


Quick Detail:


Name Mobile Scissor Lift Brand Name CHEN LIFT
Loading Capacity 450Kg Platform Height 10m
Platform Size 2100mm*1150mm Color Blue Color or Optional
Lifting Power 3Kw Power Supply AC&DC / DC
Motorized Power 0.75 Kw
Loading Capacity on Extension Platform
Extension Platform Length




Major Parameters

  • Model:                          SJZ0.45-10 with Extension
  • Loading Capacity         450kg
  • Maximum Height         11000mm
  • Minimum Height           1700mm
  • Platform Size               2100*1150mm
  • Lifting Power                3kw
  • Motorized Power:         0.75Kw
  • Power Voltage              DC24V
  • Lifting Time                  90s
  • Cylinder                       Ф80 (3PCS)
  • Gear Pump                  6ml/r
  • Total Weight                1380kg
  • Measurement              2500*1350*1700MM



  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack , sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø600-9 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
  • Battery: (DC12V,150AH)*4 with charger


Optional Configuration:

  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet




1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



Why to choose CHEN LIFT Mobile Scissor Lift?


· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience



Communication with Customers


A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material


A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.


A: What is the delivery time for your goods?

B: it is 30days after order confirmation


A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1


A: How long is your quality guarantee period?

B: We have one year warranty.
