|Place of Origin:||China|
|Brand Name:||CHEN LIFT|
|Certification:||CE ISO9001:2008 IPAF member|
|Minimum Order Quantity:||1 set|
|Packaging Details:||PVC Film Wrapped in Pallets or in wooden Case|
|Delivery Time:||30 days after order confirmed|
|Payment Terms:||T/T or L/C|
|Supply Ability:||3000 Units Per Year|
|Max. Platform Height:||2.7m||Max. Machine Height:||4.12m|
|Loading Capacity:||300kg||Platform Size:||600*640 Mm|
|Lifting Motor:||24V/1.6kw||Overall Weight:||430kg|
warehouse order picker,
vertical order picker

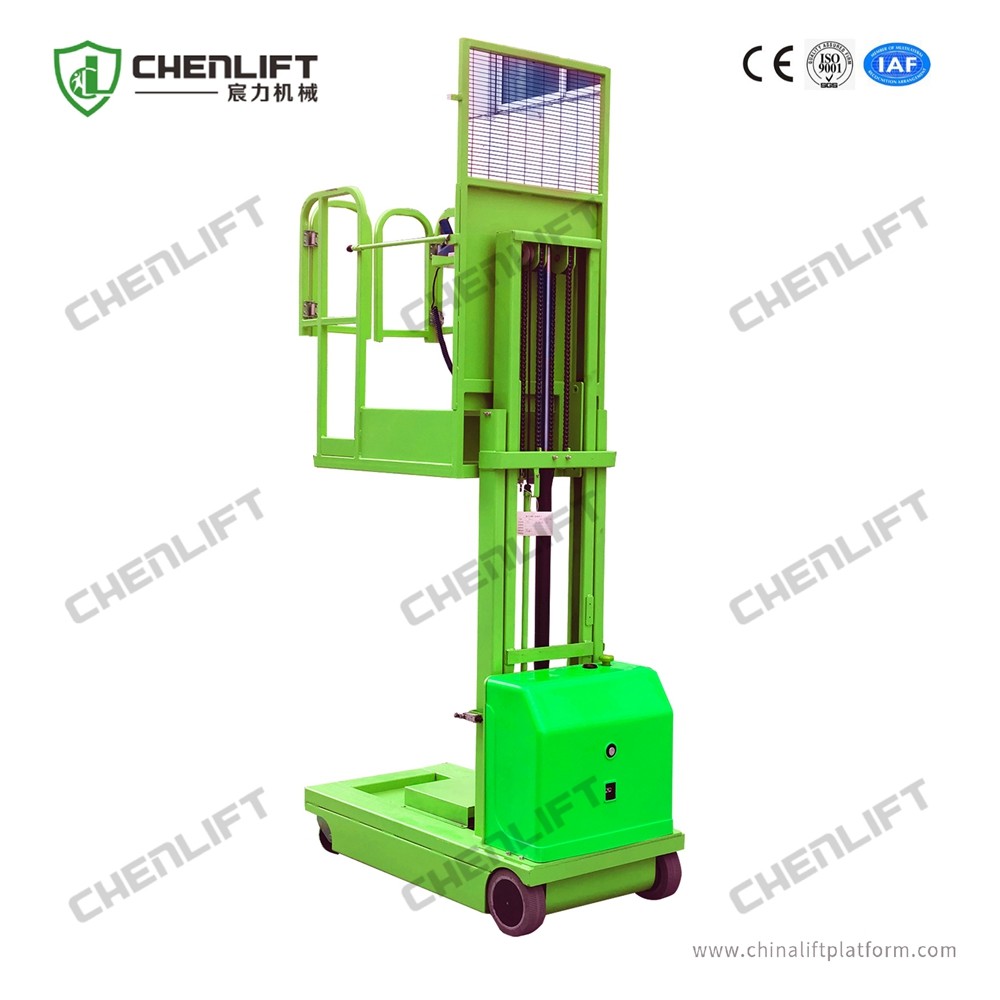

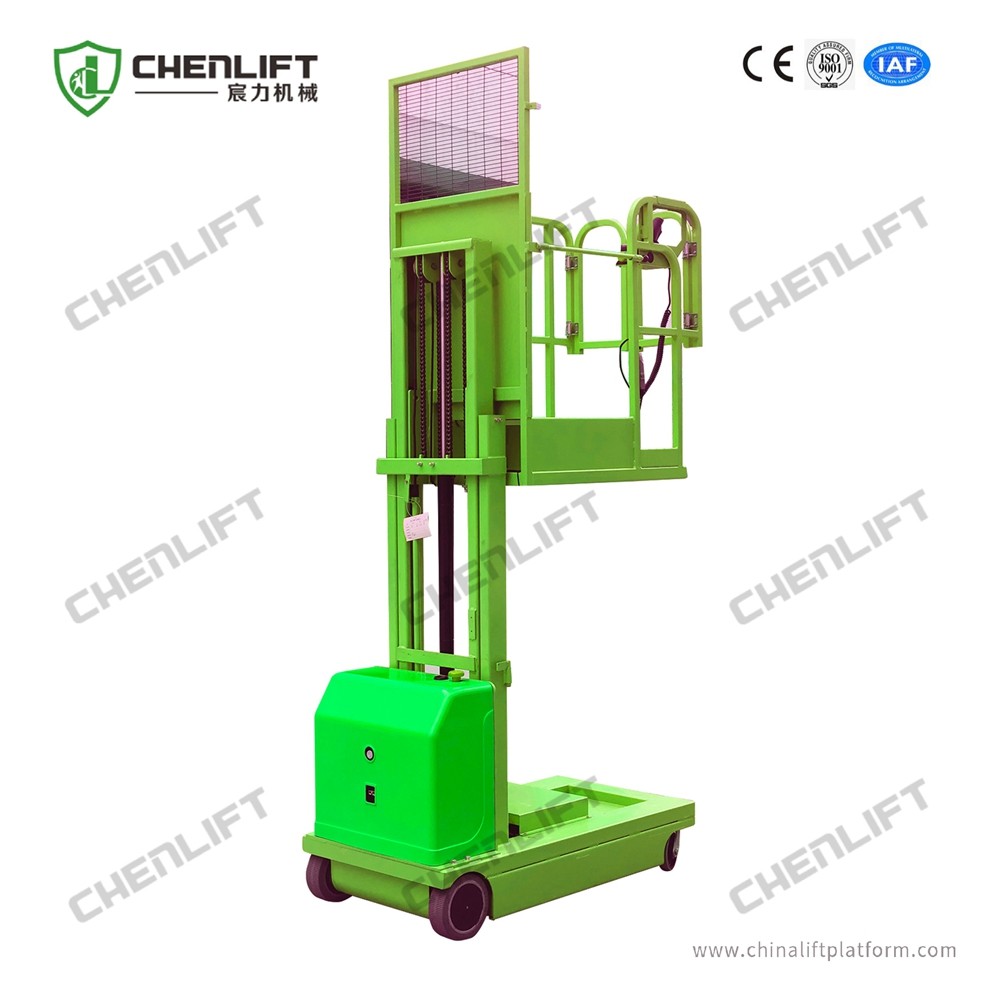

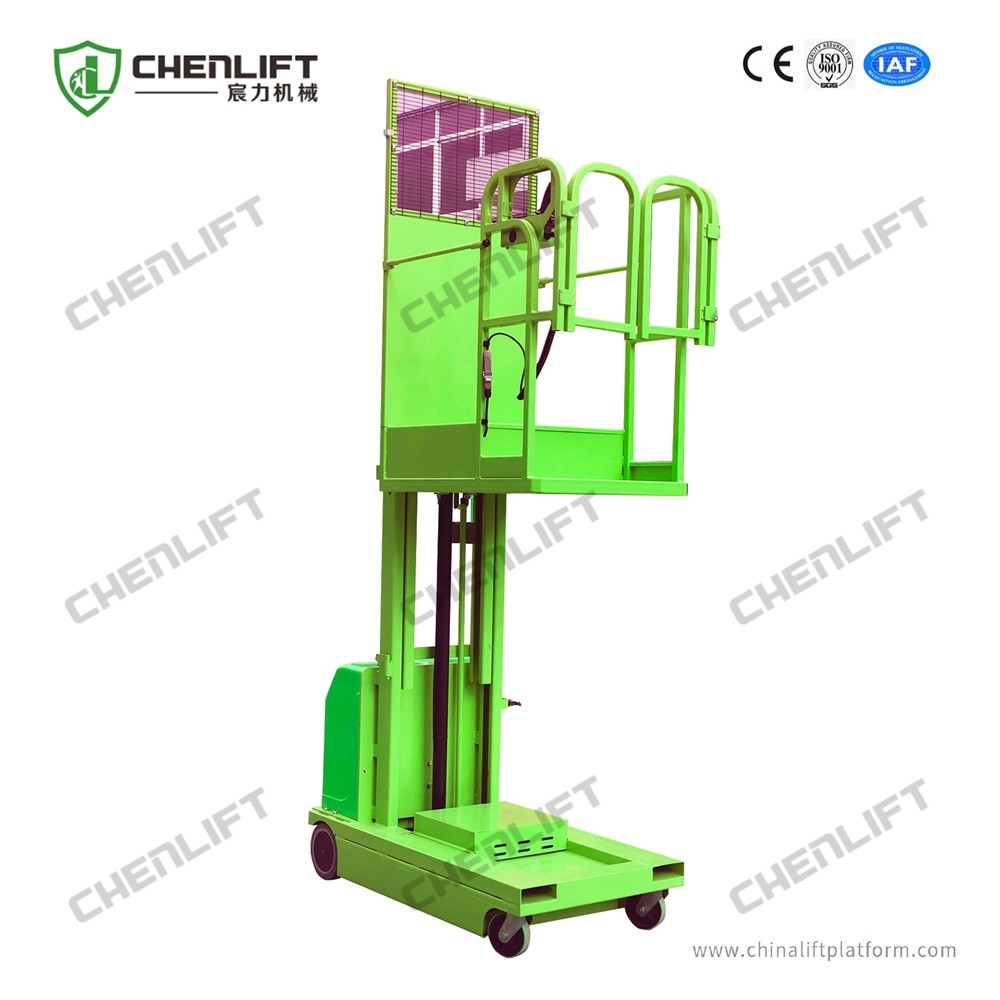

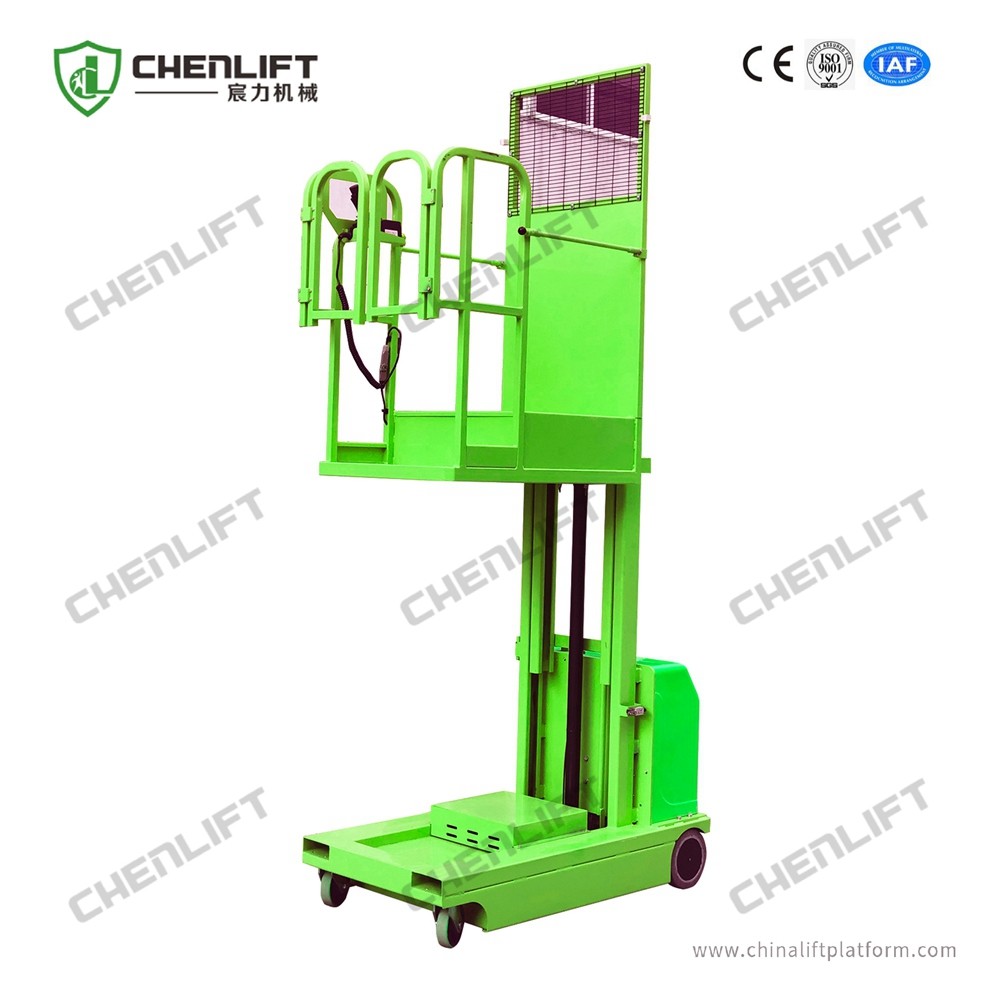

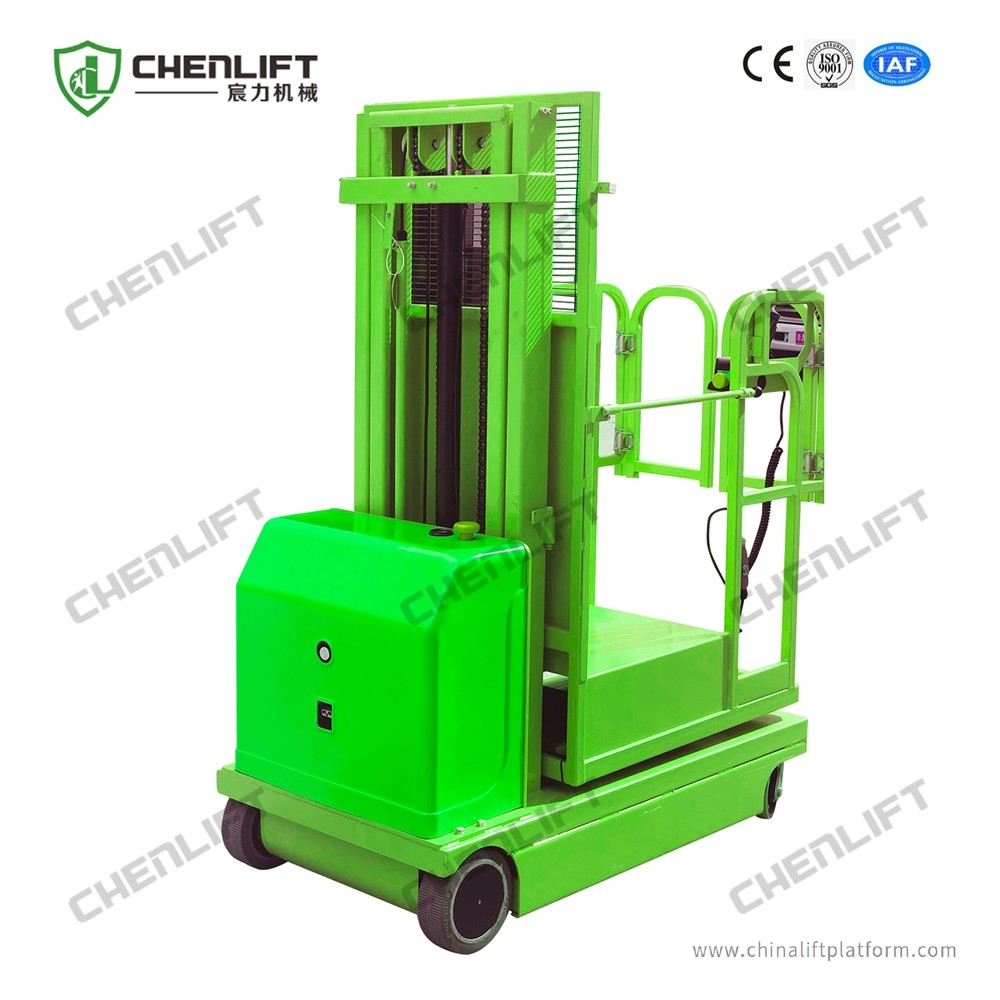

300kg Self-Propelled Powered Electric Aerial Order Picker
Self propelled aerial order picker is one kind of material handling equipment, it is mainly used to pick up cargo from rack. Operator can control moving, lifting and turning when stand on the platform, which highly improved the working efficiency. As it is lighter in weight, easy to implement by single person, flexible and convenient to operate, it is the best choice for stacking and reclaiming warehouses and supermarkets.
Major Parameter of Self-propelled Aerial Order Picker
|Max. Platform Height||2.70m||3.30m||4.00m||4.50m|
|Max. Machine Height||4.12m||5.00m||5.40m||6.00m|
|Min. Turning Radius||1600mm||1600mm||1600mm||1600mm|
|Max. Climbing Capacity||15%-20%||15%-20%||15%-20%||15%-20%|
It moves and lifts all by battery power.
Operator can control moving, lifting, turning and all other operations when stand on the platform.
The light weight and maneuverability make it convenient to use in supermarket and warehouse.
Intelligent self propelled control system.
Zero-turn radius and compact design provide access in and around confined work areas.
Low gravity center provides good stability.
Structure Principle & Instruction
1. Charging the battery before you use it. After charging up the battery, please cut off the power, then unplug it.
2. Lift the platform to its top position to check that there is enough hydraulic oil in the system. Refill if necessary with YA-N32 or a similar oil.
3. Turn the key and switch on, the display indicator shows. Choose the mode of rising, control the height by Joy-stick.
4. Change the mode to walk. Also can be controlled by Joy-stick, the "rabbit" pattern indicates speed up, the "tortoise" pattern indicates speed down.
The structure of Self-propelled Aerial Order Picker is as below:
As a subsidiary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
