CHENLIFT (SUZHOU) MACHINERY CO., LTD.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | CHEN LIFT |
| Certification: | CE ISO9001:2008 IPAF member |
| Model Number: | SEP2-4.5 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PVC Film Wrapped in Pallets or in wooden Case |
| Delivery Time: | 30 days after order confirmed |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 3000 Units Per Year |
| Max. Platform Height: | 4.5m | Max. Machine Height: | 6.1m |
|---|---|---|---|
| Platform Size: | 600*640 Mm | Loading Capacity: | 200kg |
| Lifting Motor: | 12V/1.6kw | Overall Weight: | 420kg |
| High Light: | warehouse order picker,vertical order picker |
||

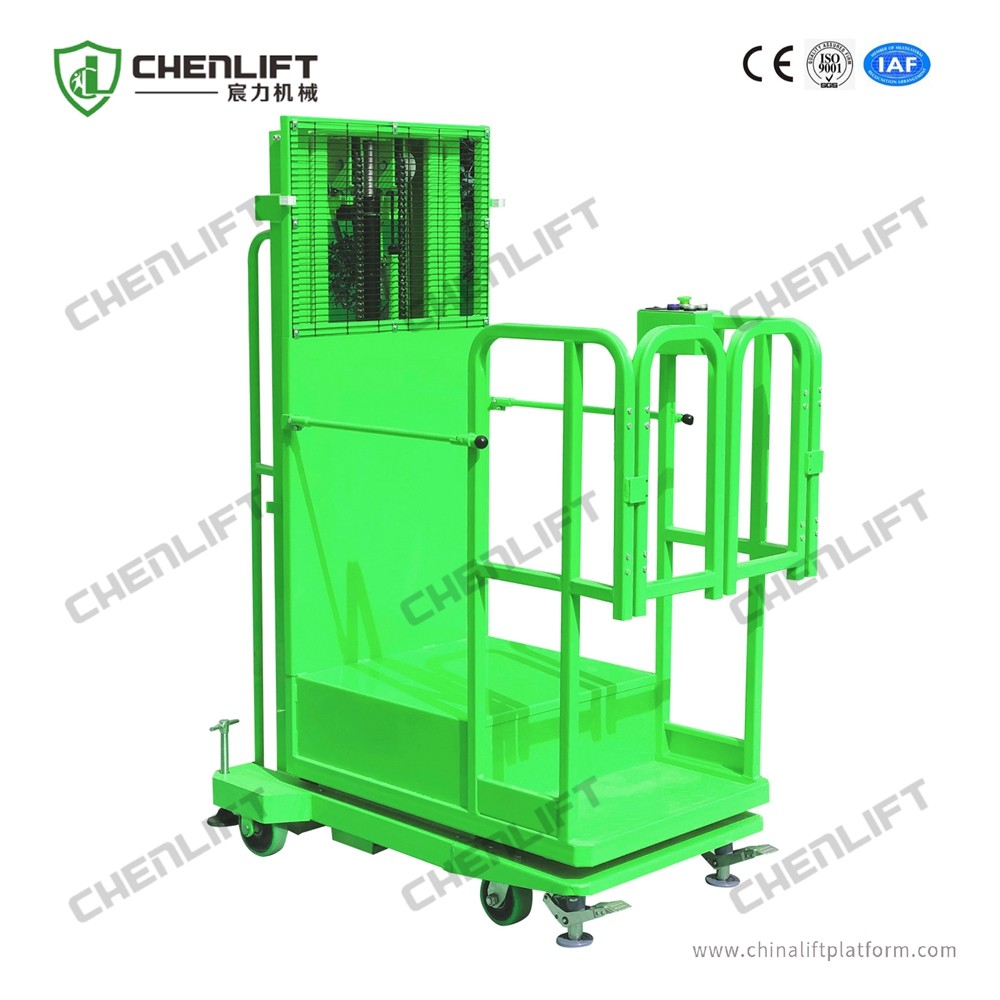

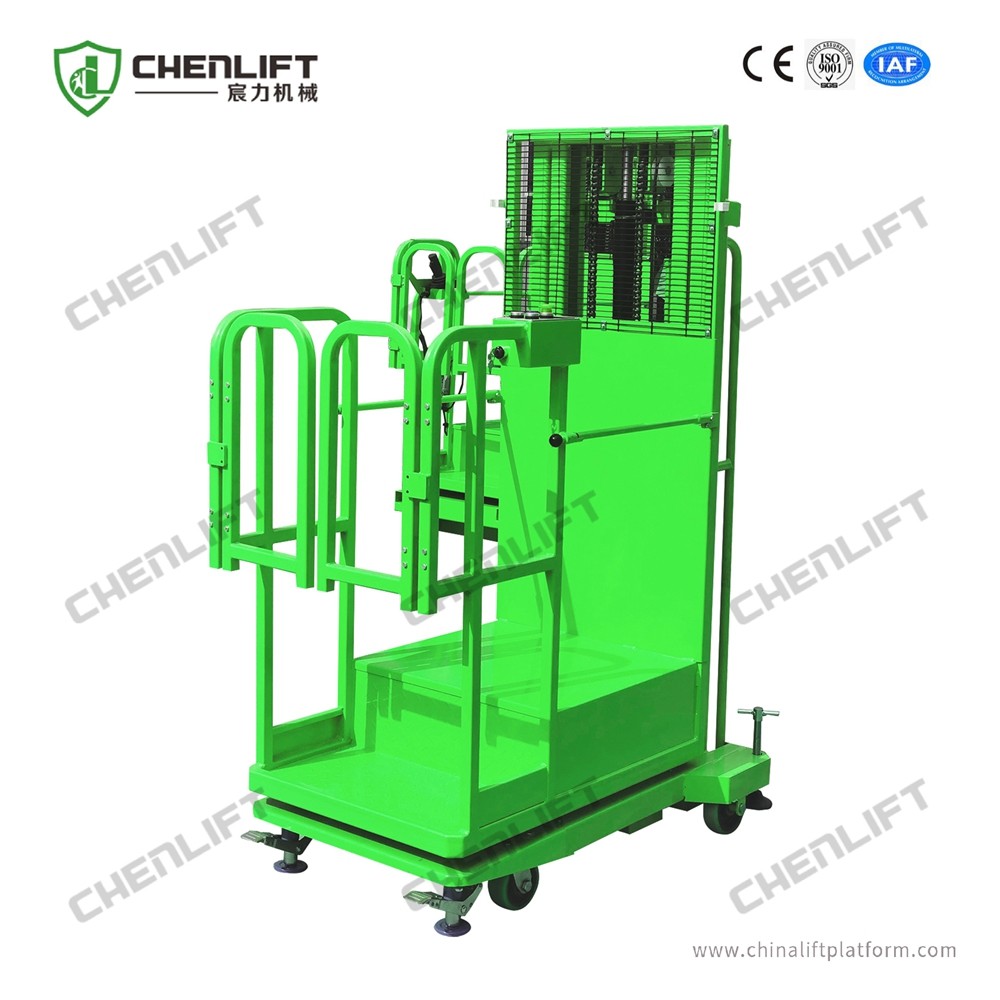

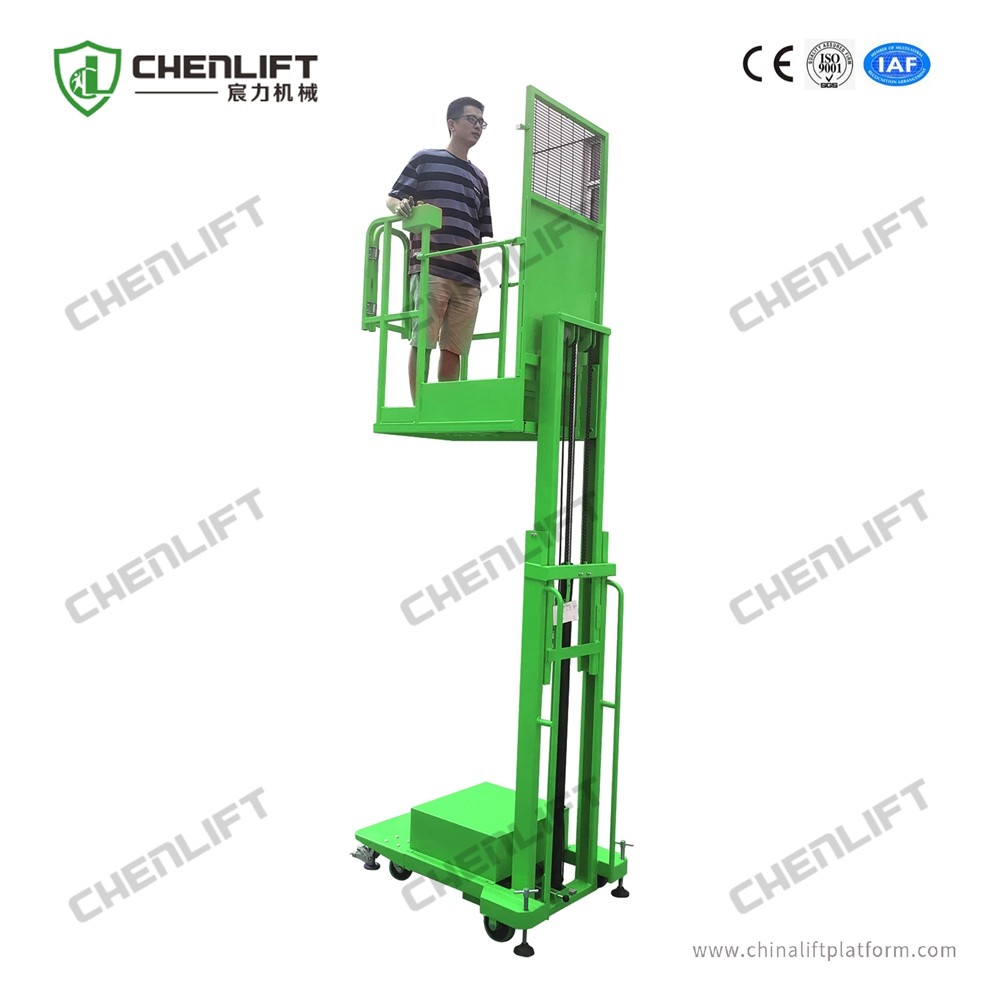

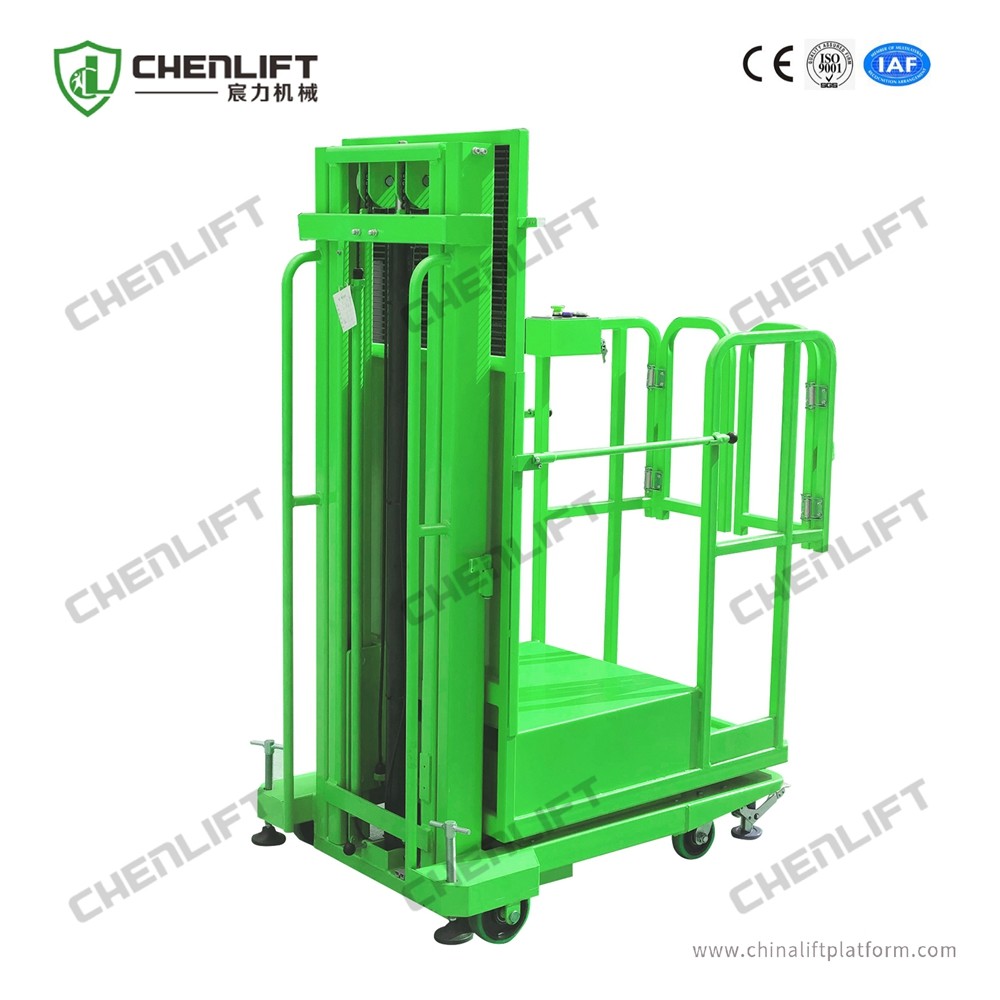

0.2t Load Semi Electric Aerial Order Picker with Lifting Height 4500mm
Product Description
Semi-electric aerial order picker is with high safety, moving easily and convenient working. This product is broadly accepted by our clients due to their superior finish, durability, high load bearing capacity and longer service life without any hassles. Offered in various technical specifications, this range of order picker is available at the most reasonable prices.
Features
Environment-Friendly:
Low noise and non-pollution electricity energy adopted ensure the semi electric order picker Environment-Friendly.
Reliability:
Adequate protection of brake and bolts, to ensure safe use.
Rigid steel body design to ensure steady operation.
Strict Quality Inspection System:
ISO9001-2008, CE approved.
Application
Semi-electric Aerial Order Picker is widely used in the fields of hotel, building, warehouse, library, supermarket rack, workshop, elevator portal, supermarket, subway station, and other office building high altitude maintenance.
Major Parameter of Semi-Electric Aerial Order Picker
| Model | SEP2-2.7 | SEP2-3.3 | SEP2-4.0 | SEP2-4.5 |
| Loading Capacity | 200Kg | 200Kg | 200Kg | 200Kg |
| Max. Platform Height | 2.72m | 3.30m | 4.00m | 4.50m |
| Max. Machine Height | 4.02m | 4.90m | 5.40m | 6.10m |
| Platform Size | 600*640mm | 600*640mm | 600*640mm | 600*640mm |
| Stowed Length | 1.30m | 1.30m | 1.32m | 1.32m |
| Stowed Width | 0.85m | 0.85m | 0.85m | 0.85m |
| Stowed Height | 1.76m | 2.04m | 1.83m | 2.00m |
| Ground Clearance | 30mm | 30mm | 30mm | 30mm |
| Lift Motor | 12V/1.6Kw | 12V/1.6Kw | 12V/1.6Kw | 12V/1.6Kw |
| Battery | 12V/120Ah | 12V/120Ah | 12V/120Ah | 12V/120Ah |
| Charger | 12V/15A | 12V/15A | 12V/15A | 12V/15A |
| Overall Weight | 270Kg | 320Kg | 380Kg | 420Kg |
Product Details
Company Introduction
As a subsidiary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
Factory Equipment
Customer Visiting
