Place of Origin: | China |
Brand Name: | Xunte |
Certification: | CE |
Model Number: | SJG 3-7.2 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wrapped in pallet |
Delivery Time: | 30 days |
Payment Terms: | T/T L/C |
Supply Ability: | 100 sets/month |
Loading Capacity: | 3000kg | Lifting Height: | 7.2m |
---|---|---|---|
Platform Size: | 3.4x1.5m | Minimum Height: | 1.05m |
Lifting Power: | 7.5kw | ||
High Light: | scissor lift table,hydraulic scissor lift |

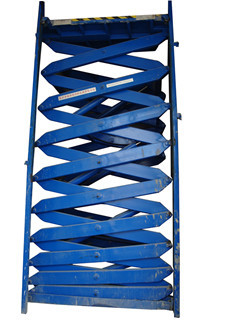

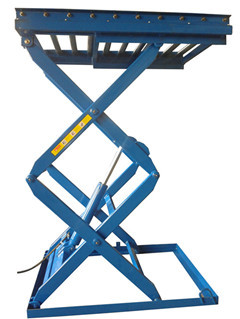

3000Kg Loading Capacity Mini Stationary Scissor Lift with 7.2m Lifting Height
Quick Detail:
Name | Hydraulic Lift Platform | Brand Name | Xunte |
Loading Capacity | 3000Kg | Lifting Height | 7.2m |
Platform Size | 3400*1500mm | Color | Optional |
Lifting Power | 7.5kw | Power Supply | AC |
Description:
Stationary Scissor Lifts can not be moved, it only can lift the goods in the fixed locations, the platform size, loading capacity and the lifting height can be customized based on different customers’ requirements. It is widely used in the workshop, 4S Shop to load and unload good with heavy duty.
Main Features:
1. Easily installation and maintenance
2. Excellent mechanical structure, which works in lower initial lifting height with maximum lifting stroke.
3. The antiskid design endows the platforms with excellent antiskid property
4. Fine grinding cylinder in good sealing performance
5. Gas Shield Welding (in stronger hardness and everlasting)
6. Built-in pressure release valve
7. Auxiliary platform lowering when electricity off
8. Oil less bearing mounted in the joint parts, pin roll with grease fitting.
9. Overall hook by CNC torch flame cut
Major Parameters:
Model | SJG3-7.2 |
Lifting Height | 7.2m |
Loading Capacity | 3000KG |
Platform Size | 3400*1500mm |
Minimum Height | 1050mm |
Motor Power | 7.5Kw |
Voltage | 380V/50Hz |
Configurations:
Electric system:Schneider contactor, SANLICO button, CHNT electrical
Hydraulic System:Hycman brand power pack , sealing
Scissor Arm Support:Hi-strength Manganese steel rectangle tube Q345 B
Platform Surface:Antiskid checkered plate
High-pressure Oil Pip:Double wire hydraulic intensifier rubber hose
Optional Configuration:
Power Supply: 3phases/380V/50HZ; DC 24V; manual pump
Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
Extension Platform
Flame Proof Control Cabinet
Applications:
Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
Aerial Working Purpose: machine maintenance, painting, cleaning etc.
Why to choose Xunte Hydraulic Lift Platform?
High Quality
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience
