Name: 125kg Load 3.2m Lifting Height Hand Winch Elevating Work Platform
Brand: CHENLIFT
SKU: SP32
Rating: 4.6 (113 reviews)

Home Products Manual Material Lift

125kg Load 3.2m Lifting Height Hand Winch Elevating Work Platform

Product Details:

Place of Origin:	China
Brand Name:	CHENLIFT
Certification:	CE ISO9001:2008 IPAF member
Model Number:	SP32

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wrapped in pallets
Delivery Time:	30 days
Payment Terms:	T/T L/C
Supply Ability:	200 sets/month

Contact Now

Detailed Product Description

Stowed Size:	1.20.751.98m	Operation Mode:	Manual
Move Mode:	Push By Manpower	Load Capacity:	125kg
Max Platform Height:	3.2 M
Highlight:	hydraulic drum lift , electric pallet stacker

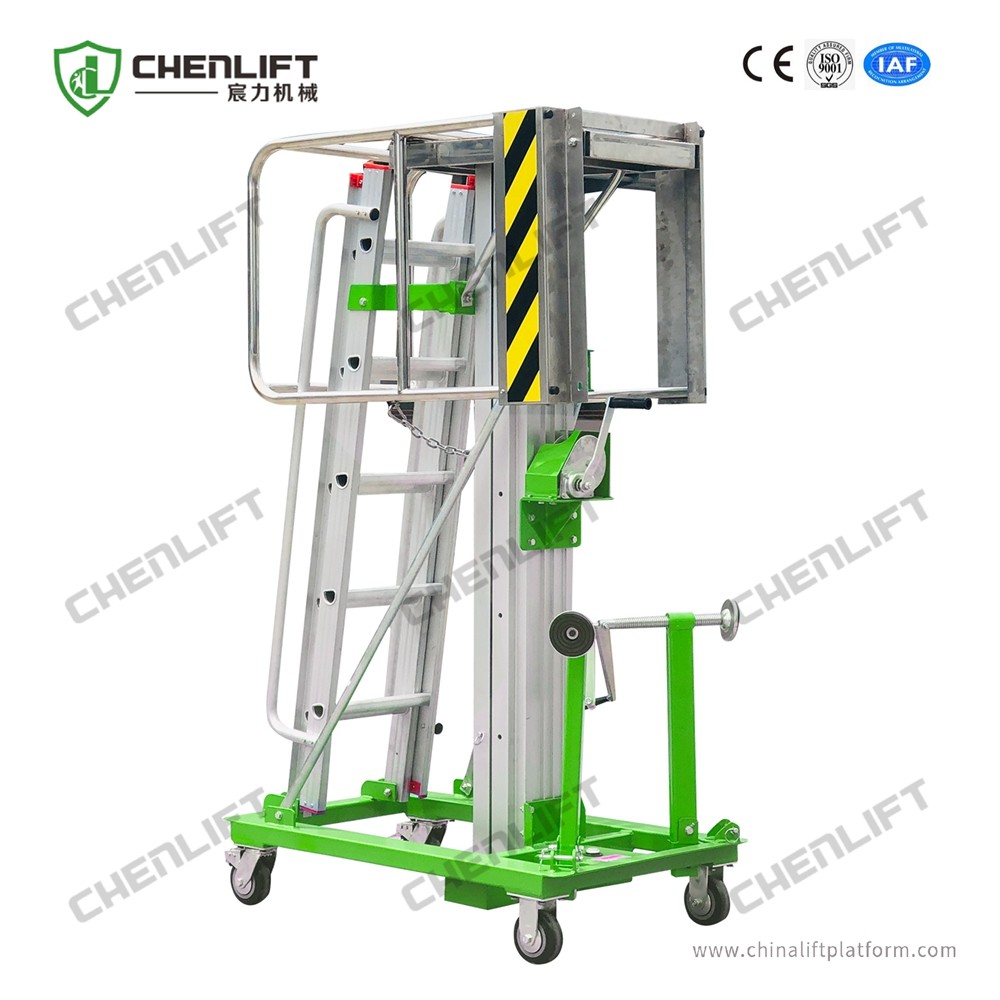

125kg Load 3.2m Lifting Height Hand Winch Elevating Work Platform

The manual winch elevating lift is built tough to handle the day-to-day demands of industrial and commercial use. Getting those overhead jobs done requires a lift that is dependable- one that won't let you down. Designed to be handled and operated by one worker, it rolls easily from job to job and fits through a standard doorway without alteration or disassembly.

The manual winch system is operated from ground level and elevates the platform to the desired working height. With the outriggers set, the opearator climbs the access ladder to the platform. The cable lift system includes an emergency stop fall arrest device. Heavy duty and rigid in construction.

Specification

Model	SP32	SP46
Platform Height	3200 mm	4600mm
Platform Size	550*600 mm	550*600 mm
Load Capacity	125 kg	125 kg
Stowed Length	1200 mm	1300 mm
Stowed Width	750 mm	800 mm
Stowed Height	1980 mm	2070 mm
Ground Clearance	70 mm	70 mm
Machine Weight	145 kg	190 kg
Operation Mode	Manual	Manual
Move Mode	Push by manpower	Push by manpower
Casters	6 in	6 in

Our Company

Chenlift (Suzhou) Machinery Co Ltd. Is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
