| Highlight: | drum lifter forklift attachment,hydraulic drum lifter |
||
|---|---|---|---|
Standard Configuration:
※Electric Picking Tray and Front Guard Rails
※Self-locking Gates
※Drivable at Full Height
※Non-Marking Tires(Two-Wheel Drive Two-Wheel Steering)
※Emergency Descent System
※Emergency Stop Button
※Saloon-door Style Entry Gates / Top Open Door
※Flashing Beacon
※Charging Indicator
※Manual Brake Release
※Lanyard Attachment Point
※Tie-Down and Lifting Points
※Charging Protection System
Optional Configuration:
※AC Power to Platform
※Platform Working Light
※Extension Platform
※Wireless Tracking

Specification:

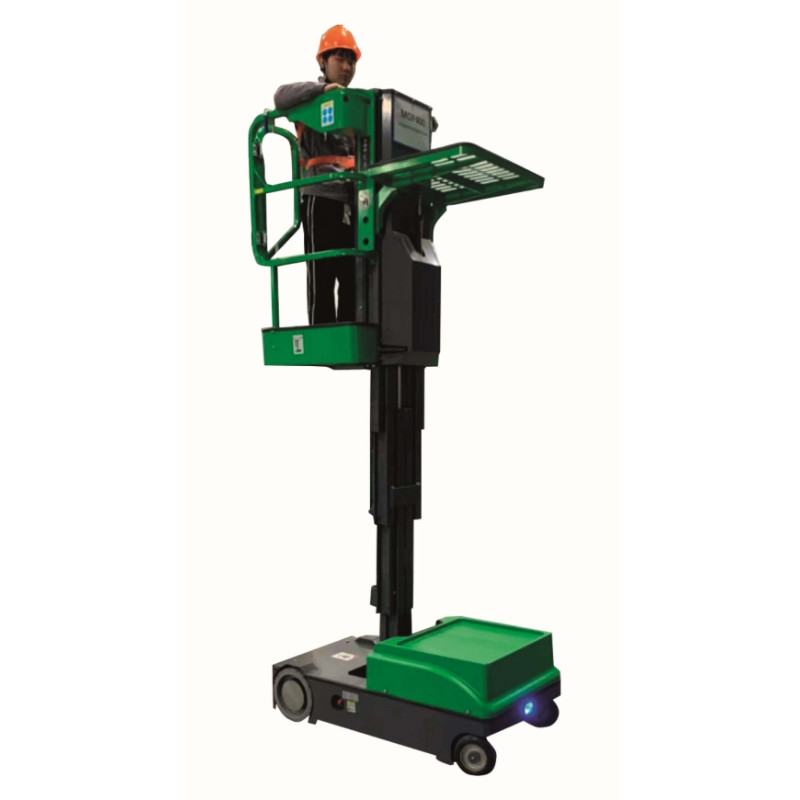

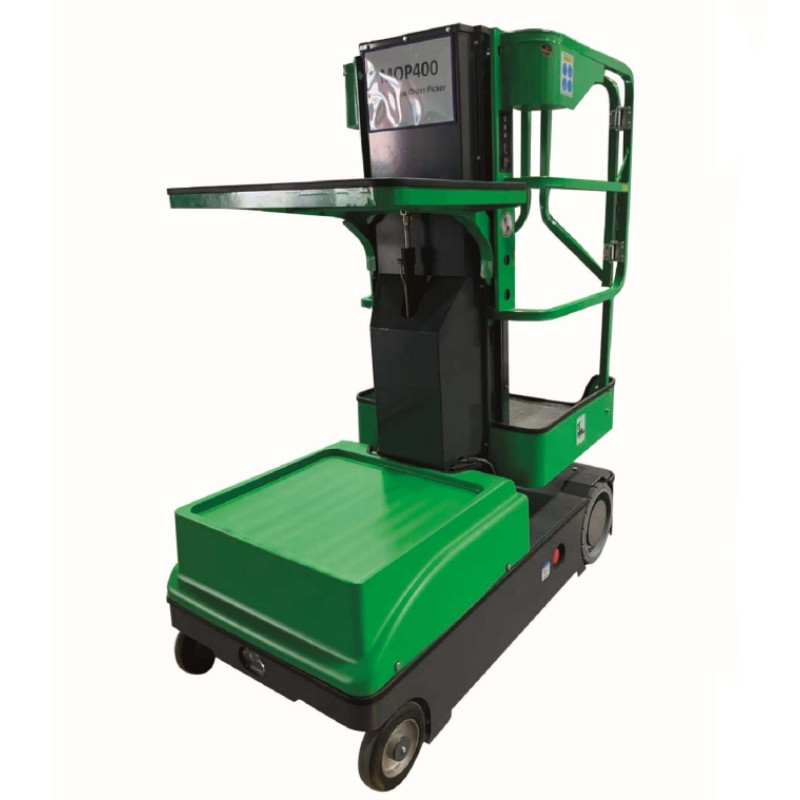

| Model | MOP400 |
| Max Platform Height | 4m |
| Max Working Height | 6m |
| Platform Capacity(For Person) | 136kg |
| Platform Capacity(For Goods Up) | 90kg |
| Platform Capacity(For Goods Down) | 110kg |
| Platform Size | 0.5*0.73m |
| Stowed Length | 1.48m |
| Stowed Width | 0.75m |
| Stowed Height | 1.78m |
| Travel Speed(Stowed) | 4km/h |
| Travel Speed(Raised) | 0.8km/h |
| Turning Radius | 0.23m |
| Gradeability | 15-20% |
| Max Ground Clearance | 0.05m |
| Ground Clearance(Pothole Protection) | 0.015m |
| Battery | 24V/108AH |
| Charger | 24V/15A |
| Wheel | Φ305x100 |
| Weight | 930kg |
Company Introduction:
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
