9000mm Height Mobile Hydraulic Lift Platform For Cleaning

China CHENLIFT (SUZHOU) MACHINERY CO LTD certification
China CHENLIFT (SUZHOU) MACHINERY CO LTD certification
Marc was pleasantly surpriced about the excellent quality. There has been thought about everything: Engineering picobello, packing (not unimportent) s

—— Koen and Marc Sas

The manuevability of power lift is amazing. We can use it in tight space one day indoors and the next day rull it out on the turf.

—— Jan Aaris

No other AWP at the same price performed as well as it.

—— Koren White

I'm Online Chat Now

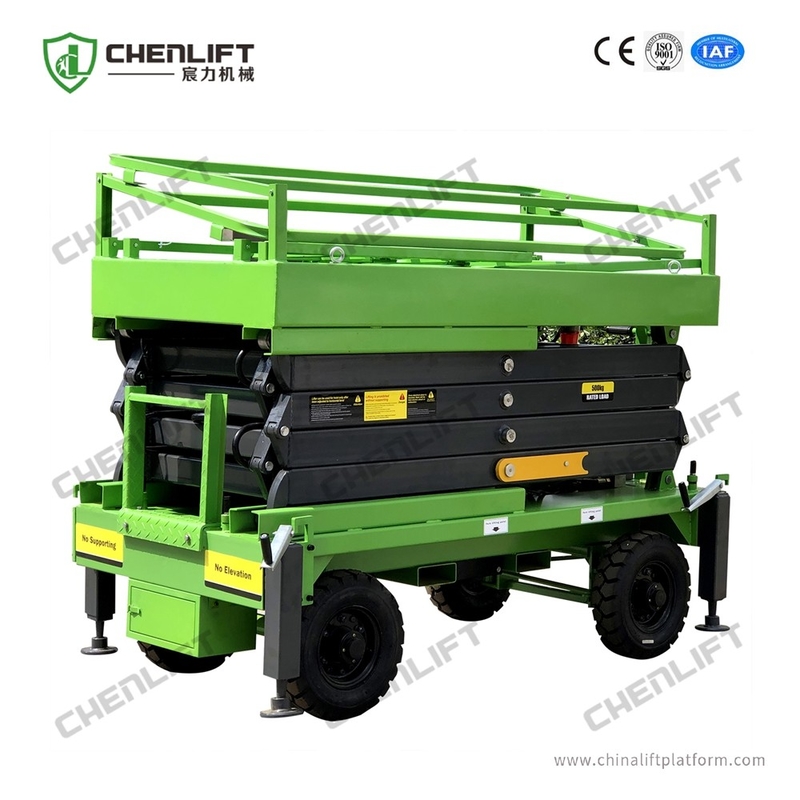

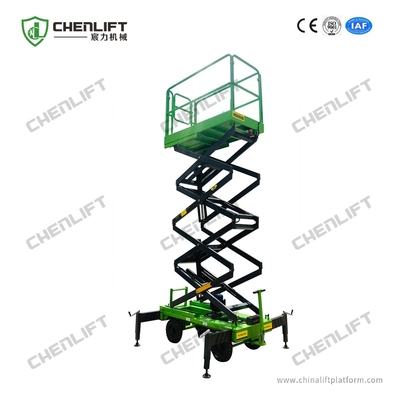

9000mm Height Mobile Hydraulic Lift Platform For Cleaning

9000mm Height Mobile Hydraulic Lift Platform For Cleaning
9000mm Height Mobile Hydraulic Lift Platform For Cleaning 9000mm Height Mobile Hydraulic Lift Platform For Cleaning 9000mm Height Mobile Hydraulic Lift Platform For Cleaning 9000mm Height Mobile Hydraulic Lift Platform For Cleaning

Large Image :  9000mm Height Mobile Hydraulic Lift Platform For Cleaning

Product Details:

Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: MK900

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Detailed Product Description
Model: MK900 Brand: CHEN LIFT
Material: Managnese Steel Color: Any Color Can Be Customized
Load Capacity: 500 Kg Platform Height: 9 M
Working Height: 11 M Platform Size: 1.8* 1 M
Optional Extension: 0.8 M Standard Power: AC Power
High Light:

mobile hydraulic lift

,

hydraulic aerial work platform

9000mm Height 500kg Load Mobile Hydraulic Lift Platform For Cleaning with CE ​





Quick Detail:



Name Mobile Scissor Lift Brand Name CHEN LIFT
Loading Capacity 500 Kg Platform Height 9m
Platform Size 1800mm*1000mm Color Can be customized
Lifting Power 3Kw Power Supply AC(standard)/DC(optional)
Extension Platform Length 0.8 m





Description:



Mobile Scissor lifts are also called as mobile scissor aerial work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters. They are designed to lift limited weights and capable of being fully operated by a single person. They are narrow enough to be used in industrial settings and can be driven through narrow aisles with ease.



The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.

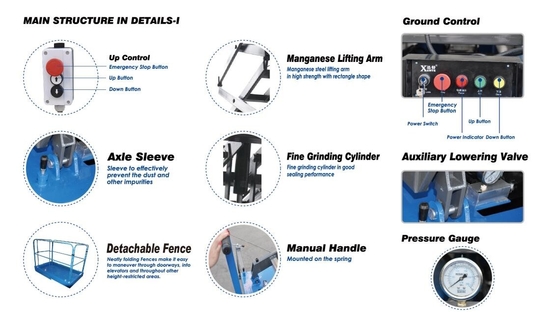

Main Features:



1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4 The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.



9000mm Height Mobile Hydraulic Lift Platform For Cleaning 0





Safety Precaution:



1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform





Standard Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack , sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø500-8 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



Optional Configuration:

  • Power Supply: DC 24V ; manual pump
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet



Applications:



1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





Why to choose our Mobile Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience



Also if you have any other special requirement, we can customize the machines for you.



Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
