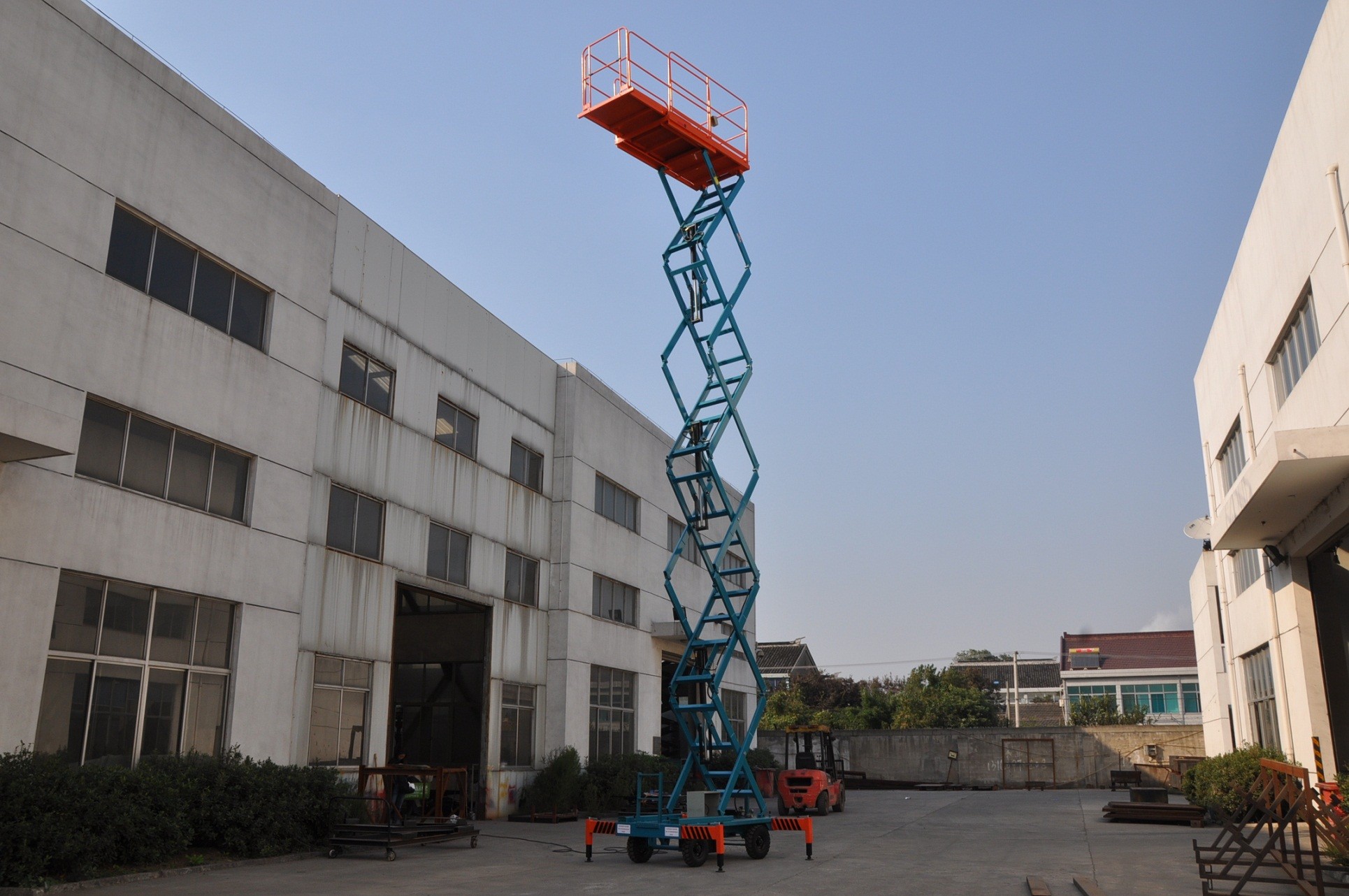

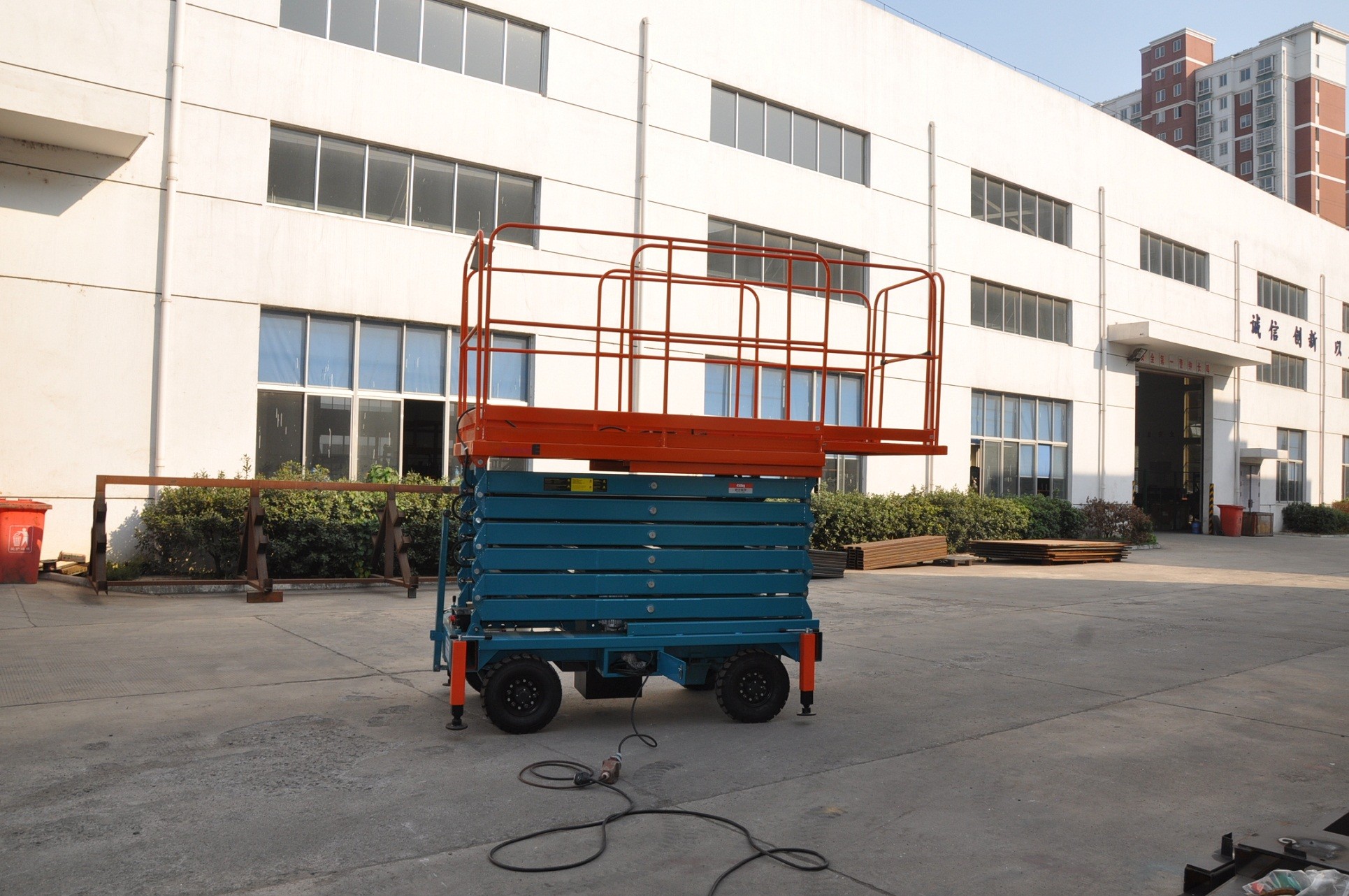

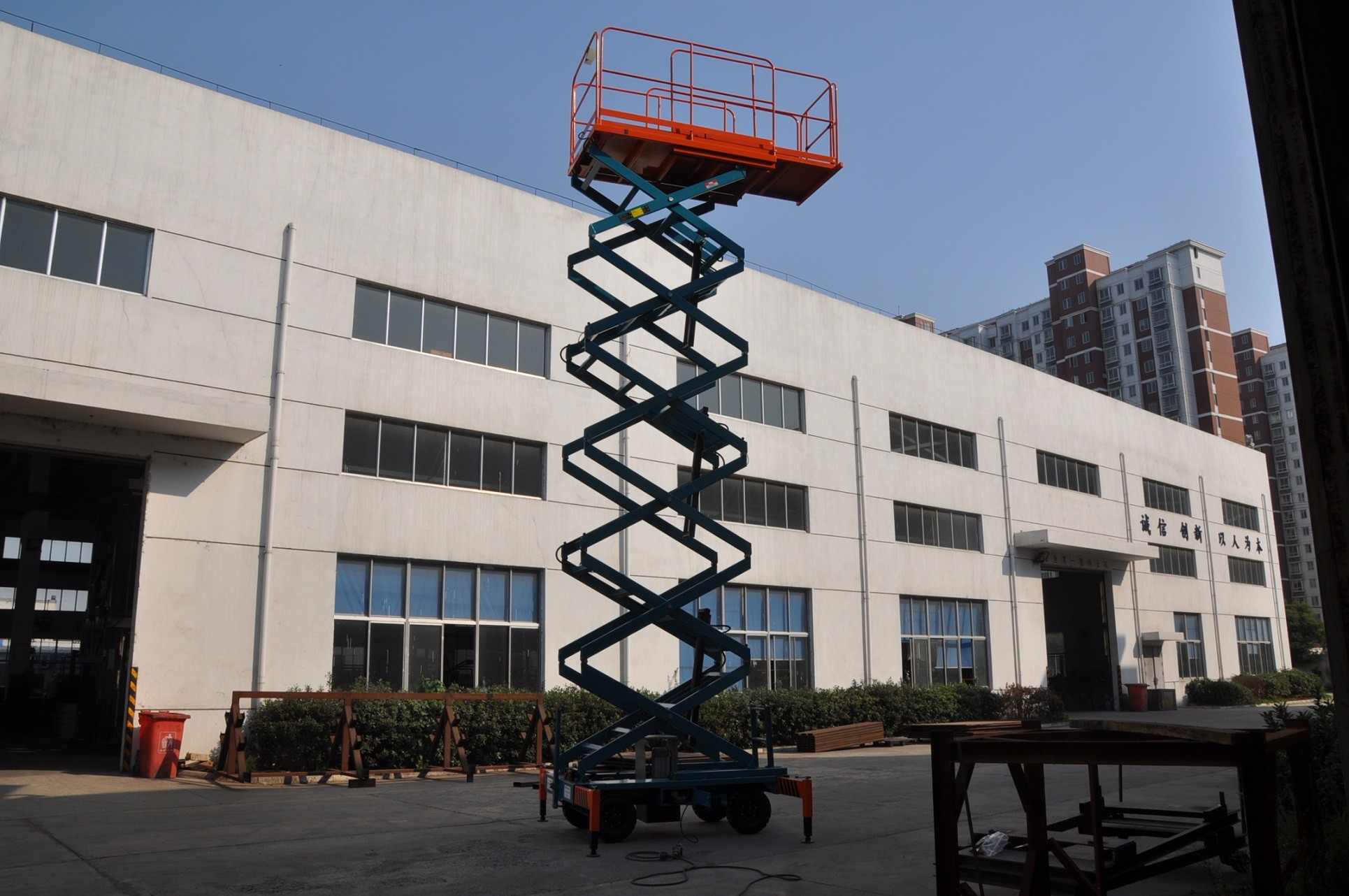

11m Manual Pushing Mobile Scissor Lift Loading 450kg



1 meters aerial hydraulic lift platform with extension loading 100kg for crane Lifting , scissor structure





Quick Detail:



Name	Mobile Scissor Lift	Brand Name	Xunte
Loading Capacity	450Kg	Platform Height	11m
Platform Size	2.10*1.15m	Color	Red Color or Optional
Lifting Power	2.2Kw	Power Supply	AC/DC



Extension Platform Length

1m



Loading Capacity on Extension Platform

100kg





Description:



Mobile Scissor lifts are also called as mobile scissor aerial work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters. They are designed to lift limited weights and capable of being fully operated by a single person. They are narrow enough to be used in industrial settings and can be driven through narrow aisles with ease.



The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.





Main Features:



1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4 The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.





Safety Precaution:



1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

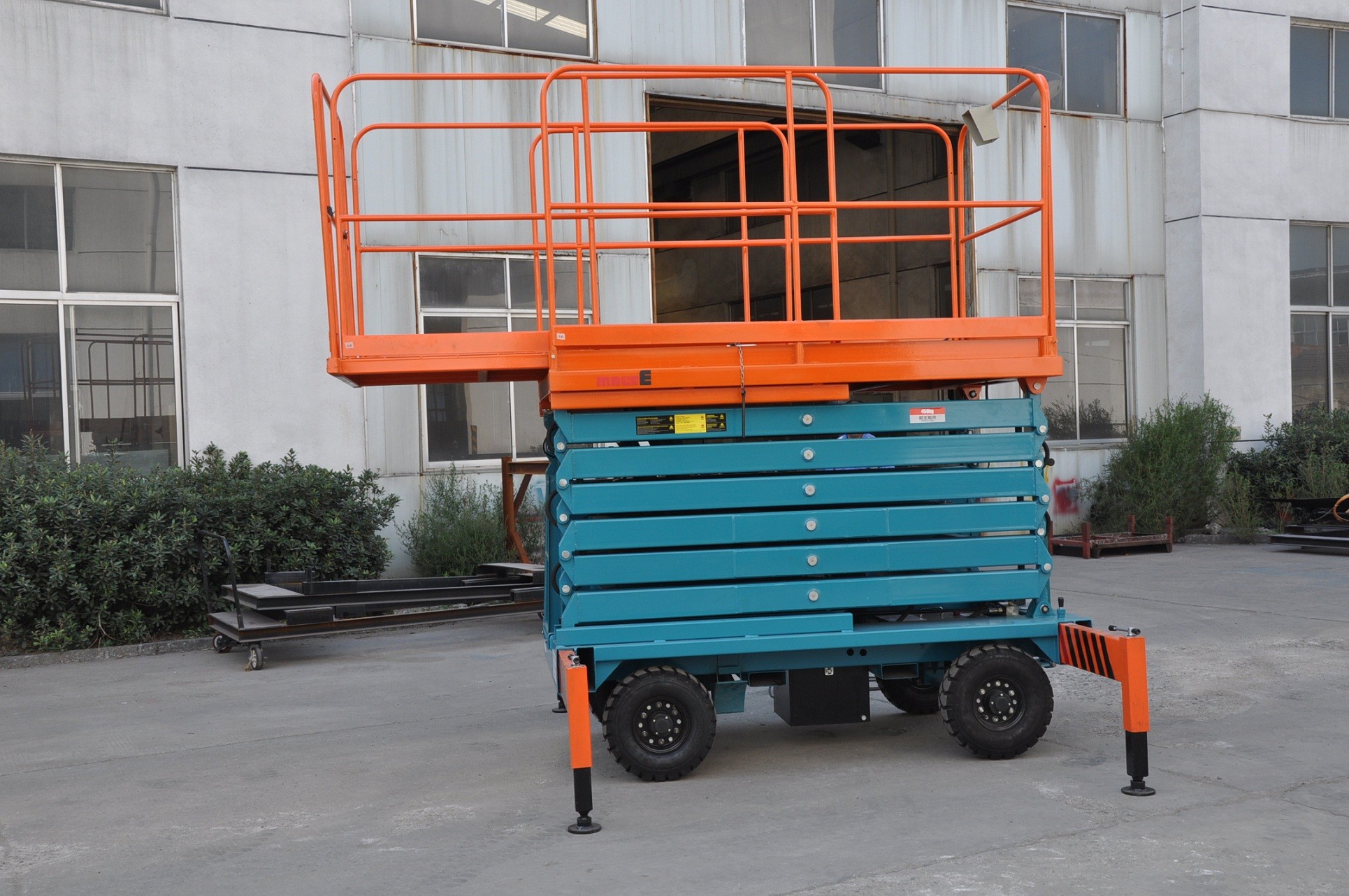

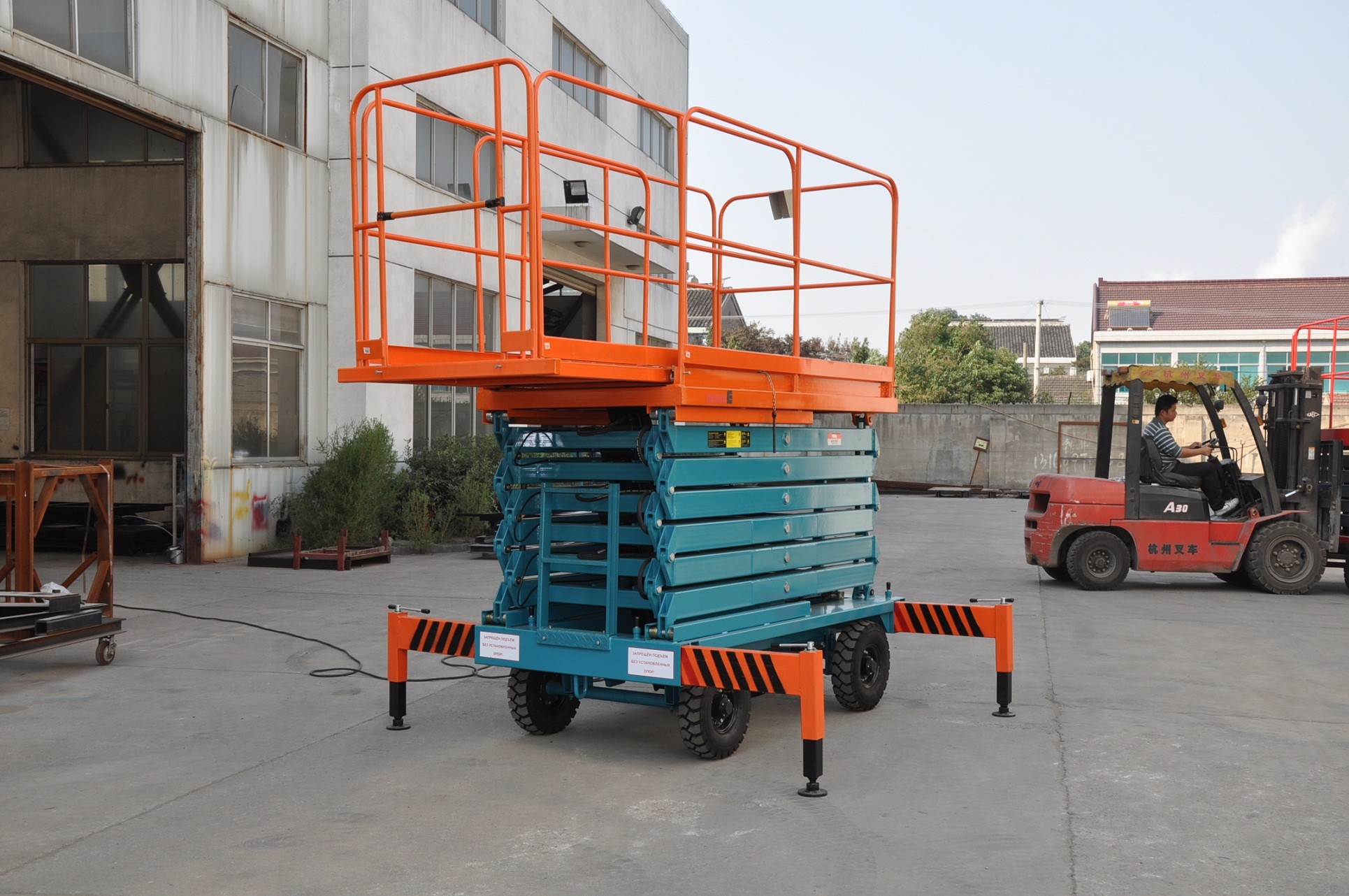

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform





Major Parameters

• Model: SJY0.45-11with Extension
• Loading Capacity 450kg
• Maximum Height 11000mm
• Minimum Height 1850mm
• Platform Size 2100*1150mm
• Lifting Power 2.2kw
• Power Voltage 1phase/220V/50HZ
• Lifting Time 88s
• Cylinder Ф80(3Pcs)
• Gear Pump 6ml/r
• Total Weight 1380kg
• Measurement: 2150*1390*1850mm



Configurations:

• Electric system: Schneider contactor, SANLICO button, CHNT electrical
• Hydraulic System: Hycman brand power pack , sealing
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate
• Tire: Ø500-8 Inflated tires
• High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



Optional Configuration:

• Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
• Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
• Extension Platform
• Rubber Solid Tire
• Flame Proof Control Cabinet



Technical Parameters :



1) Drive – Manual towable type

2) Lifting capacity – 450 kg

3) Platform height max – 10.00m.

4) Lowered Platform height – Less than 2.50m

5) Platform Size – 2100mm x 1150 mm

6) Dimensional tolerance - +/- 5%

7) Platform material – Mild Steel chequered Plate.

8) Toe Boards – minimum 100 mm on 3 sides.

9) Lifting operation - By Hydraulic cylinders operated by AC380V

10) Power Supply Cable Length : 10 Meter with proper arrangement of fixing.

11) Structure : Heavy duty Mild Steel

12) Piston Rod : Hard chrome plated EN-8 material

13) Motor rating of Hydraulic Power pack – Minimum 7.5 HP

14) Railing on platform – Having sufficient strength on 3 sides, 900 mm high

15) Towing hooks provided.

16) Controls – UP/DOWN Push Buttons on platform & chassis

17) Stabilizers - 4 Nos. Mechanical Screw type provided.

18) Ladder - For access to lowered platform provided.

19) Limit Switch should be provided for top Motor shut off.

20) Test Load - 400 kg only since Hydraulic Overload

21) Scissors Members - To be made from fabricated Tube section.

22) Wheels - Solid Rubber bonded type 2 fixed and 2 swivel

23) Safety features:

      a) Safety Valve : Special electrically operated Solenoid safety valve with Catridge check in specially designed manifold block mounted on cylinder to avoid failure in case of hose burst.

      b) Hydraulic Safety : The system should have hydraulic safety relief valve to protect the hydraulic system if pressure exceeds a maximum preset value.

      c) Provision shall be made against free fall protection in case of hose failure / Valve malfunctioning

      d) Limit Switch : A limit switch will be provided for over hoisting so that the table cannot overshoot the specified height.

      e) Over hoisting : In the event of failure/ break of the upper limit switch, due to which the table may not stop at the specified height and may overshoot. A bleeding arrangement shall be provided against this eventuality, so that, at the last point, the fluid bleeds to the oil reservoir through a separate tube provided for the purpose.

      f) Power failure : System should be provided that even if power fails, platform can be lowered with ease.

      g) Locking : The table should have locking/ jacking arrangement at each corner for stability during work.

      h) Locking of Hydraulic scissors from operation while transport mode.

      i) Level indicator (e.g. spirit level) to indicate whether the inclination of the Scissors is within the limits permitted by the manufacturer.



Applications:



1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





Why to choose CHEN LIFT Mobile Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item	Quantity
Fuse	3
"O" Rubber Seals Φ11	3
Wrench	1
Pressure Oiler	1
Cross Screwdriver	1
Straight Screwdrive	1



A: How long is your quality guarantee period?

B: We have one year warranty.
