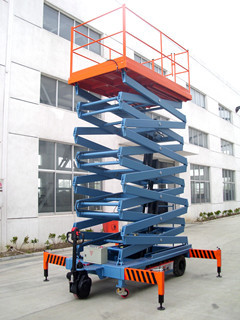

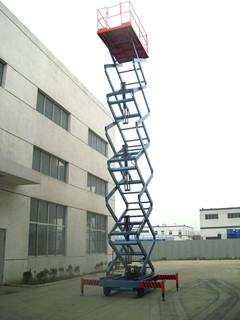

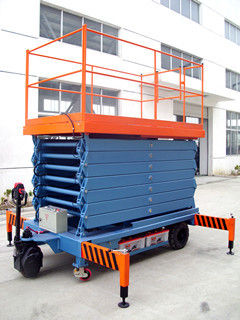

Electrical Hydraulic Mobile Scissor Lift for Work Shop , Theatre , Hospital

Electrical Hydraulic Mobile Scissor Lift for Work Shop , Theatre , Hospital

  • Electrical Hydraulic Mobile Scissor Lift for Work Shop , Theatre , Hospital
  • Electrical Hydraulic Mobile Scissor Lift for Work Shop , Theatre , Hospital
  • Electrical Hydraulic Mobile Scissor Lift for Work Shop , Theatre , Hospital
Electrical Hydraulic Mobile Scissor Lift for Work Shop , Theatre , Hospital
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: SJZ0.5-14
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in Wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: Mobile Scissor Lift Platform Height: 14m
Platform Size: 2.45*1.35m Lifting Power: 3kw*2
Usage: Fixing Ceiling,lights Ect. Lifting Time: 165s
Material: High-duty Scissor Structure Measurement: 2650*1550*2000mm
High Light:

scissor lift mobile

,

mobile aerial work platform



Electrical hydraulic Mobile Scissor Lift for Work Shop , Theatre , Hospital



Description:



 Electrical and hydraulic Scissor working platform provide you incomparable reliability and versatility - enhance efficiency. As the ideal model for flexible operation in crowded space, it is suitable for both flat and rugged ground indoor and outdoor construction, repairing and installation. Electrical and hydraulic Scissor working platform has the features of low noise, higher loading capacity, and larger work platform.
Three-phase current, battery, the internal combustion engine can be chose as a source of power. It is also equipped with hand pressure pump for power failure. It can be a move in a variety of ways, hand push, pull-type, self-styled and vehicle-mounted style.

The series is manually pulled types.The elevating power for platform has 380V/400V/415V/110V/220V and so on, giving customers more choice. It has two kinds of control method at the same time:Manual control,electric control. Moreover,simple set up and 5M to 14M of working height make them the ideal resolution for application requiring close access.
The product are the best choice for customers on a budget.Compact outriggers,handrails and other devices ensure safety during operation.



Quick Detail:



Name Mobile Scissor Lift Brand Name CHEN LIFT
Loading Capacity 500Kg Platform Height 14m
Platform Size 2.45*1.35m Color Red Color or Optional
Lifting Power 3Kw*2 Power Supply AC/DC
Motorized Power 3Kw



Major Parameters

  • Model: SJZ0.5-14
  • Loading Capacity 500kg
  • Maximum Height 14000mm
  • Minimum Height 2000mm
  • Platform Size 2450*1350mm
  • Lifting Power 3kw*2
  • Motorized Power: 3Kw
  • Power Voltage DC24V
  • Lifting Time 165s
  • Cylinder Ф100(3Pcs)
  • Gear Pump 6ml/r
  • Total Weight 2650kg
  • Measurement 2650*1550*2000mm



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack ,NOK sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø500-8 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
  • Battery: (DC12V,150AH)*4 with charger



Optional Configuration:

  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet



Applications:



1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





Why to choose CHEN LIFT Mobile Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
