500kg Vehicle Scissor Lift with Pulling Device , DC24V Industrial Scissor Lift

China CHENLIFT (SUZHOU) MACHINERY CO LTD certification
China CHENLIFT (SUZHOU) MACHINERY CO LTD certification
Marc was pleasantly surpriced about the excellent quality. There has been thought about everything: Engineering picobello, packing (not unimportent) s

—— Koen and Marc Sas

The manuevability of power lift is amazing. We can use it in tight space one day indoors and the next day rull it out on the turf.

—— Jan Aaris

No other AWP at the same price performed as well as it.

—— Koren White

I'm Online Chat Now

500kg Vehicle Scissor Lift with Pulling Device , DC24V Industrial Scissor Lift

500kg Vehicle Scissor Lift with Pulling Device , DC24V Industrial Scissor Lift
500kg Vehicle Scissor Lift with Pulling Device , DC24V Industrial Scissor Lift 500kg Vehicle Scissor Lift with Pulling Device , DC24V Industrial Scissor Lift 500kg Vehicle Scissor Lift with Pulling Device , DC24V Industrial Scissor Lift

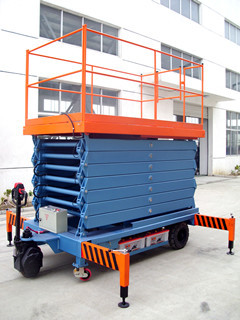

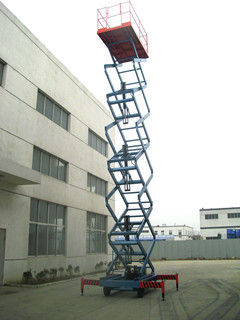

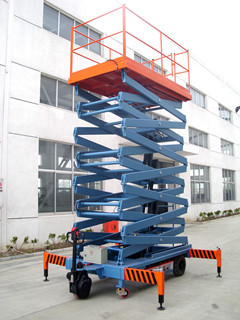

Large Image :  500kg Vehicle Scissor Lift with Pulling Device , DC24V Industrial Scissor Lift

Product Details:

Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: SJZ0.5-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Detailed Product Description
Loading Capacity: 500kg Platform Height: 6m
Platform Size: 1.85*0.9m Minimum Height: 1250mm
Lifting Power: 2.2Kw Motorized Power: 0.75kw
Power Voltage: DC24V Lifting Time: 54s
Weight: 650kg Measurement: 2200*1080*1250mm
High Light:

scissor lift mobile

,

automobile scissor lift



500kg Vehicle Scissor Lift with Pulling Device , DC24V Industrial Scissor Lift





Quick Detail:



Name Mobile Scissor Lift Brand Name CHEN LIFT
Loading Capacity 500Kg Platform Height 6m
Platform Size 1.85*0.9m Color Red Color or Optional
Lifting Power 2.2Kw Power Supply AC/DC
Motorized Power 0.75Kw





Description:



Mobile Scissor lifts with Pulling Device is one of our popular-sale scissor lift. For the safety consideration, if the scissor lift does not close totally, the pulling device can not work.



Main Features:



1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4 The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.





Safety Precaution:



1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform





Major Parameters

  • Model: SJZ0.5-6
  • Loading Capacity 500kg
  • Maximum Height 6000mm
  • Minimum Height 1250mm
  • Platform Size 1850*900mm
  • Lifting Power 2.2kw
  • Motorized Power: 0.75Kw
  • Power Voltage DC24V
  • Lifting Time 54s
  • Cylinder Ф80(2Pcs)
  • Gear Pump 6ml/r
  • Total Weight 650kg
  • Measurement 2200*1080*1250mm



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack ,NOK sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø400-8 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
  • Battery: (DC12V,150AH)*4 with charger



Optional Configuration:

  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet



Applications:



1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





Why to choose Xunte Mobile Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
