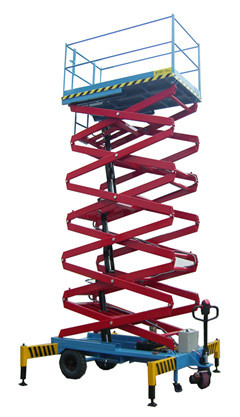

300Kg Loading portable scissor lift , high loading hydraulic elevating platform

300Kg Loading portable scissor lift , high loading hydraulic elevating platform

  • 300Kg Loading portable scissor lift , high loading hydraulic elevating platform
  • 300Kg Loading portable scissor lift , high loading hydraulic elevating platform
  • 300Kg Loading portable scissor lift , high loading hydraulic elevating platform
300Kg Loading portable scissor lift , high loading hydraulic elevating platform
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: SJZ0.3-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: Mobile Scissor Lift Lift Drive / Actuation:: Hydraulic
Lifting Power: 2.2Kw Application: Aerial Installation
Work Platform: Anti Skid Material: High-duty Steel Structure
High Light:

scissor lift mobile

,

mobile aerial work platform



300Kg Loading portable scissor lift , high loading hydraulic elevating platform





Description:



The mobile manual scissors lift platform is a widely used professional equipment for aerial work. The mobile scissor lifting platform use high strength of rectangular tube structure , four-wheel mobile convenience , countertops is wide , high bearing capacity , many people work the same time , make the aerial work safter , more efficient .


Application


It is widely used in aerial work: factory, lobby, airport, square, park, and etc.
The scissor structure with high stability and strength carrying capacity.
It enables high-altitude operations more efficient, safer and protected.
Scissor lifts are versatile special equipment for aerial work. Its scissor mechanical structure makes the lifting platform have higher stability, wide working platform and high carrying capacity, which makes the working range of the aerial work larger and suitable for multiple people to work at the same time. It makes work more efficient and safer.





Quick Detail:



Name Mobile Scissor Lift Brand Name CHEN LIFT
Loading Capacity 300Kg Platform Height 8m
Platform Size 1.8*1.0m Color Red Color or Optional
Lifting Power 2.2Kw Power Supply AC/DC
Motorized Power 0.75Kw









Major Parameters

  • Model: SJZ0.3-8
  • Loading Capacity 300kg
  • Maximum Height 7000mm
  • Minimum Height 2000mm
  • Platform Size 1800*1000mm
  • Lifting Power 2.2kw
  • Motorized Power: 0.75Kw
  • Power Voltage DC24V
  • Lifting Time 72s
  • Cylinder Ф100(2Pcs)
  • Gear Pump 6ml/r
  • Total Weight 1100kg
  • Measurement 2200*1200*1540mm



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack , sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø400-8 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
  • Battery: (DC12V,150AH)*4 with charger



Optional Configuration:

  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet



Applications:



1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





Why to choose CHEN LIFT Mobile Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
