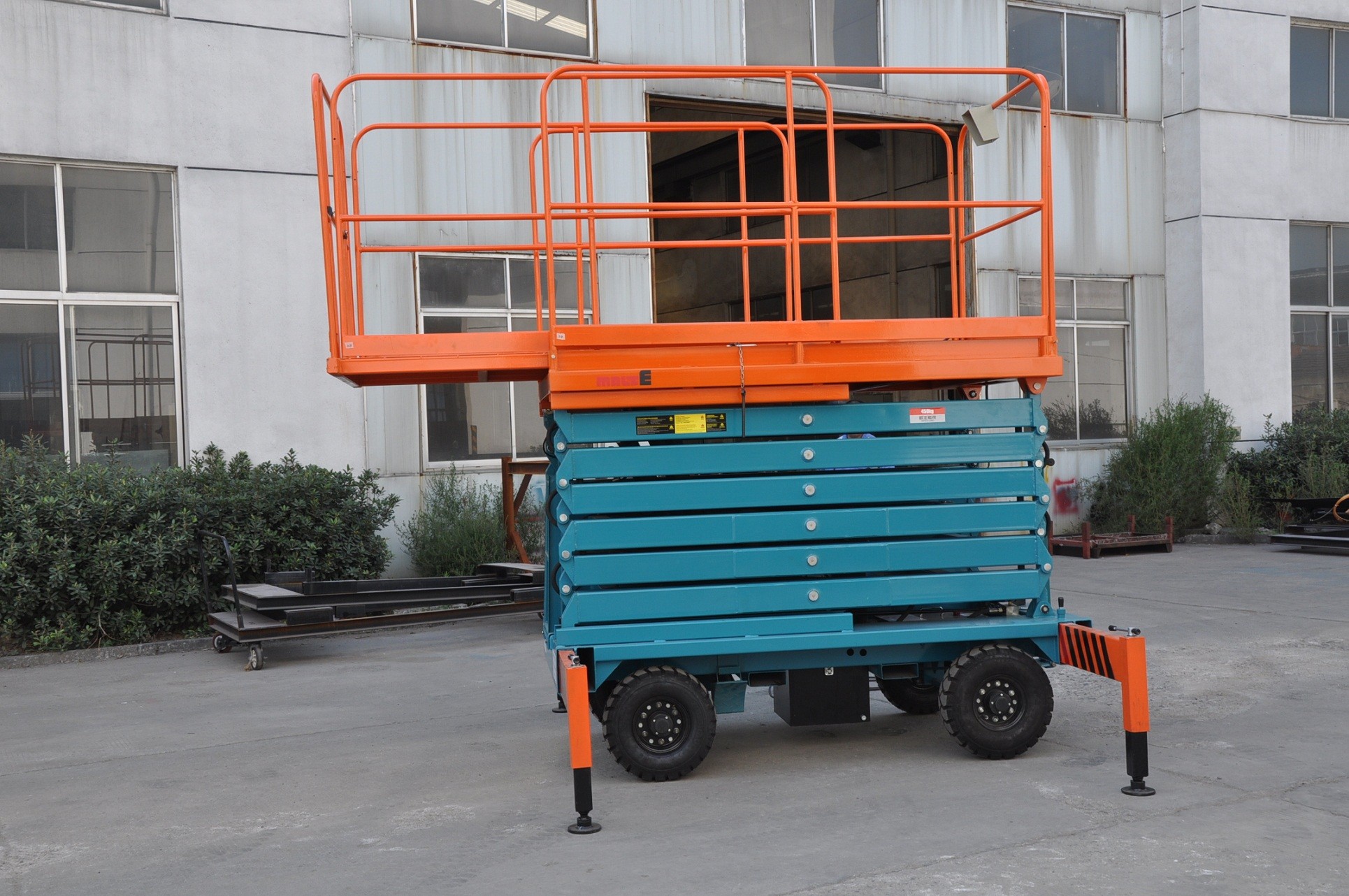

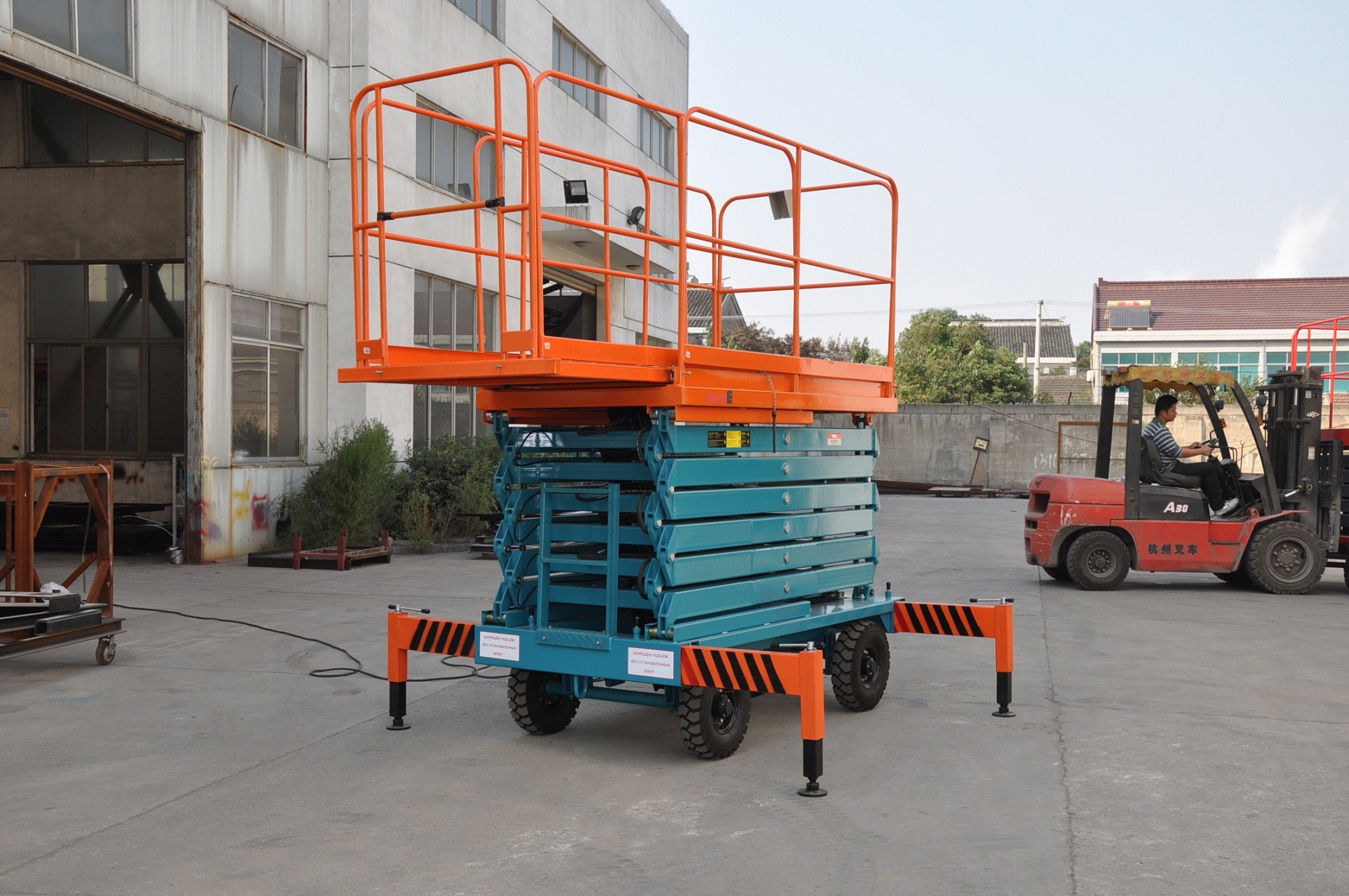

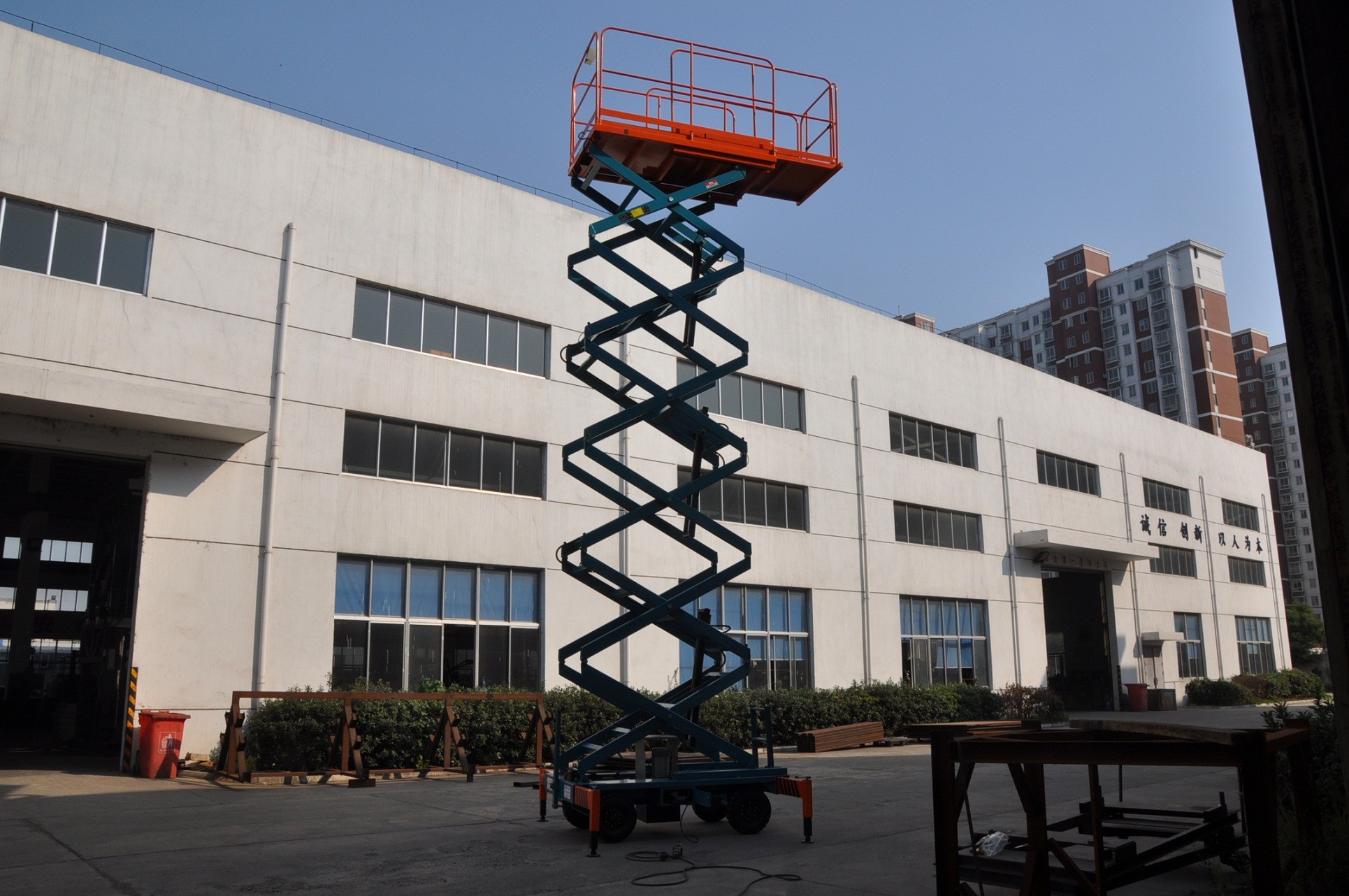

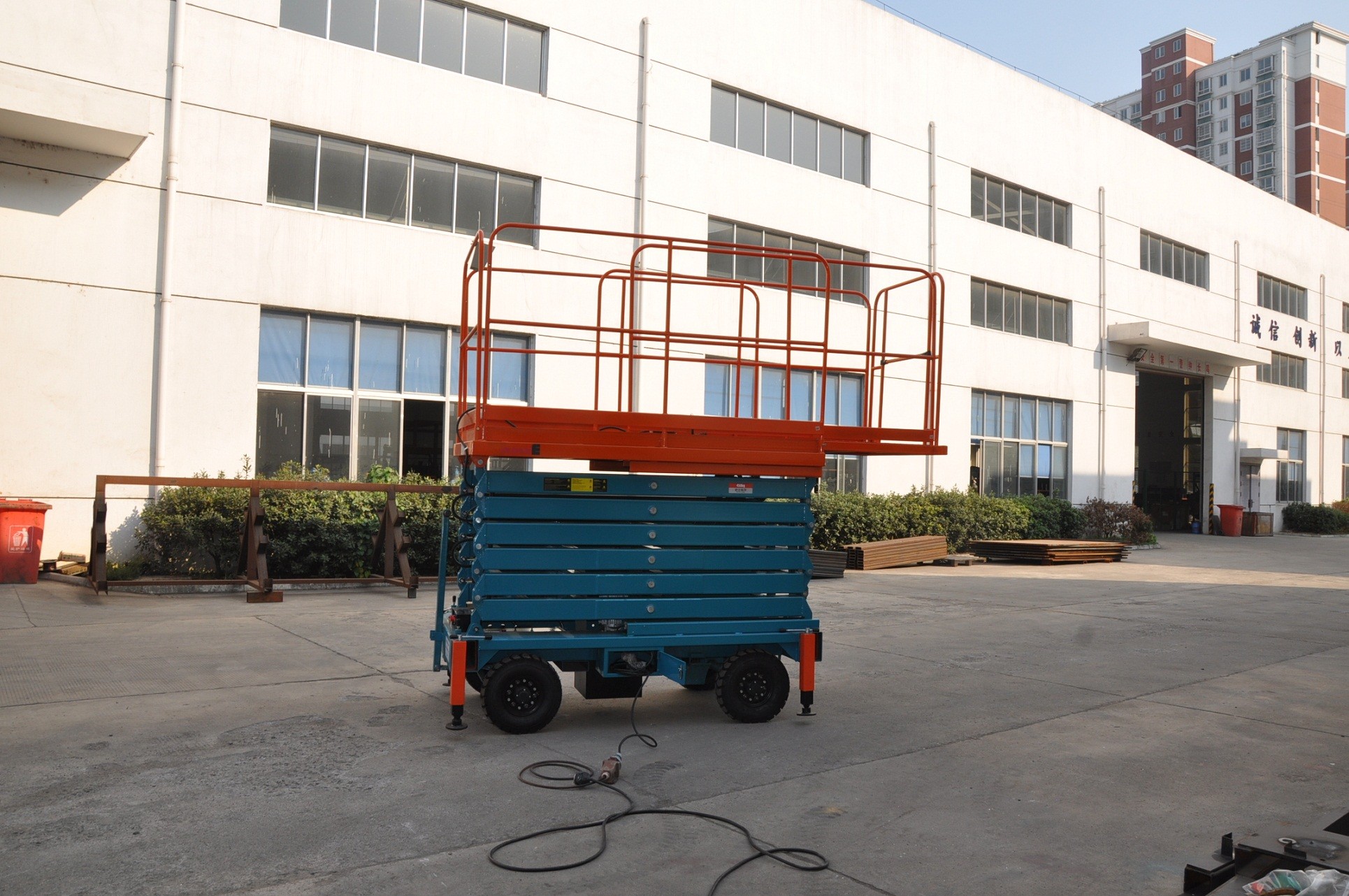

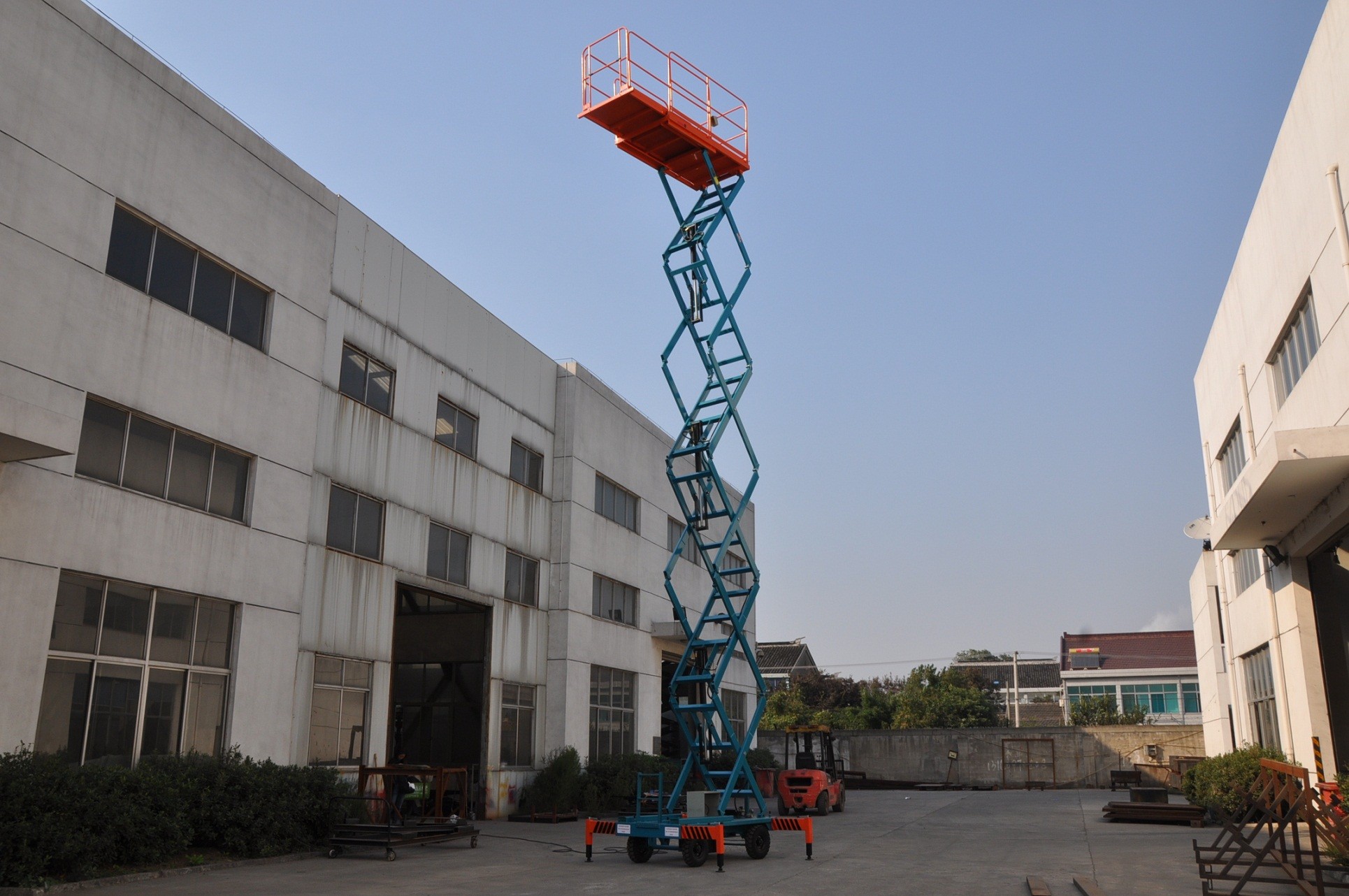

8m Electric Mobile Hydraulic Scissor Lift with Motorized Device , 450Kg Loading

8m Electric Mobile Hydraulic Scissor Lift with Motorized Device , 450Kg Loading

Quick Detail:

Description:

The major difference between mobile scissor lift with motorized wheel and standard scissor lift not of the handler is driven by electricity, but also the tyre. The mobile scissor lift with pulling device we manufacture has almost all the features the self-propelled one has except it needs to be moved by human not driven by the electricity totally.

Main Features:

1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4 The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.

Safety Precaution:

1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform

Major Parameters

• Model: SJZ0.45-8
• Loading Capacity 450kg
• Maximum Height 8000mm
• Minimum Height 1540mm
• Platform Size 1800*1000mm
• Lifting Power 2.2kw
• Motorized Power: 0.75Kw
• Power Voltage DC24V
• Lifting Time 72s
• Cylinder Ф100(2Pcs)
• Gear Pump 6ml/r
• Total Weight 1100kg
• Measurement 2200*1200*1540mm

Configurations:

• Electric system: Schneider contactor, SANLICO button, CHNT electrical
• Hydraulic System: Hycman brand power pack , sealing
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate
• Tire: Ø400-8 Inflated tires
• High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
• Battery: (DC12V,150AH)*4 with charger

Optional Configuration:

• Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
• Extension Platform
• Rubber Solid Tire
• Flame Proof Control Cabinet

Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.

Why to choose CHEN LIFT Mobile Scissor Lift?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience

Communication with Customers

A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material

A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?

B: it is 30days after order confirmation

A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

A: How long is your quality guarantee period?

B: We have one year warranty.
