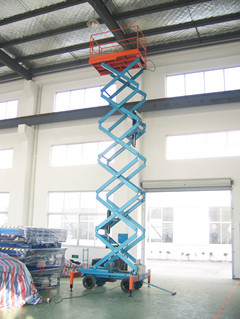

8m height small scissor lift platform , 500Kg Mobile Scissor Lift
Description:
Mobile Scissor lift is mainly used for lifting cargos and delivering goods,high-altitude operations. Mainly used to installing, repairing and cleaning high aerial equipment,power equipment, overhead pipeline and so on.It is widely used to workshop building site, hotel, airport, station.
Scissor lift platform is a scissor structure man lift for aerial work which can be towed by man power. The mechanical structure make the platform stability, wide operating and high loading capacity. Normal scissor lift lifting power is AC power, DC and Diesel power are also available for option.
The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.
Main Features:
1. Pointing control of lifting up and down.
2. Manganese steel lifting arm in high strength with rectangle shape
3. Anti-skid floor in platform
4 The control panels are available on the platforms and ground.
5. Fine grinding cylinder in good sealing performance
6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.
Quick Detail:
| Name |
Mobile Scissor Lift |
Brand Name |
CHEN LIFT |
| Loading Capacity |
500Kg |
Platform Height |
8m |
| Platform Size |
1800mm*1000mm |
Color |
Red Color or Optional |
| Lifting Power |
1.5Kw |
Power Supply |
AC/DC
|
Major Parameters
- Model: SJY0.5-8
- Loading Capacity 500kg
- Maximum Height 8000mm
- Minimum Height 1100mm
- Platform Size 1850*1500mm
- Lifting Power 1.5kw
- Power Voltage 1phase/220V/50HZ
- Lifting Time 60s
- Cylinder Ф100(2Pcs)
- Gear Pump 6ml/r
- Total Weight 1260kg
- Measurement 1950*1200*1500mm
Configurations:
- Electric system: Schneider contactor, SANLICO button, CHNT electrical
- Hydraulic System: Hycman brand power pack , sealing
- Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
- Platform Surface : Antiskid checkered plate
- Tire: Ø400-8 Inflated tires
- High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose
Optional Configuration:
- Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
- Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
- Extension Platform
- Rubber Solid Tire
- Flame Proof Control Cabinet
Applications:
1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.
Why to choose CHEN LIFT Mobile Scissor Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 10 Years Experience
