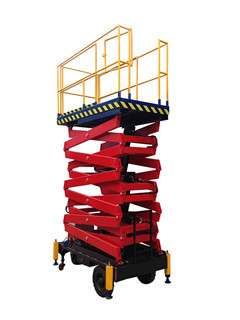

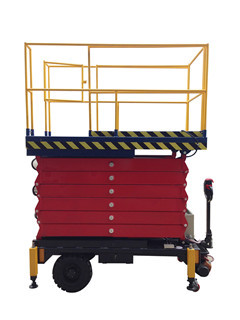

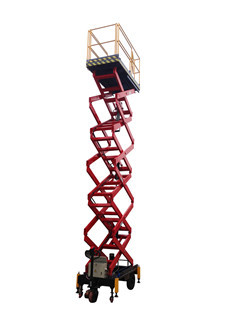

16 Meters Scissor Structure AC DC Power Supply Mobile Manlift for Painting, Cleaning

16 Meters Scissor Structure AC DC Power Supply Mobile Manlift for Painting, Cleaning

  • 16 Meters Scissor Structure AC DC Power Supply Mobile Manlift for Painting, Cleaning
  • 16 Meters Scissor Structure AC DC Power Supply Mobile Manlift for Painting, Cleaning
  • 16 Meters Scissor Structure AC DC Power Supply Mobile Manlift for Painting, Cleaning
16 Meters Scissor Structure AC DC Power Supply Mobile Manlift for Painting, Cleaning
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: SJZ0.3-16
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Packed with Pallet, Wrapped with Film
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 300kg Platform Height: 16m
Platform Size: 2750mm*1500mm Minimum Height: 2000mm
Lifting Power: 2.2kw*2 Lifting Time: 130s
Weight: 2900kg Measurement: 3150*1740*2000MM
High Light:

scissor lift mobile

,

mobile aerial work platform



16 Meters Scissor Structure AC DC Power Supply Mobile Manlift for Painting, Cleaning



Main Features:



l Quiet and convenient operation
l Environmental-friendly and energy saving
l Compact structure, capable of going through tight, congested spaces
l Back-wheel drive and zero inside turning radius
l Swing-out tray: easy for maintenance, inspection and replacement
l Joystick control on platform in lifting status
l Extendable platform
l 24 V DC power source with long work cycles
l Derivable at full height
l Pothole protection system



Quick Detail:



Name Mobile Scissor Lift Brand Name CHEN LIFT
Loading Capacity 300Kg Platform Height 16m
Platform Size 2750mm*1500mm Color Blue Color or Optional
Lifting Power 2.2Kw*2 Power Supply AC&DC / DC
Motorized Power 1.2Kw







Major Parameters

  • Model:                          SJZ0.3-16
  • Loading Capacity         300kg
  • Maximum Height         16000mm
  • Minimum Height           2000mm
  • Platform Size               2750*1500mm
  • Lifting Power                2.2kw*2
  • Motorized Power          1.2Kw
  • Power Voltage              DC24V
  • Lifting Time                  130s
  • Cylinder                       Ф100(1Pcs) Ф80 (4PCS)
  • Gear Pump                  6ml/r
  • Total Weight                2900kg
  • Measurement              3150*1740*2000MM



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack , sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø600-9 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
  • Battery: (DC12V,150AH)*4 with charger



Optional Configuration:

  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet





Why to choose CHEN LIFT Mobile Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
