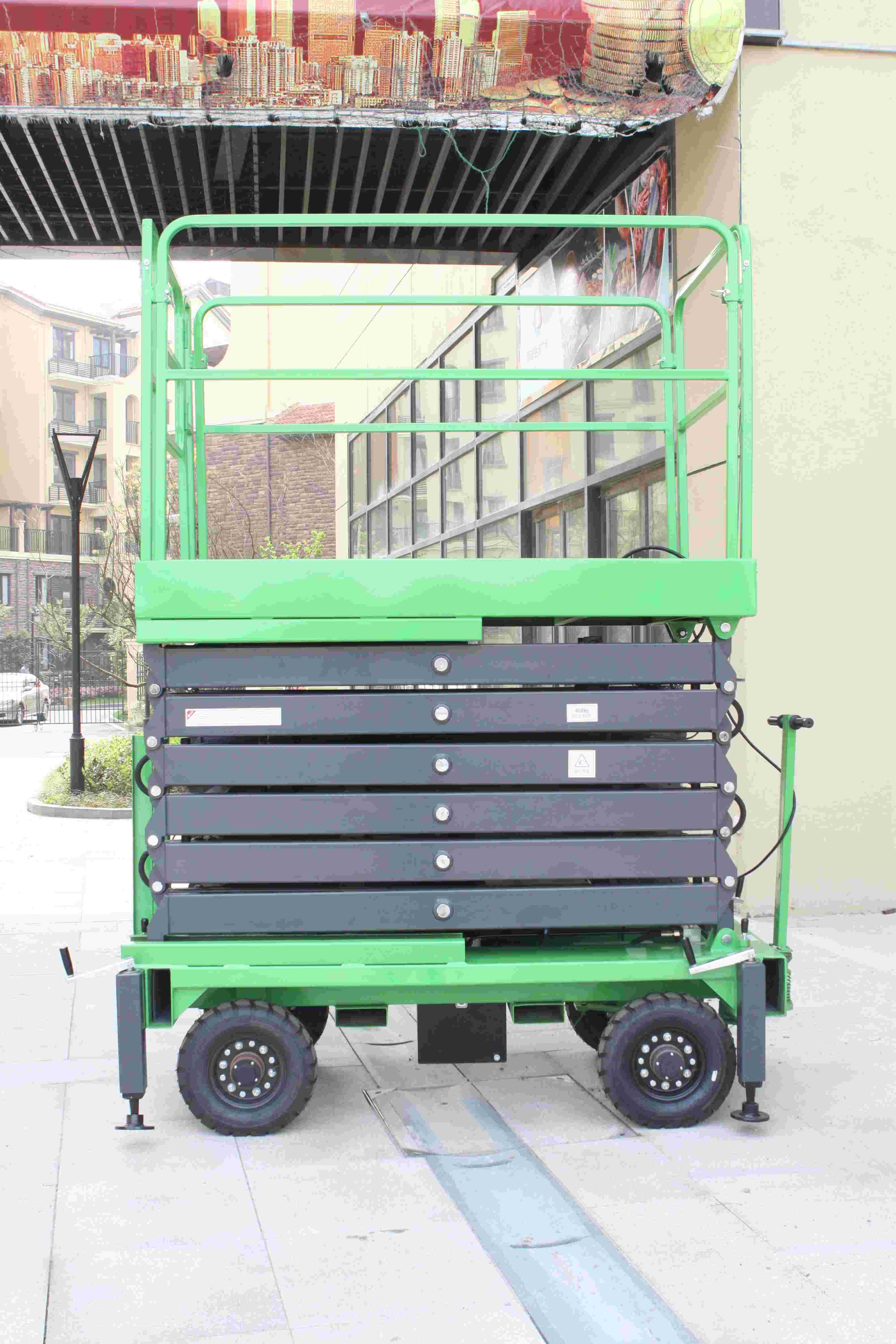

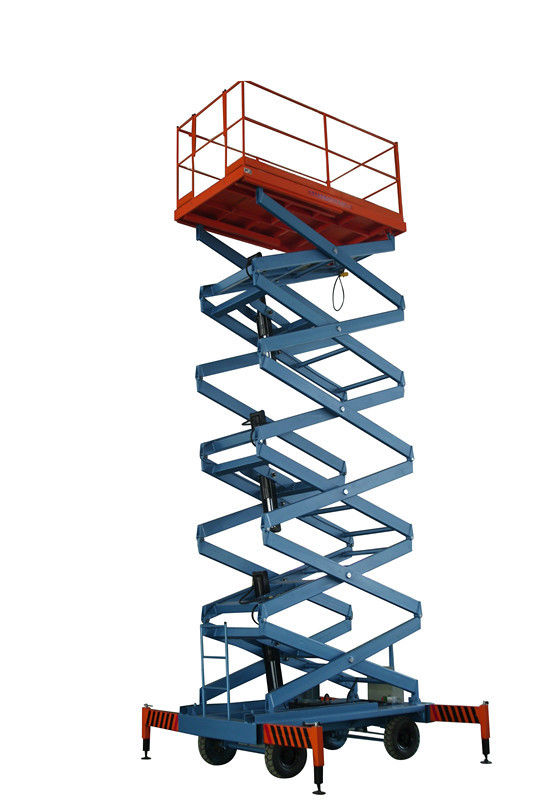

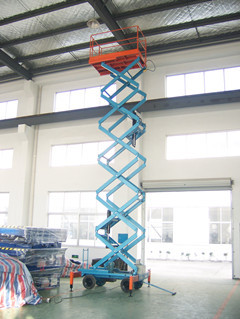

Lifting Height 16m Hydraulic Mobile Scissor Lift with 300Kg Loading Weight

16 Meters Hydraulic Mobile Scissor Lift with 300Kg Loading Capacity

Description:

This series mobile Scissor lift table use for plant,site,hotels,airports,stations,terminals ,sports areas, such as tall buildings
of the high-altitude equipment installation,maintain and cleaning Health,the field of power facilities,over head pipes,
and other lifting efficiency ideal equipment, Order-at-height safety,convenient and fast.

Advantages:

1) Four wheels movable,

2) This series lift platforms can be moved in many different workplaces, they don't need external power supply.

3) They are easy to move and to operate. can be move while extended and controlled from platform by the one
person.
4) Spacious working platforms, high working efficiency.

Quick Detail:

Major Parameters

• Model: SJY0.3-16
• Loading Capacity 300kg
• Maximum Height 16000mm
• Minimum Height 2100mm
• Platform Size 2750*1500mm
• Lifting Power 3kw
• Power Voltage 1phase/220V/50HZ or 3phases/380V/50HZ
• Lifting Time 173s
• Cylinder Ф100mm (1Pc) Ф80(4Pcs)
• Gear Pump 6ml/r
• Total Weight 2680kg
• Measurement 2850*1750*2100mm

Configurations:

• Electric system: Schneider contactor, SANLICO button, CHNT electrical
• Hydraulic System: Hycman brand power pack , sealing
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate
• Tire: Ø600-9 Inflated tires
• High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Optional Configuration:

• Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
• Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
• Extension Platform
• Rubber Solid Tire
• Flame Proof Control Cabinet

Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.

Why to choose our Mobile Scissor Lift?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience

Communication with Customers

A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material

A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?

B: it is 30days after order confirmation

A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

A: How long is your quality guarantee period?

B: We have one year warranty.
