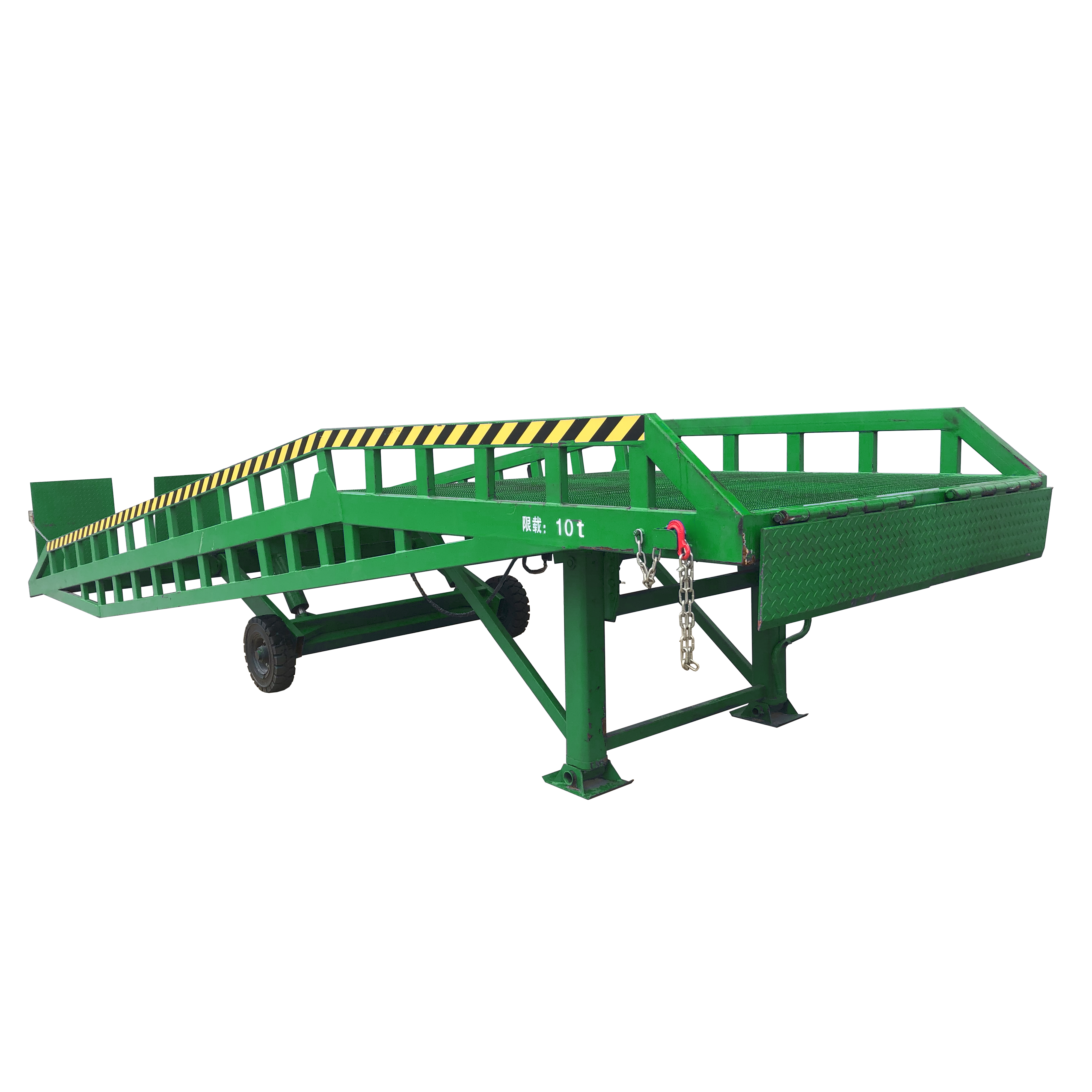

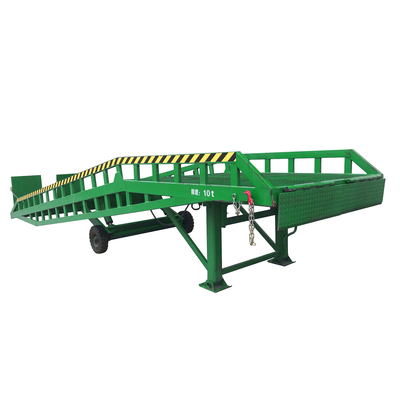

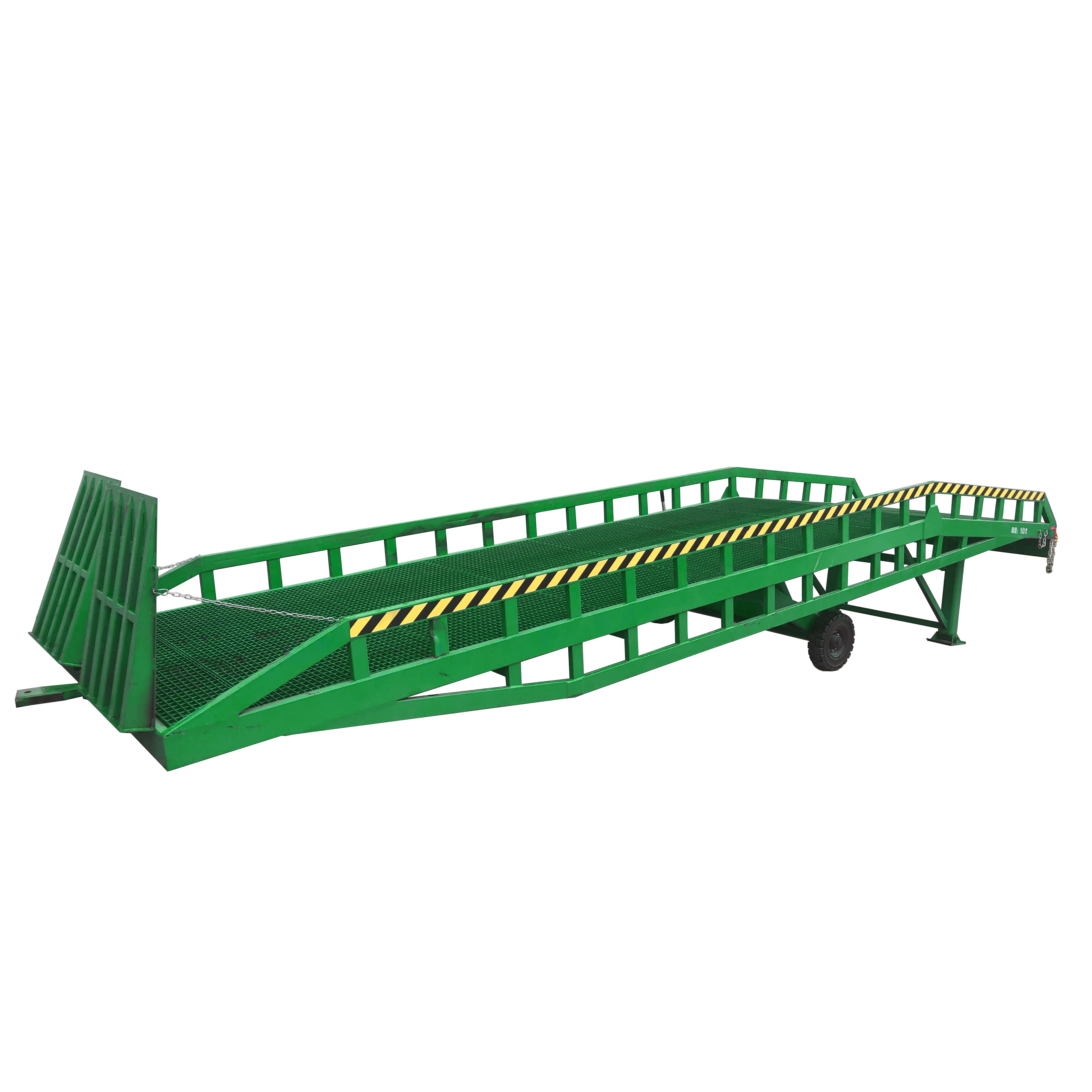

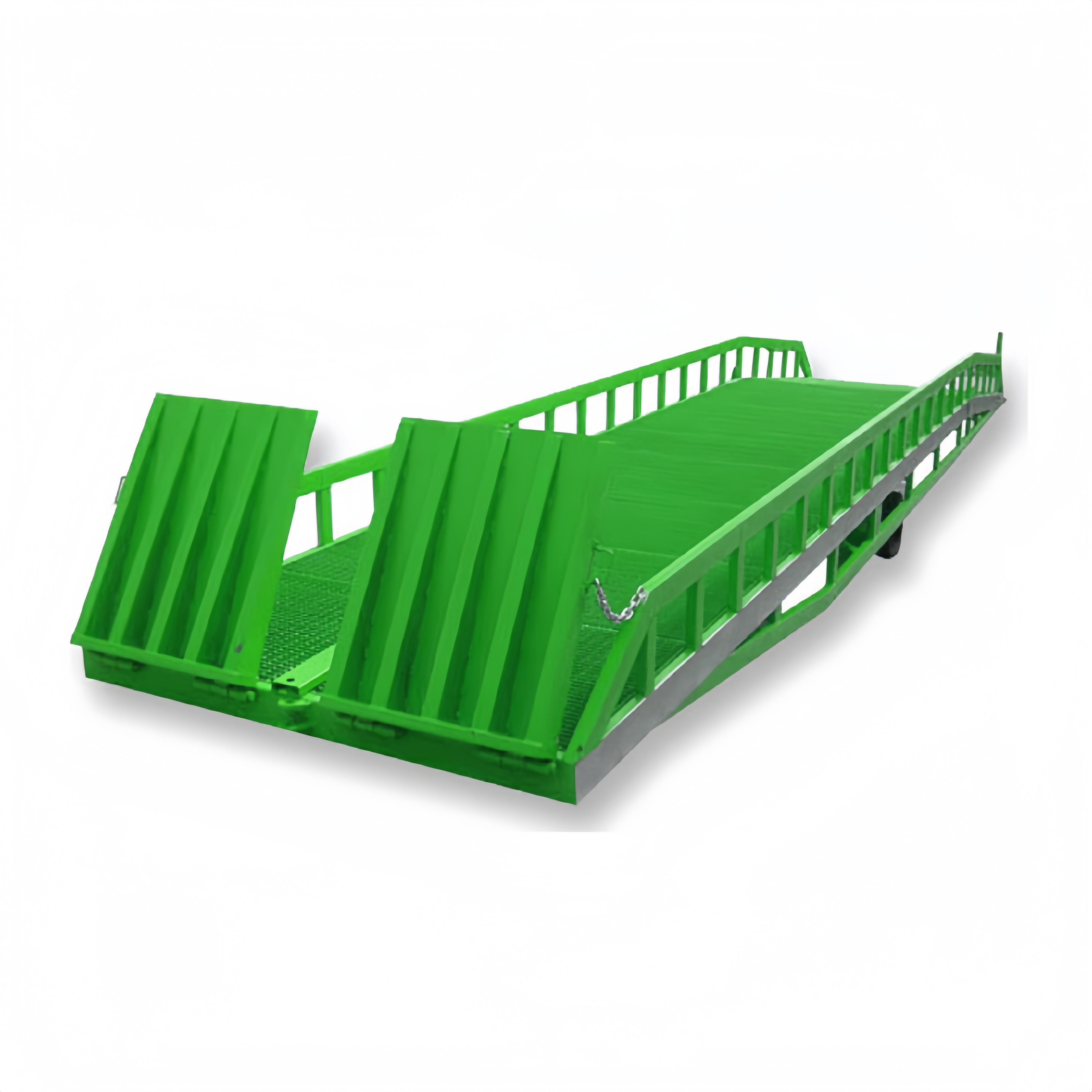

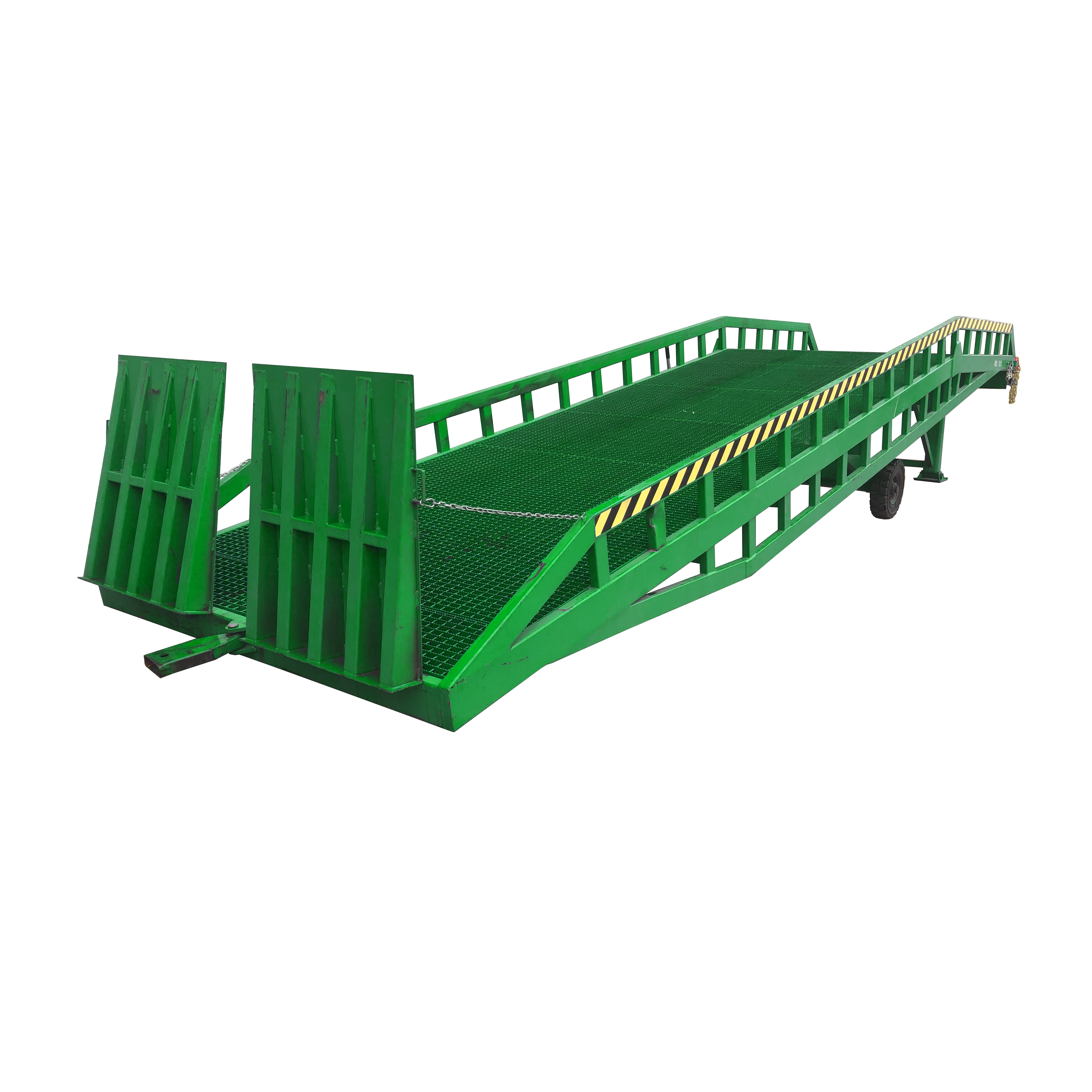

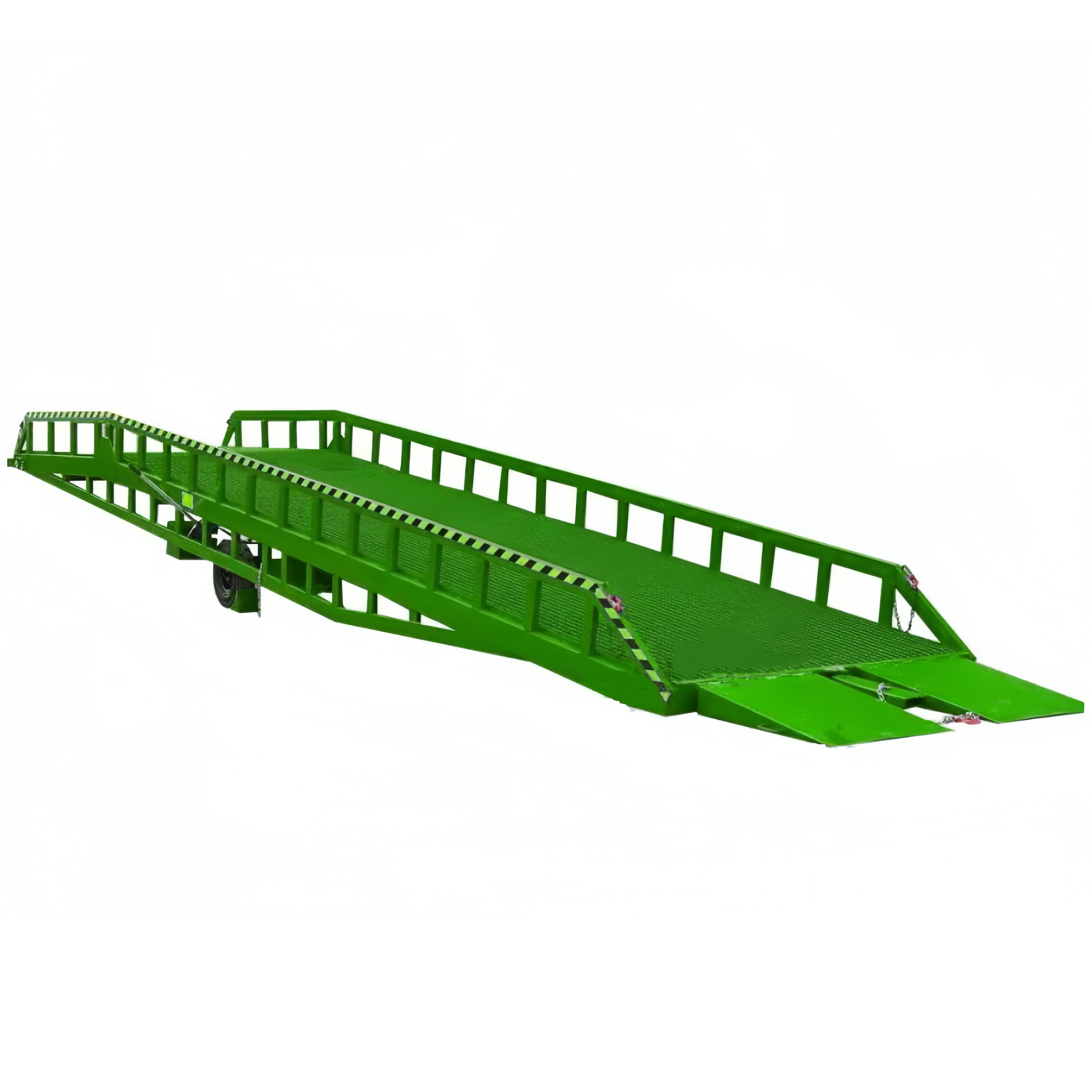

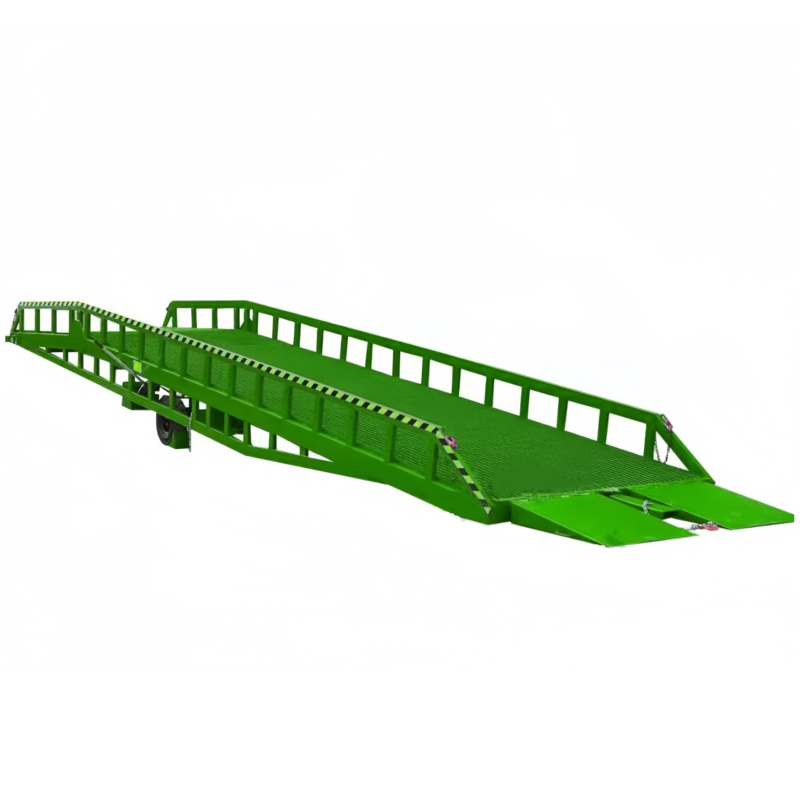

10t Mobile Dock Ramp Manual Lift

10t Mobile Dock Ramp Manual Lift
10t Mobile Dock Ramp Manual Lift 10t Mobile Dock Ramp Manual Lift

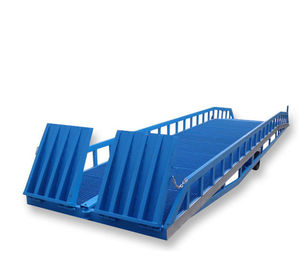

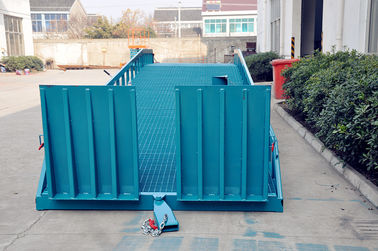

Large Image :  10t Mobile Dock Ramp Manual Lift

Product Details:

Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: DCQY10-0.8

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Naked
Delivery Time: 30Days
Payment Terms: T/T, L/C
Supply Ability: 100 sets/month
Detailed Product Description
Model: Mobile Dock Ramp Load Capacity: 10T
Color: Any Color Can Be Customized
High Light:

movable dock ramp


mobile yard ramp

10t Mobile Dock Ramp Manual Lift



Quick Detail:


Name Mobile Dock Ramp Brand Name CHEN LIFT
Loading Capacity 10000Kg Color Blue or optional
Adjustable Working Height 1000mm-1800mm Pump Manual/Electrical/Both
Platform Length 4000mm Power Supply Manual/AC
Bridge Width 2500mm





Mobile Dock Ramp is an auxiliary machine for loading and unloading cargos with forklift coordination use. The forklift can drive from the ground to the truck compartment to work directly through the Mobile Dock Ramp. There is no need to connect to power supply, for it uses manual hydraulic power. Only one man needed to manipulate the machine to load and unload goods safely and fast. With it, you can save abundant labor-using, increase the efficiency of loading and unloading, and speed up the flow of goods, then get more economic benefits.



Main Features:


1.Reinforced gusseted lip

2.Heavy duty (6-8 box beams) deck construction

3.Non skid tread plate deck and lip

4.Full width one-piece lip hinges pin and tube

5.Heavy duty high pressure cylinders

6.First class hydraulic power unit, good seal capability and long life

7.Power is available in 1ph. 115/220/230V 3ph. 208/230/380/46V 50/60HZ

8. Forklift pick-up slot

9.The safety locking chains to attach yard ramp to the rear of vehicles

10. Brake pads to prevent yard ramp from moving when load or unload goods.



Safety Precaution:

  • Have two hooks which can tighten the machine with vehicle during loading and unloading.
  • Have two brake pads


Specifications/ Major Parameters:


Model: DCQY10-0.8

  • Loading Capacity    10000Kg

  • Overall Length         13800mm

  • Overall Width           2500mm

  • Clear Width              2400mm

  • Labial Plate Width    2000mm

  • Labial Plate Length   300mm

  • Flap Length                 1000mm

  • Adjustable Working Height  1000-1800mm

  • Platform Length                    4000mm

  • Slope Length                        8500mm

Without Outriggers




  • Hydraulic System: CHEN LIFT brand Hydraulic Cylinder Φ80*2, Trellebogr sealing
  • Platform Surface : WB325/1 steel grating
  • Main Body Profile: 160*60* rectangular tube
  • Fence: 100*40*4mm rectangular tube and 80*40*4mm rectangular tube
  • Connecting Board: 16mm plate and 3mm checkered plate
  • Tire: Φ500-8 solid tire


Optional Configuration:

  • Screw-type Outrigger for container truck
  • Hydraulic Power Pack Italy brand: Hydrapp/ Swiss brand: Bucher
  • Pump: Italian Manual Pump, Electrical Pump


Competitive Advantage:/ Why to choose CHEN LIFT Mobile Dock Ramp?


· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





1. Site: Work Shop, Dock, Logistic Park etc.

2. Dock Ramp Working Purpose: Loading Cargos etc.
