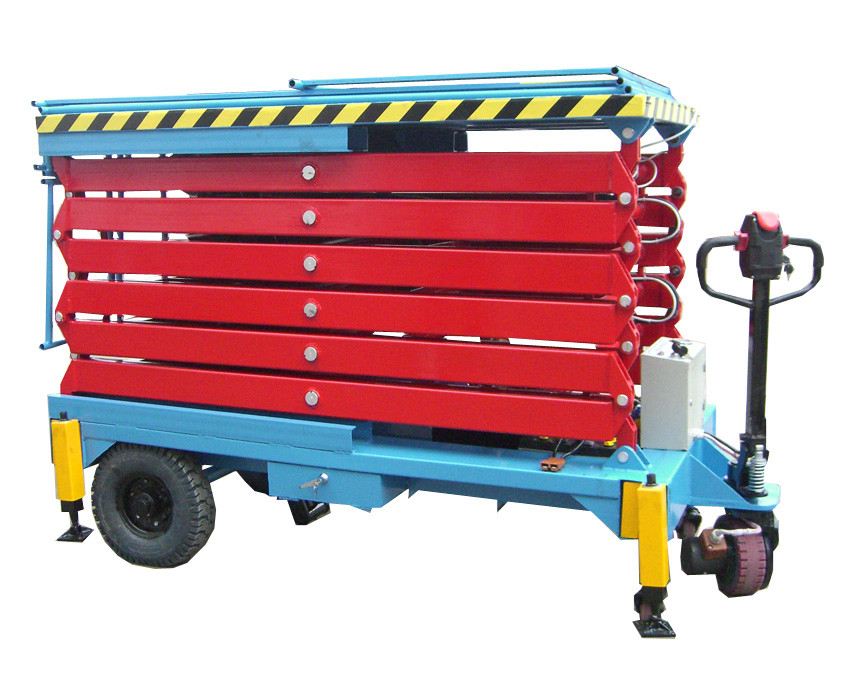

14M Mobile Hydraulic Scissor Lift with Motorized Device Loading Capacity at 450Kg

14M Mobile Hydraulic Scissor Lift with Motorized Device Loading Capacity at 450Kg

  • 14M Mobile Hydraulic Scissor Lift with Motorized Device Loading Capacity at 450Kg
14M Mobile Hydraulic Scissor Lift with Motorized Device Loading Capacity at 450Kg
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: SJZ0.45-14
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 450kg Platform Height: 14m
Platform Size: 2.45*1.35m Lifting Power: 2.2Kw*2
Motorized Power: 1.2Kw Measurement: 2650*1550*2000mm
Lifting Time: 165s Weight: 2650kg
High Light:

scissor lift mobile

,

automobile scissor lift



14M Mobile Hydraulic Scissor Lift with Motorized Device Loading Capacity at 450Kg



Description:



Mobile scissor aerial work platform is an equipment used widely in aerial work. Widely used in construction sites workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline for the equipments installations and maintenance.

The Electric Scissor Lift is widely used for aerial work, decoration, street lamp maintenance and building cleaning etc. medicine bottle, jar etc.Electric Scissor Lift for sale is the movable type with the labor. The rectangular manganese steel pipe produced in Baoshan Iron and Steel Company in Shanghai is used by the scissor main structure. The lifting power of the hydraulic lifting platform is the manual operation or the power operation. Mobile hydraulic scissor lift platform for sale has the advantages of being flexible in movement, steady in lifting, convenient to operate, large in carrying capacity and the like. which can be mainly used in various kinds of the high altitude working places of the industrial workshops, the companies, the stations, the docks, the edifices, the exhibition halls and the like.
Our company is professional in making Trailing scissor lift elevator,including mobile and stationary type.



Quick Detail:



Name Mobile Scissor Lift Brand Name CHEN LIFT
Loading Capacity 450Kg Platform Height 14m
Platform Size 2.45*1.35m Color Red Color or Optional
Lifting Power 2.2Kw*2 Power Supply AC/DC
Motorized Power 1.2Kw









Major Parameters

  • Model: SJZ0.45-14
  • Loading Capacity 450kg
  • Maximum Height 14000mm
  • Minimum Height 2000mm
  • Platform Size 2450*1350mm
  • Lifting Power 2.2kw*2
  • Motorized Power: 1.2Kw
  • Power Voltage DC24V
  • Lifting Time 118s
  • Cylinder Ф100(3Pcs)
  • Gear Pump 6ml/r
  • Total Weight 2650kg
  • Measurement 2650*1550*2000mm



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack , sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø500-8 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
  • Battery: (DC12V,150AH)*4 with charger



Optional Configuration:

  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet



Applications:



1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





Why to choose CHEN LIFT Mobile Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
