1.3KW Self Propelled Vertical Boom Loading Capacity 340kg With Extension Platform

1.3KW Self Propelled Vertical Boom Loading Capacity 340kg With Extension Platform

  • 1.3KW Self Propelled Vertical Boom Loading Capacity 340kg With Extension Platform
1.3KW Self Propelled Vertical Boom Loading Capacity 340kg With Extension Platform
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: MH360
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets/ wooden case
Delivery Time: 30 days after receipt of deposit
Supply Ability: 100 set/ month
Contact Now
Detailed Product Description
Model: MH360 Loading Capacity: 227kg
Platform Height Max: 3.6m Working Height Max: 5.6m
Platform Size: 1.8*0.7m Power Source: 2*12V/ 100Ah
Weight: 810kg Color: Customized
Gradeability: 25%
High Light:

340kg Vertical Mast Boom

,

Self Propelled Vertical Mast Boom Lift

,

1.3KW Extension Aerial Work Platform



Low Noise Self Propelled Lift Platform Elevated Lift Platform Height 3.6m



Description:



In any status whether lifted or stowed, it can be drived. with extensible platform, working light, airway tube, AC wiring to make it more competent to help finish various aerial work tasks in different situations. Its classic traditional design is popular with users.



Machine Features:


1. Battery Operated with Hydraulic Drive Motor
2. Extension Platform to reach the site quickly
3. Fork Lift Slots for easy transportation
4. Automatic display of fault code for easy maintenance
5. Low Noise, Non-Pollution and Strong Adapability for various using sites



Specification:



套筒桅柱式平台/SELF-PROPELLED VERTICAL BOOM
型号/Model MH360 MH480
最大工作高度MAX. WORKING HEIGHT 5.6M 6.8M
最大平台高度MAX.PLATFORM HEIGHT 3.6M 4.8M
平台载重LOADING CAPACITY 227KG 227KG
延伸平台载重EXT. PLATFORM CAPACITY 114KG 114KG
整车长度OVERALL LENGTH 1.36M 1.36M
整车宽度OVERALL WIDTH 0.76M 0.76M
整车高度OVERALL HEIGHT 1.7M 1.98M
平台尺寸PLATFORM DIMESION 1.8M*0.7M 1.8M*0.7M
延伸平台长度EXT. PLATFORM LENGTH 0.51M 0.51M
轴距WHEEL BASE 1.04M 1.04M
最小内转弯半径INNER TURNING RADIUS 0M 0M
最小外转弯半径OUTER TURNING RADIUS 1.4M 1.4M
行驶速度(收拢状态)TRAVEL SPEED(STOWED) 4KM/H 4KM/H
行驶速度(起升状态)TRAVEL SPEED(RAISED) 1.1KM/H 1.1KM/H
上升/下降速度UP/DOWN SPEED 31/32 SEC 41.5/42 SEC
最大爬坡能力GRADEABILTY 25% 25%
轮胎(驱动轮)DRIVE TYPES Ф305*100MM Ф305*100MM
驱动电机DRIVE MOTORS 2*24VDC/0.5KW 2*24VDC/0.5KW
起升电机LIFTING MOTOR 24VDC/1.3KW 24VDC/1.3KW
蓄电池BATTERY 2*12V/100AH 2*12V/100AH
充电器CHARGER 24V/15A 24V/15A
整机重量WEIGHT 810KG 980KG

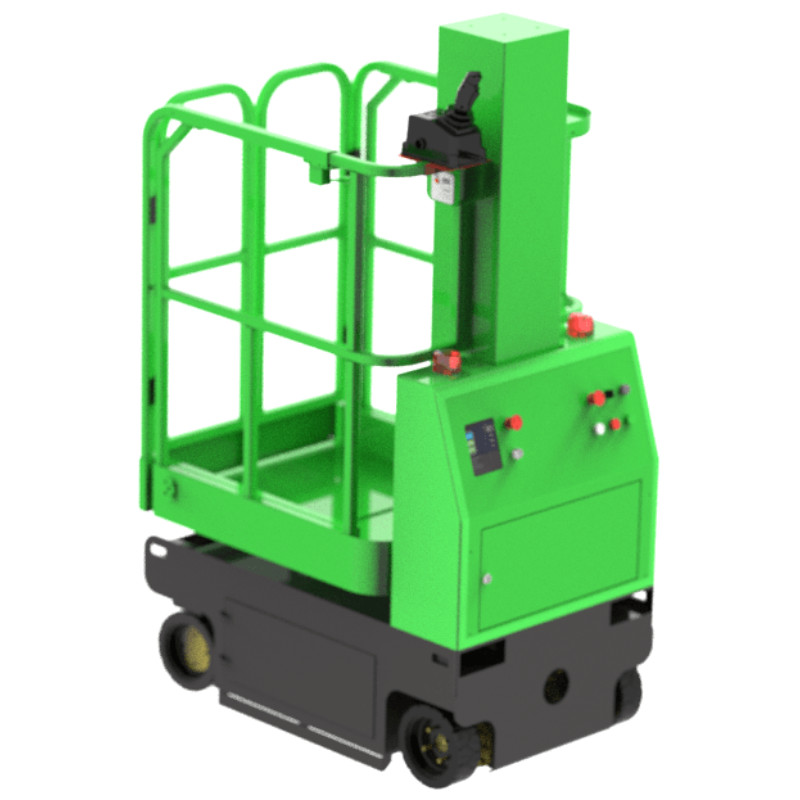

1.3KW Self Propelled Vertical Boom Loading Capacity 340kg With Extension Platform 0

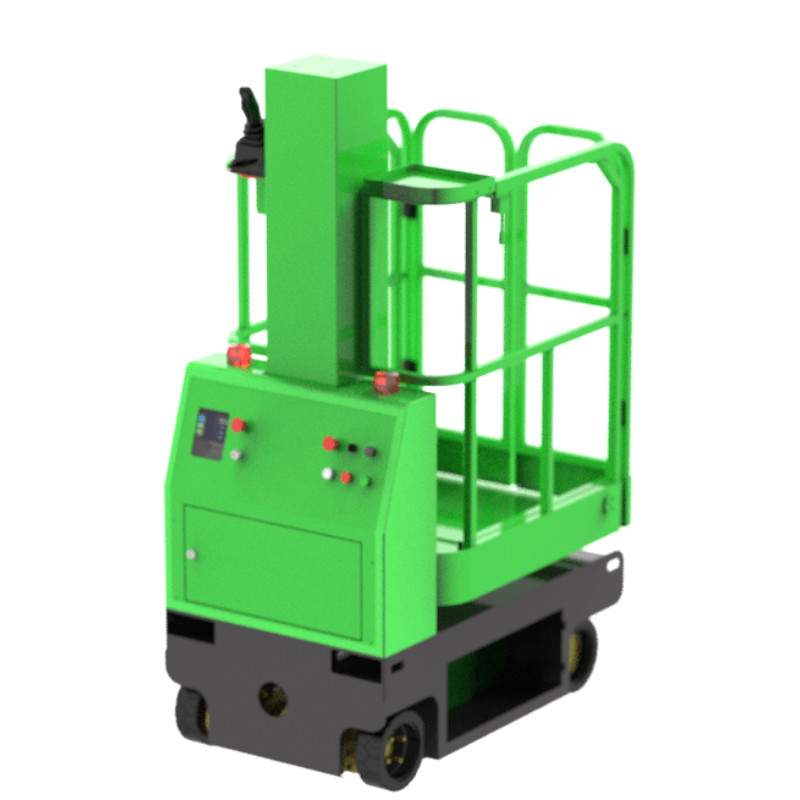

1.3KW Self Propelled Vertical Boom Loading Capacity 340kg With Extension Platform 1

Why choose CHEN LIFT Self-propelled Vertical Lift?



· More quieter

All MH-series adopt high-performance battery power, pollution-free and no emissions, low noise electric pump, can also be used even in the area of high environmental requirements, such as office buildings, hotel, hospital, school and so on.



· Flexible Operation

Fully proportional joystick control, either lifting or moving, all can easily operate in the joystick.
Zero inside turning radius allowing users to use in a narrow space, and also facilitate changing positions



· Key-type lock sliding

Key-type lock sliding door to protect misuse by not equipment keeper, particularly suitable for protect the electrical components when the rent out



· Platform work light (optional)

The professional platform work lights allows construction of the user easier lighting and operating
