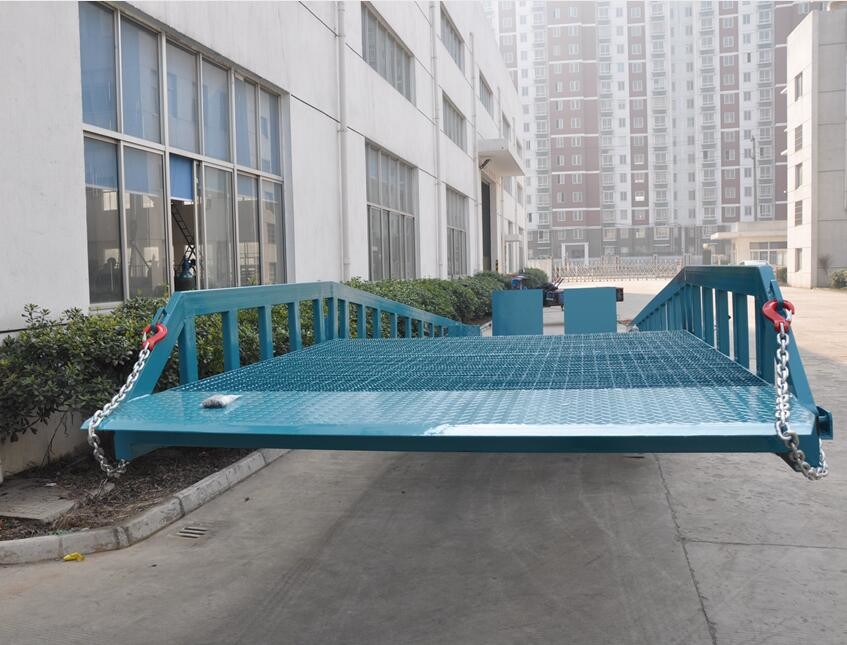

Reinforced Gusseted Lip Metal Loading Dock Ramp Non Skid

Reinforced Gusseted Lip Metal Loading Dock Ramp Non Skid

  • Reinforced Gusseted Lip Metal Loading Dock Ramp Non Skid
Reinforced Gusseted Lip Metal Loading Dock Ramp Non Skid
Product Details:
Place of Origin: China
Brand Name: Xunte
Certification: CE
Model Number: DCQY8-0.6
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Naked
Delivery Time: 30Days
Payment Terms: T/T, L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 8000kg Platform Length: 2.2m
Max. Working Height: 1.8m Slope Length: 7m
Overall Length: 10.5m Overall Width: 2.1m
Labial Plate Length: 0.3m Weight: 2780kg
High Light:

CE metal loading dock ramp


Non skid metal loading dock ramp


Non skid mobile loading ramps

8000Kg Manual Mobile Dock Ramp , Mechanical Durable Mobile Loading Dock


Quick Detail:

Name Mobile Dock Ramp Brand Name Xunte
Loading Capacity 8000Kg Color Blue or optional
Adjustable Working Height 1200mm-1800mm Pump Manual/Electrical/Both
Platform Length 2200mm Power Supply Manual/AC
Bridge Width 2500mm



Mobile Dock Ramp is an auxiliary machine for loading and unloading cargos with forklift coordination use. The forklift can drive from the ground to the truck compartment to work directly through the Mobile Dock Ramp. There is no need to connect to power supply, for it uses manual hydraulic power. Only one man needed to manipulate the machine to load and unload goods safely and fast. With it, you can save abundant labor-using, increase the efficiency of loading and unloading, and speed up the flow of goods, then get more economic benefits.


Main Features:

1. Reinforced gusseted lip

2. Heavy duty (6-8 box beams) deck construction

3. Non skid tread plate deck and lip

4. Full width one-piece lip hinges pin and tube

5. Heavy duty high pressure cylinders

6. First class hydraulic power unit, good seal capability and long life

7. Power is available in 1ph. 115/220/230V 3ph. 208/230/380/46V 50/60HZ

8. Forklift pick-up slot

9. The safety locking chains to attach yard ramp to the rear of vehicles

10. Brake pads to prevent yard ramp from moving when load or unload goods.



Safety Precaution:

  • Have two hooks which can tighten the machine with vehicle during loading and unloading.
  • Have two brake pads


Specifications/ Major Parameters:


Model: DCQY8-0.6

  • Loading Capacity 8000Kg
  • Overall Length 10500mm
  • Overall Width 2100mm
  • Clear Width 2000mm
  • Labial Plate Length 300mm
  • Labial Plate Width 2000mm
  • Flap Length 1000mm
  • Adjustable Working Height 1200-1800mm
  • Platform Length 2200mm
  • Slope Length 7000mm

Without Outriggers




  • Hydraulic System: Xunte brand Hydraulic Cylinder Φ80*2, Trellebogr sealing
  • Platform Surface : WB325/1 steel grating
  • Main Body Profile: 160*60* rectangular tube
  • Fence: 100*40*4mm rectangular tube and 80*40*4mm rectangular tube
  • Connecting Board: 16mm plate and 3mm checkered plate
  • Tire: Φ500-8 solid tire


Optional Configuration:

  • Screw-type Outrigger for container truck
  • Hydraulic Power Pack Italy brand: Hydrapp/ Swiss brand: Bucher
  • Pump: Italian Manual Pump, Electrical Pump


Competitive Advantage:/ Why to choose Xunte Mobile Dock Ramp?


· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience




1. Site: Work Shop, Dock, Logistic Park etc.

2. Dock Ramp Working Purpose: Loading Cargos etc.
