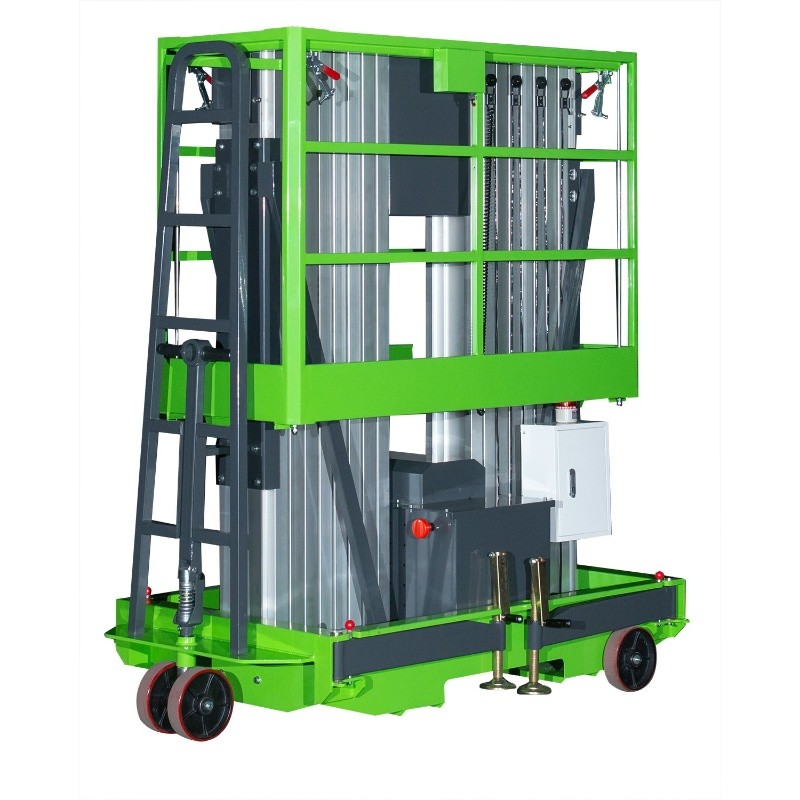

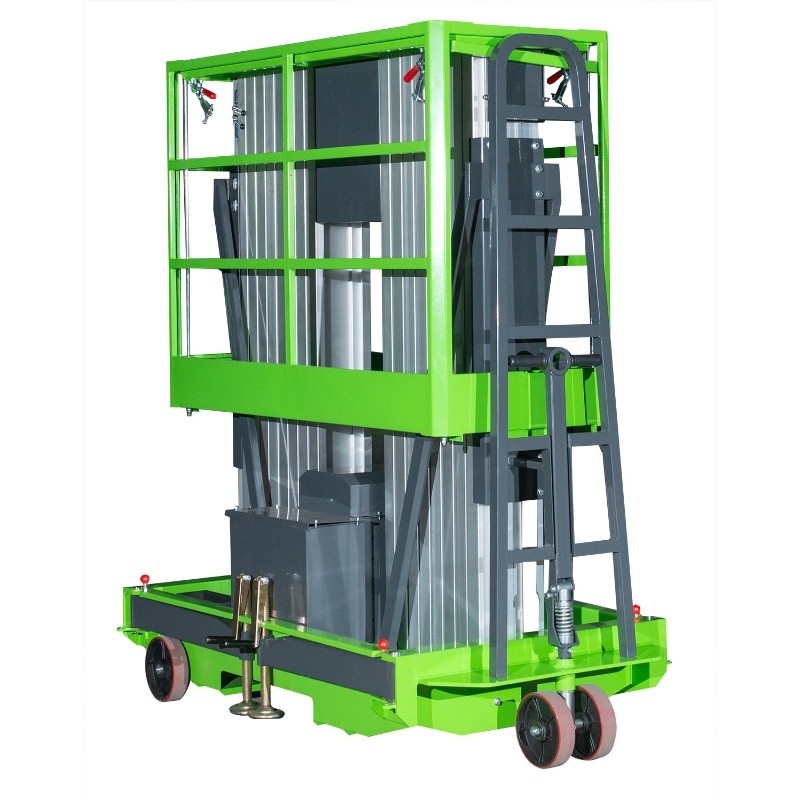

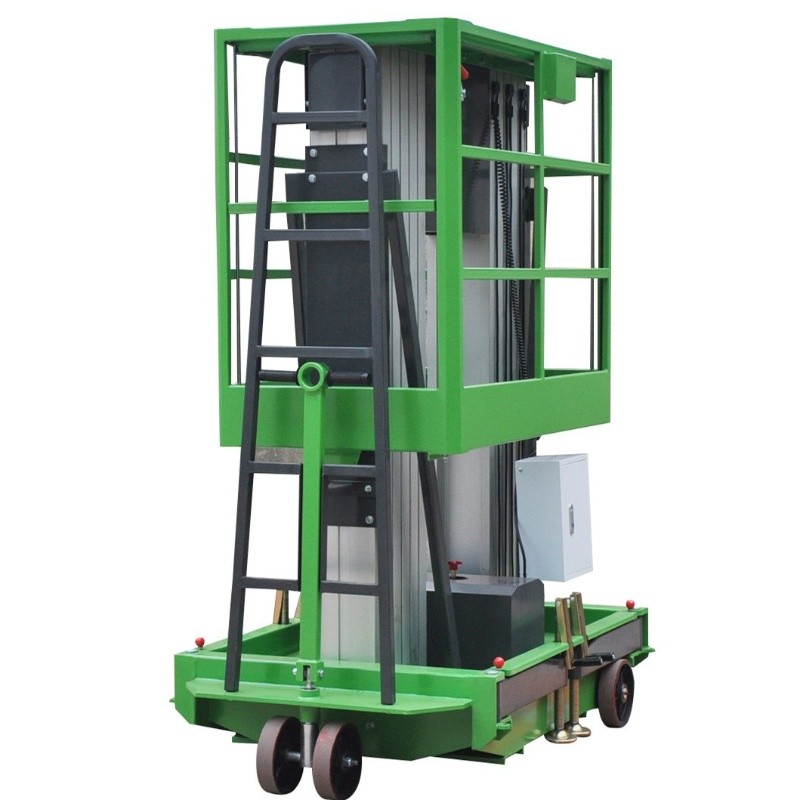

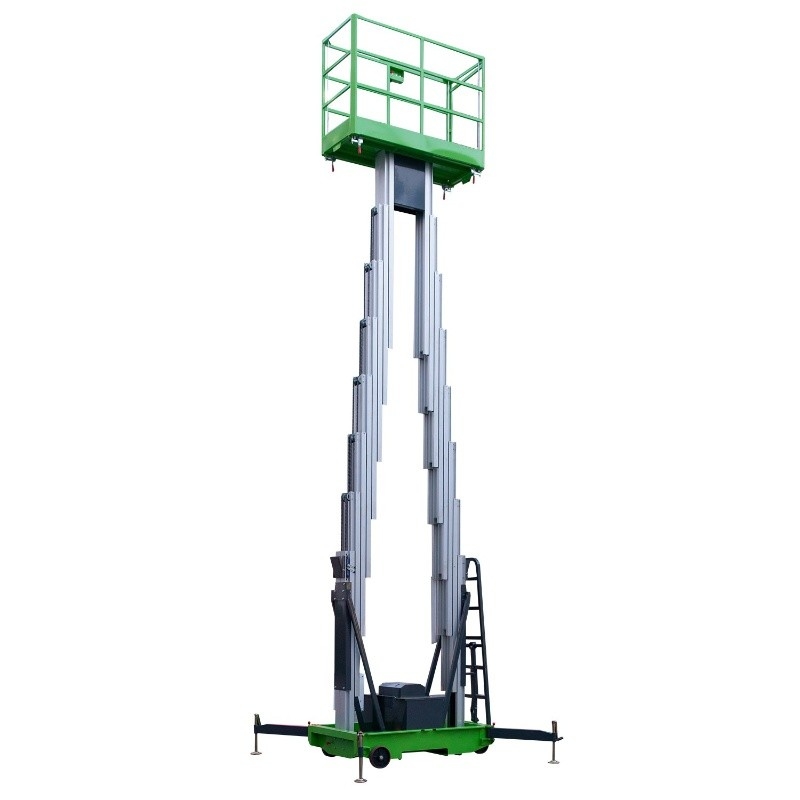

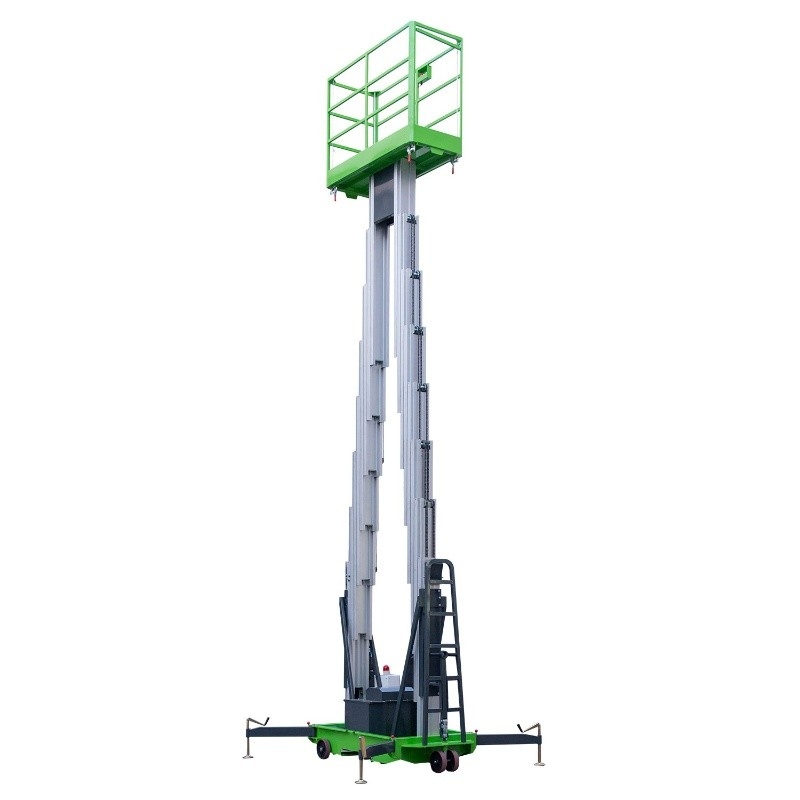

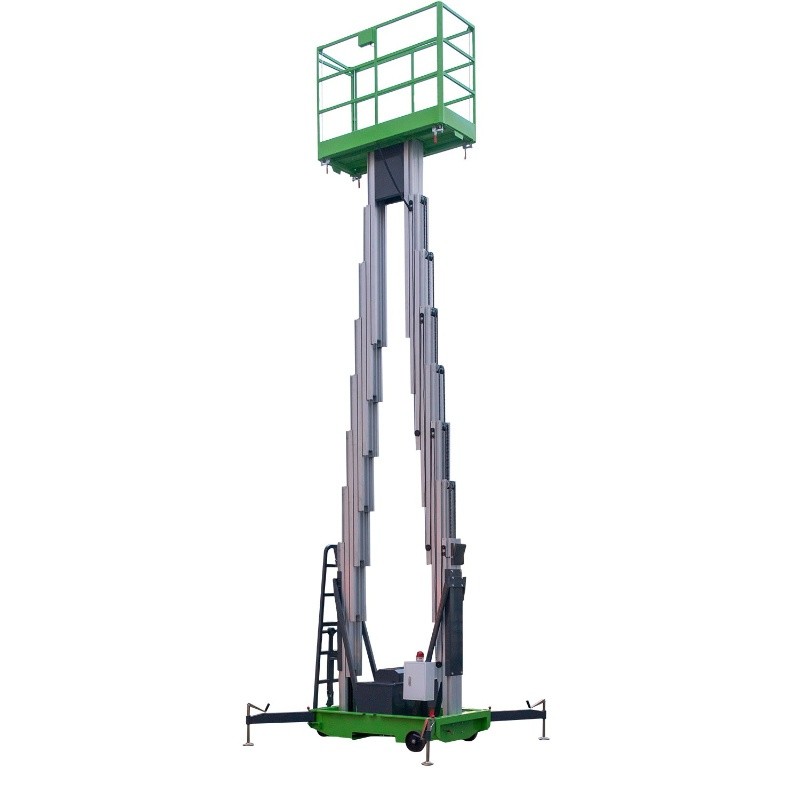

Green Double Mast Mobile Vertical Lift Platform For 9m Platform Height

Green Double Mast Mobile Vertical Lift Platform For 9m Platform Height

  • Green Double Mast Mobile Vertical Lift Platform For 9m Platform Height
  • Green Double Mast Mobile Vertical Lift Platform For 9m Platform Height
  • Green Double Mast Mobile Vertical Lift Platform For 9m Platform Height
  • Green Double Mast Mobile Vertical Lift Platform For 9m Platform Height
Green Double Mast Mobile Vertical Lift Platform For 9m Platform Height
Product Details:
Place of Origin: CN
Brand Name: Bestmax Lift
Certification: ISO; IPAF; CE
Model Number: ME900-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 1800-4500
Packaging Details: Packed in Pallet, Wrapped with Film
Delivery Time: Within 15 days
Payment Terms: L/C, T/T
Supply Ability: 2000 units per month
Contact Now
Detailed Product Description
Material: Aluminum Max Platform Height: 9m
Max Working Height: 11m Platform Size: 1.3*0.62m
Standard Power: AC Optional Power: DC; AC+DC
High Light:

electric vertical lift

,

vertical man lift

9m Platform Height 200kg Load Capacity Double Mast Mobile Vertical Lifting Platform



Description:

Features of Double Mast Aluminum Aerial Work Platform: non-marking tires and anodized aluminum mast. Easily pushed around to the designated sites, beautiful structure, compact main body, light weighted, safe and reliable. It is operated by the telescopic cylinder which is strong and reliable working and the control panels are available on the lift platforms and ground.



Application
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds.



Safety Features of Man pushing Around Aluminum Aerial Work Platform

  • Toe protection boards on the platform
  • Anti-skid deck on the platform
  • Auxiliary Lowering
  • Dual limit switch for safety
  • Operation voltage at 24V
  • Safety belt holding
  • Anti-burst valve on the cylinder
  • Emergency stop button both on platform and ground
  • Short Circuit and leakage protection system for AC version
  • Fuse for DC version for electric shock protection

Major Parameter of Single Mast Aluminum Aerial Work Platform

Model NO. Working Height (m) Loading Capacity (Kg) Platform
Size (m)
Lifting
Power (Kw)
Weight
(Kg)
Dimension (m)
GTWY6-100 8 130 0.60x0.55 0.75 260 1.38x0.80x1.65
GTWY8-100 10 130 0.60x0.55 0.75 300 1.38x0.80x1.98
GTWY9-100 11 130 0.60x0.55 0.75 326 1.44x0.85x1.98
GTWY10-100 12 130 0.60x0.55 0.75 400 1.44x0.85x1.98


Major Parameters of Double Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY6-200 8 200 1.18x0.62 1.1 380 1.38x0.85x2.00
GTWY8-200 10 200 1.18x0.62 1.1 480 1.38x0.95x2.00
GTWY9-200 11 200 1.38x0.62 1.1 548 1.58x0.95x2.00
GTWY10-200 12 200 1.38x0.62 1.1 610 1.68x0.95x2.00
GTWY12-200 14 200 1.48x0.62 1.1 650 1.68x0.95x2.00
GTWY14-200 16 150 1.48x0.62 1.1 650 1.68x0.95x2.00


Major Parameters of Triple Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY10-300 12 300 1.40x0.88 2.2 900 1.78x1.10x2.05
GTWY12-300 14 300 1.40x0.88 2.2 950 1.78x1.10x2.05
GTWY14-300 16 250 1.53x0.88 2.2 980 1.90x1.10x2.32


Major Parameters of Quadruple Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY10-400 12 300 1.40x0.80 2.2 950 1.78x1.25x2.05
GTWY12-400 14 300 1.40x0.80 2.2 980 1.78x1.25x 2.32
GTWY14-400 16 200 1.40x0.80 2.2 1000 1.90x1.25x2.32
GTWY16-400 18 200 1.40x0.80 2.2 1100 2.28x1.35x2.82


Major Parameters of Six Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY16-420 18 150 1.45x0.90 2.2/1.1 1200 2.28x1.35x2.18
GTWY18-420 20 150 1.45x0.90 2.2/1.1 1400 2.28x1.35x2.42
GTWY20-420 22 150 1.55x0.90 2.2/1.1 1780 2.50x1.40x2.62
GTWY22-420 24 150 1.55x0.90 2.2/1.1 2000 3.00x1.60x2.82

Green Double Mast Mobile Vertical Lift Platform For 9m Platform Height 0

Tilting type can be made for height limitation place

Green Double Mast Mobile Vertical Lift Platform For 9m Platform Height 1



Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

Green Double Mast Mobile Vertical Lift Platform For 9m Platform Height 2



Customer Visiting

Green Double Mast Mobile Vertical Lift Platform For 9m Platform Height 3

Communication with Customers:
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.

A: How long is your quality guarantee period?
B: We have one year warranty.
