Self Propelled Hydraulic Turning Wheels Mini Scissor Lift Work Platform For 1 Man

Self Propelled Hydraulic Turning Wheels Mini Scissor Lift Work Platform For 1 Man

  • Self Propelled Hydraulic Turning Wheels Mini Scissor Lift Work Platform For 1 Man
Self Propelled Hydraulic Turning Wheels Mini Scissor Lift Work Platform For 1 Man
Product Details:
Place of Origin: China
Brand Name: BestmaxLift
Certification: CE
Model Number: MX300S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or Wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: L/C, T/T
Supply Ability: 100 sets/ month
Contact Now
Detailed Product Description
Loading Capacity: 240kg Platform Height: 3m
Working Height: 5m Platform Size: 1.15*0.60m
Motor Power: 0.8kw Weight: 800kg
High Light:

scissor lift mini

,

mini platform lift

MX300S 3m Platform Height 240kg Load Mini Self Propelled Scissor Lift with Hydraulic Turning Wheels



Mini Self Propelled Scissor Lift is widely used in warehouse, supermarket and more (the place with narrow space) becuase of its small size. The simple structure make it much easier to operate and maintenance.

It moves and lifts all by battery power. Operator on platform can control lifting, moving, turning and all movement.



Parameter:

Model MX300R/MX300S MX390R/MX390S
Load 240 kg 240 kg
Platform Height 3 m 3.9 m
Working Height 5 m 5.9 m
Platform Size 1.15* 0.6 m (No Extension)
1.15* 0.7 m (With Extension)
1.15* 0.6 m (No Extension)
1.15* 0.7 m (With Extension)
Optional Configuration:
Extension Platform
Extension Length: 0.55 m
Extension Load: 100 kg
Extension Length: 0.55 m
Extension Load: 100 kg
Lift/Drive Motor 24v 0.8kw/ 24v 0.3 kw 24v 0.8kw/ 24v 0.3 kw
2 Wheel Type: Swivel Wheel Type and Hydraulic Turning Wheel Type( more easily turning)



Description:

This mini scissor lift is easy to use. The control panels are available on the platforms and ground.


The user can control the machine walking and lifting operation directly on the platform, and realize the single person working continuously at high altitude.



Because it is miniature, the height is limited, suit low position aerial work. They are used to provide contractors with temporary access to high-altitude areas that are inaccessible to various workplaces, such as maintenance, construction projects or fire crews emergency access.



The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.

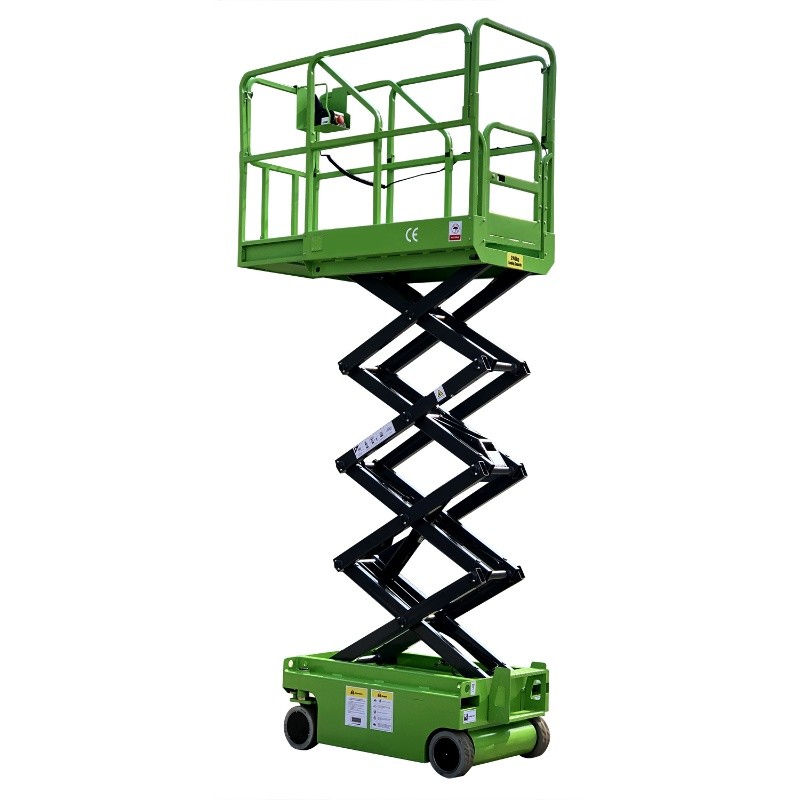

 Self Propelled Hydraulic Turning Wheels Mini Scissor Lift Work Platform For 1 Man 0

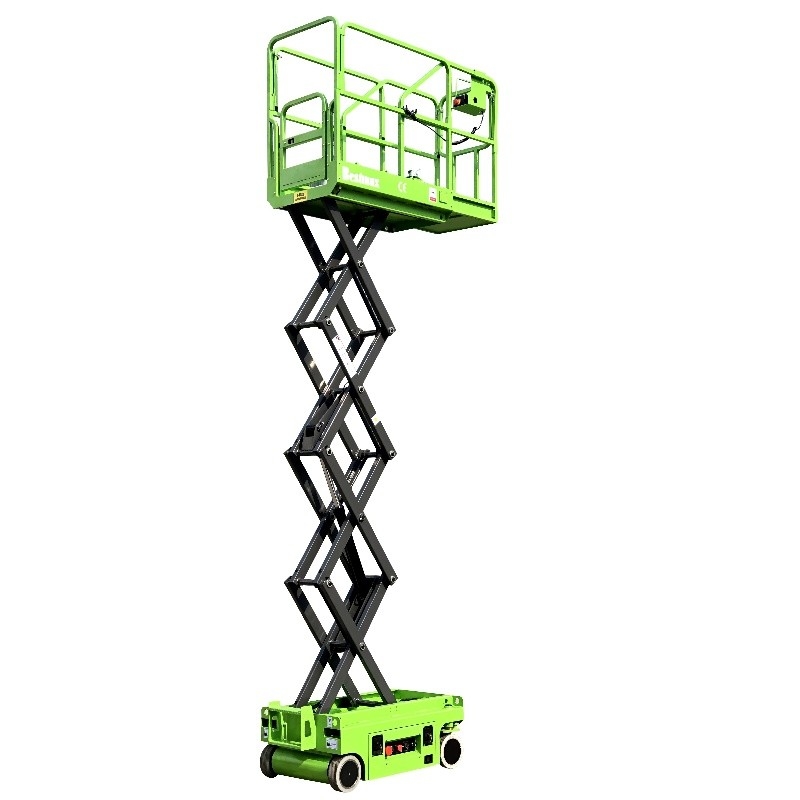

Self Propelled Hydraulic Turning Wheels Mini Scissor Lift Work Platform For 1 Man 1
Safety Precaution

  • Auxiliary Lowering Devices
  • Anti-burst System
  • Emergency Stop Button
  • Tilting Protection System
  • Charging Protection System
  • Automatic Braking System
  • Buzzer and Horn

Company Introduction
As a subsidary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.
We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America,Europe and Africa

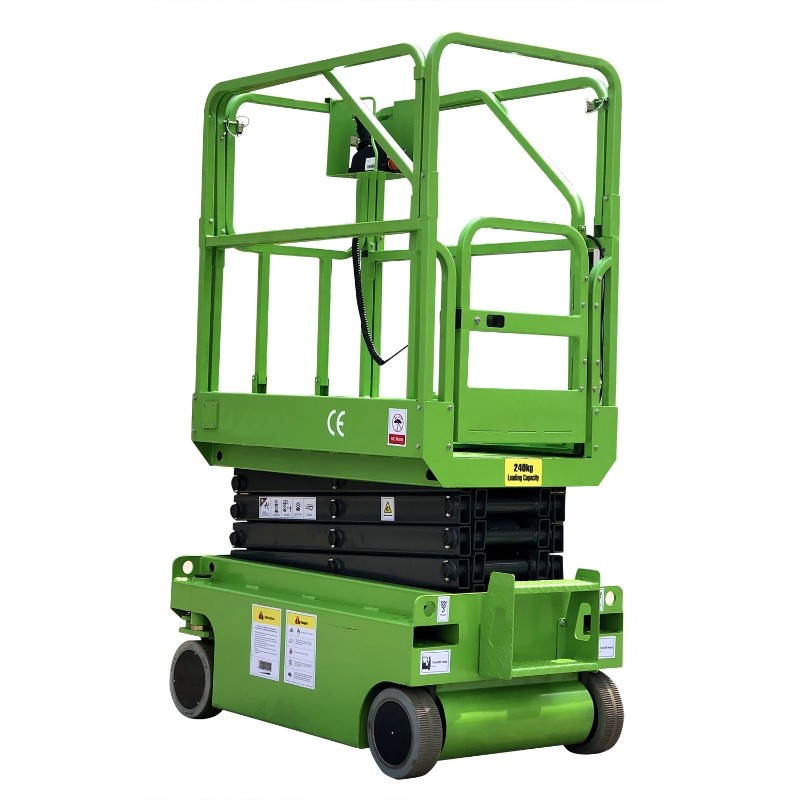

Self Propelled Hydraulic Turning Wheels Mini Scissor Lift Work Platform For 1 Man 2

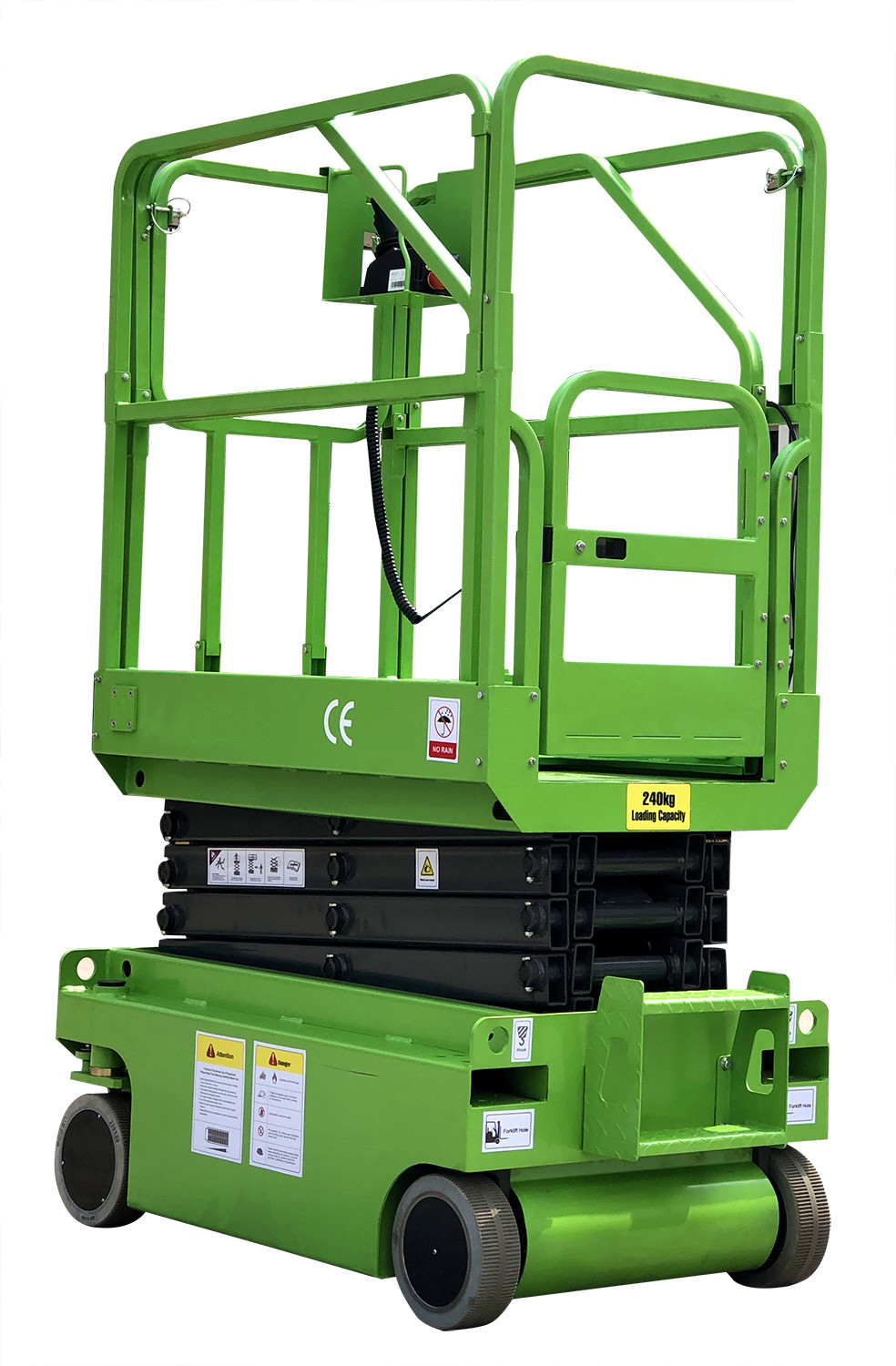

Self Propelled Hydraulic Turning Wheels Mini Scissor Lift Work Platform For 1 Man 3



Communication with Customers

A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
