|Place of Origin:||China|
|Brand Name:||CHEN LIFT|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wrapped in pallets|
|Delivery Time:||30 days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||100 sets/month|
|Lifting Height-“up”:||4.98 M||Lifting Height–“down”:||4.46 M|
|Load At 46cm:||363 Kg||Load At 61cm:||363 Kg|
|Load At 1.07m:||227 Kg||Weight:||151 Kg|
portable material lifts,
manual lift equipment

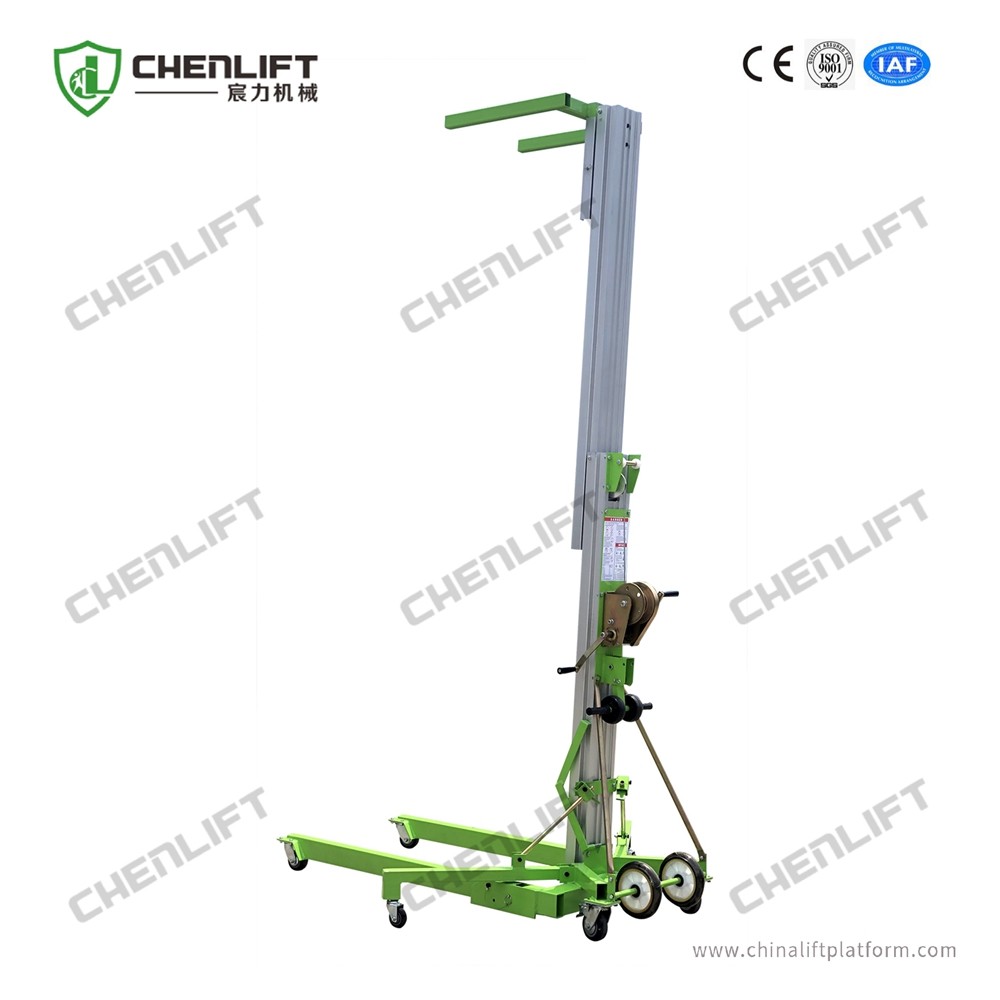

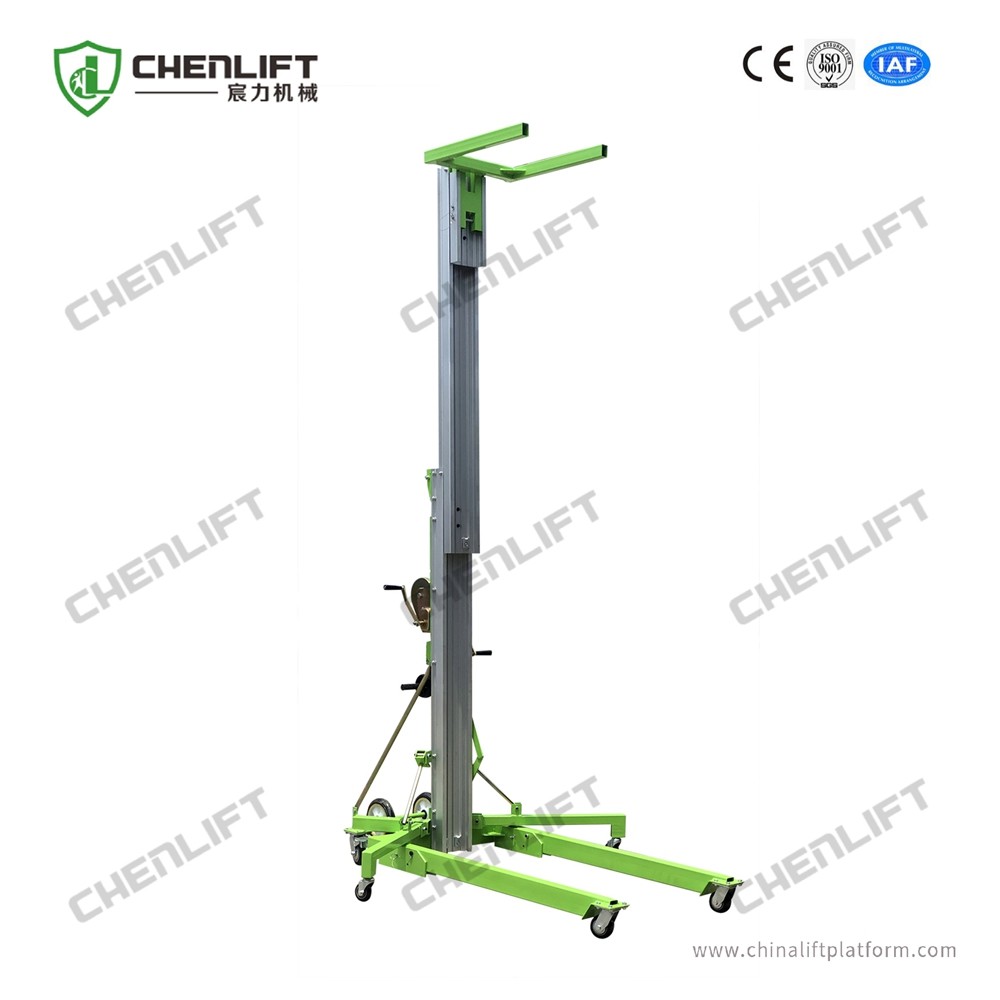

Portable Manual Material Lift 5 Meters Load Platform With 200Kg Rated Load
This material lift has the ability to manually lift, through the swing of the manual rod to drive the metal wire rope , Lifting materials to different heights (usually more than 4 meters to 9 meters); This type of light hand-cranked material lifting platform can be casters, The brake can be pushed by hand, suitable for relatively flat ground.
The hand-cranked material lifting platform can be easily transported by one person, and can lift a variety of light and heavy materials; the sliding wheels at the bottom of each leg allow the equipment to move easily and pass through a standard single doorway; the legs can be folded up and its accessories can be Mobile for easy storage and loading; quick setup does not require special tools and can be prepared in seconds, it is really a good helper for you to increase efficiency and create wealth!
Easy to operate
The material lift can be operated by one person for lifting and moving the goods.
Multiple optional parts
The material lift can be equipped with multiple forks and the lighthouse device (used for emergency lighting and other uses)

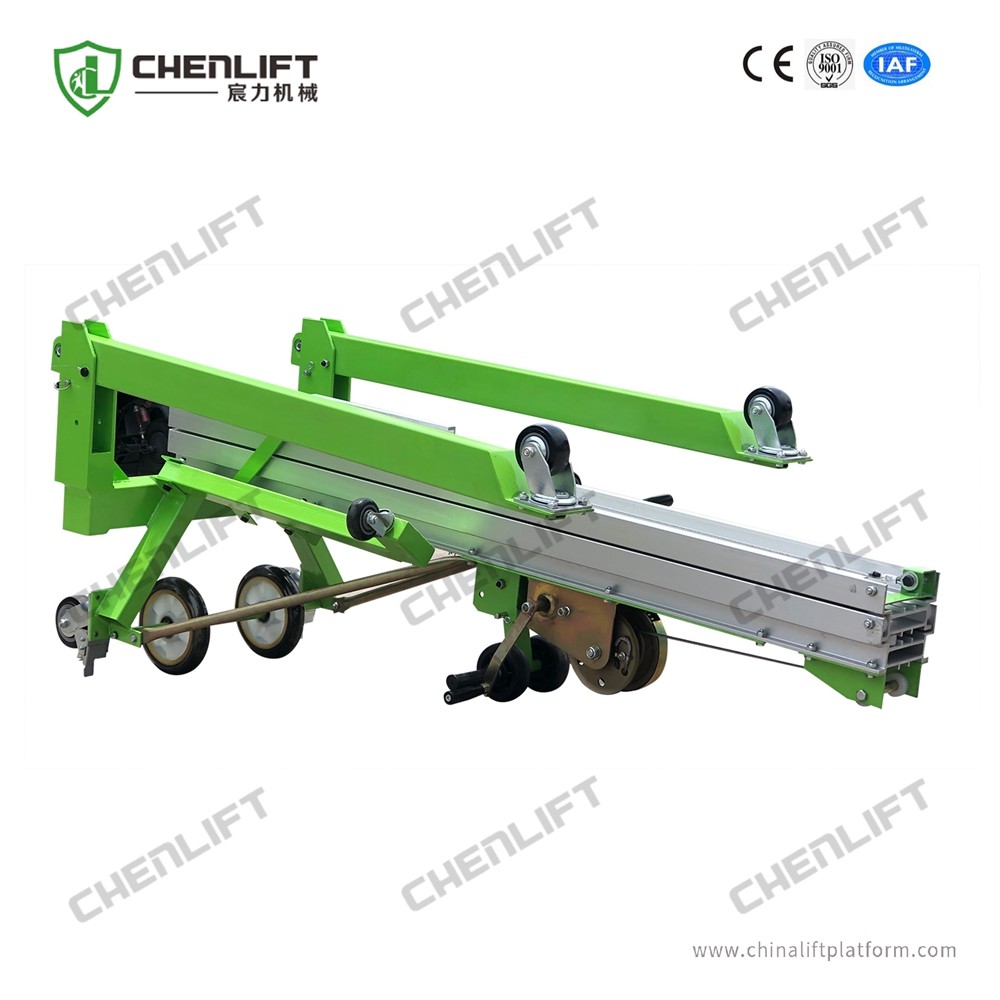

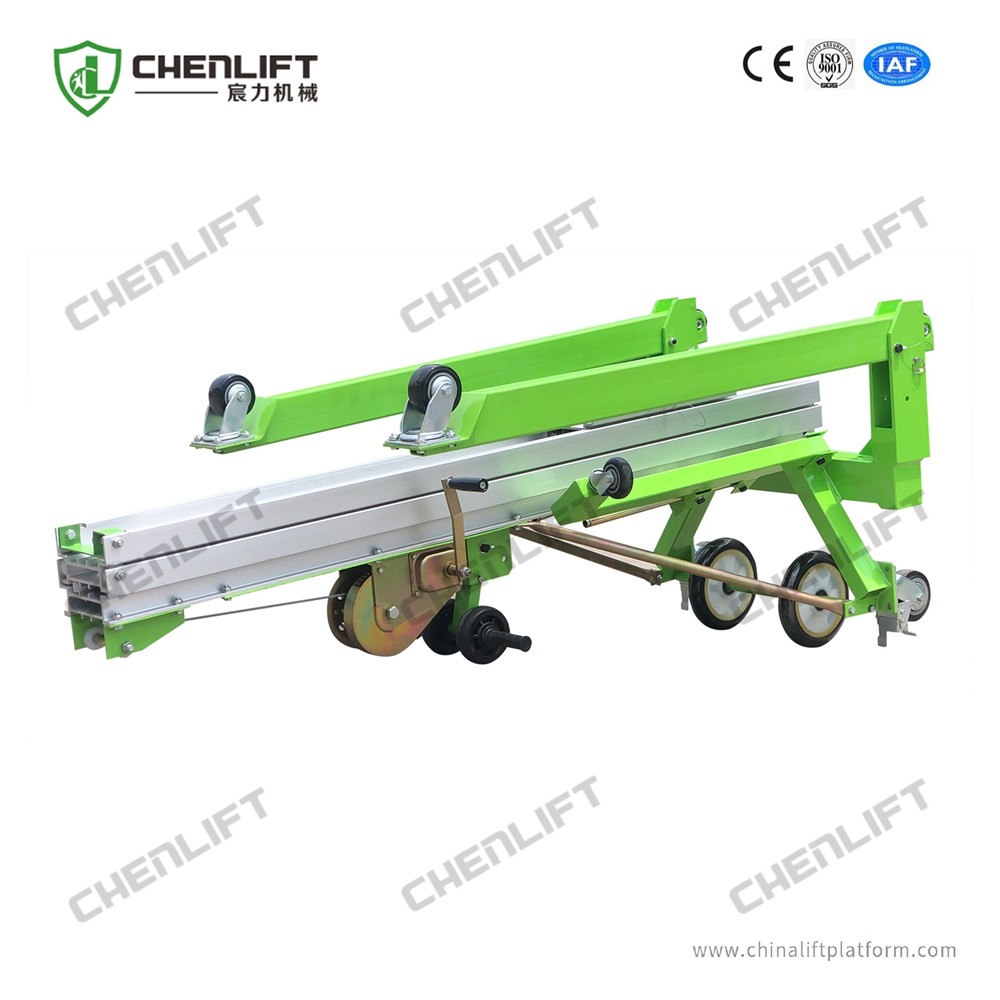

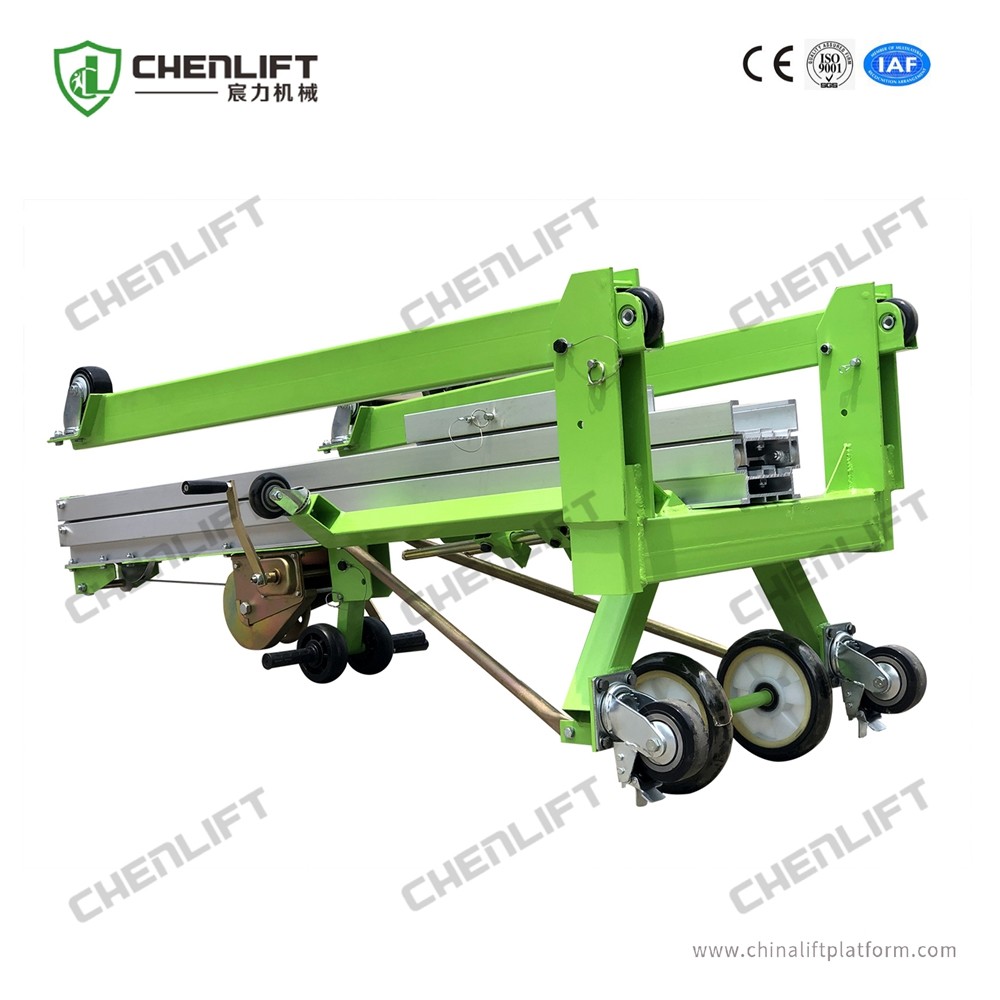

The stowed height of the materials lift is lower than 2m, it is easily to pass cross the standard doorway, the Roller equipped on the back makes the transportation more convenient.
Major Parameter of Material Lift
|Standard forks-down||1.49 m||2.97 m||4.46 m||5.94 m||7.42 m|
|Standard forks-up||2 m||3.49 m||4.98 m||6.46 m||7.94 m|
|Flat forks||1.49 m||2.97 m||4.46 m||---||---|
|1.49 m||2.97 m||4.46 m||5.94 m||7.42 m|
|2 m||3.49 m||4.98 m||6.46 m||7.94 m|
|1.99*0.74*0.8 m||1.99*0.74*0.8 m||1.99*0.74*0.8 m||1.99*0.74*0.8 m||1.99*0.79*0.8 m|
|Working Length||1.51 m||1.51 m||1.88 m||2.08 m||2.08 m|
|Ground clearance-center||0.05 m||0.05 m||0.05 m||0.05 m||0.05 m|
|Load Height Minimum||0.15 m||0.15 m||0.15 m||0.15 m||0.15 m|
|18 in (46cm) load center||454 kg||454 kg||363 kg||363 kg||295 kg|
|24 in (61cm) load center||454 kg||454 kg||363 kg||272 kg||204 kg|
|42 in (107cm) load center||159 kg||181 kg||227 kg||159 kg||113 kg|
|Weight||98 kg||118 kg||151 kg||184 kg||204 kg|
Aluminum Material Lift is famous for its light weight and high lift with forks. Aluminum Material Lifts are widely use in outdoors and indoors working, such as warehouse, home, hotel, airport and so on. It becomes a ideal equipment for aerial working.
This material lift is a (no power) manually operated machine, it is designed into compact, lightweight structure, so it can be easily through standard doorway. The Material lift platform can be widely used in the construction, industry, storage, exhibition, stage construction, the advertising industry, central- air conditioning.
