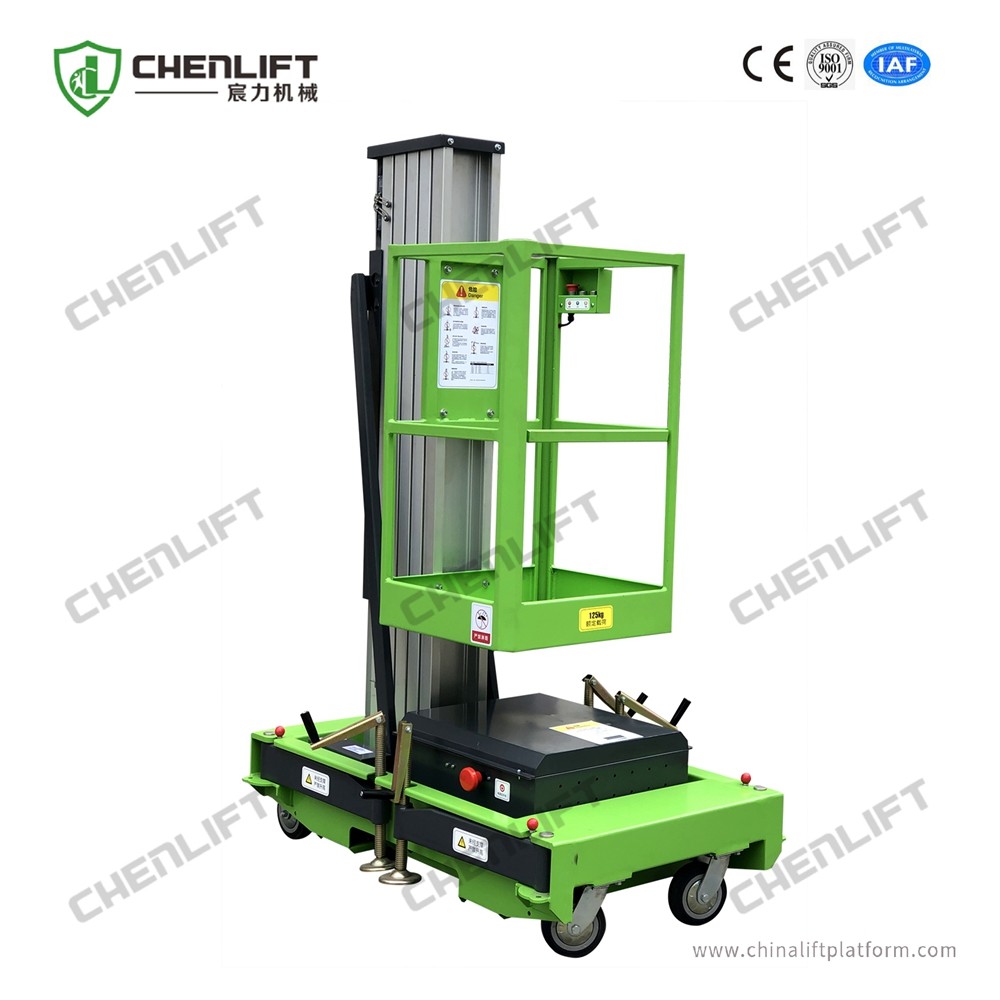

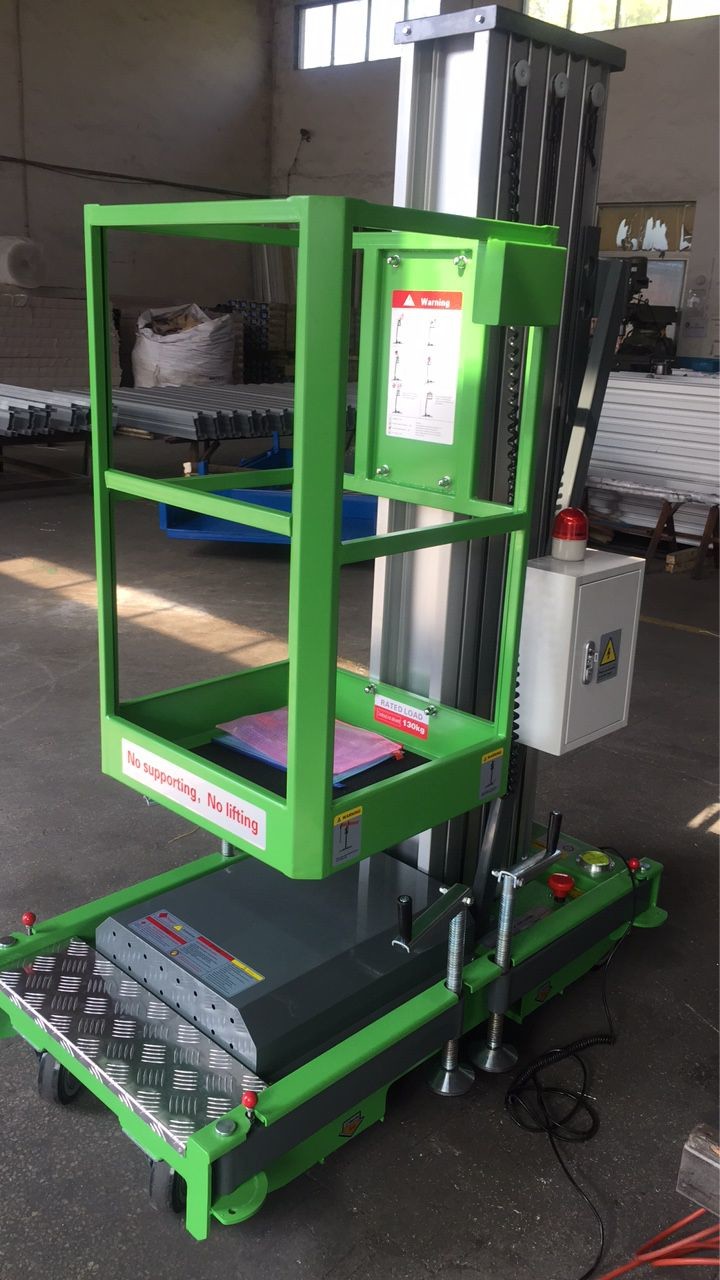

CE Single Mast Aerial Platform Lift With Chargeable Battery , Easy Using

CE Single Mast Aerial Platform Lift With Chargeable Battery , Easy Using

  • CE Single Mast Aerial Platform Lift With Chargeable Battery , Easy Using
  • CE Single Mast Aerial Platform Lift With Chargeable Battery , Easy Using
  • CE Single Mast Aerial Platform Lift With Chargeable Battery , Easy Using
CE Single Mast Aerial Platform Lift With Chargeable Battery , Easy Using
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: GTWY8-100 (ME800-1)
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 20day after down payment
Payment Terms: T/T, L/C
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Loading Capacity: 130kg Platform Height: 8m
Working Height: 10m Platform Size: 0.60*0.55m
Overall Size: 1.34*0.85*2.00m Outrigger Size: 1.7*1.67m
Lifting Time: 54s Motor Power: 0.75kw
Weight: 390kg
High Light:

hydraulic aerial work platform


aerial work platform


Towing Hydraulic Lift Double Mast Aerial Work Platform 12m And Loading 200Kg


Quick Detail:


Name Towing Aerial Work Platform Brand Name CHEN LIFT
Loading Capacity 130Kg Platform Height 8m
Platform Size 0.6*0.55m Color Green or Optional
Motor Power 0.75Kw Power Supply AC/DC




Single Mast Towing Aerial Work Platform has all the fuctions the standard single mast aerial work platform has. Towing Type can be transported for long distance for it can be attached to as vehile and its unique tyre.




It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 6m to 10m and lifting capacity is 130kg.The power sources could be 220V, 380V or chargeable battery.


Main Features:


1. Most rigid aluminum alloy profile

2. Auxiliary platform lowering

3. Multi-guide pulley on mast

4. Durable base system

5. Chassis with level gauge

6. Easily rolls through a narrow space

7. Emergency stop button

8. Over load protection

9. Built-in pressure release valve

10. Dual activated up/down switch

11. Locking Key Switch


Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet


Competitive Advantage:


· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience






Communication with Customers


A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material


A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

  1. Strict quality control system on the whole process of production
  2. Imported key arts to ensure the high quality of our products
  3. Advanced equipment and tools for examination and quality control
  4. 100% strict examining products before shipment
  5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.


A: What is the delivery time for your goods?

B: it is 20days after order confirmation


A: What spare parts that you can offer?

B: Find the list below which we are offering with the machine when shipment for free:


Item Model Quantity
O-shape rubber ring 40×3.1 4
O-shape rubber ring 11×1.9 2
O-shape rubber ring 40×30×6 1
Spanner   1
screwdriver 4# 1


A: How long is your quality guarantee period?

B: We have one year warranty.
