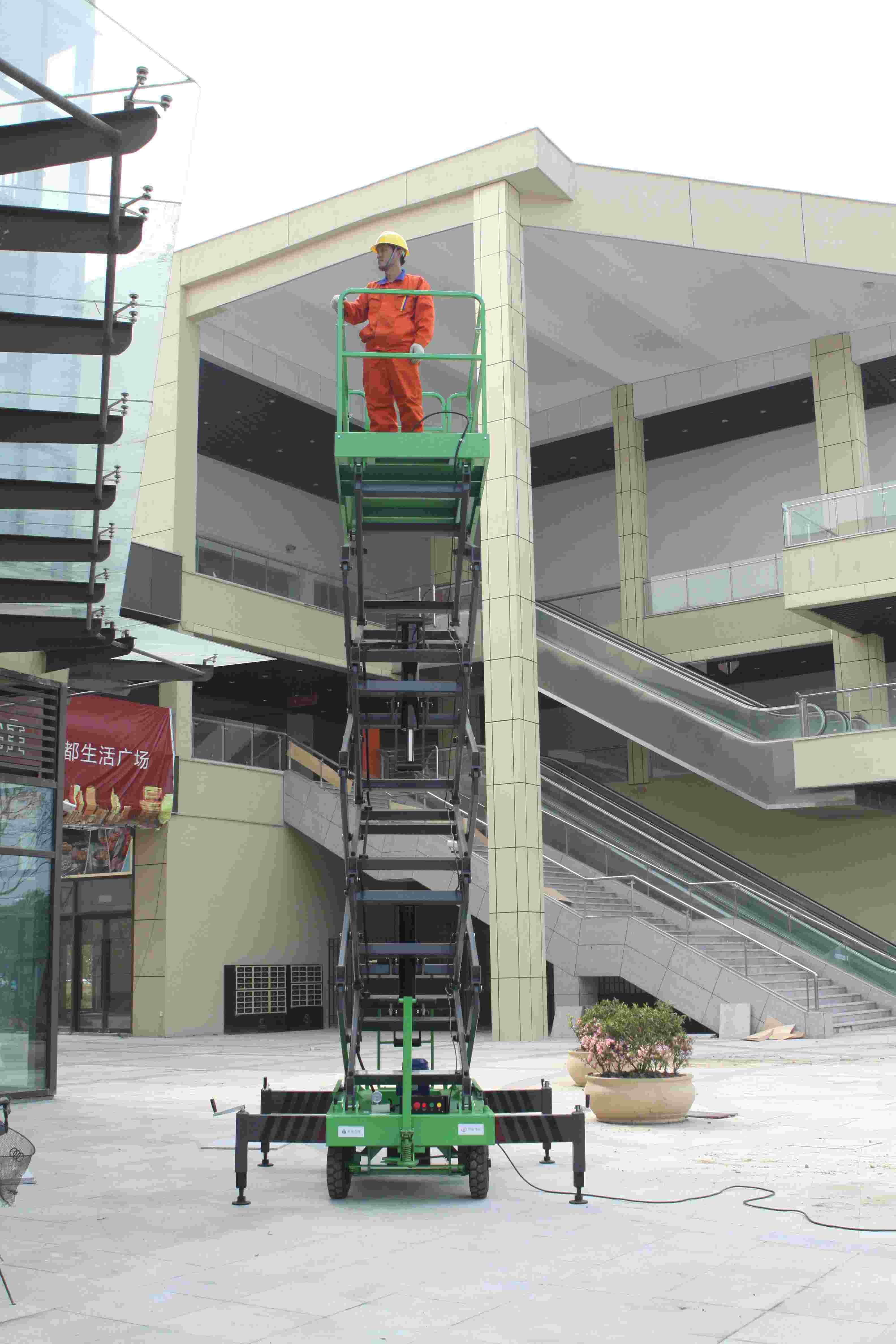

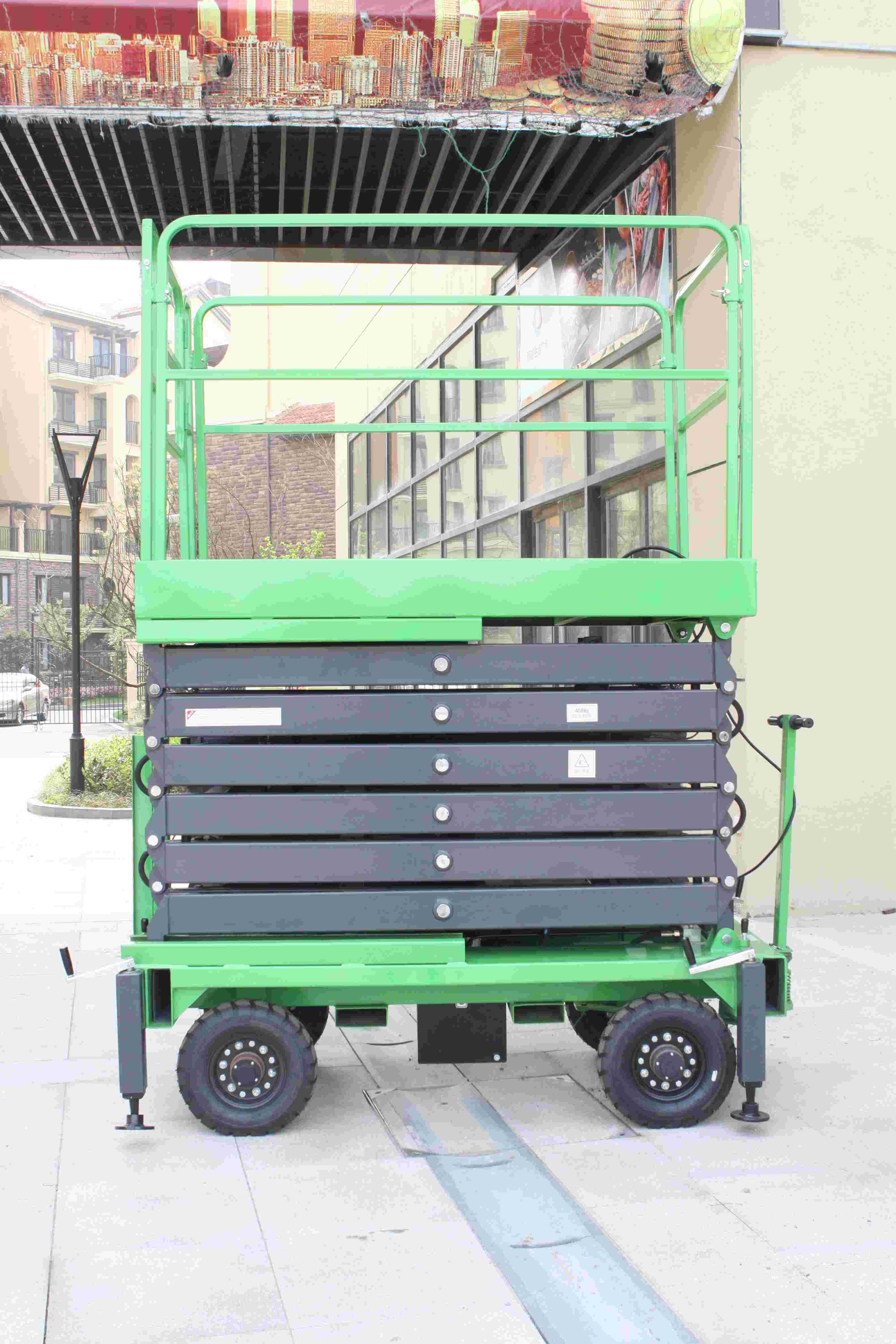

16 Meters AC DC Power Supply Mobile Scissor Lift For Painting , Cleaning

16 Meters Scissor Structure AC DC Power Supply Mobile Manlift for Painting, Cleaning

Main Features:

l Quiet and convenient operation
l Environmental-friendly and energy saving
l Compact structure, capable of going through tight, congested spaces
l Back-wheel drive and zero inside turning radius
l Swing-out tray: easy for maintenance, inspection and replacement
l Joystick control on platform in lifting status
l Extendable platform
l 24 V DC power source with long work cycles
l Derivable at full height
l Pothole protection system

Quick Detail:

Major Parameters

• Model:                          SJZ0.3-16
• Loading Capacity         300kg
• Maximum Height         16000mm
• Minimum Height           2000mm
• Platform Size               2750*1500mm
• Lifting Power                2.2kw*2
• Motorized Power          1.2Kw
• Power Voltage              DC24V
• Lifting Time                  130s
• Cylinder                       Ф100(1Pcs) Ф80 (4PCS)
• Gear Pump                  6ml/r
• Total Weight                2900kg
• Measurement              3150*1740*2000MM

Configurations:

• Electric system: Schneider contactor, SANLICO button, CHNT electrical
• Hydraulic System: Hycman brand power pack , sealing
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate
• Tire: Ø600-9 Inflated tires
• High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
• Battery: (DC12V,150AH)*4 with charger

Optional Configuration:

• Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
• Extension Platform
• Rubber Solid Tire
• Flame Proof Control Cabinet

Why to choose CHEN LIFT Mobile Scissor Lift?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience

Communication with Customers

A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material

A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?

B: it is 30days after order confirmation

A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

A: How long is your quality guarantee period?

B: We have one year warranty.
