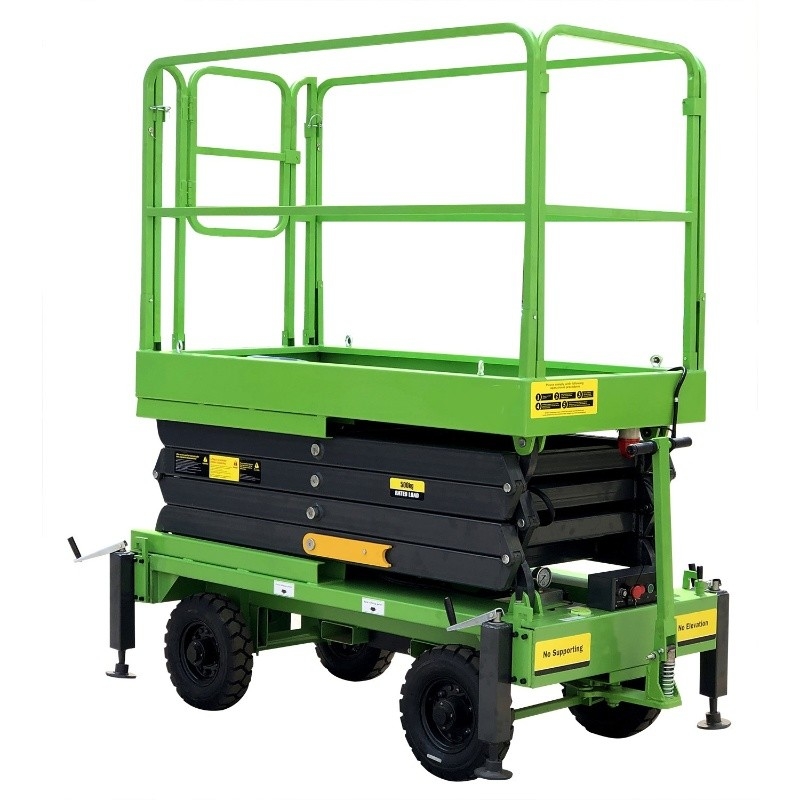

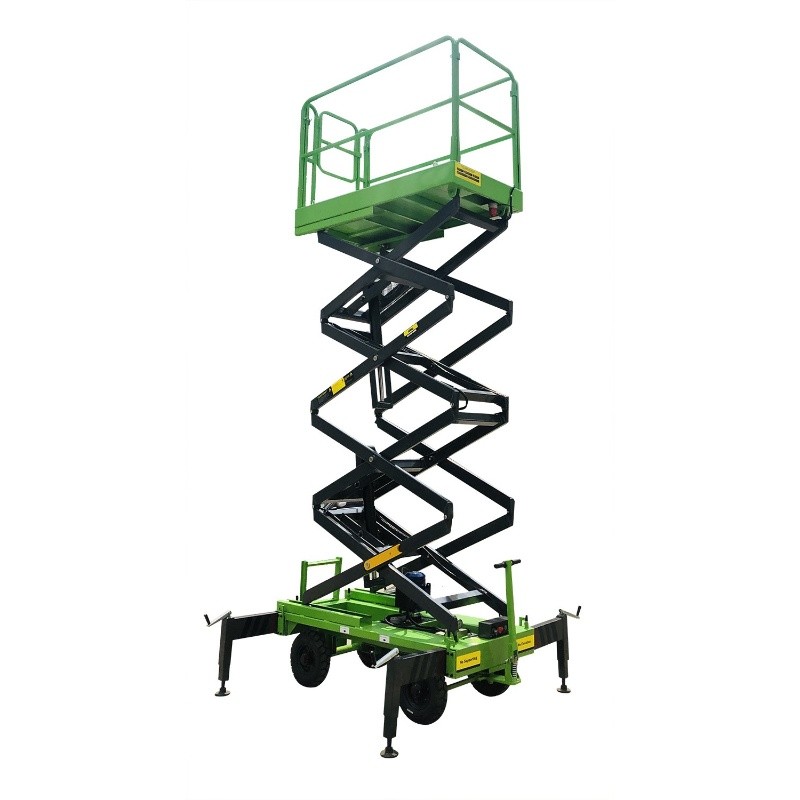

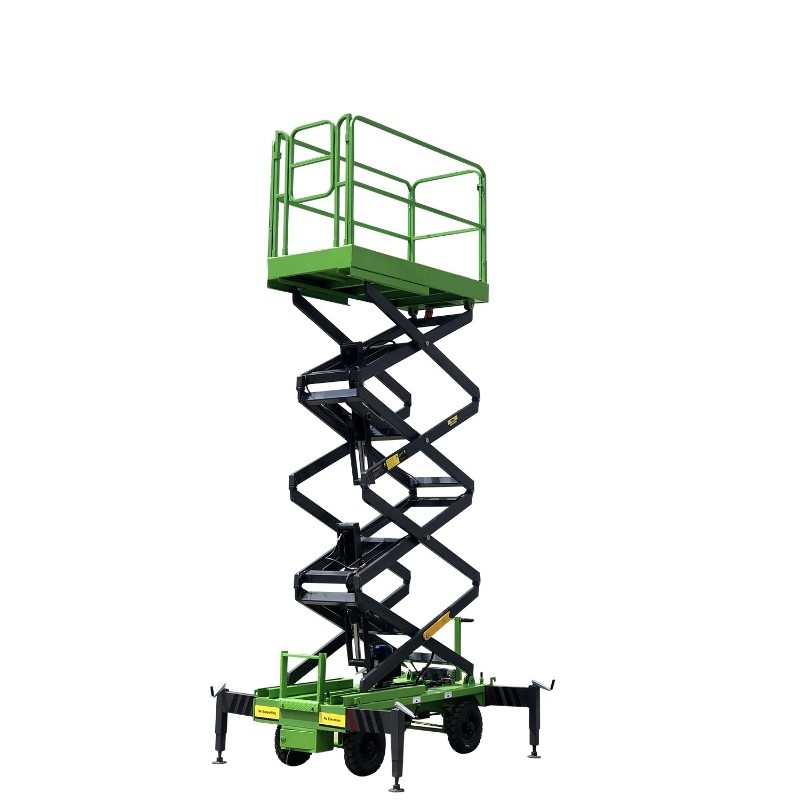

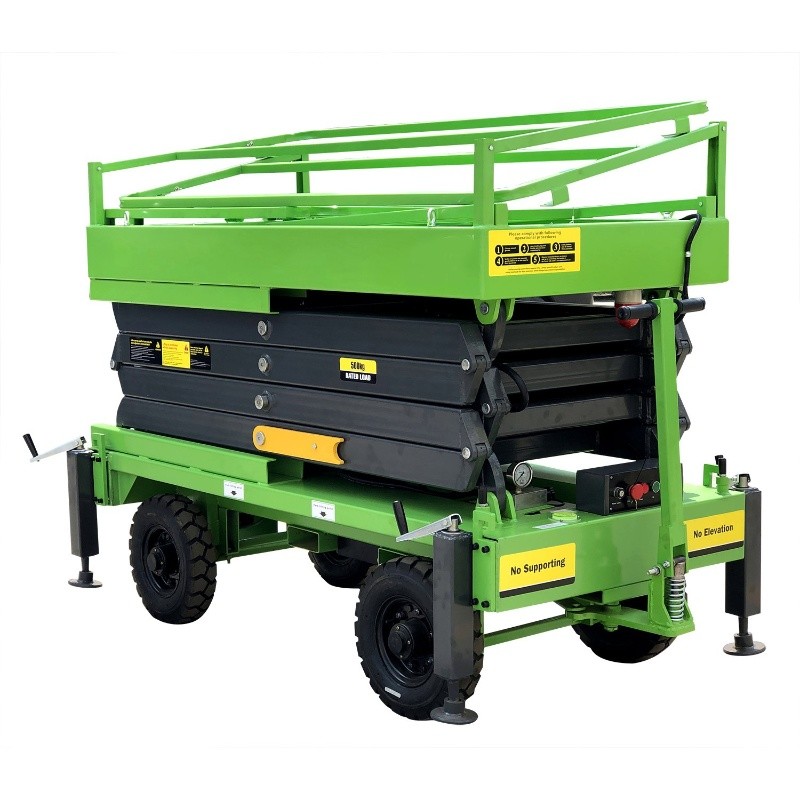

9.5 Meters Mobile Scissor Lift With Motorized Device 500Kg Loading Capacity

9.5 Meters Mobile Scissor Lift With Motorized Device 500Kg Loading Capacity

  • 9.5 Meters Mobile Scissor Lift With Motorized Device 500Kg Loading Capacity
  • 9.5 Meters Mobile Scissor Lift With Motorized Device 500Kg Loading Capacity
9.5 Meters Mobile Scissor Lift With Motorized Device 500Kg Loading Capacity
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: MK750
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: Mobile Scissor Lift Material: High Strength Steel
Feature: Easy Operation Safety Convenience Load Capacity: 500kg
Platform Height: 7.5m Working Height: 9.5m
High Light:

automobile scissor lift

,

mobile aerial work platform

9.5 Meters Mobile Scissor Lift With Motorized Device 500Kg Loading Capacity

Description:
Mobile scissor aerial work platform is an equipment used widely in aerial work. Its scissor structure makes the lifting station have high stability, large platform and a strong carrying capacity. Therefore, it has a greater range of operations at high-altitude, and suitable for many people simultaneously. It enables high-altitude operations more efficient, safer and protected.
Feature:
A. Stability structure, carrying capacity, stable lifting, easy maintenance.
B. Adaptability, it can be used in harsh environments and general explosion proof place.
C. Widely applicable, it is suitable for factory shop, square, lobby, airport, park and other high-attitude operations place.
D. High safety, it is equipping the up-down double control button with low voltage and one-touch emergency stop and lowering device, to improve the safety of equipment.

Quick Detail:

NameMobile Scissor LiftBrand NameCHEN LIFT
Loading Capacity500KgPlatform Height7.5m
Platform Size1.80*1.00mWorking Height9.5m
Lifting Power1.5KwColorBlue or optional


9.5 Meters Mobile Scissor Lift With Motorized Device 500Kg Loading Capacity 0

Configurations:
· Electric system: Schneider contactor, SANLICO button, CHNT electrical
· Hydraulic System: Hycman brand power pack, sealing
· Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
· Platform Surface: Anti-skid checkered plate
· Tyre: 6inch and 8inch
· High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose
Safety Precautions​:
1. The operation voltage on the platform is 24V
2. Emergency stop button on the platform and ground
3. Auxiliary lowering device
4. Hose burst valve safety
5. Rain-proof design electirc cabinet
6. Fold-able fence on the platform
7. Outrigger on the chassis for more stability​

Why choose our Mobile Scissor Lift?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience

Factory Equipment:
9.5 Meters Mobile Scissor Lift With Motorized Device 500Kg Loading Capacity 1
Clients & Exhibition:

9.5 Meters Mobile Scissor Lift With Motorized Device 500Kg Loading Capacity 2

Communication with Customers:
A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
B: The main difference is from the structure and the material
The scissor lift is in scissor structure with steel material
The aerial work platform is in mast structure with aluminum material

A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1.Strict quality control system on the whole process of production
2.Imported key arts to ensure the high quality of our products
3.Advanced equipment and tools for examination and quality control
4.100% strict examining products before shipment
5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?
B: it is 30days after order confirmation

A: What spare parts that you can offer?
B: We provide following spare parts freely for your maintenance of the machine:

ItemQuantity
Fuse3
"O" Rubber Seals Φ113
Wrench1
Pressure Oiler1
Cross Screwdriver1
Straight Screwdrive1


A: How long is your quality guarantee period?
B: We have one year warranty.
