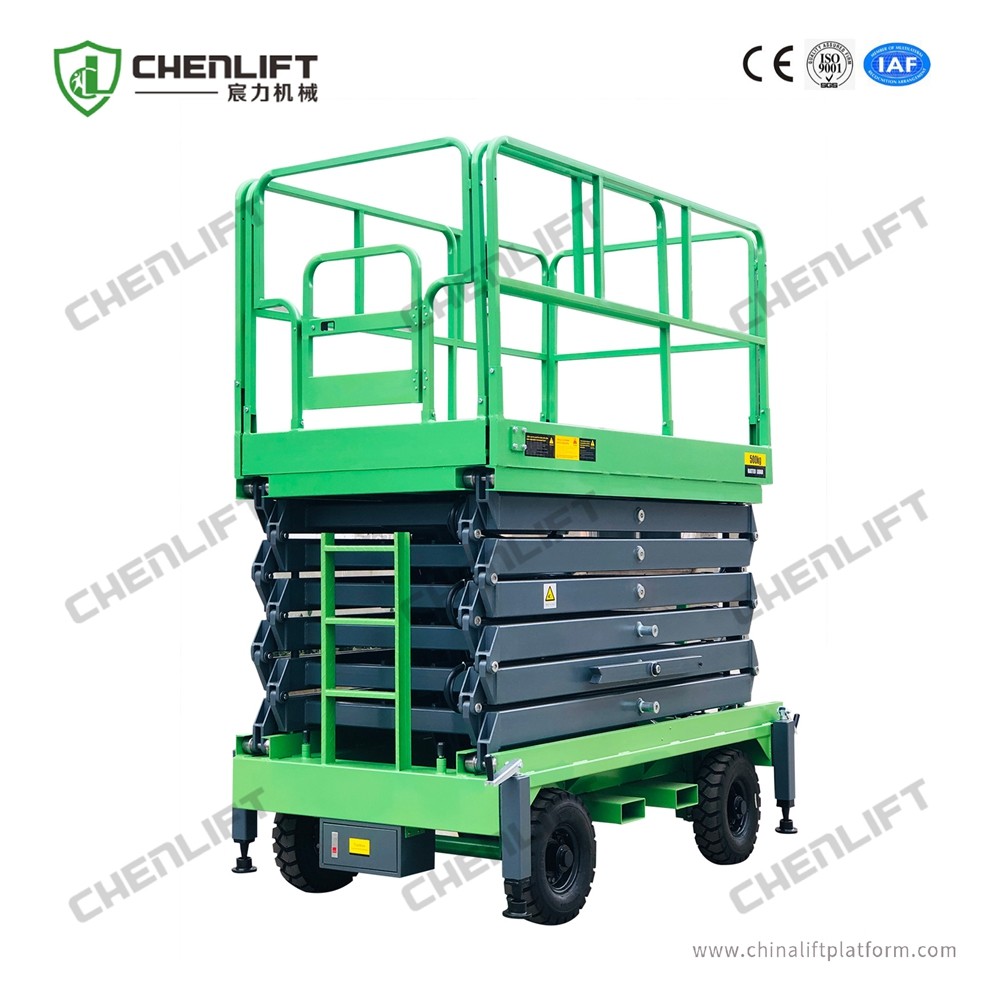

11m Platform Height Mobile Scissor Lift 500Kg With Good Stability

11m Platform Height Mobile Scissor Lift 500Kg With Good Stability

  • 11m Platform Height Mobile Scissor Lift 500Kg With Good Stability
11m Platform Height Mobile Scissor Lift 500Kg With Good Stability
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: MK1100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: Mobile Scissor Lift Application: Aerial Work
Platform: Anti-skid Safety Function: Emergency Stop
Platform Height: 11m Working Height: 13m
Highlight:

scissor lift mobile

,

mobile aerial work platform

11m Platform Height Mobile Scissor Lift 500Kg With Good Stability



Description:

Mobile Scissor lifts are also called as mobile scissor aerial work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters. They are designed to lift limited weights and capable of being fully operated by a single person. They are narrow enough to be used in industrial settings and can be driven through narrow aisles with ease.



The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.



Quick Detail:

Name Mobile Scissor Lift Brand Name Bestmax
Loading Capacity 500Kg Platform Height 11m
Platform Size 2.10*1.15m Color Red Color or Optional
Lifting Power 2.2Kw Power Supply AC/DC



11m Platform Height Mobile Scissor Lift 500Kg With Good Stability 0



Main Features:

1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4 The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.



Safety Precaution:

1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform



Major Parameters:

  • Model: MK1100
  • Loading Capacity 500kg
  • Maximum Height 11 m
  • Platform Size 2100*1150mm
  • Lifting Power 2.2kw
  • Power Voltage 1phase/220V/50HZ
  • Lifting Time 88s
  • Total Weight 1380kg



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack , sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø500-8 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabine



Factory Equipment:
11m Platform Height Mobile Scissor Lift 500Kg With Good Stability 1

Clients & Exhibition:

11m Platform Height Mobile Scissor Lift 500Kg With Good Stability 2

Our Certificates:

11m Platform Height Mobile Scissor Lift 500Kg With Good Stability 3



Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



Why Our Mobile Scissor Lift?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
