|Place of Origin:||China|
|Brand Name:||CHEN LIFT|
|Minimum Order Quantity:||1 set|
|Packaging Details:||PVC Film Wrapped in Pallets or Wooden Case|
|Delivery Time:||30 days after order confirmed|
|Payment Terms:||L/C, T/T|
|Supply Ability:||100 sets/ month|
|Loading Capacity:||240kg||Platform Height:||3.9m|
|Minimum Height (rails Up):||1.92m||Minimum Height (rails Down):||1.52m|
|Platform Size:||1.15*0.6m||Ground Clearance:||0.05m|
|Motor Power:||0.8kw||Power Voltage:||DC12V|
|Raise / Lower Time:||34s / 25s||Total Weight:||520kg|
scissor lift mobile,
automobile scissor lift

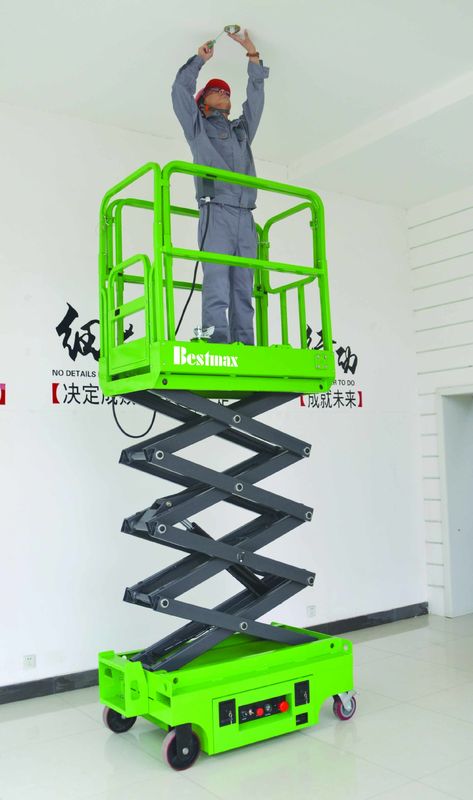

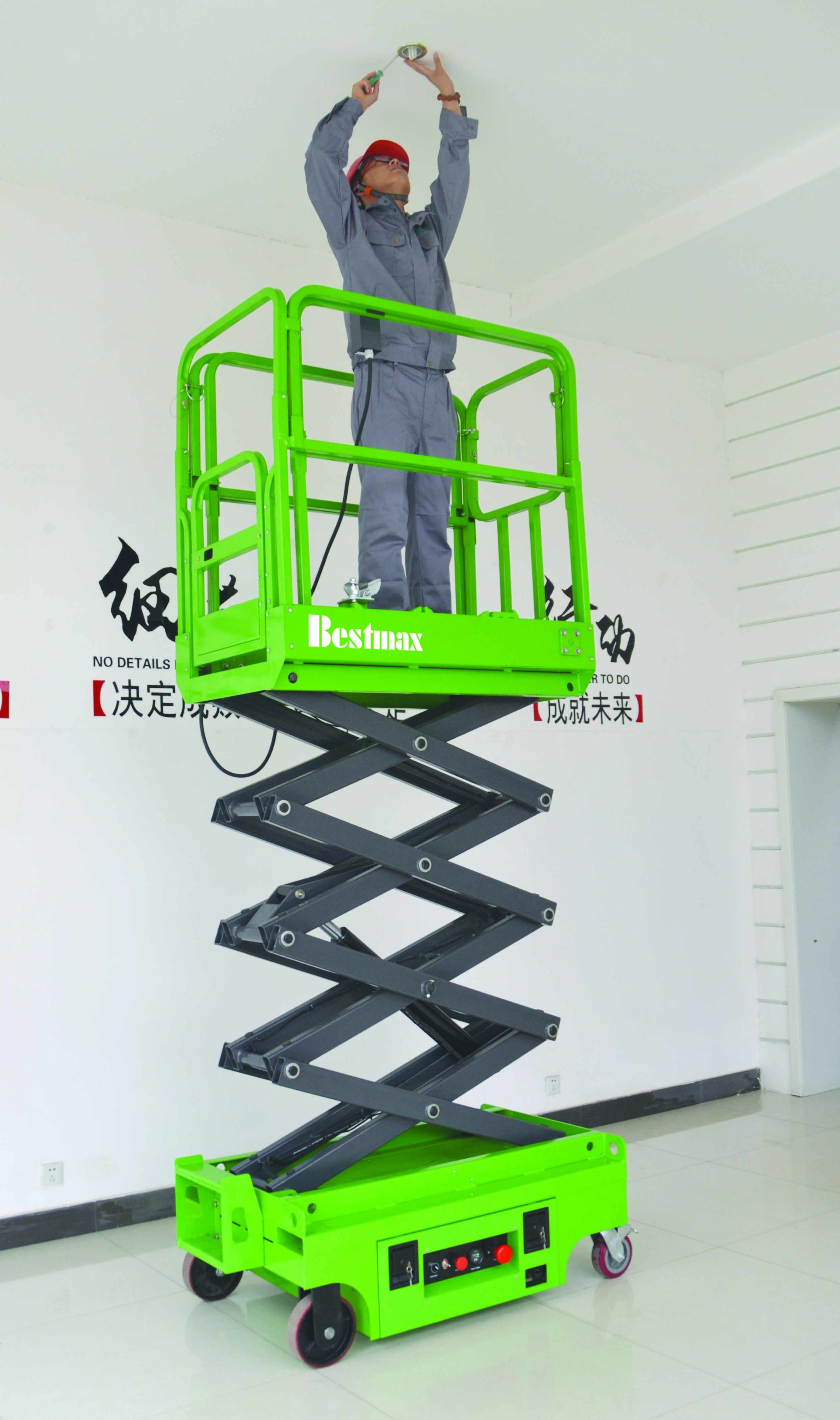

300KG Loading Capacity Mini Mobile Scissor Lift 3.9 Meters Platform Height
|Minimum Height (rails up)||1920mm|
|Minimum Height (rails down)||1520mm|
|Raise / Lower Time||34s / 25s|
This mini scissor lift is easy to use. The control panels are available on the platforms and ground.
The user can control the machine walking and lifting operation directly on the platform, and realize the single person working continuously at high altitude.
Because it is miniature, the height is limited, suit low position aerial work. They are used to provide contractors with temporary access to high-altitude areas that are inaccessible to various workplaces, such as maintenance, construction projects or fire crews emergency access.
The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.
1.Pointing control of lifting up and down.
2.Manganese steel lifting arm in high strength with rectangle shape
3.Anti skid floor in platform
4.The control panels are available on the platforms and ground.
5.Fine grinding cylinder in good sealing performance
6.Neatly folding guardrails
7.Battery and battery charger in bulit
8.Optional extension platform
· Model: MK390
· Loading Capacity 300kg
· Maximum Height 3900mm
· Minimum Height (rails up) 1920mm
· Minimum Height (rails down) 1520mm
· Platform Size 1150*600mm
· Lifting Power 0.8kw
· Power Voltage DC12V
· Raise / Lower Time 34s / 25s
· Total Weight 520kg
· Overall Size 1320*760*1920mm
· Electric system: Schneider contactor, SANLICO button, CHNT electrical
· Hydraulic System: Hycman brand power pack ,NOK sealing
· Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
· Platform Surface : Antiskid checkered plate
· Tyre: 6inch and 8inch , two swivel and two fixed
· High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose
1.The operation voltage on the platform is 24V
2.Emergency stop button on the paltform and ground
3.Auxiliary platform lowering
4.Hose burst valve safety
5.Rain-proof design electirc cabinet
6.Fodable fence on the platform
1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.
Why to choose CHEN LIFT Mobile Scissor Lift?
Good after Service
1 Year Warranty
More Than 10 Years Experience
Communication with Customers
A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
B: The main difference is from the structure and the material
The scissor lift is in scissor structure with steel material
The aerial work platform is in mast structure with aluminum material
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1.Strict quality control system on the whole process of production
2.Imported key arts to ensure the high quality of our products
3.Advanced equipment and tools for examination and quality control
4.100% strict examining products before shipment
5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
A: What is the delivery time for your goods?
B: it is 30days after order confirmation
A: What spare parts that you can offer?
B: We provide following spare parts freely for your maintenance of the machine:
|"O" Rubber Seals Φ11||3|
A: How long is your quality guarantee period?
B: We have one year warranty.
