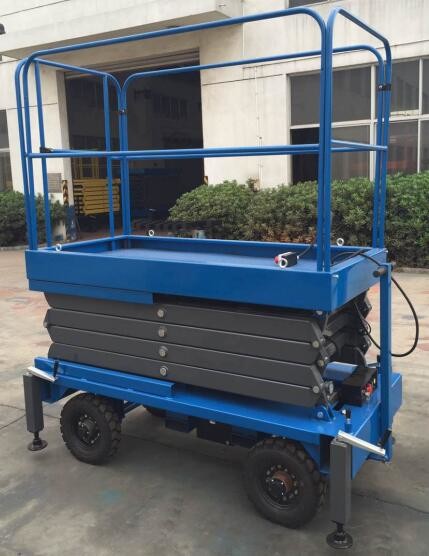

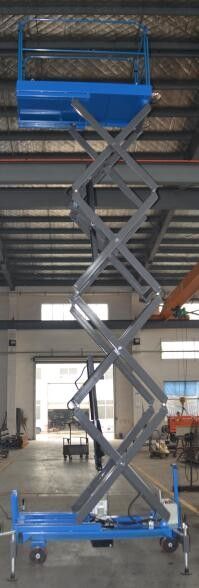

4.5m Platform Height 500Kg Loading Capacity Hydraulic mobile Scissor Lift

4.5m Platform Height 500Kg Loading Capacity Hydraulic Mobile Scissor Lift

Quick Detail:

Description:

Mobile Scissor lifts are also called as mobile scissor aerial work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters. They are designed to lift limited weights and capable of being fully operated by a single person. They are narrow enough to be used in industrial settings and can be driven through narrow aisles with ease.

The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.

Main Features:

1. Manual pushing around tupe (Not self-propelled)

2. Chassis - four-wheel drive

3. Power supply 230 +/ -10V or 400 +/ -20V

4. The lifting capacity is 500kg

6. The length of the platform is from  1800mm( between1500 and 2200mm)

7. Overall width :950mm

8. Platform lift height is 4.5m

9. with CE marking

10.Rain-proof electric cabinet
11.Beacon light
12.Anti-burst valve on cylinder
13.Inflated Tyre
14.Forklift slot
15.Towing hook
16.Pressure gauge
17.Auxiliary release valve
18.Level gauge
19.Emergency stop button both on platform and ground
20.Key lock power switch
21.Lockable stabilizer
22.Anti-skid floor on platform with removable handrails
23.Toe protection boards on the platform
24.Operation voltage at 24V
25.Ladders for access to the stowed platform (Ladder for easy accessibility)
26.Limit switch provided for top motor shut off
27.Over hoisting
28.Removable control box on platform
29.Interlock doors on platform
30.Detachable Fence
31.Powder coating painting
32.Spring mounted handles
33.Nylon bush assembled in between each scissor

Major Parameters

•  Model: SJY0.5-4.5
•  Loading Capacity 500kg
•  Platform Height 4500mm
•  Overalll width 950mm
•  Length of Platform 1800mm
•  Motor Power 1.5kw
•  Power Supply 230 +/ -10V or 400 +/ -20V
•  Total Weight 800kg

Configurations:

•    Electric system: Schneider contactor, SANLICO button, CHNT electrical
•    Hydraulic System: Hycman brand power pack , sealing
•    Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
•    Platform Surface : Antiskid checkered plate
•    Tire: Ø200 Polyurethane wheels
•    High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.

Why to choose CHEN LIFT Mobile Scissor Lift?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 15 Years Production Experience

Communication with Customers

A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?

B: it is 30days after order confirmation

A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

A: How long is your quality guarantee period?

B: We have one year warranty.
