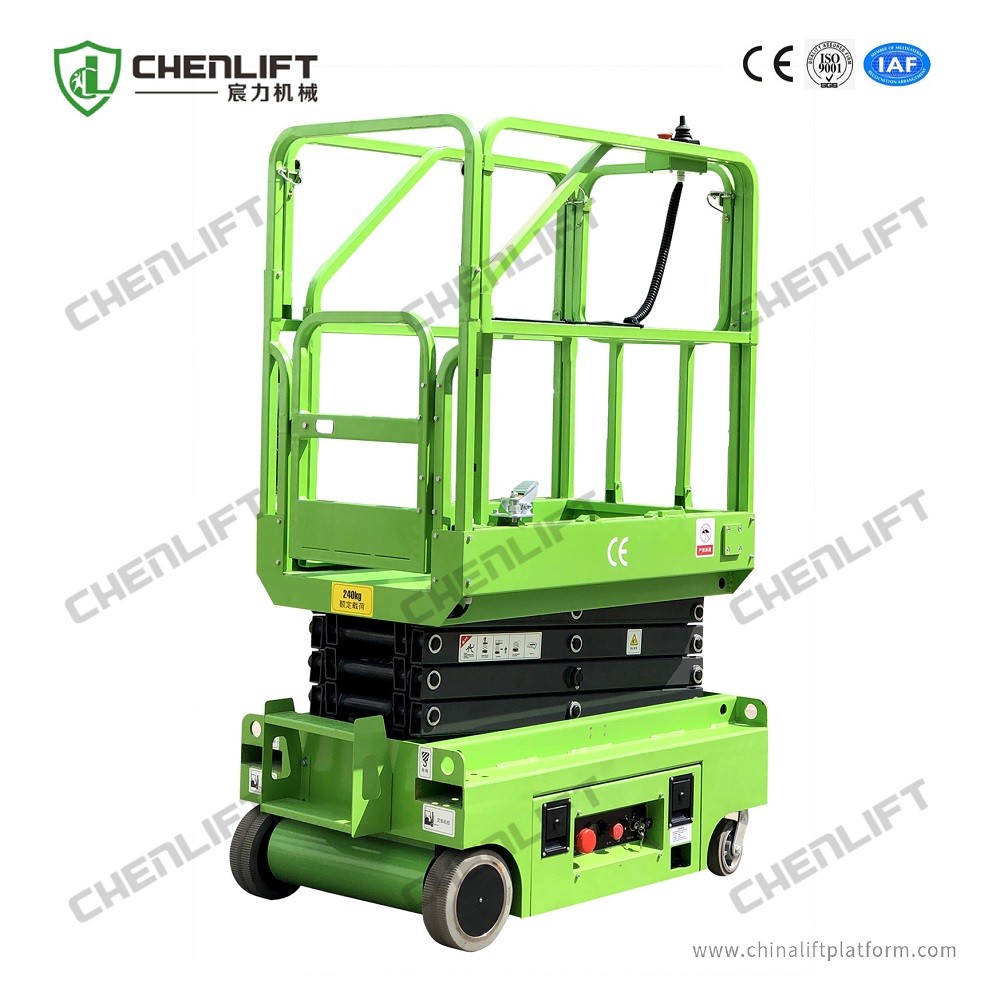

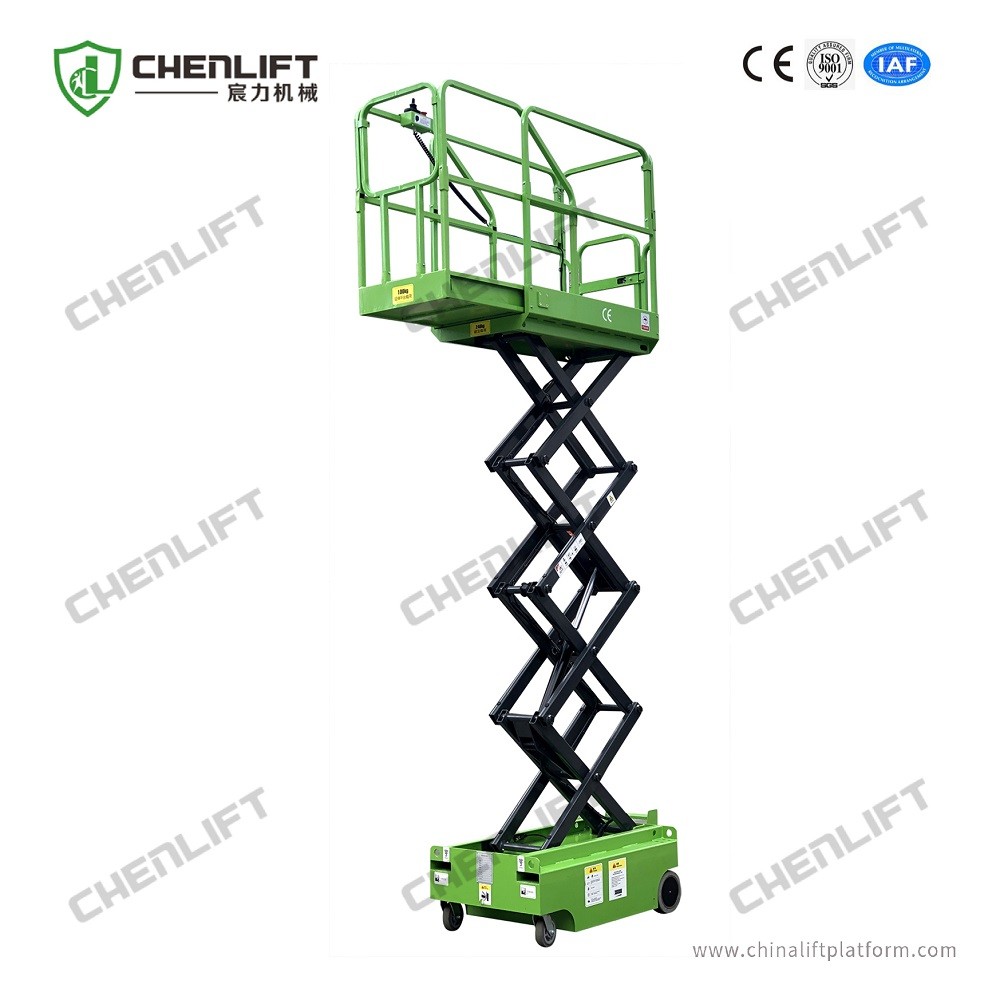

Mini Self Propelled Scissor Lift MEWP 3 Meters Electric Mobile Scissor Lift 240kg Loading Capacity

Mini Self Propelled Scissor Lift MEWP 3 Meters Electric Mobile Scissor Lift 240kg Lifting Capacity

Description:

Mini self-propelled scissor lifts are also called as mini electric scissor lifts or mini electric elevated work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance and construction work. They are designed to lift limited weights and capable of being fully operated by a single person. It is unique in carrying capacity and a wide platform that can bring more workers and tool set, whether indoors or outdoors.

Machine Features:

1. Battery Operated with Hydraulic Drive Motor
2. Extension Platform to reach the site quickly
3. Fork Lift Slots for easy transportation
4. Automatic display of fault code for easy maintenance
5. Low Noise, Non-Pollution and Strong Adapbility for various using sites

Safety Features:


1. Auxiliary Lowering Devices
2. Anti-burst System
3. Emergency Stop Button
4. Tilting Protection System
5. Charging Protection System
6. Automatic Pothole Protection
7. Automatic Braking System
8. Buzzer and Horn

Configurations:

o Standard detachable platform

o Extended platform

o Proportional controls for lift and drive functions

o Automatic 25Amp battery charger provides strong power for vehicle

o Safe distance protection when the platform lowering down

o Manual emergency platform lowing valve. When there is no power the machine can lower down safely.

o Emergency stops are at both platform and ground control boxes.

o Drive speed interlock limits speed while elevated

o Multiple disc brakes provide smooth deceleration

o When there is no power manual brake release function can move the machine under the circumstance when there is no other forklift, lifting equipment and so on.

o Pothole guards protect the machine from tilting down when the machine moving on the raised position

o Non-marking tires make sure there is no damage and no marks on the ground

o AC wiring to platform

o Tilt level sensor with audible alarm

o Beeper horn

o Hour meter

o Safety brackets

o Battery charge indicator

o Forklift sockets

o Diagnosis system

o Fault code display

Optional Configuration:

o Fold-able guardrail

o Motion alarm

o Platform swing gate

o Air line to platform

o Dual flashing beacon

o Maintenance-free battery

o Horn

o Platform work lights

o Key-type lock sliding door

o Anti-collision system

o Head protection stop system

Specification:

Why choose CHEN LIFT Self-propelled Scissor Lift?

· Much quieter

All Bestmax MX-series adopt high-performance battery power, pollution-free and no emissions, low noise electric pump, can also be used even in the area of high environmental requirements, such as office buildings, hotel, hospital, school and so on.

· Flexible Operation

Fully proportional joystick control, either lifting or moving, all can easily operate in the joystick.
Zero inside turning radius allowing users to use in a narrow space, and also facilitate changing positions. MX-series has two kinds of moving speed to secure move quickly and lift safely. All the MX-series scissor lifts have extended platforms which makes the operator get close to the work points much easier and breakthrough the space obstacles.

· Easy maintenance

Bestmax MX-series give full consideration to the convenience of the users in their daily work maintenance. All the Bestmax Electric Self-propelled Scissor Lifts have fault diagnosis system, this makes the user can find the point of failure in one time. Door-open control box and battery box allow maintenance person to find the maintenance point quickly and easily. Also it is easier to change the spare parts. The scissor booms repair bracket, so that the user dose not need the help of lifting equipment, boom system can be easily overhaul.
