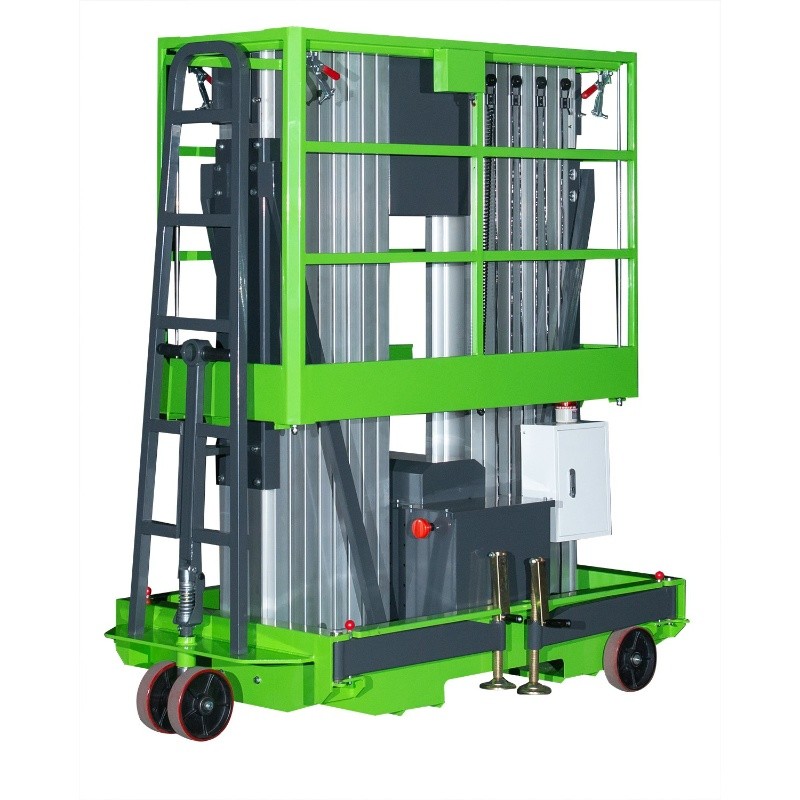

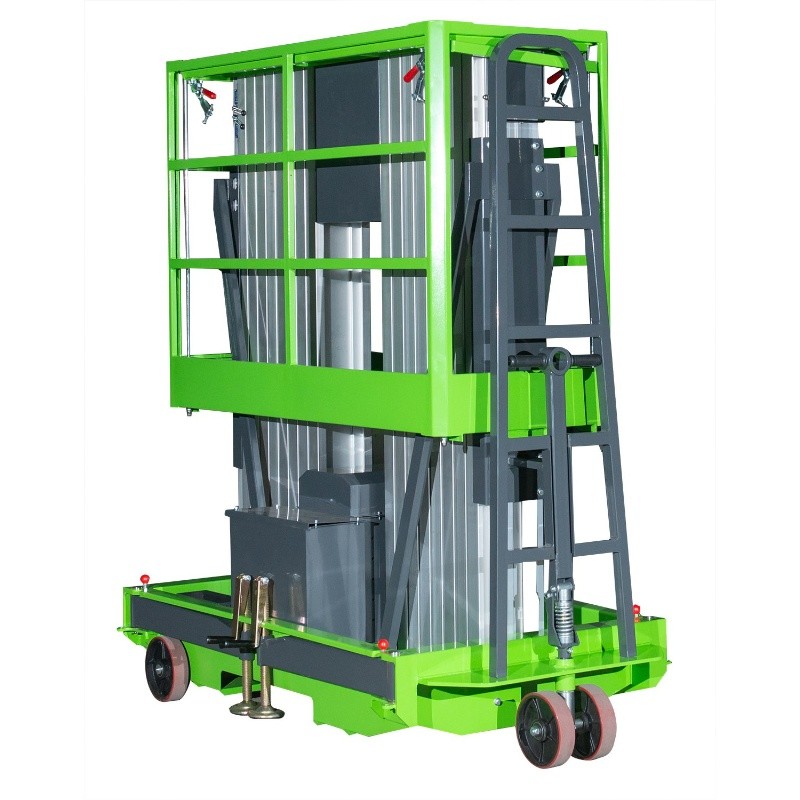

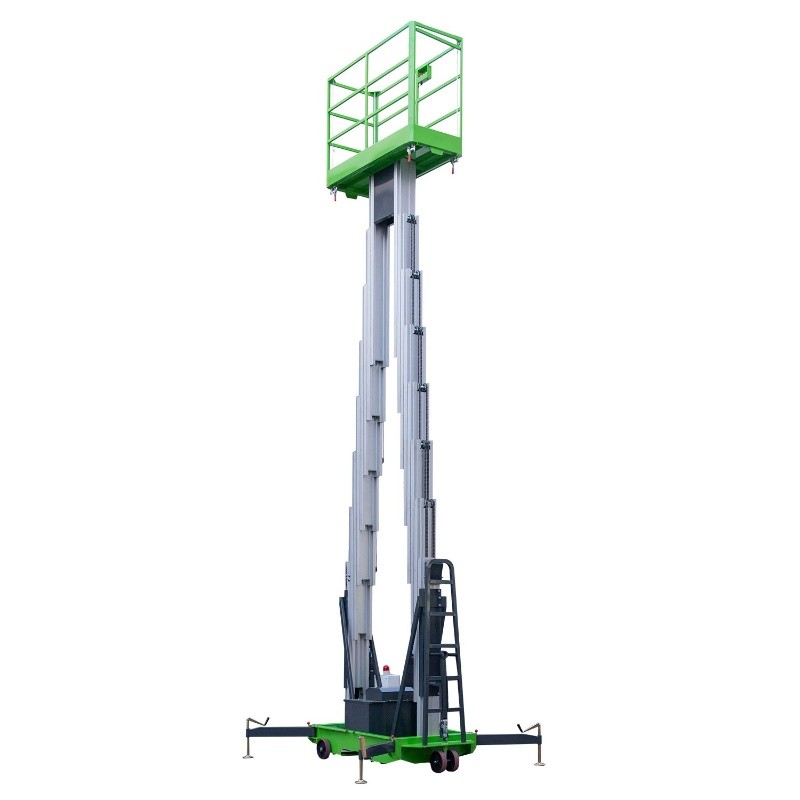

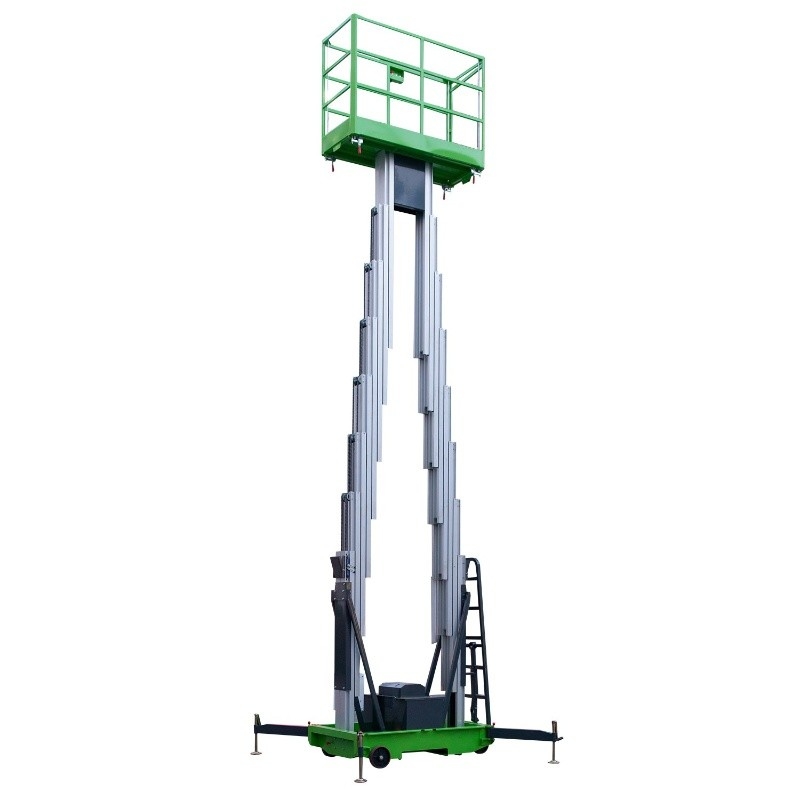

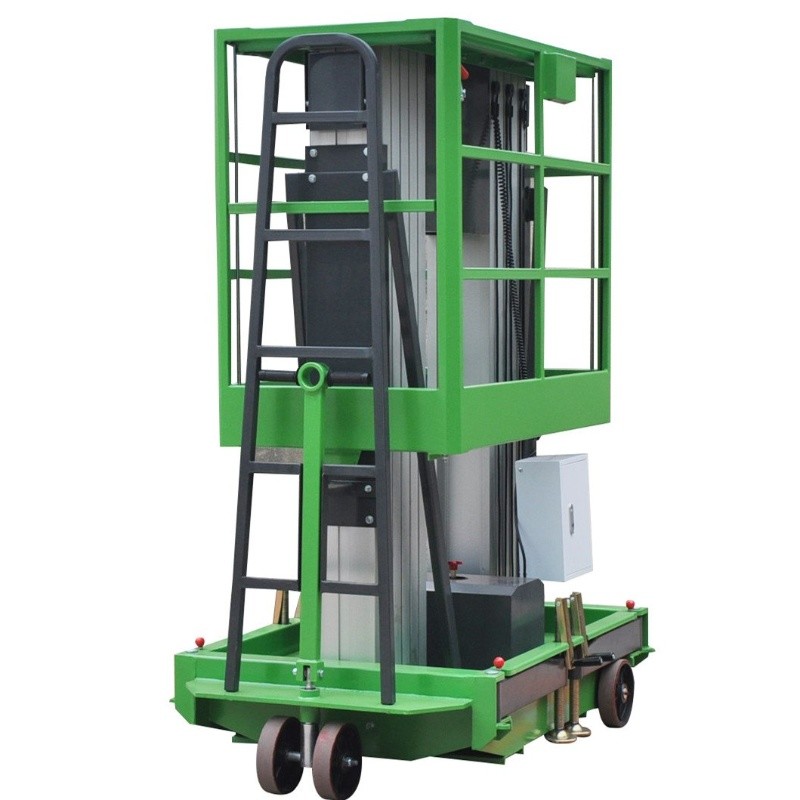

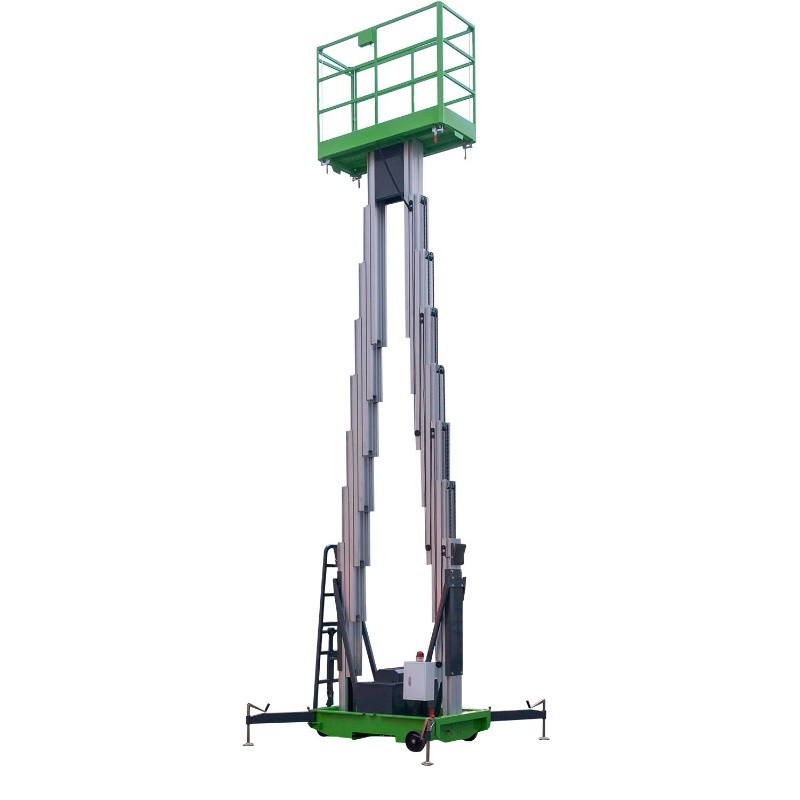

Portable Aerial Work Platform Vertical Lift 12m Platform Height Double Mast

Portable Aerial Work Platform Vertical Lift 12m Platform Height Double Mast

    • Portable Aerial Work Platform Vertical Lift 12m Platform Height Double Mast
    • Portable Aerial Work Platform Vertical Lift 12m Platform Height Double Mast
    • Portable Aerial Work Platform Vertical Lift 12m Platform Height Double Mast
    • Portable Aerial Work Platform Vertical Lift 12m Platform Height Double Mast
    • Portable Aerial Work Platform Vertical Lift 12m Platform Height Double Mast
  • Portable Aerial Work Platform Vertical Lift 12m Platform Height Double Mast

    Product Details:

    Place of Origin: CHINA
    Brand Name: Bestmax
    Certification: CE, IPAF ISO9001:2001
    Model Number: GTWY12-200 (ME1200-2)

    Payment & Shipping Terms:

    Minimum Order Quantity: ONE SET
    Price: NEGOTIABLE
    Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
    Delivery Time: 30 days after order confirmed
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 200kg Platform Height: 12m
    Working Height: 14m Platform Size: 1.52*0.62m
    Weight: 830kg Lifting Motor: 1.1Kw



    Portable Aerial Work Platform Vertical Lift 12m Platform Height Double Mast



    Major Configurations:

    Model GTWY12-200 (ME1200-2)
    Platform Height 12m
    Working Height 14m
    Platform Size 1.52*0.62m
    Overall Size 1.76*1.00*2.00m
    Occupying Size when outrigger opened 2.1*2.0m
    Loading Capacity 200kg
    Power Both AC & DC
    Weight 830kg



    Description:

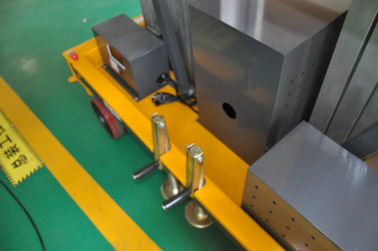

    Compare to our old type Aluminum Aerial Work Platform, the chassis of the new model has changed a lot. There has four outrigger fixing holes to fix the outriggers during transportation. The handler is made inside the ladder with two universal wheels which makes the turning of the machine much easier. The ground control panel has a cover to protect it from the water.



    Main Features:
    1. Most rigid aluminum alloy profile
    2. Auxiliary platform lowering
    3. Multi-guide pulley on mast
    4. Durable base system
    5. Chassis with level gauge
    6. DC working power on the platform
    7. Easily rolls through a narrow space
    8. Emergency stop button
    9. Over load protection
    10. Built-in pressure release valve
    11. Dual activated up/down switch
    12. Locking Key Switch

    Optional Configuration:
    1. DC24V
    2. Oversea Brand Hydraulic Power Pack
    3. Explosion-Proof System
    4. Stainless Steel Fence
    5. Motorized Device



    Portable Aerial Work Platform Vertical Lift 12m Platform Height Double Mast



    Applications:
    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.

    Why choose Our Mobile Vertical Lift?
    · High Quality
    · Reasonable Price
    · Good after Service
    · 1 Year Warranty
    · More Than 10 Years Experience
